Product Description
4 Color Digital Printer Roll To Roll Printing Machine UV Injket Label Printer
TS108/216 digital label machine is a printing equipment that can mix digital + traditional printing.
The entire system is very cost-effective and can be called the "ideal choice" for printing companies that are expanding their production capacity and those that want to open up digital production lines in addition to existing analog machines, helping customers set up a complete set of digital printing production lines.
The entire system is very cost-effective and can be called the "ideal choice" for printing companies that are expanding their production capacity and those that want to open up digital production lines in addition to existing analog machines, helping customers set up a complete set of digital printing production lines.
Specification
Model | MT-TS108 | MT-TS216mm | |
Printing technology | DOD piezoelectric inkjet Kyocera Head | ||
Print width | 108mm | 213mm | |
Ink | LED-UV curable ink | ||
Print Resolution | 600*600dpi / 600*1200dpi | ||
Number of Print Heads | 5 heads | 10 heads | |
Print speed | 50 meters/min | ||
Color | 4 lnk channels+spot color | ||
Ink Tank Volume | 3L | ||
Connectivity | Fast Ethernet | ||
Rip Software | Print Factory、Mengtai、Onxy | ||
Core Diameter | 76mm (3” Inflatable axis) | ||
Roll-fed Width | Max.ф500mm | ||
Roll Diameter | Max.ф500mm | ||
Pre-Curing | LED (Air cooling) | ||
Final Curing | LED (Water cooling) | ||
Media Width | Max.230mm | Max.250mm | |
Media Type | Coated and uncoated paper、PP、PVC、BOPP、etc. | ||
Material Thickness | 0.08-0.5mm （0.003-0.02"） | ||
Working Environment | Low dust, less light, Temperature: 15-30℃ (recommended 22-26℃) Humidity Relative humidity: non-condensing 25%-80% (55%-65% recommended) | ||
Power Supply | Single phase 220V 30A | ||
Air Supply | Dry compressed air, 6-8bar | ||
Dimensions | 2000x1300x1850mm | 2000x1430x1850mm | |
Weight | 1430kg | 1700kg | |
Product Details

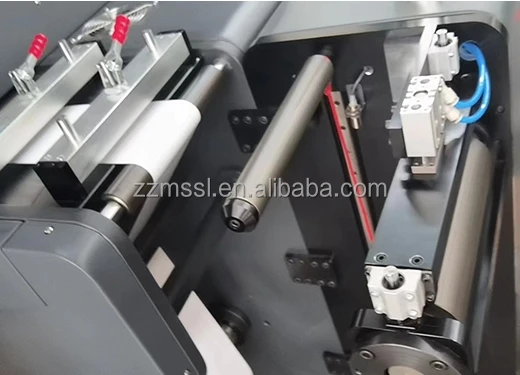

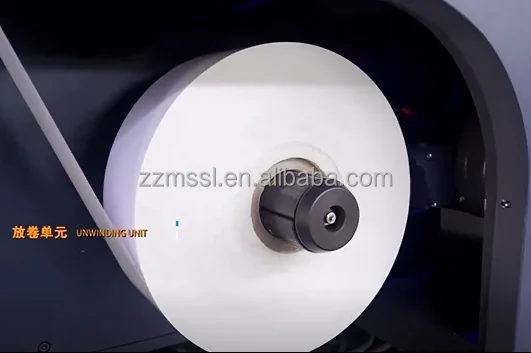

Unwinding unit
A 76.3mm(3")servo-driven unwind spindle with magnetic particle clutch.

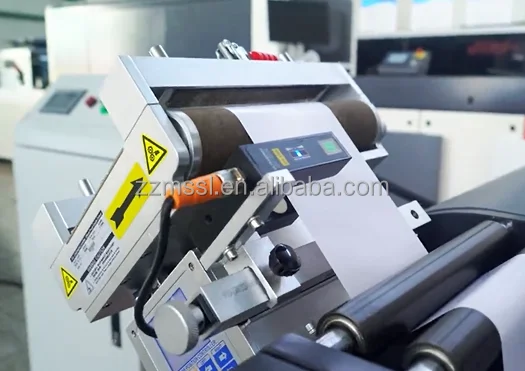

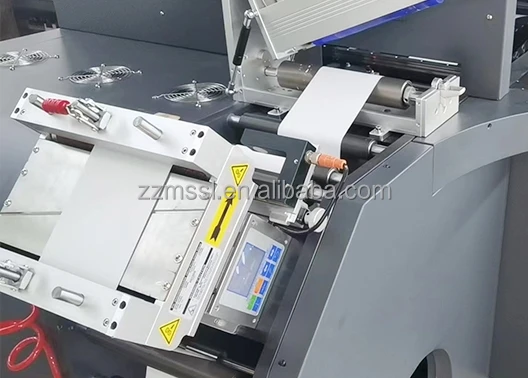

Web guide
Electronic web guiding system for high accuracy feeding and ensure of smooth alignment.

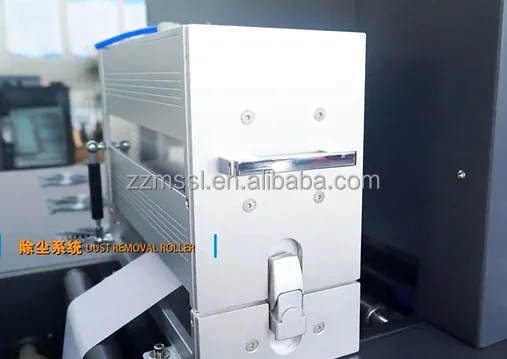

Dust removal roller
Clean off dust and particle of paper waster,dry powder and other visible particles.
Allows full automatic purging,wiping, and capping for convenient unattended operation.
Utilizes a 76.2(3") servo-driven rewind spindle with magnetic particle clutch and closed-loop tension control system. supporting
rewind diameter up to 500mm(19.7").
rewind diameter up to 500mm(19.7").

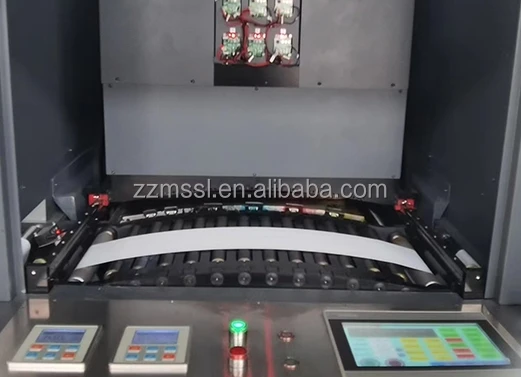

Position of the print module can be adjust within full media region(230-250mm), it can be fine-tuning from control software but no
need to adjust media.
need to adjust media.
Effectively pretreats the surface of substrates to increase the adhesion of inks.
Finished Products
Packing & Delivery
Company Profile
Zhengzhou Miles Technology Co. , Ltd. is a production of filling, labeling, sealing equipment and packaging, washing machinery manufacturers, with perfect testing facilities and strong technical force.
A wide range of products, good quality, reasonable price, design fashion, widely used in printing, packaging and other industries.
Our products are widely recognized and trusted by our users to meet changing economic and social needs.
We welcome new and old customers from all walks of life to contact us, looking for future business relations and common success
A wide range of products, good quality, reasonable price, design fashion, widely used in printing, packaging and other industries.
Our products are widely recognized and trusted by our users to meet changing economic and social needs.
We welcome new and old customers from all walks of life to contact us, looking for future business relations and common success
FAQ
1.Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 10 years and also a professional exporter.
2. Q: What about the payment term?
A: Mostly 30%T/T in advance as deposit, 70% T/T when machine is finished before shipping.
3. Q: What is the warranty?
A: One year warranty after sales.During the warranty period, we will send the spare parts that break out due to the quality.
4. Q: What is your after sale service?
A: Any questions will be responded within 24 hours by email, Skype, call or Whatsapp/Wechat.
5. Q: What is the delivery time?
A: Mostly it takes 5 to 10 working days (depend on different machine).
2. Q: What about the payment term?
A: Mostly 30%T/T in advance as deposit, 70% T/T when machine is finished before shipping.
3. Q: What is the warranty?
A: One year warranty after sales.During the warranty period, we will send the spare parts that break out due to the quality.
4. Q: What is your after sale service?
A: Any questions will be responded within 24 hours by email, Skype, call or Whatsapp/Wechat.
5. Q: What is the delivery time?
A: Mostly it takes 5 to 10 working days (depend on different machine).
