Бензиновый асфальтоукладчик дорожный станок 25 см-1 метр Ширина мини-асфальтоукладчик для
- Категории: >>>
- Поставщик: Shandong,Huashuo,Machinery,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

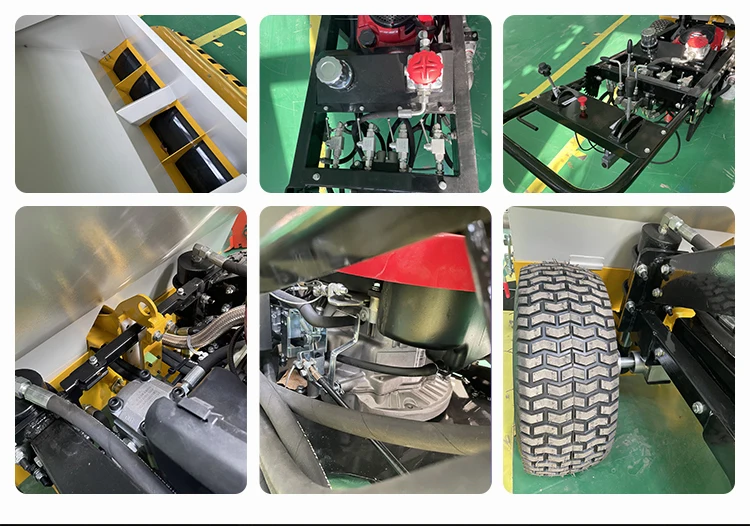

Standard configuration
(1)Hydraulic bridge with dual-wheel drive, swiveling steering wheel.
(2)Forward and reverse handle control.
(3)Independent control of paving thickness with dual hydraulic cylinders on the left and right.
(4)Four selectable paving widths.
(5)Engine exhaust heating plate function.
(6)Detachable hopper.
(7)Handle-operated brake.
(1)Hydraulic bridge with dual-wheel drive, swiveling steering wheel.
(2)Forward and reverse handle control.
(3)Independent control of paving thickness with dual hydraulic cylinders on the left and right.
(4)Four selectable paving widths.
(5)Engine exhaust heating plate function.
(6)Detachable hopper.
(7)Handle-operated brake.
Technical Specifications | Value |
Weight | |
Maximum Operating Weight | 530 kg |
Empty Weight | 260 kg |
Dimensions | |
Maximum Length | 2000 mm |
Transport Dimensions (LxWxH) | 1690x1000x1150 mm |
Maximum Working Width | 1000 mm |
Minimum Working Width | 250 mm |
Chassis | |
Front Drive Wheels | 2x Hydraulic drive wheels, diameter 400mm |
Rear Steering Wheel | 1x Swivel wheel, diameter 260mm |
Traction | |
Maximum Working Speed | 28 m/min |
Maximum Transport Speed | 3.2 Km/H |
Engine | |
Model | HONDA GXV160 |
Emission Standard | EPA |
Rated Power | 3.2 Kw |
Specifications | Air-cooled single-cylinder gasoline engine |
Number of Cylinders | 1 |
Fuel Capacity | 4 L |
Product Advantages
Application

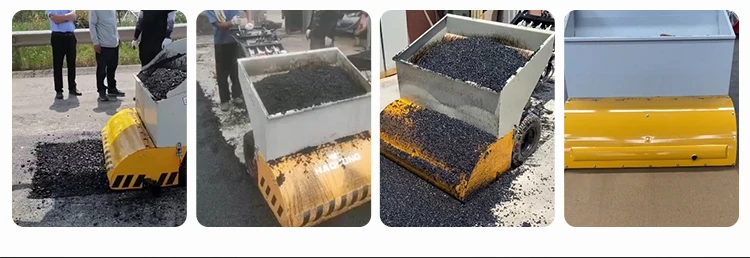

Small asphalt pavers find extensive applications in areas such as small roads, sidewalks, bicycle lanes, parking lots, and repair projects. Their portability, efficiency, and flexibility make them an ideal choice for various small and medium-sized road construction projects, as well as urban infrastructure, rural roads, and other small construction projects.
Packing & Delivery
Company Profile
Shandong Huashuo Machinery Manufacturing Co., Ltd. is a high-tech enterprise integrating technology research and development, manufacturing, production, sales and service, specializing in the manufacture of various types of machinery and equipment. With a workshop of more than 40,000 square meters, the head office is located in Jining, Shandong Province, the hometown of Confucius and Mencius, the origin of Confucian culture, and the production base of Chinese machinery and equipment - Jining, Shandong Province.
The company has a complete range of mechanical processing equipment, strictly implements the (ISO9001) quality assurance system, adopts advanced technology at home and abroad, and has more than 200 high-end technical R&D personnel. It mainly produces concrete laser leveling machines, frame leveling machines, Trowels, grinders, milling machines, road cutters, concrete mixer trucks, transport vehicles, concrete pumps, sliding film machines, loaders, excavators, road rollers, drilling and exploration equipment and other types of construction machinery and equipment to expand environmental protection Cleaning equipment, agricultural garden machinery and equipment, precision tool manufacturing, etc., developed more than 150 utility model technology patents, and became a large-scale pillar enterprise in the industry. , focus on results" management policy, has passed ISO9001 quality system certification and EU CE certification.
Shandong Huashuo Machinery Manufacturing Co., Ltd. has become an international company. We aim at globalization of production and have now exported to Russia, Japan, South Korea, Indonesia, Brazil, Mexico, Dubai, Australia, South Africa, the Middle East, Central Asia, Southeast Asia, the European Union, etc. More than 70 countries and regions, well received by customers, our overall user support services include pre-sales and after-sales services. On a global scale, our brand "Made by ASUS" represents the international advanced technology, which has won the trust and respect of customers, strict quality control and customer service, and responds skillfully and dedicatedly to every customer's needs. We carry out user operation and maintenance training seriously and comprehensively. We systematically and thoroughly plan the maintenance and repair training of our dealers. Choose us, you will not be disappointed, warmly welcome new and old customers at home and abroad to visit our company, guide and cooperate.
Meeting customer requirements is the goal of our work.
The pursuit of product perfection is our driving force.
The company has a complete range of mechanical processing equipment, strictly implements the (ISO9001) quality assurance system, adopts advanced technology at home and abroad, and has more than 200 high-end technical R&D personnel. It mainly produces concrete laser leveling machines, frame leveling machines, Trowels, grinders, milling machines, road cutters, concrete mixer trucks, transport vehicles, concrete pumps, sliding film machines, loaders, excavators, road rollers, drilling and exploration equipment and other types of construction machinery and equipment to expand environmental protection Cleaning equipment, agricultural garden machinery and equipment, precision tool manufacturing, etc., developed more than 150 utility model technology patents, and became a large-scale pillar enterprise in the industry. , focus on results" management policy, has passed ISO9001 quality system certification and EU CE certification.
Shandong Huashuo Machinery Manufacturing Co., Ltd. has become an international company. We aim at globalization of production and have now exported to Russia, Japan, South Korea, Indonesia, Brazil, Mexico, Dubai, Australia, South Africa, the Middle East, Central Asia, Southeast Asia, the European Union, etc. More than 70 countries and regions, well received by customers, our overall user support services include pre-sales and after-sales services. On a global scale, our brand "Made by ASUS" represents the international advanced technology, which has won the trust and respect of customers, strict quality control and customer service, and responds skillfully and dedicatedly to every customer's needs. We carry out user operation and maintenance training seriously and comprehensively. We systematically and thoroughly plan the maintenance and repair training of our dealers. Choose us, you will not be disappointed, warmly welcome new and old customers at home and abroad to visit our company, guide and cooperate.
Meeting customer requirements is the goal of our work.
The pursuit of product perfection is our driving force.
FAQ
Q1: What about the Minimum Order Quantity?
A1: The MOQ is 1 pcs.
Q2: What about the delivery time?
A2: 7-30 days after receving the balance payment.
Q3: What kind terms of payment can be accepted?
A3: T/T, L/C, Western Union is available.
Q4: What about after-sale service?
A4:12 months warranty for all kinds of products.
A1: The MOQ is 1 pcs.
Q2: What about the delivery time?
A2: 7-30 days after receving the balance payment.
Q3: What kind terms of payment can be accepted?
A3: T/T, L/C, Western Union is available.
Q4: What about after-sale service?
A4:12 months warranty for all kinds of products.
