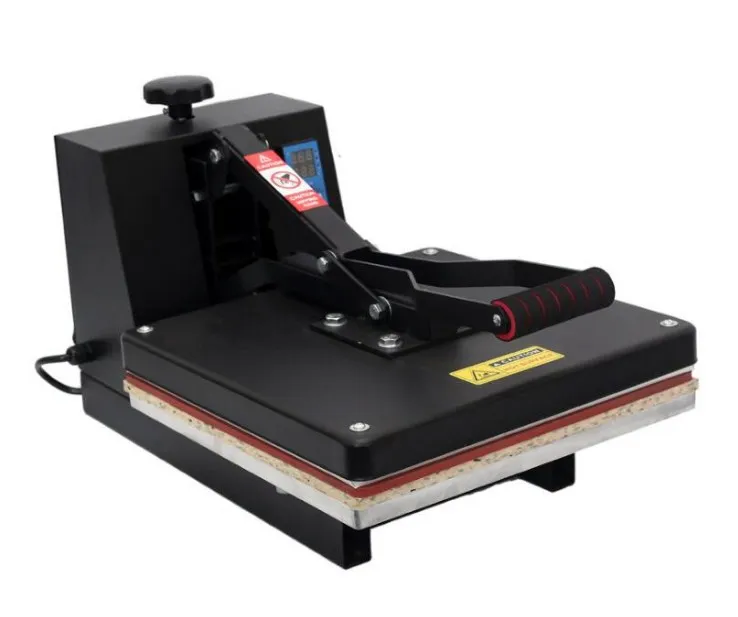

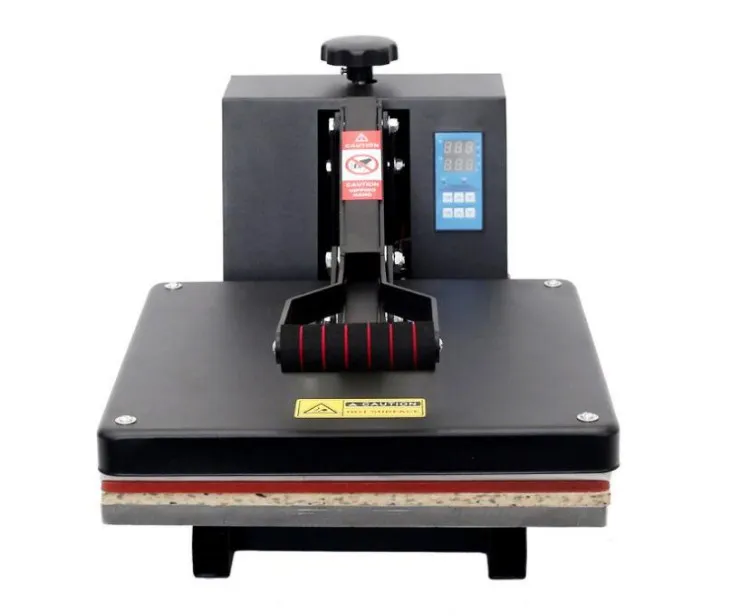

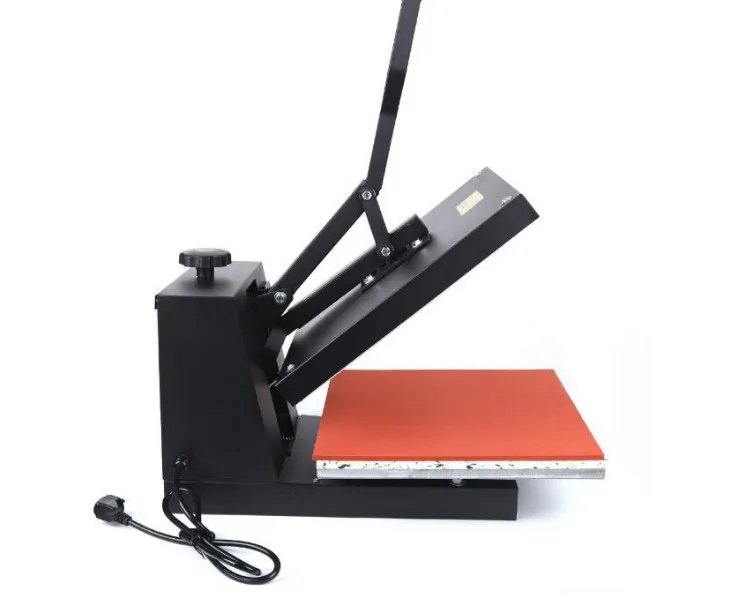

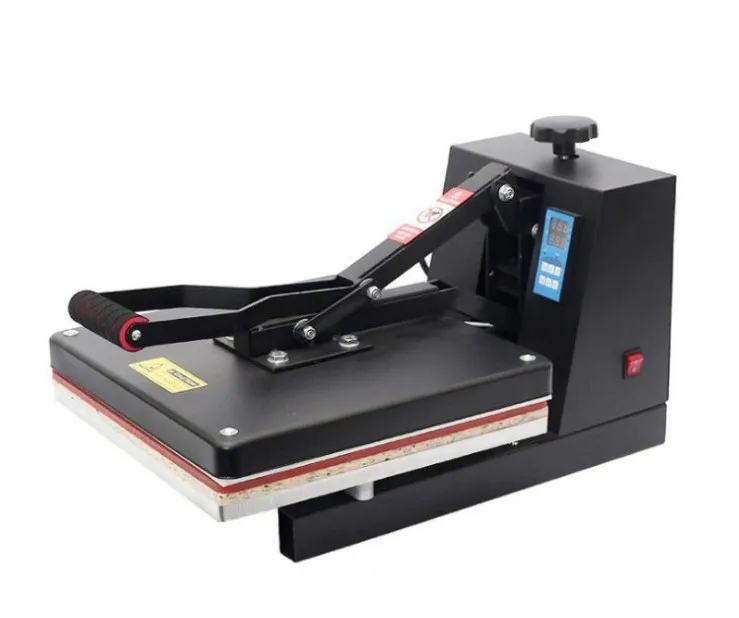

SPECIFICATIONS FOR T-SHIRT HEAT PRESS MACHINE |
Item No. | RB-YW38 |
Temperature range | 0-399 ℉ |
Time range | 0-999Sec |
Power | 1800W |
Weight | 25KG |
Packing size | 71*46*44cm |
Working size | 38*38cm(15"x15") |
Voltage | 110V/220V |
Certificate | CE |
Warranty | One Year |
1) Simple structure and easy in installation and maintation.
2) Running in a digital control of temperature and time.
3) Apply for personalized customization of tshirts and every flat surface items.
4)Based on kinesiology design, equality pressure,The pressure can be adjusted freely according to you need.very convenient.
5)With high temperature fabric as anti-adhesive clad layer for heating plate,prevent the clothes burned yellow, easy to clean,can be replaced,without loss can work permanently.
1.Check the voltage before using it.Then turn on the power supply!
2.Plug in,turn on the power switch of machine,the power indicator lightened.
3.Set the thermostat to the temperature needed (Normally 120-200ºC),set the timer to the needed.(Normally 5~20Second).
4.Place the clothes to the main plate,cover the printing paper(please note the right surface of the paper).Press the handle down until reach terminal.
5.When the time come down to over,the buzzer alarms,pull the handle back.
6.If it is the hot-ripping of the transfer paper,you can rip off immediately after printing.If it is cold-ripping of the transfer paper,please use blackboard wiper to rub against the whole transfer paper,wait for 5-10 seconds,then rip off the transfer paper.
Please note : successful print requires right time,temperature and pressure,the thickness of the clothes material,even the type of printing paper,all will affect the performance of printing.Any kind of sublimation paper need test before mass production.
Packaging | ||
Size | 710 (L) * 460 (W) * 440 (D) | |
Weight | 25 KG | |
Packaging Details | The normal package is Carton Box(Size:71*46*44cm),If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
