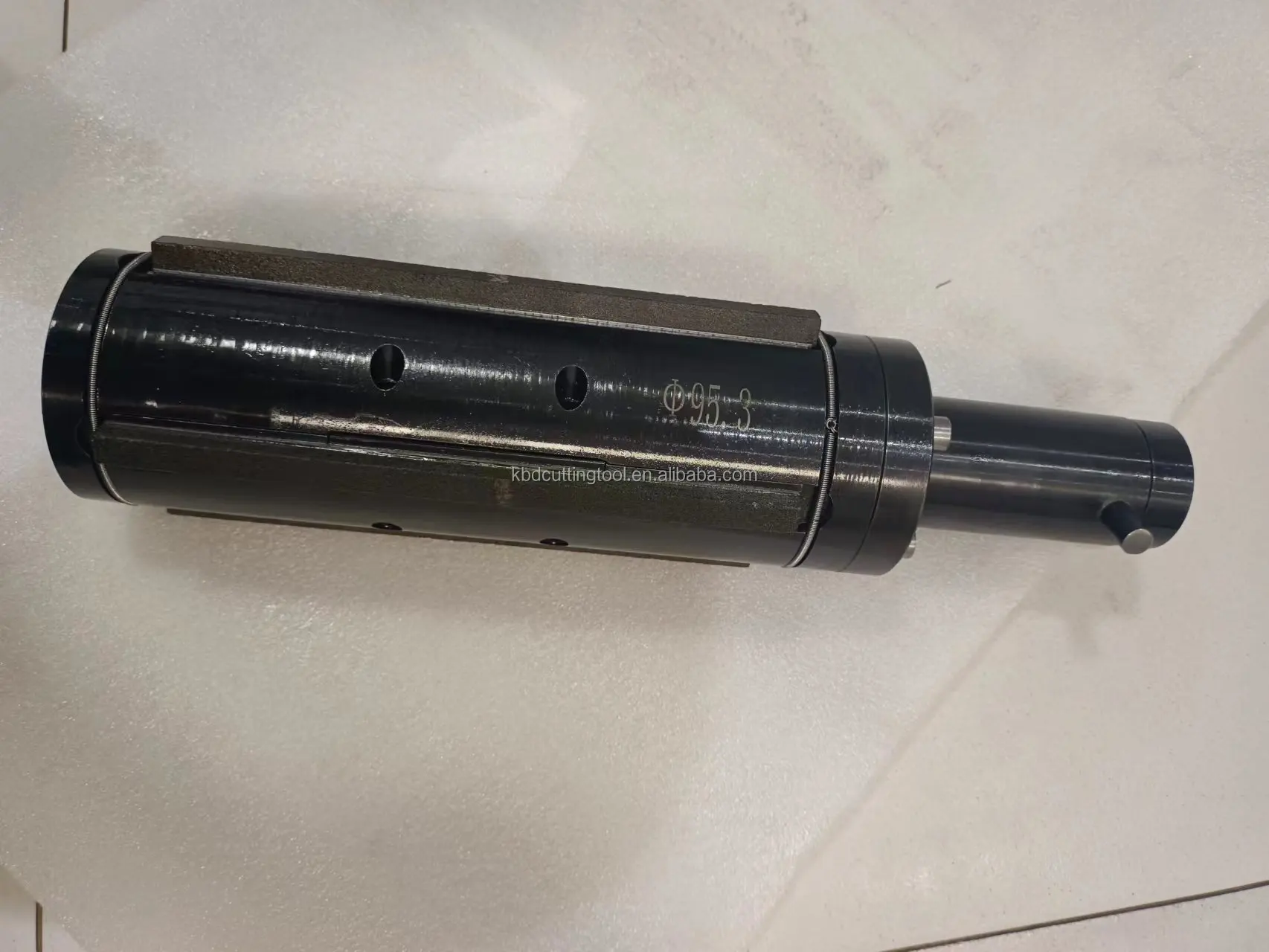

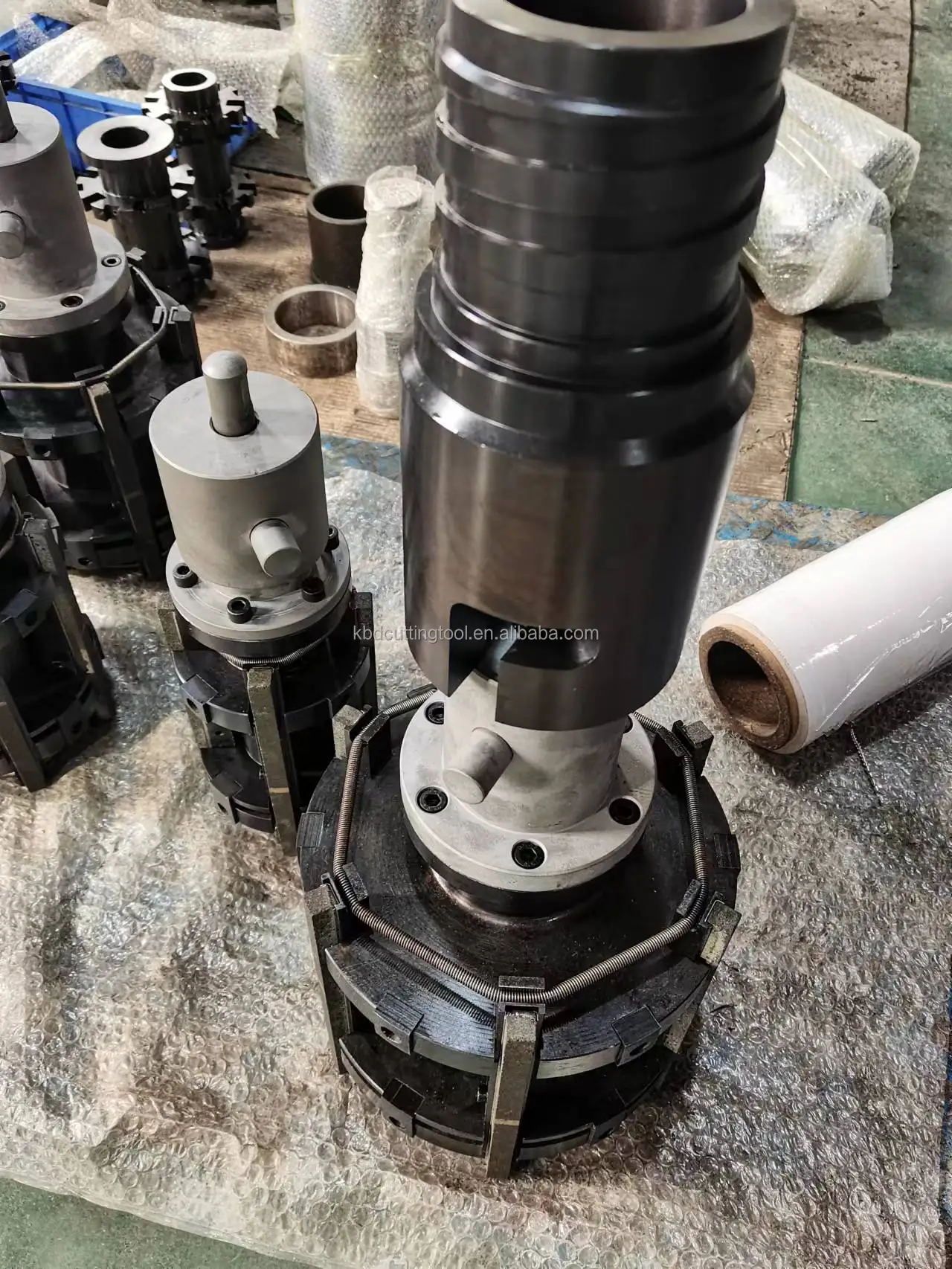

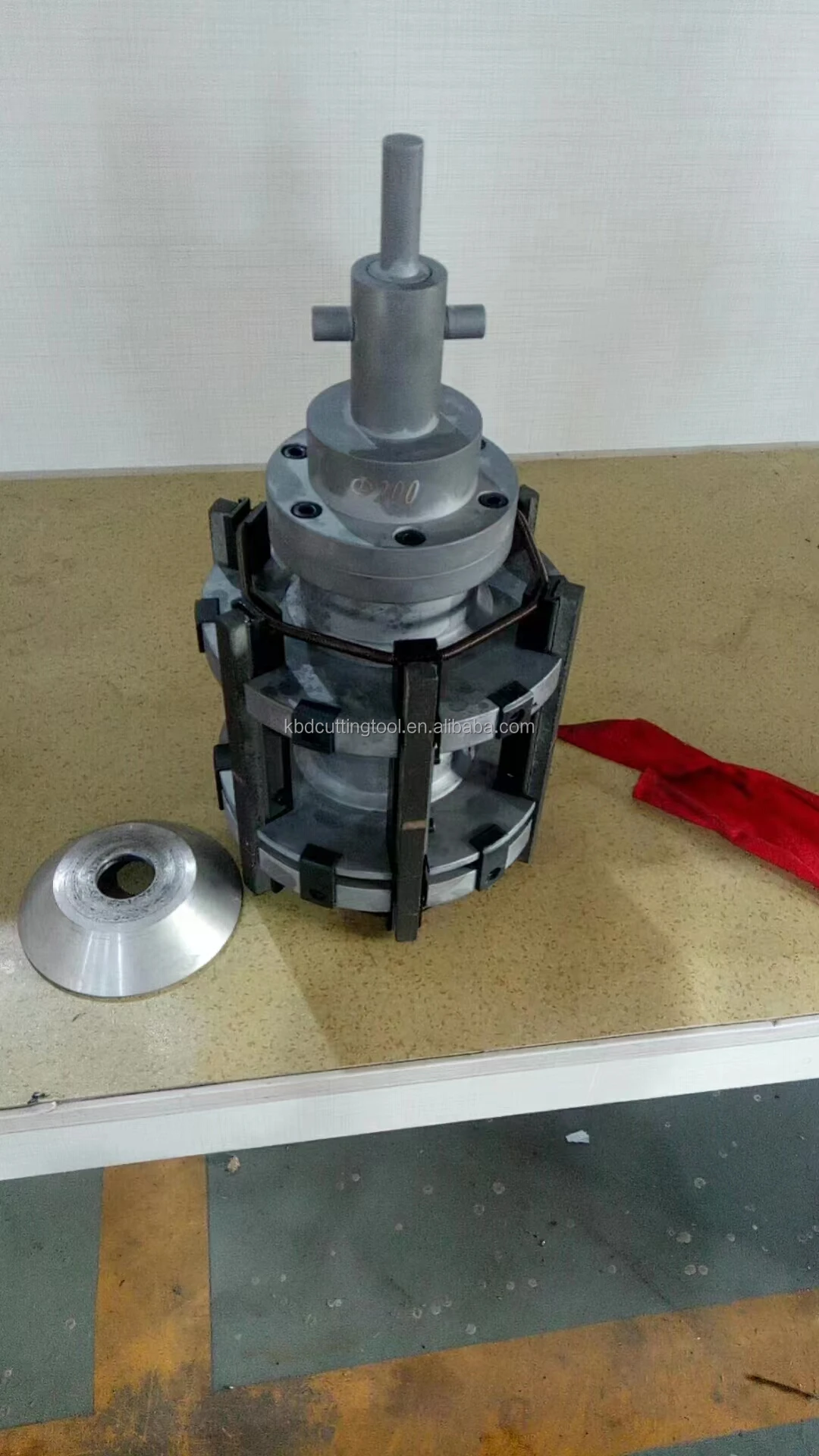

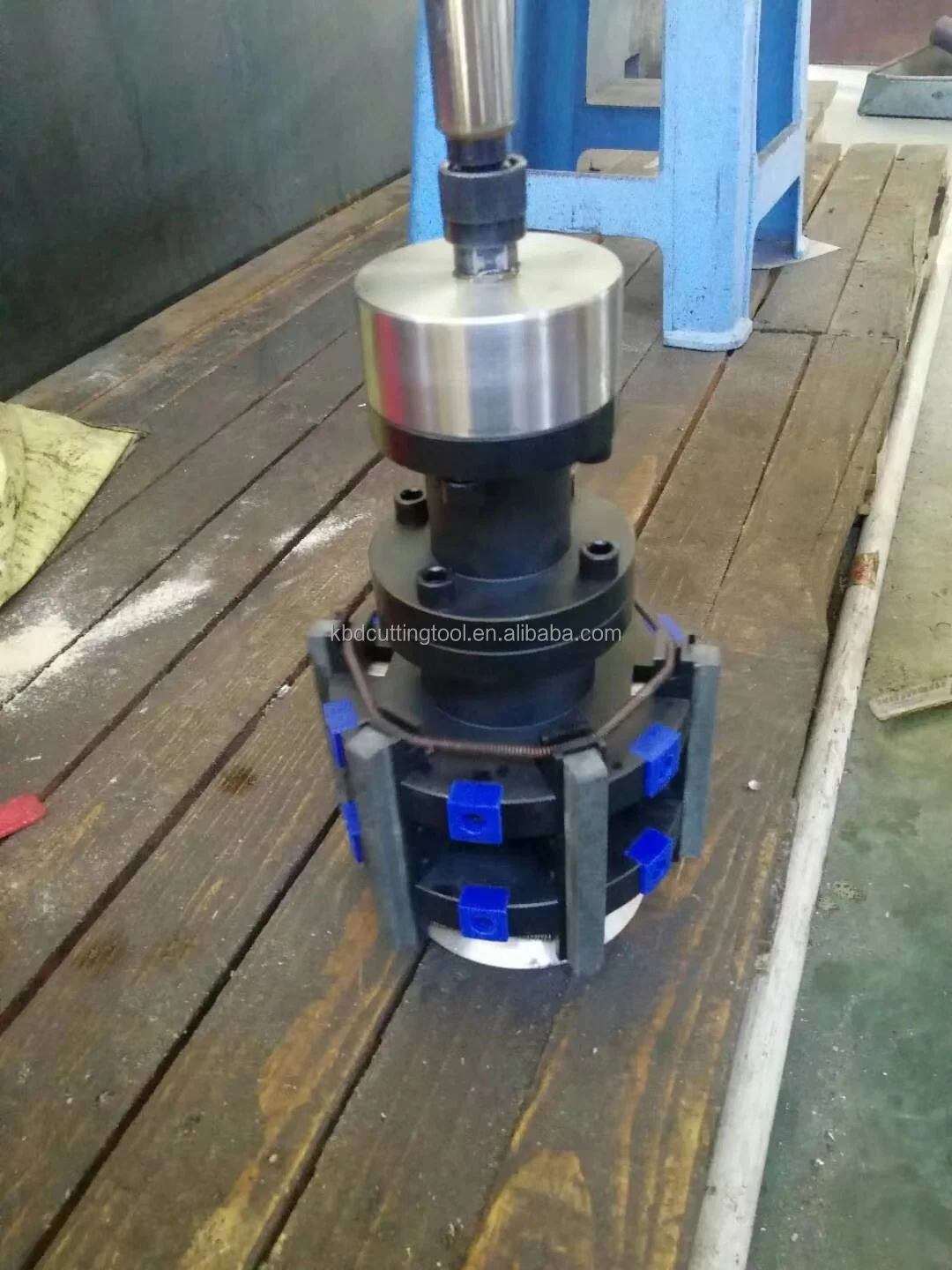

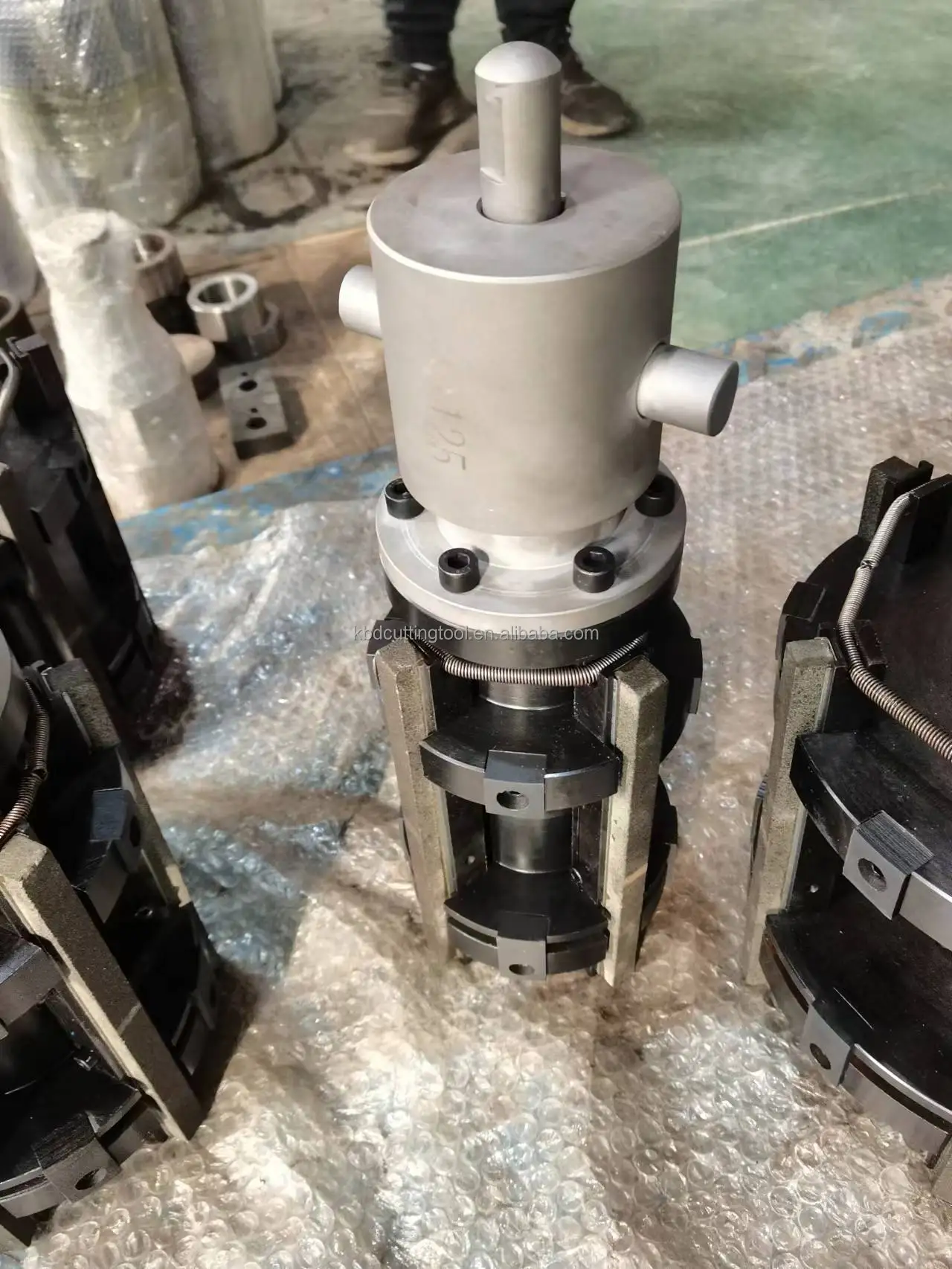

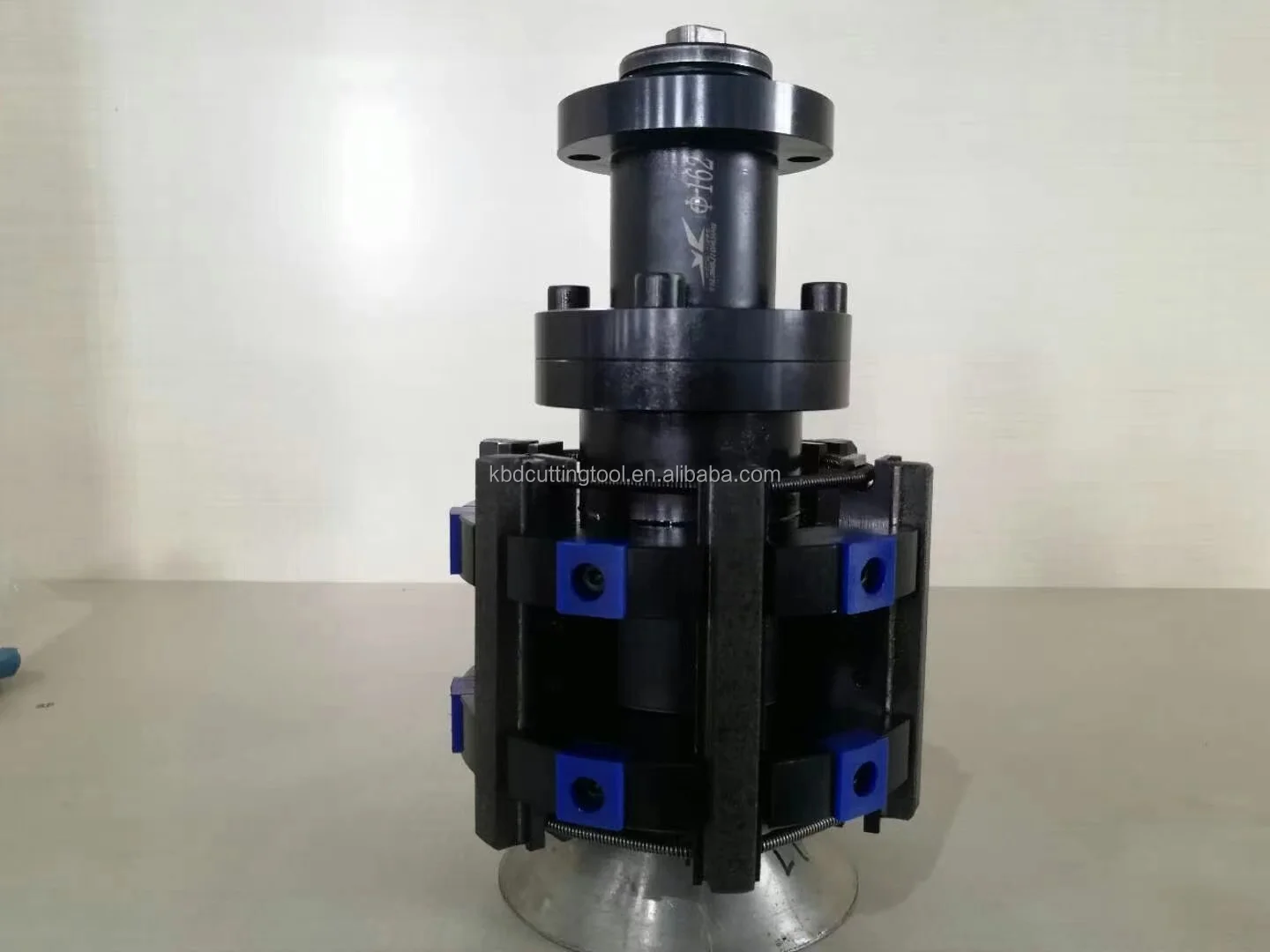

БТА абразивные сверлильные головки хонинговальные
- Категории: >>>
- Поставщик: Dezhou,Kabaide,Cutting,Tools,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Our Services

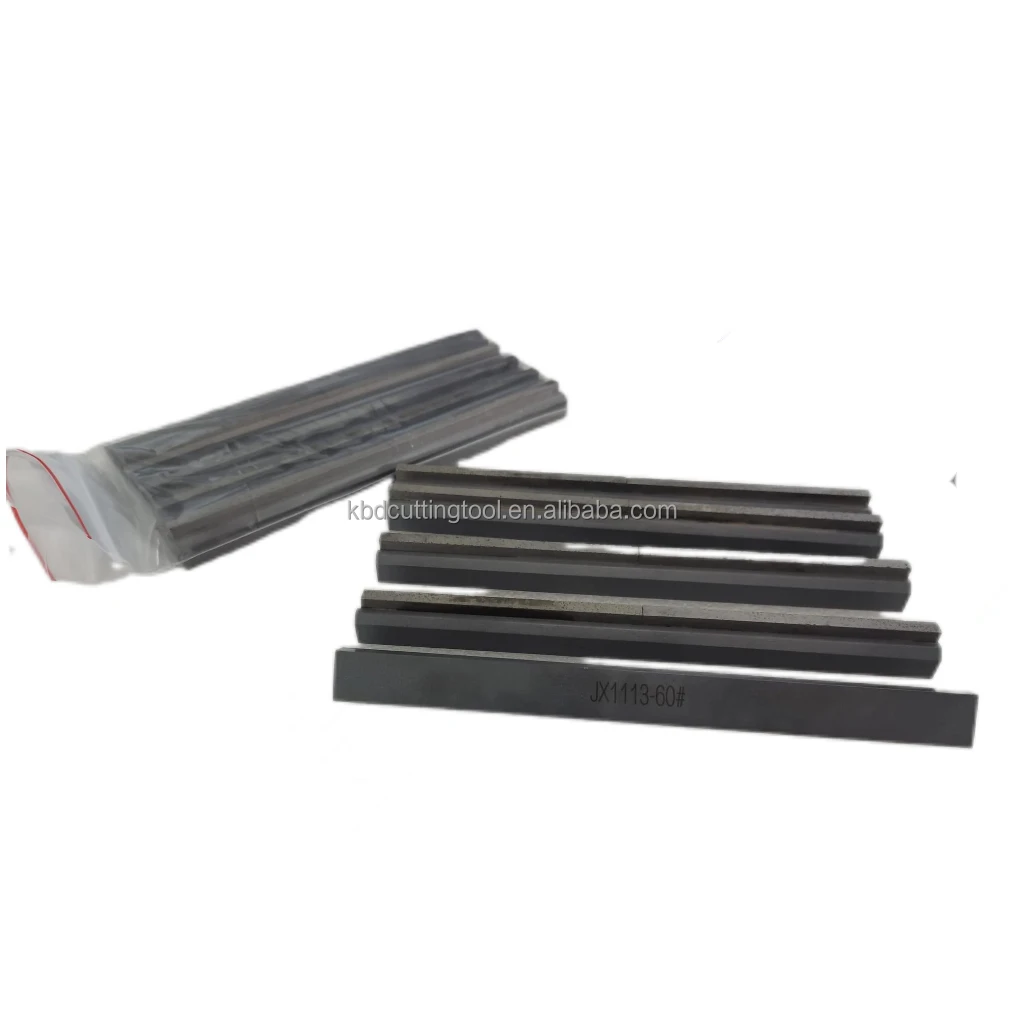

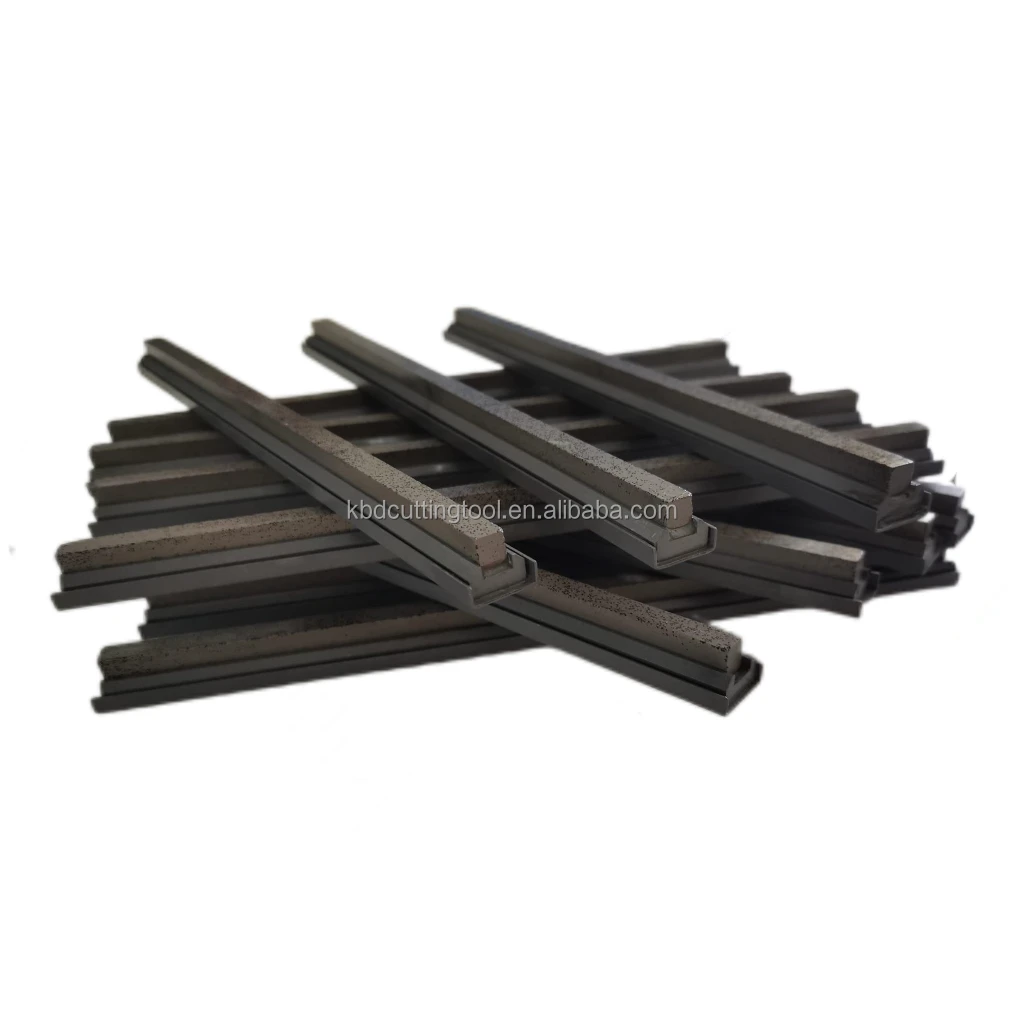

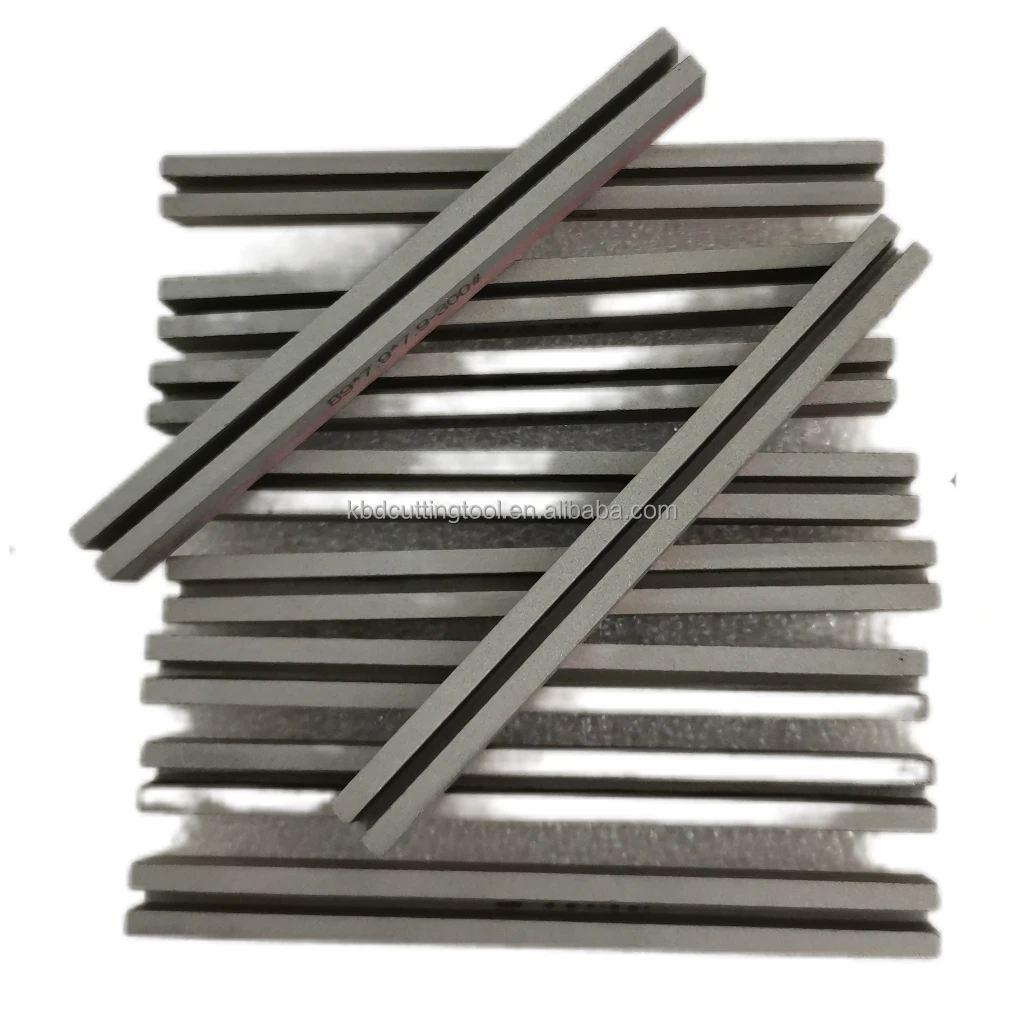

The material of superabrasive include two materials—Diamond and CBN.
The Diamond/CBN honing stone are munufactured with high quality
abrasive and metal powder from home and abroad, strictly abiding by
ISO9001 quality management system. Advanced manufacture technology
and formula system not only ensure high precision honing quality and
production efficiency, but also effectively extend the service life of honing
stone.
With the characteristics of high strength and hardness, suitable for
all non-carbide hard materials, Diamond honing stone can be widely
used to hone glass, quartz, rigid alloy, cast iron, ceramic materials etc.
While with the characteristics of high strength and hardness, suitable for
all hard materials, CBN honing stone can be used to hone types of steel
and alloys.
KBD products of honing stone can be equipped to most
of home and abroad honing machines. For example, Amarica SUNNEN,
Germany GEHRING, NAGEL, Japan FUJI, CHISHIMA, TOYO, NISSIN,
ect. Our Products are also as good as those products from America, Germany
and Japan
.

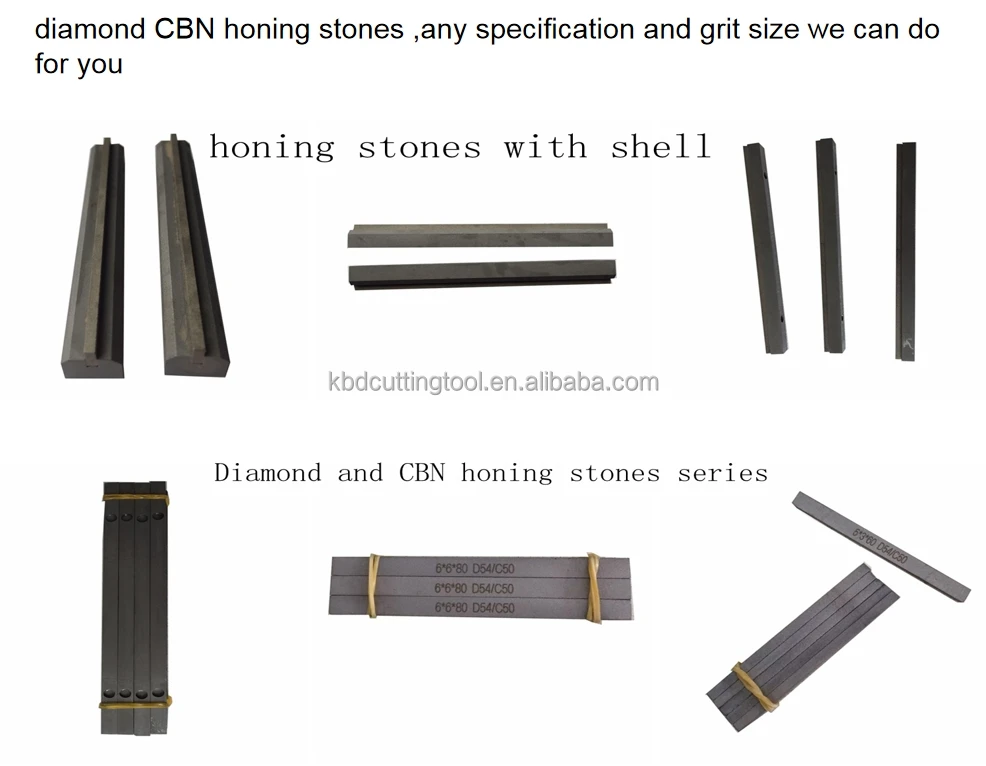

CBN honing stones | Diamond honing stones | |
Application | Rigid steel, alloy,etc. | Glass, quartz, rigid alloy, cast iron, ceramic materials, etc. |
Performance | High strength and hardness, suitable for all hard materials | High strength and hardness, suitable for all non-carbide hard materials |
The material of superabrasive include two materials—Diamond and CBN. Compared with the common grinding wheel, superabrasive grinding wheel has more superior performance in all respects—high strength, long life, sharp cutting, high grinding efficiency, good shape retention and high accuracy control, ect.
As we all know, different wheels should be used in different workpiece materials and processing requirements.
Diamond wheel, which is the most widely used, is the best abrasive tools for grinding carbide, optical glass, ceramics, gems and stone, high hardness brittle non-metallic materials.
CBN (Cubic Boron Nitride) wheel is the best abrasive tools for grinding hardened steel, high-speed tool steel, bearing steel, stainless steel, heat resistant steel, titanium alloys and high hardness toughness of metal materials.
Grain size and roughness | ||||||||||||
Material | Honing stone type | Abrasive grain sizes | ||||||||||
80 | 100 | 150 | 220 | 280 | 320 | 400 | 500 | 600 | 1200 | |||
Rigid steel | CBN | — | 1.40 2.00 | 1.15 | 1.00 | 0.70 | — | 0.50 | — | 0.18 | 0.05 | |
Mild steel | CBN | — | 1.60 2.50 | — 2.00 | 1.25 | — | — | 0.65 | — | 0.40 | 0.12 | |
Cast iron | Diamond | — | — | — | 2.00 | — | — | 1.27 | — | 0.50 | 0.30 | |
Hard alloy | Diamond | — | — | 0.75 | 0.50 | — | — | 0.18 | — | 0.08 | 0.03 | |
Ceramic | Diamond | — | — | 1.27 | 1.00 | — | — | 0.50 | — | 0.40 | 0.25 | |
Glass | Diamond | — | — | 2.40 | 1.80 | — | — | 0.75 | — | 0.40 | 0.20 | |
Packaging & Shipping
Tool material and suitable workpiece | |||
Tool material | Workpiece | Application | |
Diamond | Nonferrous metal | Alumimum, aluminum alloy, cast aluminum alloy | Automobile(engines,case,chassis,aluminum wheels,etc.) Aircraft, electric machinery/applicances(cases, housing , compressor parts,ect.) Precision machine(HD cases, cameras, VTR/camcorders,measuring machines, sawing machines, copier drums, etc.) |
Copper, Copper alloy,Cast copper alloy | Automobile and vessel (shafts, pumps, gears, bearings, electric power steering, etc.)Electric machinery/appliances (motors, commutators, heat exchangers, hydraulic components, etc.)General/precision machinery (bearings, bushes, bolts, etc.) | ||
Tungsten carbide | Cutting of semi sintered and sintered (metal molds, etc.) | ||
Ceramics | Semi sintered and sintered (ceramic industry, bricks, ceramics) | ||
Nonmetal | Plastics (FRP, MC nylon, acrylic, polycarbonate, PCB (glass epoxy + copper foil)). carbon, graphite, black lead, ferrite, brake shoes, pottery, rubber (soft and hard), etc. | ||
CBN | Tool steel/Carbon tool steel(SK) Alloy tool steel (SKS, SKD) | Cutting tools, metal molds, rolling-mill/forming rolls |
Heat resistant steel, heat resistant alloy | Engine parts, jet engine parts, gas turbine parts, nuclear reactor parts | |

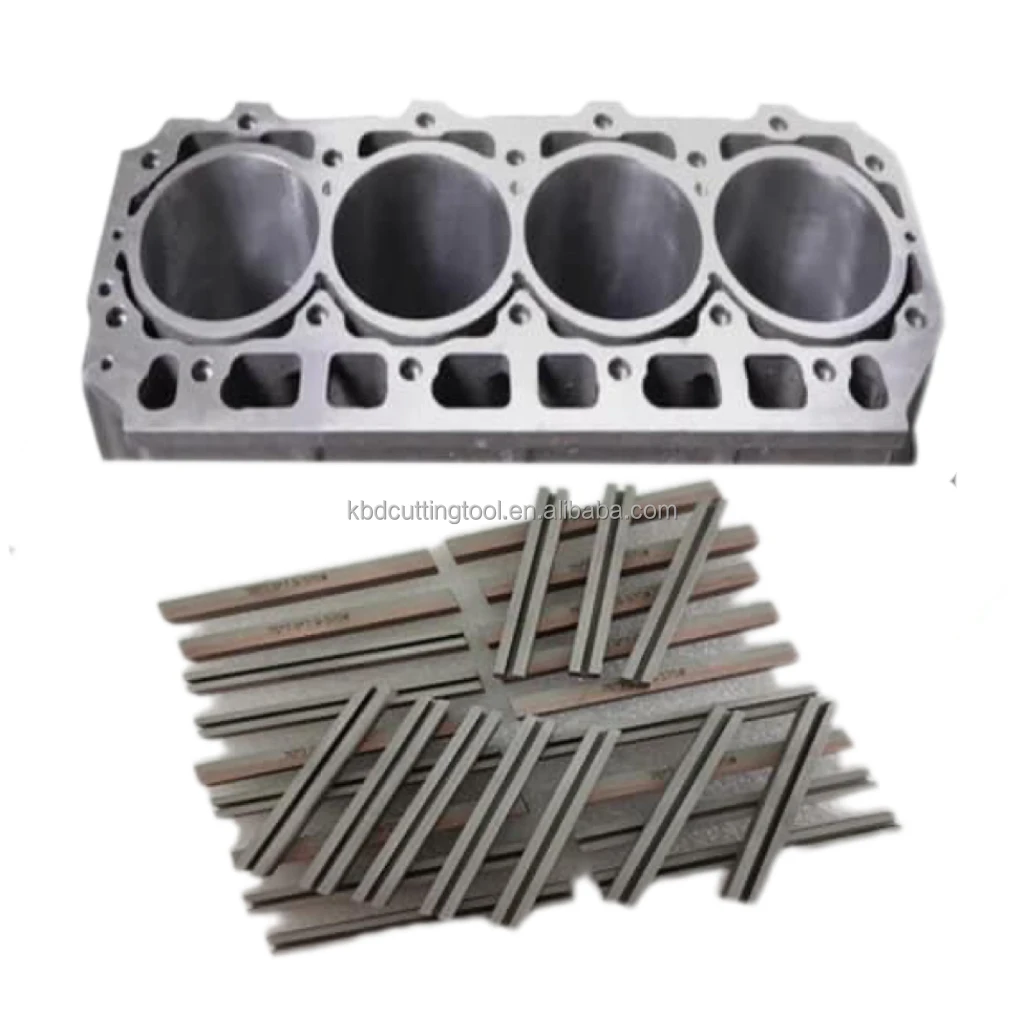

Sprayed metal, cast iron | Corrosion-resistant parts, wear resistant parts, rolling-mill/forming rolls, piston groove, cylinder bore | |
Hardened alloy steel, Chrome-molybdenum steel (SCM)nickel-chrome-molybdenum steel (SNCM) | Machine parts (gears, shafts) | |
Bearing steel (SUJ) | Bearings | |
Sintered metal | Valve seats, valve guides |
