NO.1 Product Description

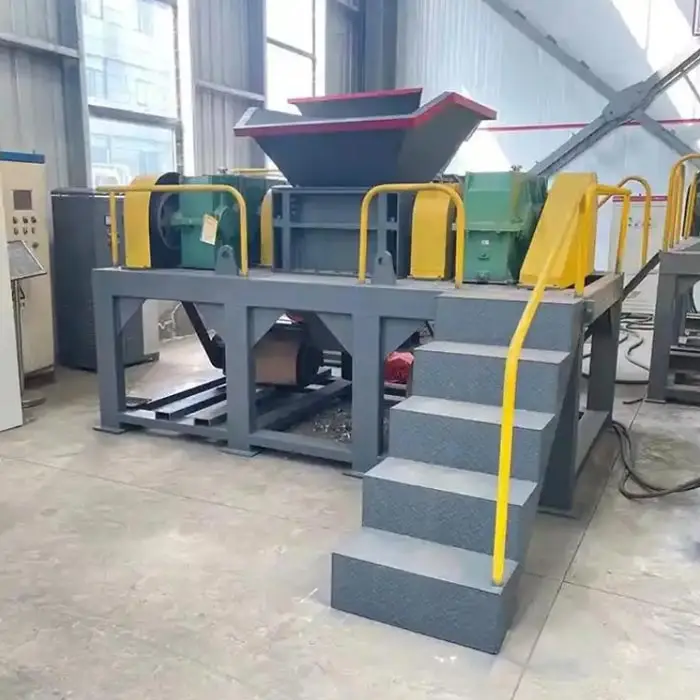

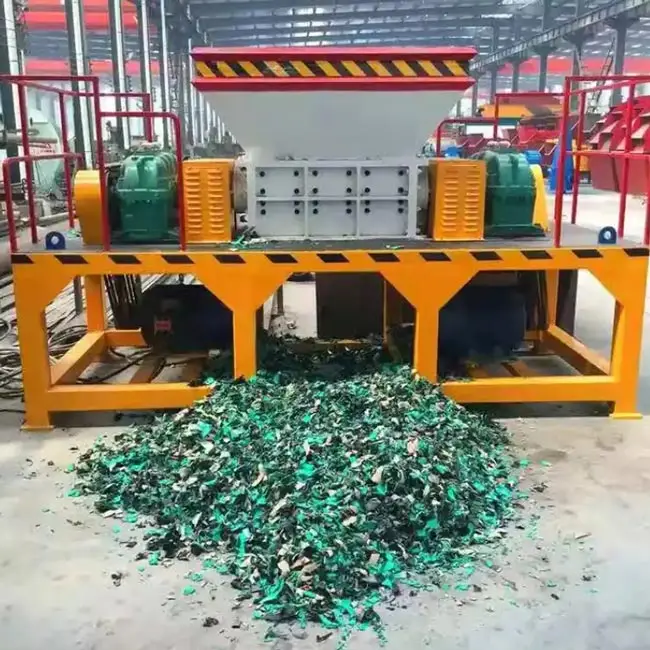

Shredder can generally be used to tear more difficult to break plastic, rubber, large tires, large nylon material, plastic head material, auto bumper, large fish net, large pipe, fiber, paper, wood, electrical parts, cables, PET bottles, cardboard, circuit boards, wood, plastic buckets and other solid objects. Shredder is also called scrap metal shredder, two-axis shredder, wood shredder, tire shredder, plastic shredder, pipe shredder, garbage shredder, circuit board shredder, rubber shredder, aluminum shredder, etc. The main function of the equipment is to squeeze large pieces of material and large diameter drum metal materials that are inconvenient to transport through the cutting of the shredder, and tear into sheet materials that meet the requirements.
NO.2 Product Application
1, Industrial waste/Household waste —— household waste, waste wood, kitchen waste, kitchen waste, industrial waste, factory waste, municipal sludge, glass fiber reinforced plastic, pulp residue cloth;
2, Biomass —— branches, leaves, straw, corn on the cob, wheat stalks, bark, banana trees, rice Grass, garden waste;
3, Recycling waste —— used tires, waste paper, waste plastics, plastic bottles, chemical barrels, aluminum materials;
4, Product document destruction —— computer hard drives, documents, unqualified products, expired drugs, plastic parts,
5, Waste disposal —— medical waste, radioactive materials, organic waste, hazardous solid waste;
6, Metal waste —— paint barrels, paint cans, iron oil barrels, metal waste, aluminum waste.
2, Biomass —— branches, leaves, straw, corn on the cob, wheat stalks, bark, banana trees, rice Grass, garden waste;
3, Recycling waste —— used tires, waste paper, waste plastics, plastic bottles, chemical barrels, aluminum materials;
4, Product document destruction —— computer hard drives, documents, unqualified products, expired drugs, plastic parts,
5, Waste disposal —— medical waste, radioactive materials, organic waste, hazardous solid waste;
6, Metal waste —— paint barrels, paint cans, iron oil barrels, metal waste, aluminum waste.
NO.3 Working Principle

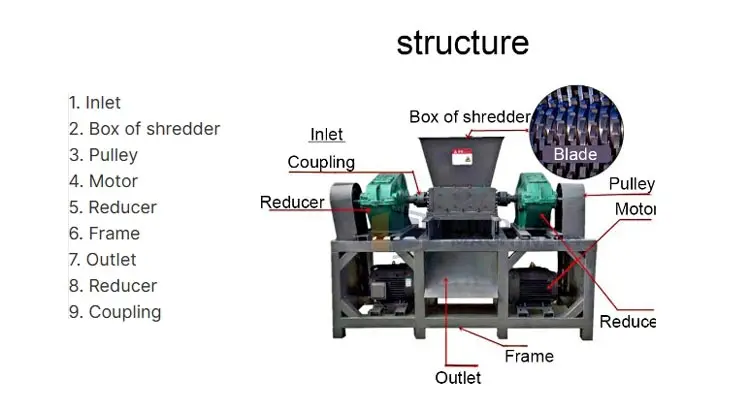

1, Crusher main body: the main body adopts excellent steel plate welding to ensure the stability of the equipment in the long-term heavy load.
2, Bearing/seal: the bearing seat adopts the split and disassembly type, which can quickly remove the moving tool, fixed tool, bearing and other parts, easy to maintain and replace the tool, the sealing structure can avoid the contact of the broken material and grease, and the processing of liquid materials can also protect the bearing and gear.
3, Moving knife/fixed knife: Moving knife material is made of alloy tool steel forging blank, precision machining, multiple heat treatment and low temperature freezing heat treatment to ensure cutting performance and service life. The fixed tool adopts hook type installation, optimizes the tool replacement function, and makes the tool maintenance and replacement efficiency high.
4, Tool shaft: The use of excellent steel processing refining, with the tool to provide a powerful power for cutting.
2, Bearing/seal: the bearing seat adopts the split and disassembly type, which can quickly remove the moving tool, fixed tool, bearing and other parts, easy to maintain and replace the tool, the sealing structure can avoid the contact of the broken material and grease, and the processing of liquid materials can also protect the bearing and gear.
3, Moving knife/fixed knife: Moving knife material is made of alloy tool steel forging blank, precision machining, multiple heat treatment and low temperature freezing heat treatment to ensure cutting performance and service life. The fixed tool adopts hook type installation, optimizes the tool replacement function, and makes the tool maintenance and replacement efficiency high.
4, Tool shaft: The use of excellent steel processing refining, with the tool to provide a powerful power for cutting.
NO.4 Main Technical Parameters
Model | Spindle power(kw) | Spindle speed(r/min) | Capacity(t/h) | Number of blades Thickness | Crushing size(cm) | Solo size(m) | Dimension(L*W*H)(m) | Weight(t) |
1600 | 6-75*2 | 9-12 | 12-18 | 100*16 | 3-10 | 2.6*2 | 5*3*2.4 | 14 |
1400 | 6-55*2 | 9-12 | 8-12 | 100*14 | 3-10 | 2*2 | 4*3*2.4 | 13 |
1200 | 6-37*2 | 9-12 | 6-10 | 100*15 | 3-10 | 1.4*1 | 3.2*2*1.9 | 11 |
1000 | 6-30*2 | 9-12 | 5-8 | 50*20 | 3-10 | 1.2*1 | 3*2*1.9 | 5 |
800 | 4-18.5*2 | 9-12 | 3-5 | 40*20 | 3-10 | 0.9*1 | 8.2*4*4.3 | 3 |
600 | 4-15*2 | 9-12 | 2-3 | 30*20 | 3-10 | 0.82*0.9 | 2.6*2*1.9 | 2.5 |
400 | 4-7.5*2 | 9-12 | 0.8 | 20*20 | 3-10 | 0.4*0.32 | 1.5*1*1.5 | 1.4 |

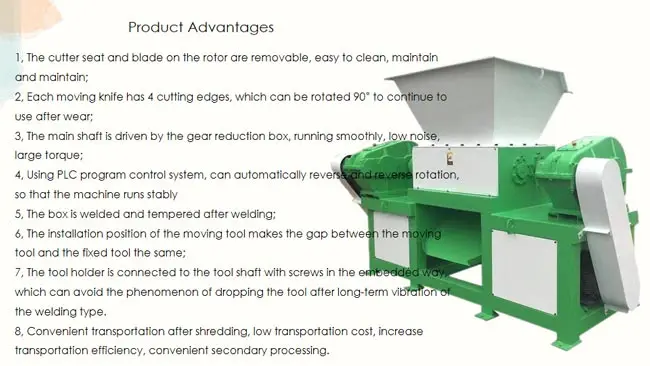

NO.5 Main Features
1, Double tool shaft mechanism, the use of multi-piece multi-claw tool, and with the tool shaft with multi-angle changes, cutting labor saving, cutting force strong.
2, The motor passes through the gearbox transmission system to make the transmission structure, so that it becomes the strong operation of low speed and high torque to achieve the crushing effect.
3, Large drive wheel, made of special steel, hardened by heat treatment, long service life.
4, The gear box adopts oil-fed pulley, which runs smoothly, has low noise, high torque and long time operation.
5, Low speed and high torque design, provide lower noise and less dust, improve the good working environment.
2, The motor passes through the gearbox transmission system to make the transmission structure, so that it becomes the strong operation of low speed and high torque to achieve the crushing effect.
3, Large drive wheel, made of special steel, hardened by heat treatment, long service life.
4, The gear box adopts oil-fed pulley, which runs smoothly, has low noise, high torque and long time operation.
5, Low speed and high torque design, provide lower noise and less dust, improve the good working environment.
NO.6 Company Information
Henan Haolu machinery equipment company is established in 2002 located in Henan province ,China. We can provide a complete set of equipment including crushing, screening, minerals separation, etc. The products have been exported to market of Southeast Asia, Middle East, Africa and the Americas. Agents have also been developed in Egypt, Pakistan, Vietnam and other countries. We supply with decent quality product, as well as best solutions, professional technical support and excellent after-sales service. Since its establishment,adhering to the scientific management method of modern enterprises, seiko manufacturing, continuous innovation,rapid development and growth of local star enterprises.
The company is a large joint-stock company of industry and trade, with sales all over the world. The enterprise has first-class processing equipment, perfect testing means,high-quality scientific and technological personnel,quality service. The enterprise has been awarded provincial excellent enterprise for many times. Products are sold at home and abroad.
The company can provide one-stop services of factory planning, design, construction, equipment installation, operation,after-sales etc. The products of our company are exported to dozens of countries and regions of Africa, South Asia, Southeast Asia, South America etc.
The company is a large joint-stock company of industry and trade, with sales all over the world. The enterprise has first-class processing equipment, perfect testing means,high-quality scientific and technological personnel,quality service. The enterprise has been awarded provincial excellent enterprise for many times. Products are sold at home and abroad.
The company can provide one-stop services of factory planning, design, construction, equipment installation, operation,after-sales etc. The products of our company are exported to dozens of countries and regions of Africa, South Asia, Southeast Asia, South America etc.
FAQ
Q1: Are you manufacture or trading company?
A: We are factory, established in 2003.
Q2: How long is your delivery time?
A: 7-10 days for the stock, 15-30 days for the mass production.
Q3: What is your payment method?
A: 30% deposit in T/T advance, 70% balance before shipment.
Q4: How long is the warranty? Does your company supply the spare parts?
A: One year. Spare parts for you at lowest cost.
Q5: If I need the complete crushing plant can you help us to build it?
A: Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
