Combi electric boiler for house heating and hot water
* 6KW-12KW 220Volt single phase, 12KW-20KW 380Volt three phase.
* Built-in a water pump and expand tank.

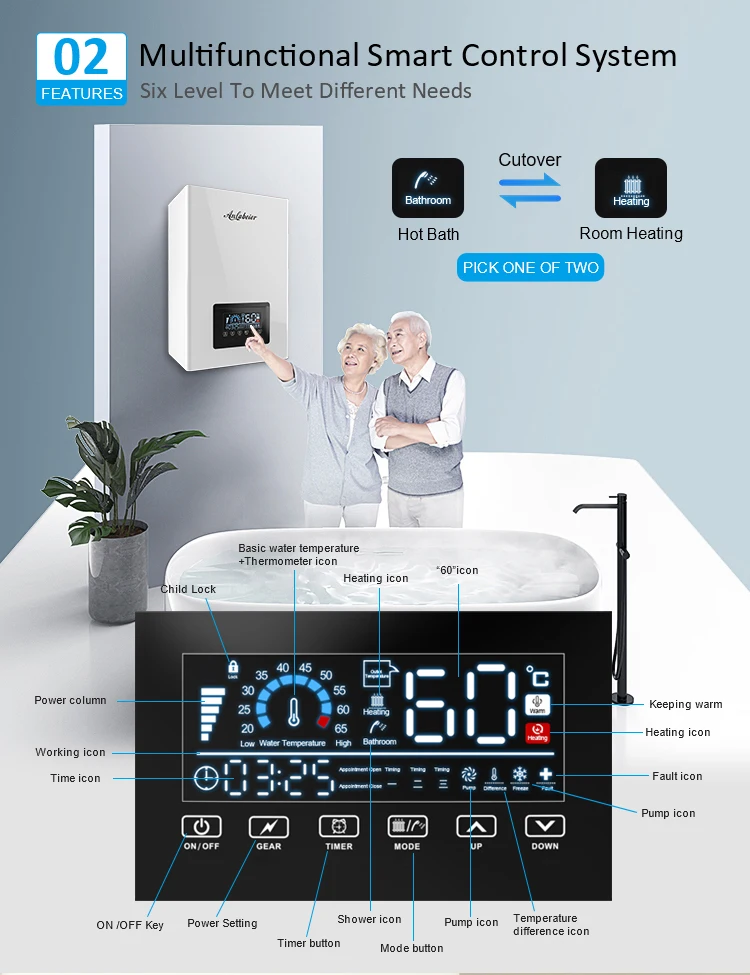

* LED Multi-function touch control screen.
* Smart Timing Function, Make You Feel Warm In Advance.

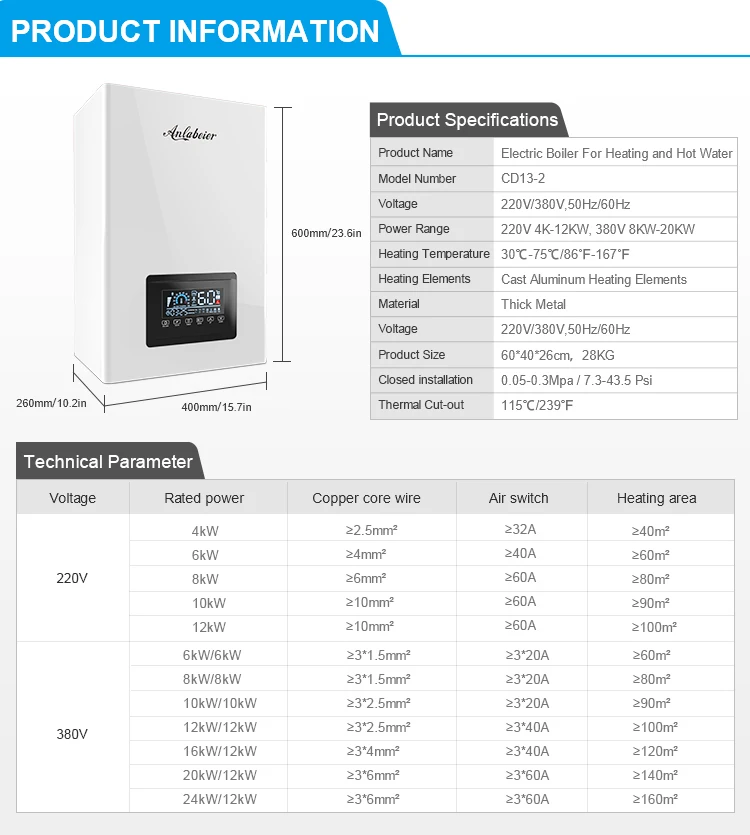

Product Description
Model | Combi Electric boiler CD13 | ||||||||
Power Rang | 6kW - 20kw, 220V/380V, 50Hz/60Hz | ||||||||
Power | 8KW 220V | 10KW 220V | 12KW 380V | 16KW 380V | 20KW 380V | ||||
Current | 36.36A | 45.45A | 18.18A | 24.24A | 30.30A | ||||
Power cable | 3x6mm² | 3x10mm² | 5x2.5mm² | 5x4mm² | 5x6mm² | ||||

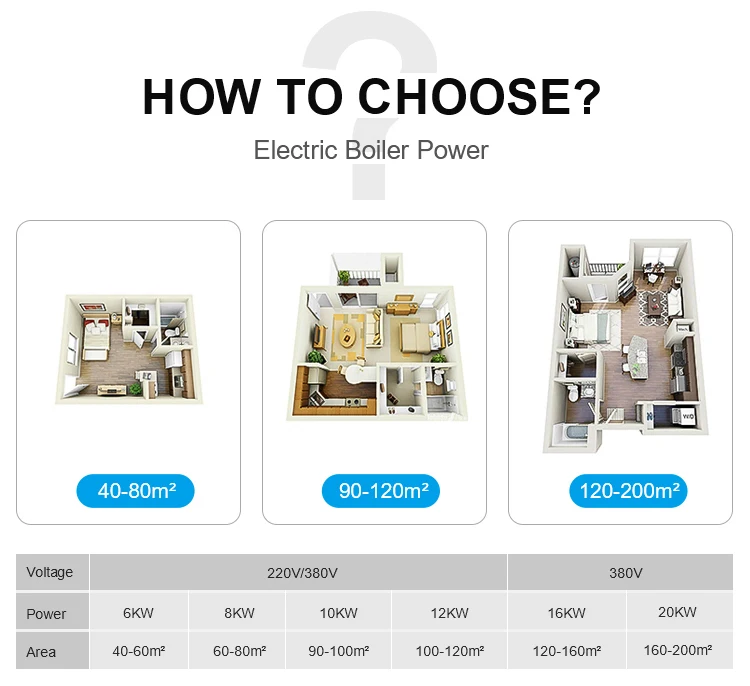

Heating Area( м²) | ＜80м² | ＜100м² | ＜120м² | ＜160м² | ＜200м² | ||||
Material | Thicker metal | ||||||||
Heating element | Cast Aluminum Heating Element | ||||||||
Temp. setting | 25℃-75℃ / 77℉-167℉ | ||||||||
Thermal Cut-out | 90℃/194℉ | ||||||||
Anti-freezing | Level 1: 5℃/41℉, Level 2: 2℃/35.6℉ | ||||||||
Water pressure | Closed installation: 0.05-0.3Mpa / 7.3-43.5 Psi | ||||||||
Inlet/Outlet | G3/4 | ||||||||
Feature | Build-in pump and expansion tank | ||||||||
Function | combi heating and shower | ||||||||

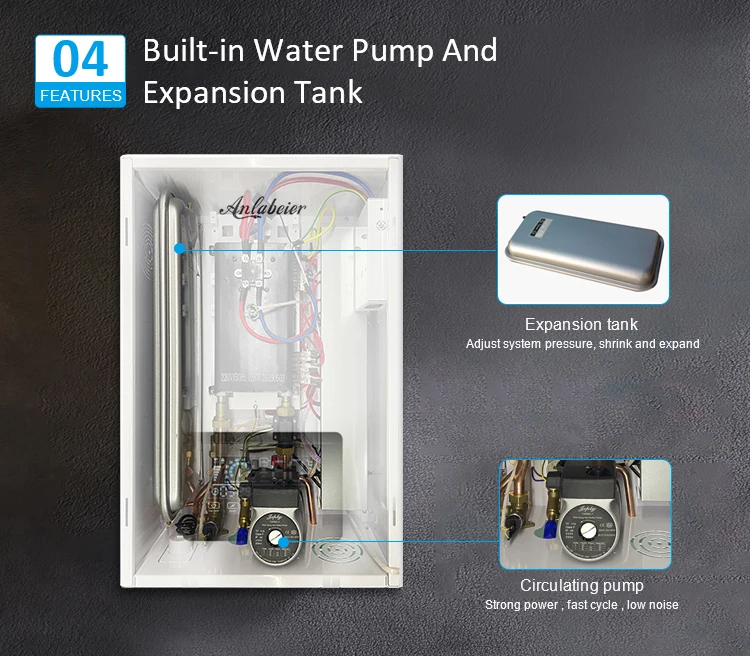

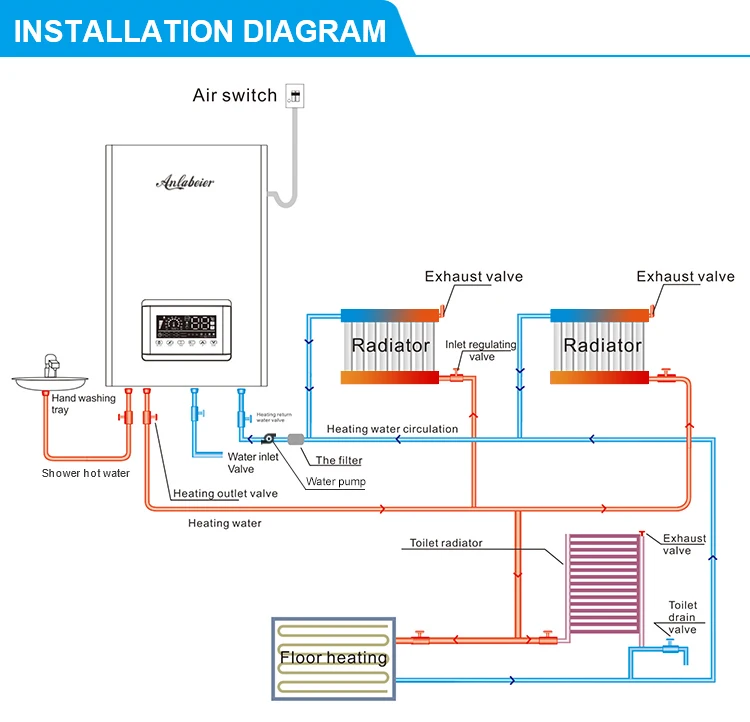

Bolier with water pump and 5L expansion tank,No additional installation.
Compared the ordinary boilers need to install an external water tanks and water pumps. But the water is easy to evaporate during heating, so it is necessary to add water frequently.
Six Safety Protection Systems
Anti-dry Protection
Automatically cut off the power supply under over temperature.
Prevent Freezing
Prevent the water pipe from breaking at low temperatures.
Hydroelectric Separation
Water and circuit are separate to ensure safety
Leakage Protection

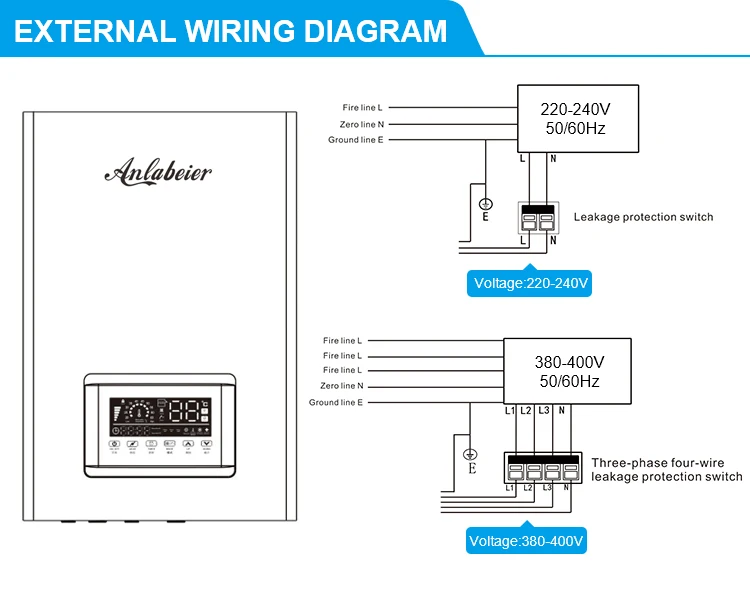

Connect the ground wire to prevent current through the human body.
Water Shortage Protection
The water pump protection will be turned on at water shortage.
Automatic Detection of Faults
Display fault code for easy judgment and maintenance.
Timing control makes you feel warm in advance no matter where you are.

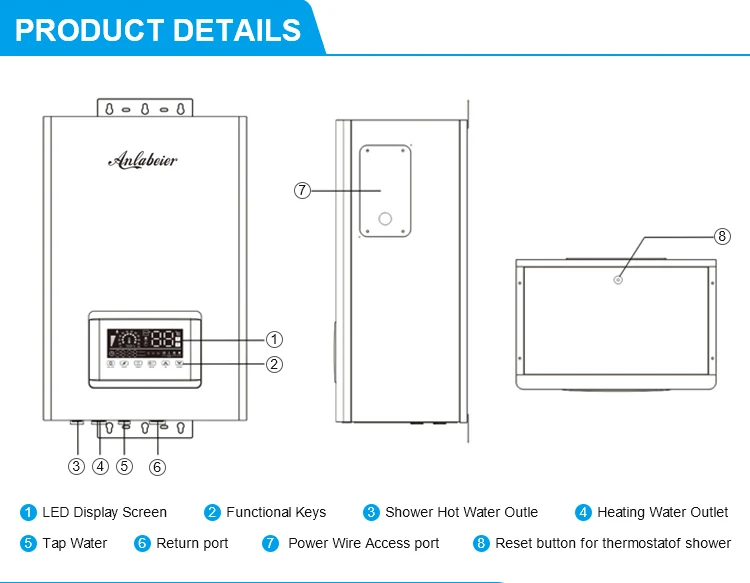

Detailed Images
Packing&Shipping

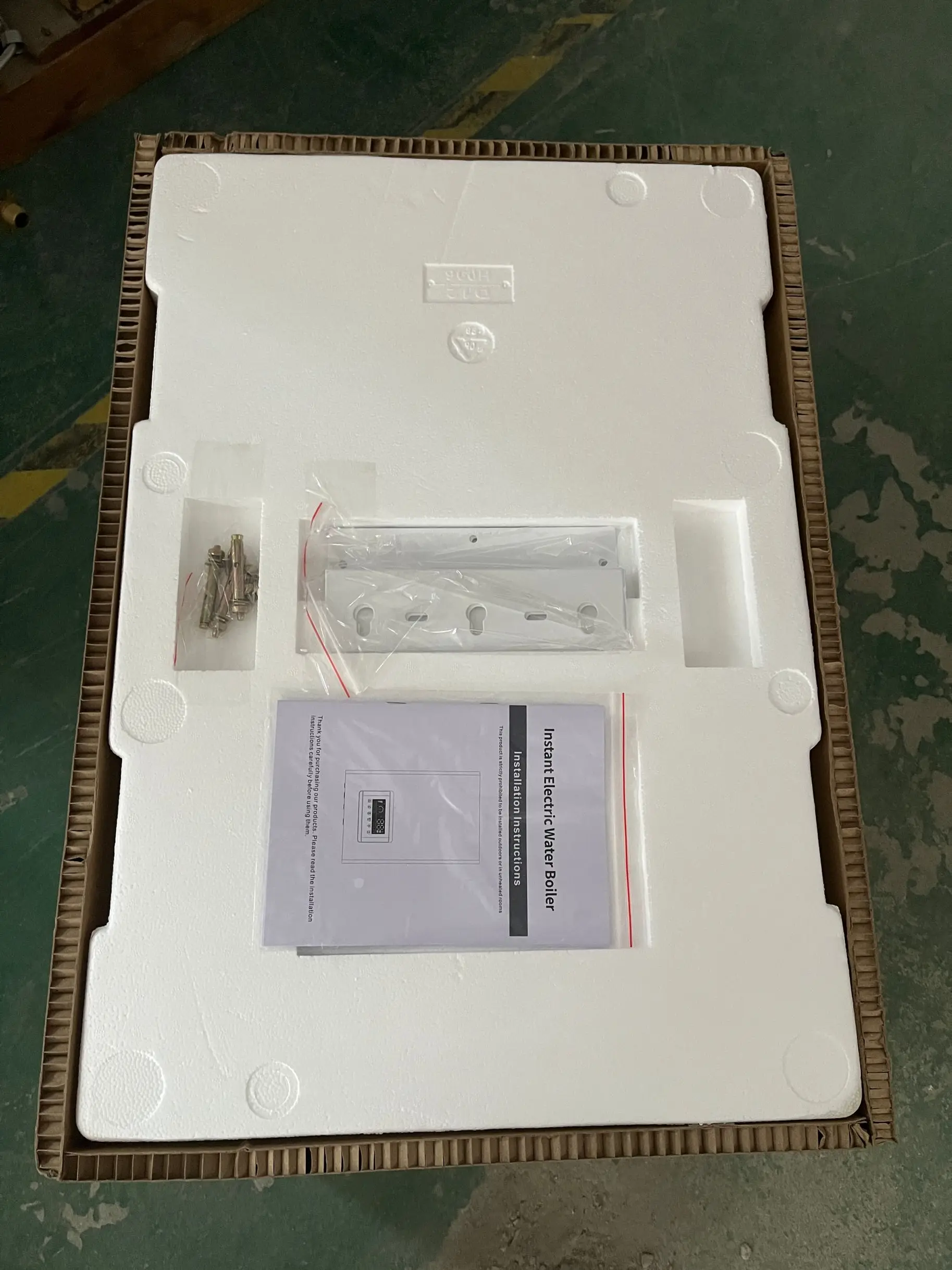

Packaging

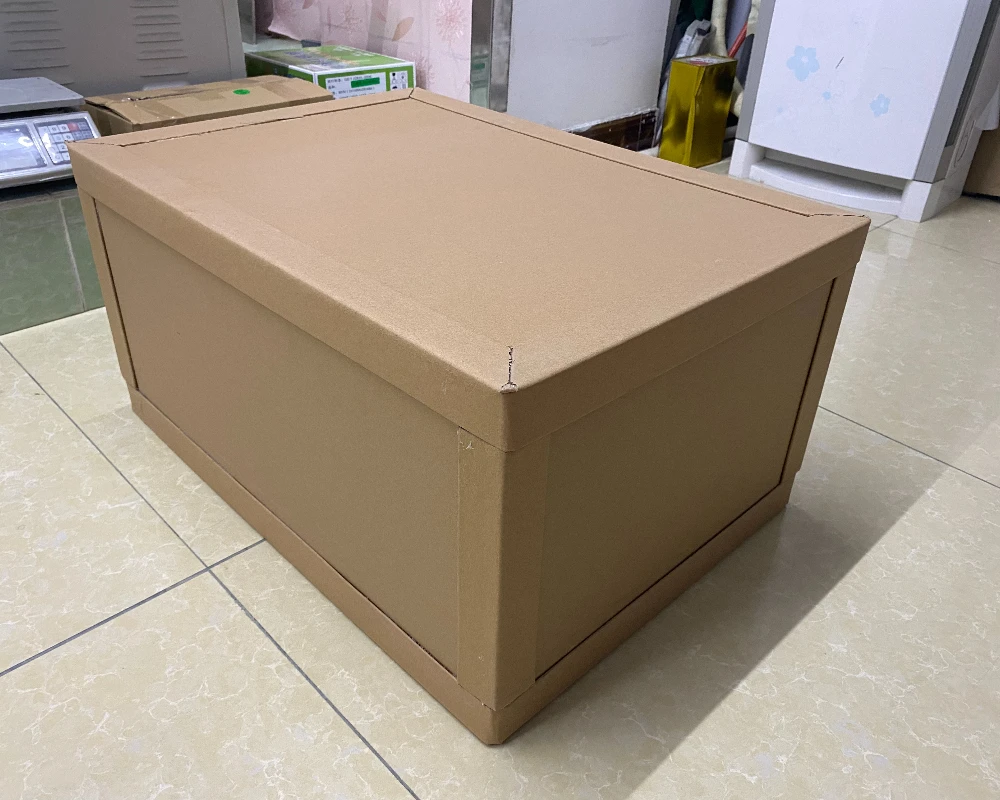

Thickened Honeycomb Carton And Double-sided Foam,

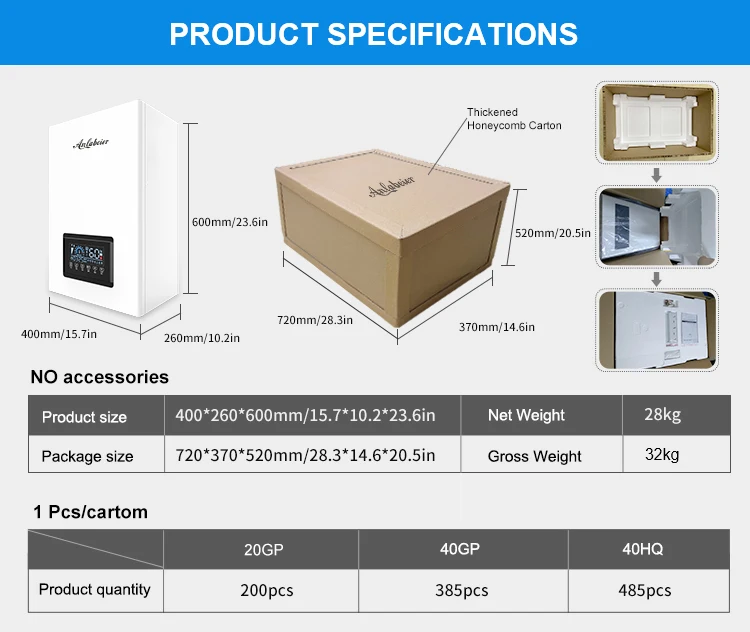

1 pcs per carton: 74*38*50cm/29.1"*15"*20", 30KG,
20ft can load 200pcs, 40HQ can load 485pcs.
1 pcs per carton: 74*38*50cm/29.1"*15"*20", 30KG,
20ft can load 200pcs, 40HQ can load 485pcs.
If you want to get more electric boiler models , please contact me!
Trading Conditions:
1) Payment: T/T, L/C, Online Transfer, Credit Card, Western Union Etc.
2) Quickly delivery: Samples will be delivered within 5-10 days.
3) High efficient producing, production lead time: small order 7-15days, bulk order 30-35 days.
4) MOQ: 50 Units (OEM ODM accepted)
5) Discounts are offered based on the quantities.
Trading Conditions:
1) Payment: T/T, L/C, Online Transfer, Credit Card, Western Union Etc.
2) Quickly delivery: Samples will be delivered within 5-10 days.
3) High efficient producing, production lead time: small order 7-15days, bulk order 30-35 days.
4) MOQ: 50 Units (OEM ODM accepted)
5) Discounts are offered based on the quantities.
Company Introduction
FAQ
Q 1. How long can i get the feedback after we sent the enquiry?
A. We will reply to you within three miutes in working days.
Q 2. How can i get some samples?
A. We are pleased to offer you samples, the delivery time is about 5-10 days.
Q 3. Are you a factory?
A. Yes,we are factory, located in Zhongshan city Guangdong province,China.
Q 4. What is the delivery time?
A. The delivery time normally 35 days,detail delivery date should depend on the production season and order quantity.
Q 5. Is there any extra charges if we want you to print our logo or company name on your products or the packaging?
A. There is no extra charges,please offer us the LOGO flies,we will make it well on your product.
A. We will reply to you within three miutes in working days.
Q 2. How can i get some samples?
A. We are pleased to offer you samples, the delivery time is about 5-10 days.
Q 3. Are you a factory?
A. Yes,we are factory, located in Zhongshan city Guangdong province,China.
Q 4. What is the delivery time?
A. The delivery time normally 35 days,detail delivery date should depend on the production season and order quantity.
Q 5. Is there any extra charges if we want you to print our logo or company name on your products or the packaging?
A. There is no extra charges,please offer us the LOGO flies,we will make it well on your product.
