Резак землесос речной морской машины горное оборудование мини-земснаряд для корабля всасывания
Резак землесос речной морской машины горное оборудование мини-земснаряд для корабля всасывания
Резак землесос речной морской машины горное оборудование мини-земснаряд для корабля всасывания
Резак землесос речной морской машины горное оборудование мини-земснаряд для корабля всасывания
Резак землесос речной морской машины горное оборудование мини-земснаряд для корабля всасывания
Резак землесос речной морской машины горное оборудование мини-земснаряд для корабля всасывания
Резак землесос речной морской машины горное оборудование мини-земснаряд для корабля всасывания

Резак землесос речной морской машины горное оборудование мини-земснаряд для корабля всасывания


Поделиться:

Цена:2 430 139,50 ₽ - 2 646 151,90 ₽*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики



Product Description

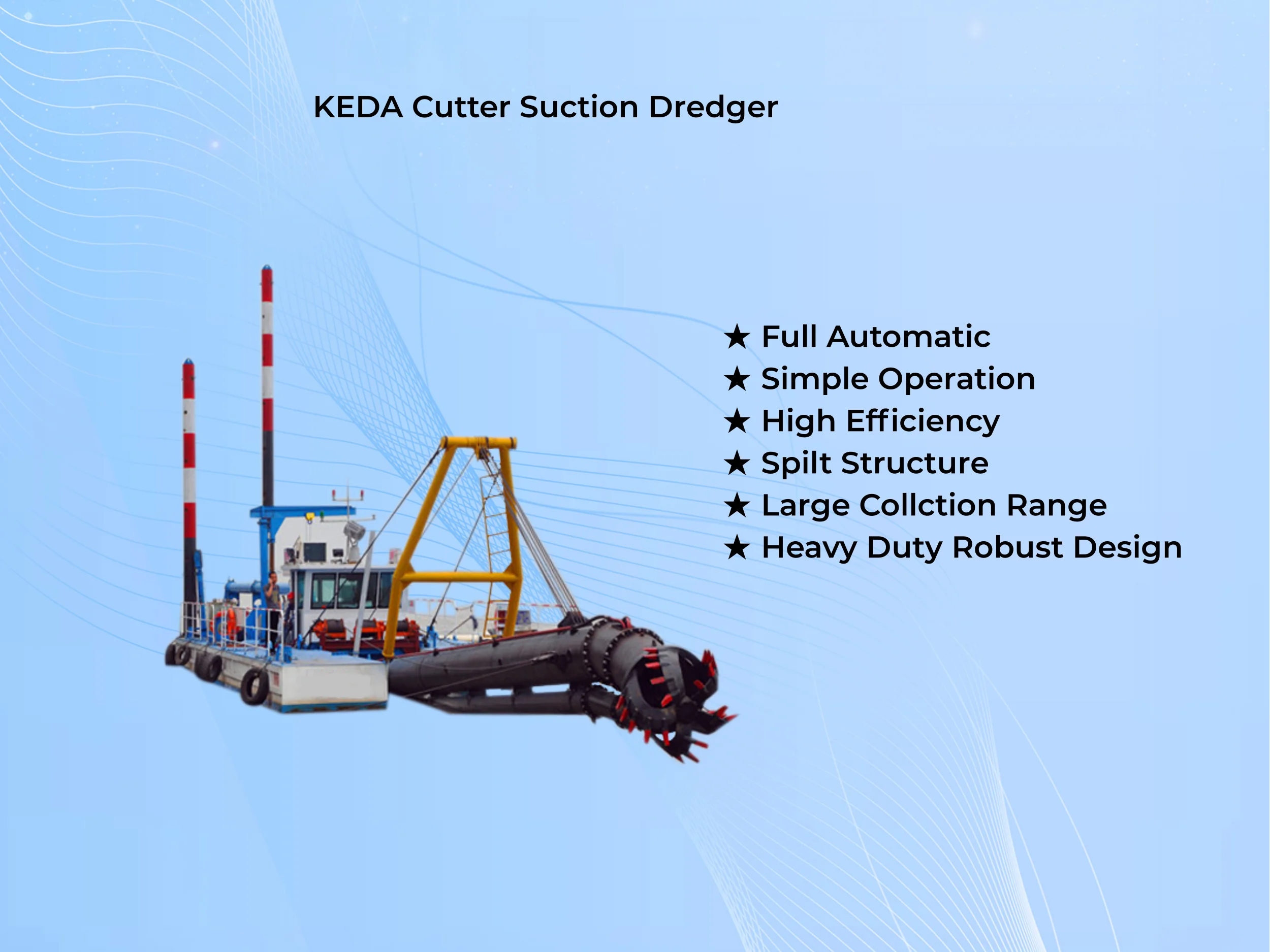

Design

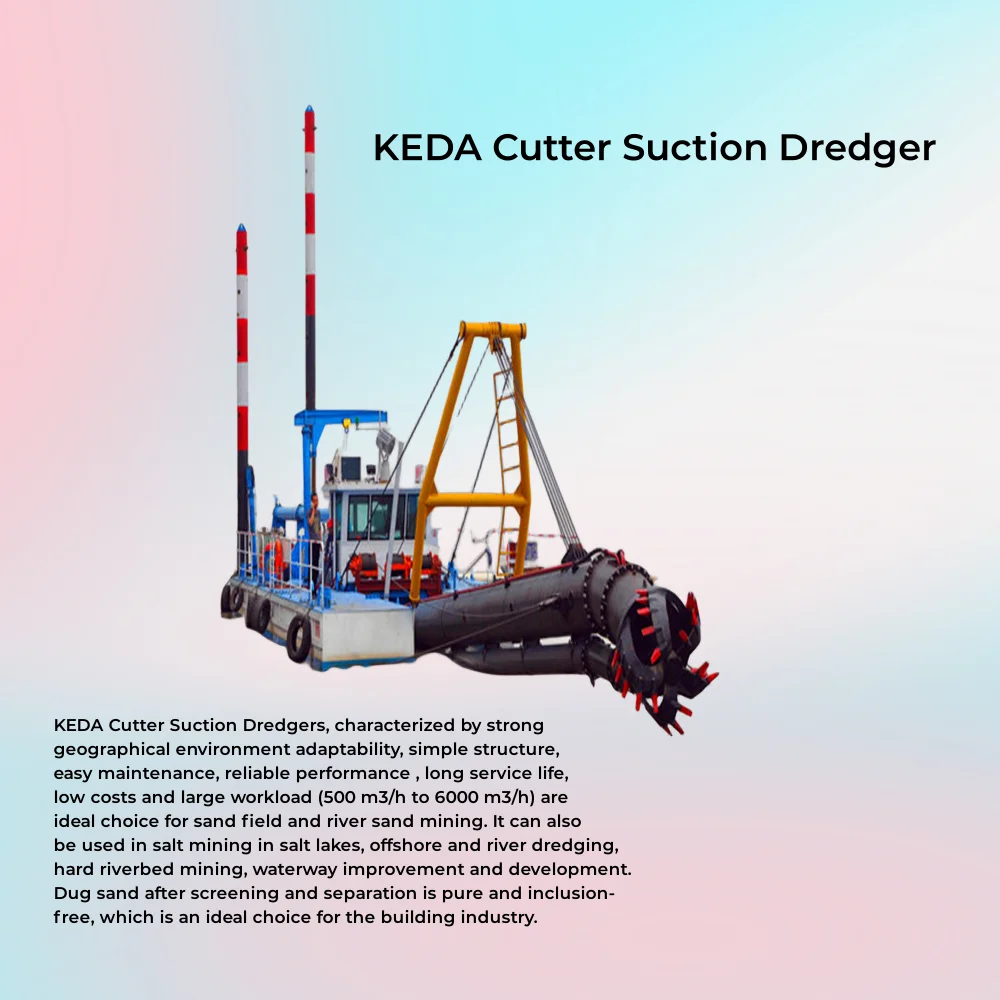

KEDA Cutter Suction Dredgers, characterized by strong geographical environment adaptability, simple structure,easy maintenance, reliable performance, long service life, low costs and large workload (500 m3/h to 6000 m3/h) are ideal
choice for sand field and river sand mining. It can also be used in salt mining in salt lakes, offshore and river dredging, hard riverbed mining, waterway improvement and development. Dug sand after screening and separation is pure and inclusion-free, which is an ideal choice for the building industry







Features


1. One man operation. The most advanced Siemens PLC control system.

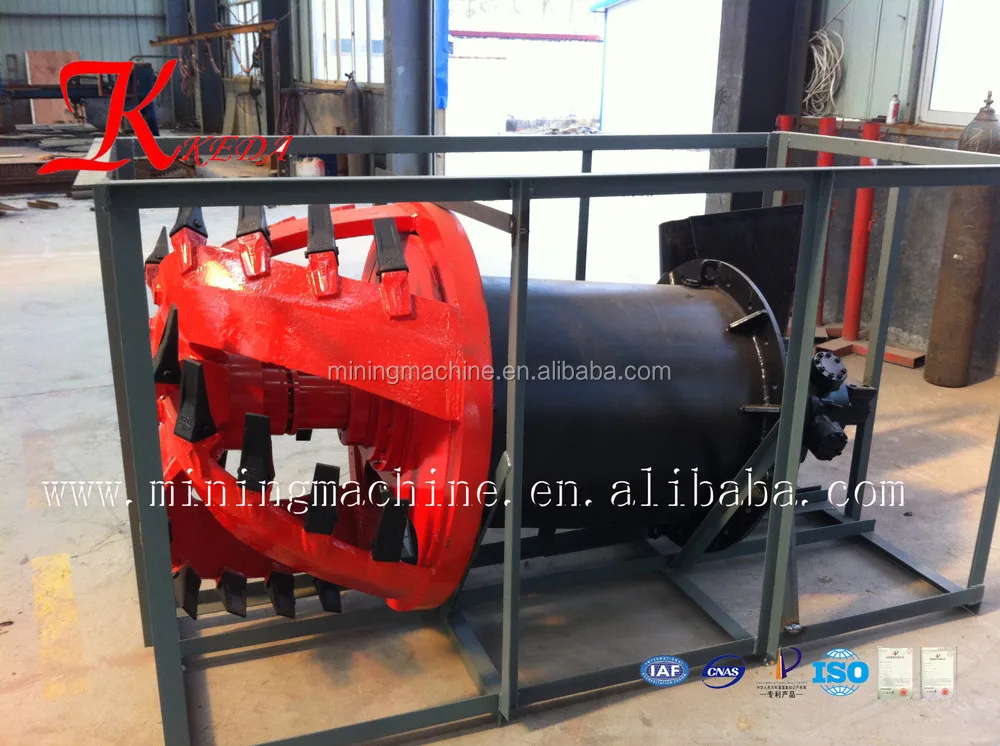

b. New highly effective cutter driven system
c. Reliable hydraulic system.
d. Fresh water cooling system.
e. Completely assembled and fully tested before delivery.
f. Very simple and fast assembly with experienced engineers.
g. Standard design, allowing short delivery times.
h. Standard spare parts available from stock.
i. Designed as standard to qualify for Coastal Waters Certificate.
j. Optional equipment available.

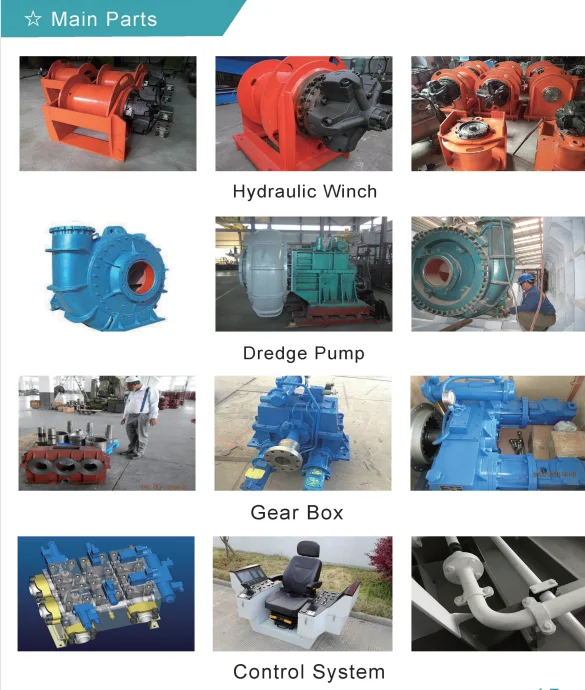

Product Configuration




Successful Project




Specification


Cutter Suction Dredger Parameter
KD-CSD150
KD-CSD200
KD-CSD250
KD-CSD300
KD-CSD350
KD-CSD450
KD-CSD500
LOA( L*w*h)
13*3.2*1.26m
21*4.7*1.2m
28*5.2*1.5m
34.5*7*2m
34.5*7*2m
36*7.9*2.2m
38*8.5*2.5m
Design Draught
0.8m
1.0m
1.0m
1.2m
1.4m
1.6m
1.9m
Working Capacity
450m³/h
850m³/h
1000m³/h
1500m³/h
2500m³/h
4500m³/h
6000m³/h
Max Dredging Depth
5m
10m
10m
18m
20m
25m
25m
Suction Pipe Dia.
165mm
250mm
300mm
350mm
385mm
510mm
550mm
Discharge Pipe Dia.
150mm
200mm
250mm
285mm
300mm
410mm
470mm
Engie Power
75-90kw
150-200kw
250-350kw
450-600kw
600-800kw
1000-1300kw
1300-1500kw
Output Distance
500m
1000m
1300m
1500m
1500m
2000m
2000m
Lift
36m
49m
56m
57m
58m
55m
62m
Total Weight
30t
42t
65t
82t
110t
155t
210t

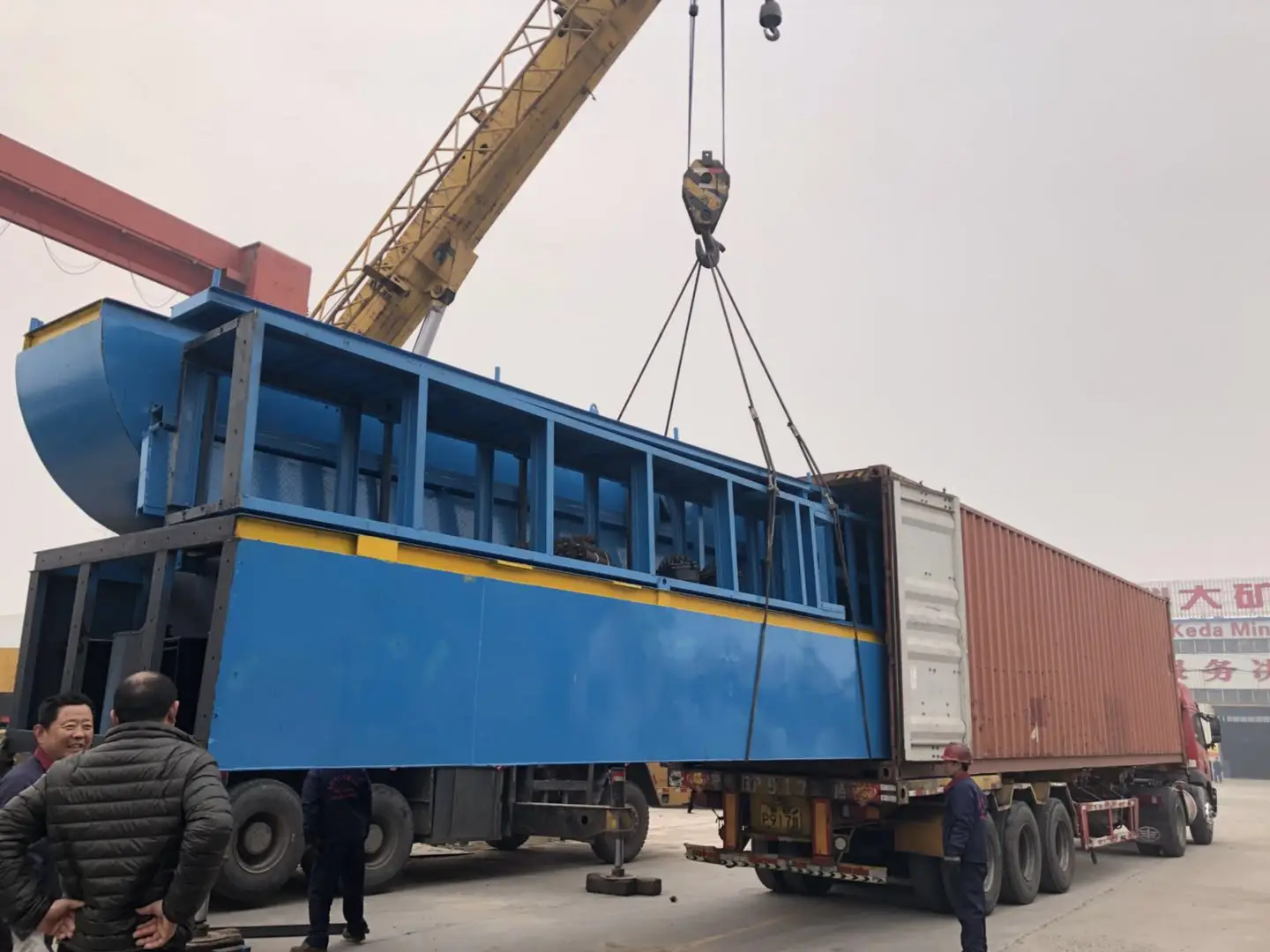

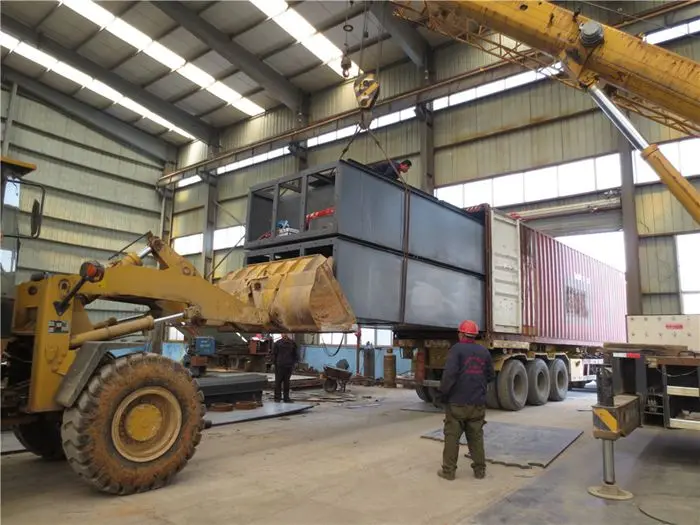

Packing & Delivery




To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


Company Profile






Qingzhou Keda Environment Protection Machinery Co.,Ltd is a re-registered modern formal company of the shareholders. Our company mainly produces iron selecting equipment, all kinds of dredgers, dredging equipment, sand washing and sand making equipment, gold panning equipment, magnetic separating, crusher and so on. There are more than a hundred kinds of products. We design and produce various products according to customers' requirements and geographical conditions. Our company is a modern large-scale mineral processing equipment manufacturer specialized in the research and development, engineering design, production, installation, commissioning and after-sales service.

We pay attention to the development of scientific research, and form strategic partnerships with major research institutions. We have established good cooperation with some import and export trading companies and Shandong Magnetic Equipment Research Institution. We have a CAD Aided Design R&D Center and a physical mineral processing laboratory, which can work out reasonable and practical solutions according to customers' technical requirements and work sites. We have established and improved the file for our equipment and service system. We concentrate on customers' feedback to constantly improve our products to meet customers' different needs.

Honesty and credit is our business value and "Customer First, First-Class Quality and First-Class Service" is our business life.

We have owned a good reputation both in domestic and overseas markets. You are invited to create a brilliant tomorrow together!


FAQ


1. who are we?
We are based in Shandong, China, start from 2011,sell to Africa(30.00%),Domestic Market(20.00%),North America(10.00%),South America(10.00%),Eastern Asia(5.00%),Southeast Asia(5.00%),South Asia(4.00%),Central America(4.00%),Oceania(2.00%),Western Europe(2.00%),Southern Europe(2.00%),Northern Europe(2.00%),Eastern Europe(2.00%),Mid East(2.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Dredger, Gold Mining Equipment, Water Weed Harvester, Sand Production Equipment

4. why should you buy from us not from other suppliers?
We are specialized in mineral processing equipment,exported to all over the world,had got the patent about gold washing equipment.Combined with research and development, engineering design, producing,installation and commissioning and after sale service.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese
