E-VIPO рекуператор HRV рекуперация тепла вентилятор ERV энергосберегающая Механическая вентиляция ECO A + система
- Категории: >>>
- Поставщик: E-Vipo,Technologies,(guangdong),Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Main Features
▶ High-efficiency heat recovery up to 96%

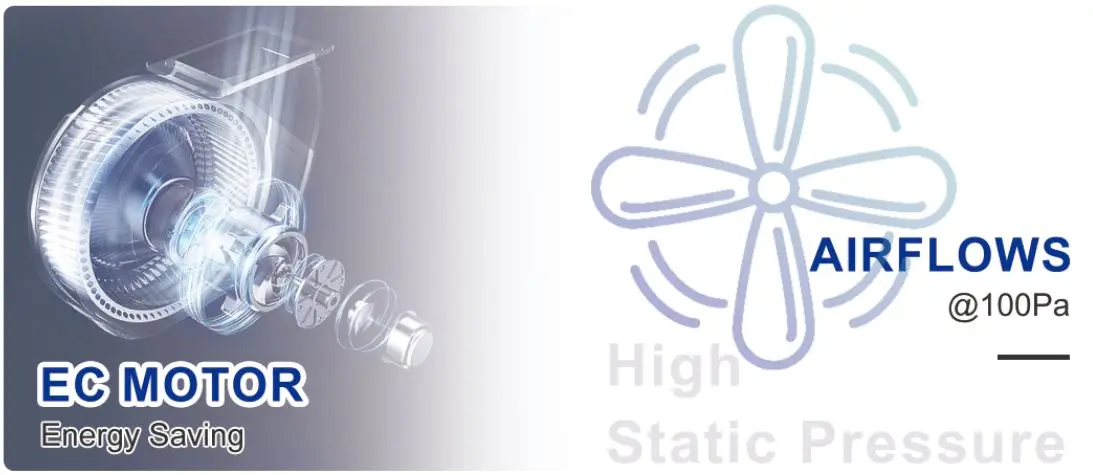

▶ EC Energy Saving Motor (High Static Pressure & Constant Flow)

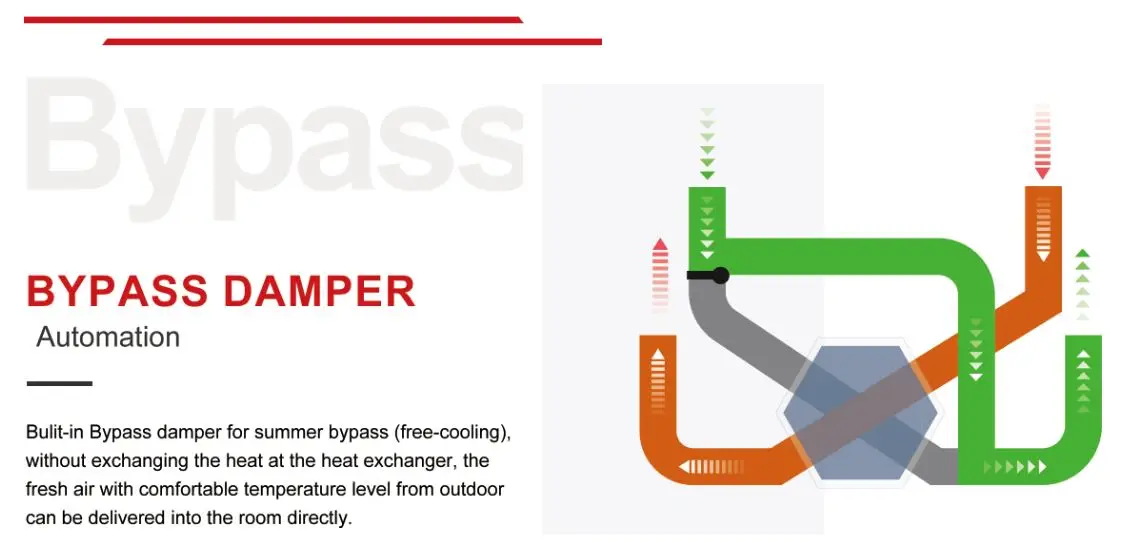

▶ Summer Bypass Integration
▶ Low Energy Consumption
▶ Efficient Sound Reduction
▶ Strong Thermal Insulation

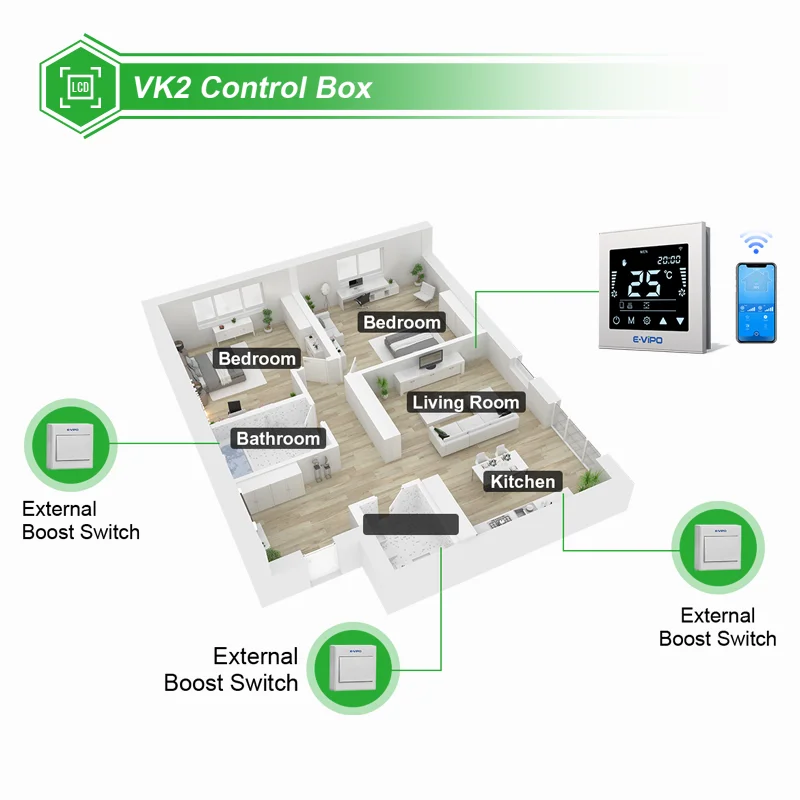

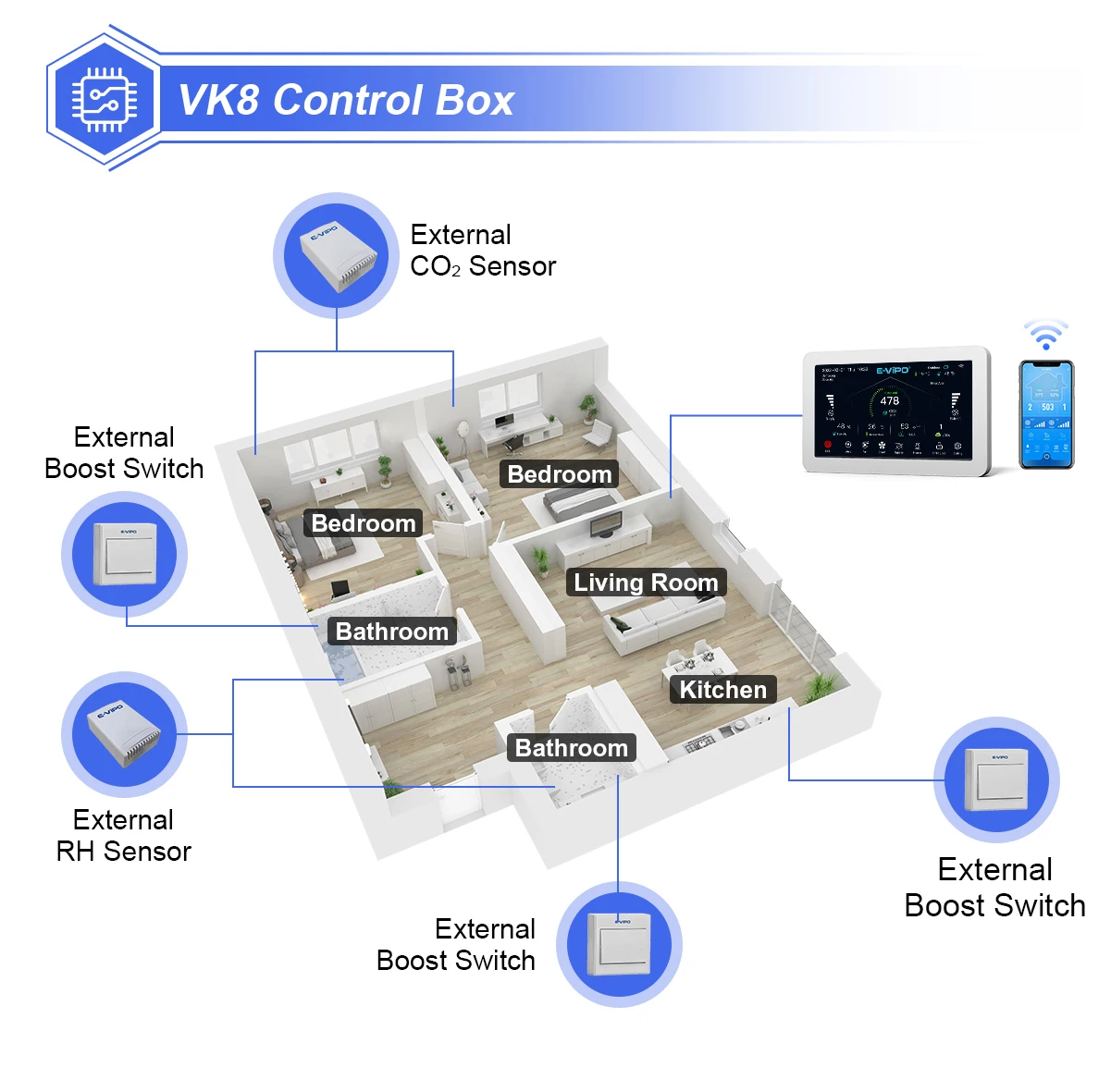

▶ WiFi Control - APP for Android / iOS
▶ EC Energy Saving Motor (High Static Pressure & Constant Flow)
▶ Summer Bypass Integration
▶ Low Energy Consumption
▶ Efficient Sound Reduction
▶ Strong Thermal Insulation
▶ WiFi Control - APP for Android / iOS
Model | Airflows | Filters | Motor Type | Heat Exchanger | Air Duct Diameter |
CS350 | 350m3/h | • G4 Supply Filter • G4 Extract Filter • F8 for option | EC Motor | Counter-flow | Φ150mm |
CS400 | 400m3/h | • G4 Supply Filter • G4 Extract Filter • F8 for option | EC Motor | Counter-flow | Φ150mm |
CS450 | 450m3/h | • G4 Supply Filter • G4 Extract Filter • F8 for option | EC Motor | Counter-flow | Φ200mm |
CS500 | 500m3/h | • G4 Supply Filter • G4 Extract Filter • F8 for option | EC Motor | Counter-flow | Φ200mm |
CS550 | 550m3/h | • G4 Supply Filter • G4 Extract Filter • F8 for option | EC Motor | Counter-flow | Φ200mm |
CS600 | 600m3/h | • G4 Supply Filter • G4 Extract Filter • F8 for option | EC Motor | Counter-flow | Φ250mm |

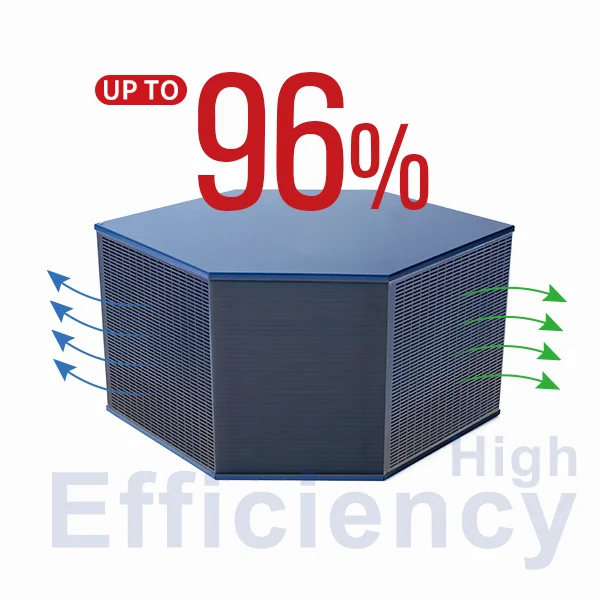

High Heat Recovery Efficiency
With an optimal distance between layers to ensure a high heat recovery efficiency and a smooth movement of the airflows. Comparing to traditional cross-flow heat exchanger, counter-flow heat exchanger provides a longer distance flows of air and with a larger plate area. Material with Graphene used also has a higher heat recovery efficiency than traditional paper material core, where the counter-flow heat exchanger is washable and durable, anti-viral and anti-bacterial.
