Стационарный 2-тонный 5-тонный подъемный портативный алюминиевый козловой кран для неровного
- Категории: >>>
- Поставщик: Henan,Kino,Cranes,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

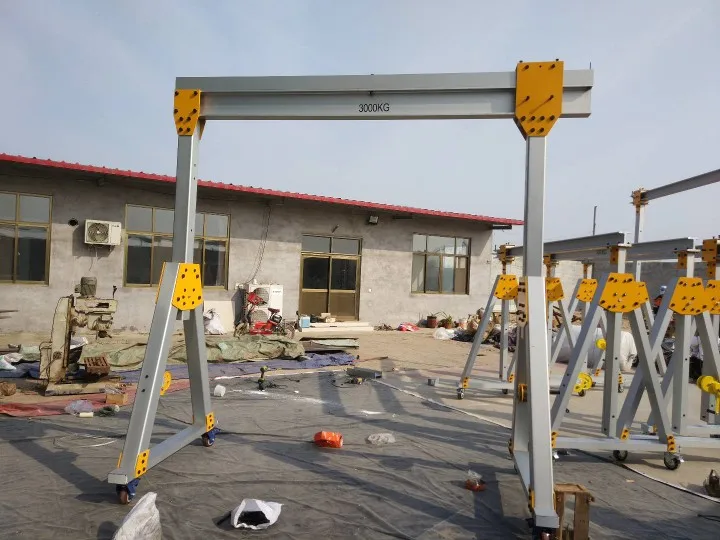

Aluminum gantry crane is a multi-functional lifting equipment, usually made of aluminum alloy. It has the characteristics of lightness, strong load-bearing capacity, portability, detachable, foldable, liftable, safe and reliable. This lifting equipment is designed for mobility, allowing a single worker to assemble and disassemble an aluminum gantry crane in less than three minutes. For industries that need to move from one job site to another, aluminum gantry cranes are essential lifting equipment that increase productivity, safety, and work efficiency.
Product Features
1. Portability
Only 1-2 people are needed for transportation and carrying;
Light weight.
2. Adjustable
Only 1-2 people are needed for transportation and carrying;
Light weight.
2. Adjustable
Both width and height are adjustable to meet different operating needs.
The outrigger are adjustable to cope with different heights on the ground.
3. Releasable latch
Near change quick latch, no other tools required;
With 6 pins, installation only takes 1 minute.

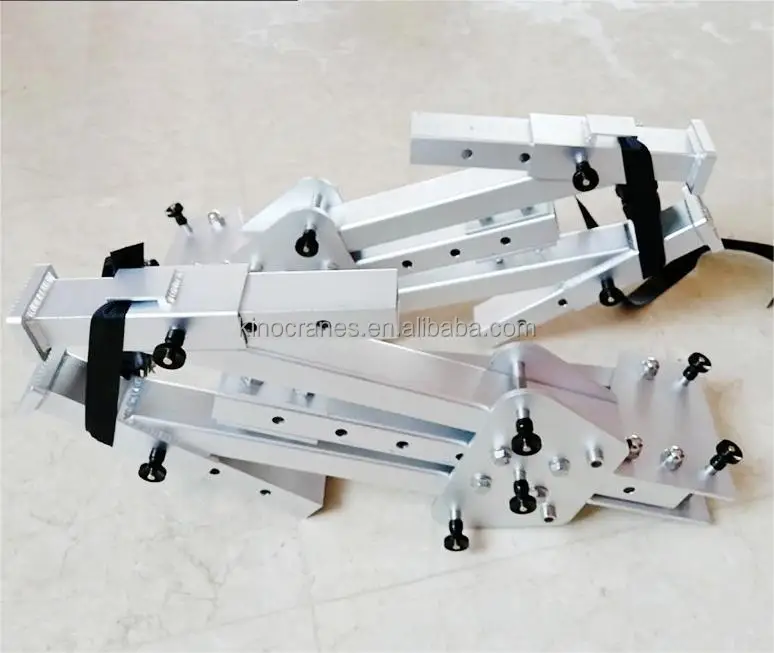

4. Packing and shipping
Composed of foldable aluminum alloy structure;
Easy to transport.
Near change quick latch, no other tools required;
With 6 pins, installation only takes 1 minute.
4. Packing and shipping
Composed of foldable aluminum alloy structure;
Easy to transport.
Specification
ltem No | Rated load | Total height | Max.Lifting height | Out side span | Inner span | H Height |
(ton) | (mm) | (mm) | (mm) | (mm) | (mm) | |
KNLT-3 | 1 | 2000-3000 | 2470 | 3000 | 2880 | 410 |
1 | 2000-3000 | 2470 | 4000 | 3880 | 410 | |
1 | 2600-4000 | 3470 | 3000 | 2880 | 410 | |
1 | 2600-4000 | 3470 | 4000 | 3880 | 410 | |
2 | 2000-3000 | 2215 | 3000 | 2800 | 535 | |
2 | 2000-3000 | 2215 | 4000 | 3800 | 535 | |
2 | 2600-4000 | 3315 | 3000 | 2800 | 535 | |
2 | 2600-4000 | 3315 | 4000 | 3800 | 535 | |
3 | 2000-3000 | 2122 | 3000 | 2800 | 685 | |
3 | 2000-3000 | 2122 | 4000 | 3800 | 685 | |
3 | 2600-4000 | 3122 | 3000 | 2800 | 685 | |
3 | 2600-4000 | 3122 | 4000 | 3800 | 685 |

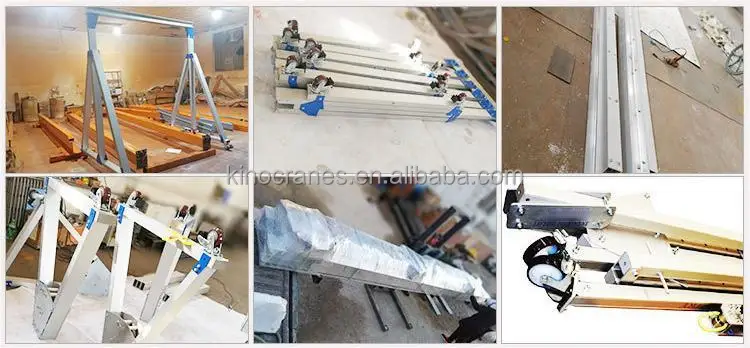

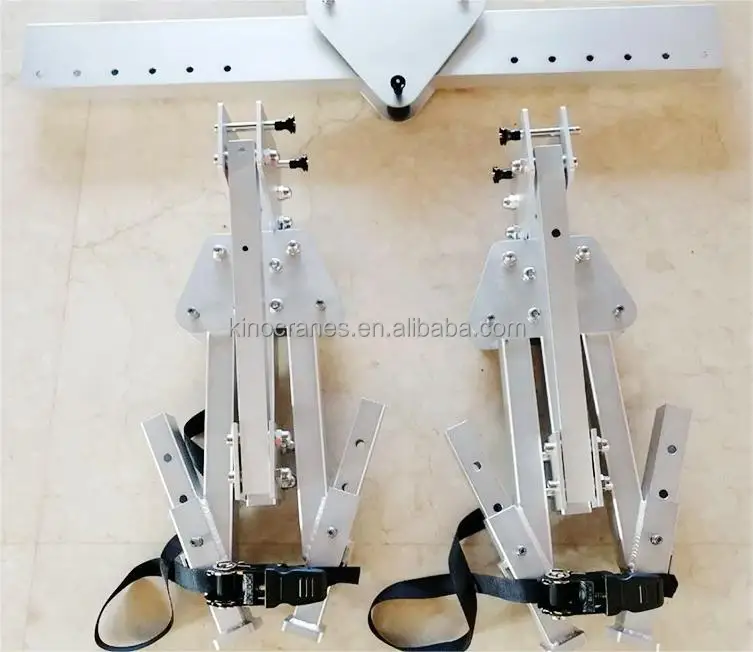

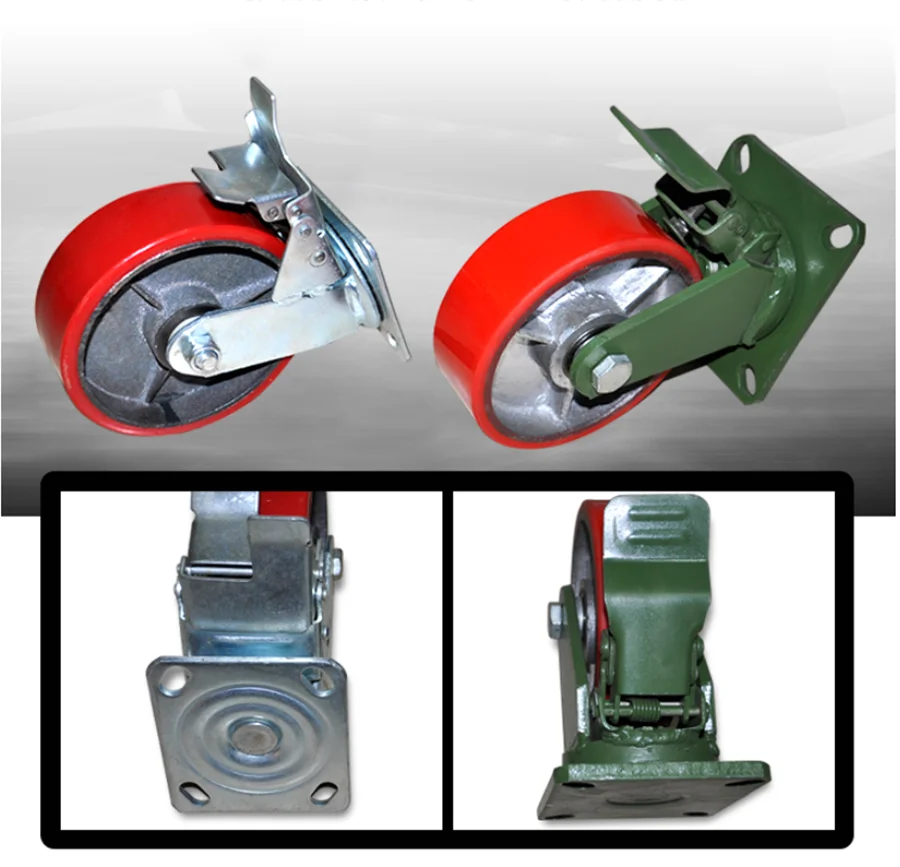

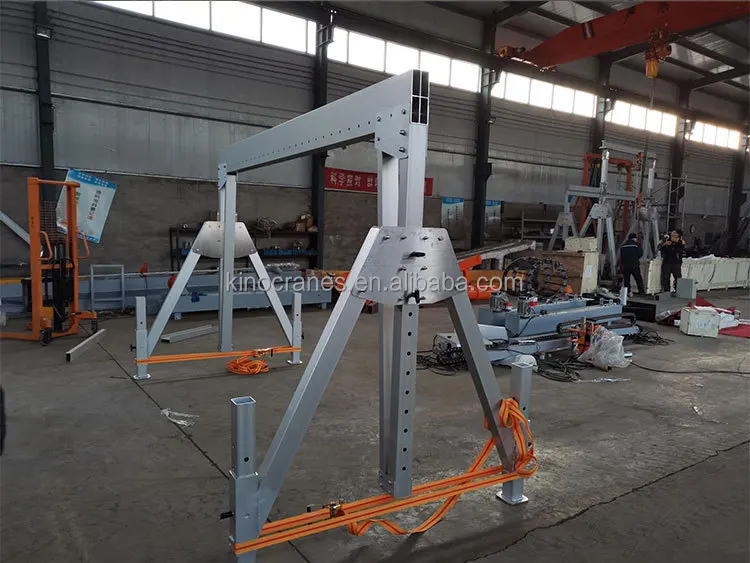

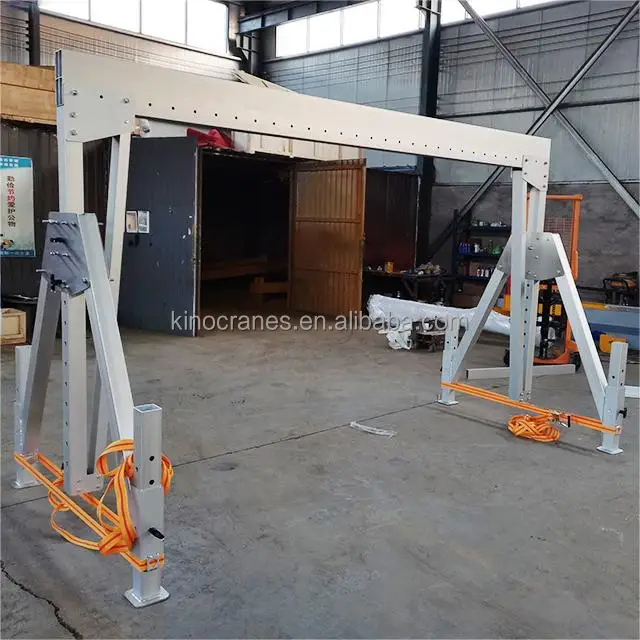

Detailed Images

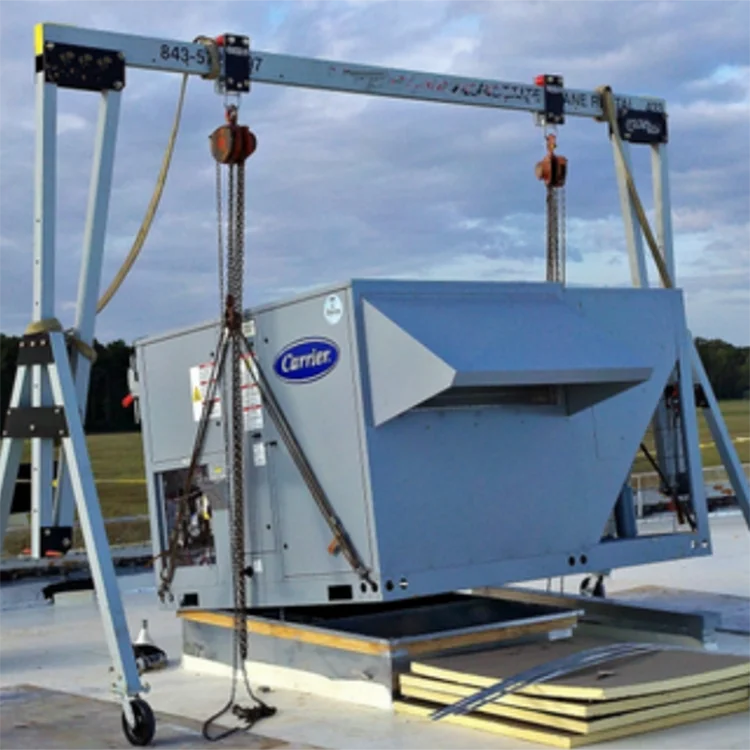

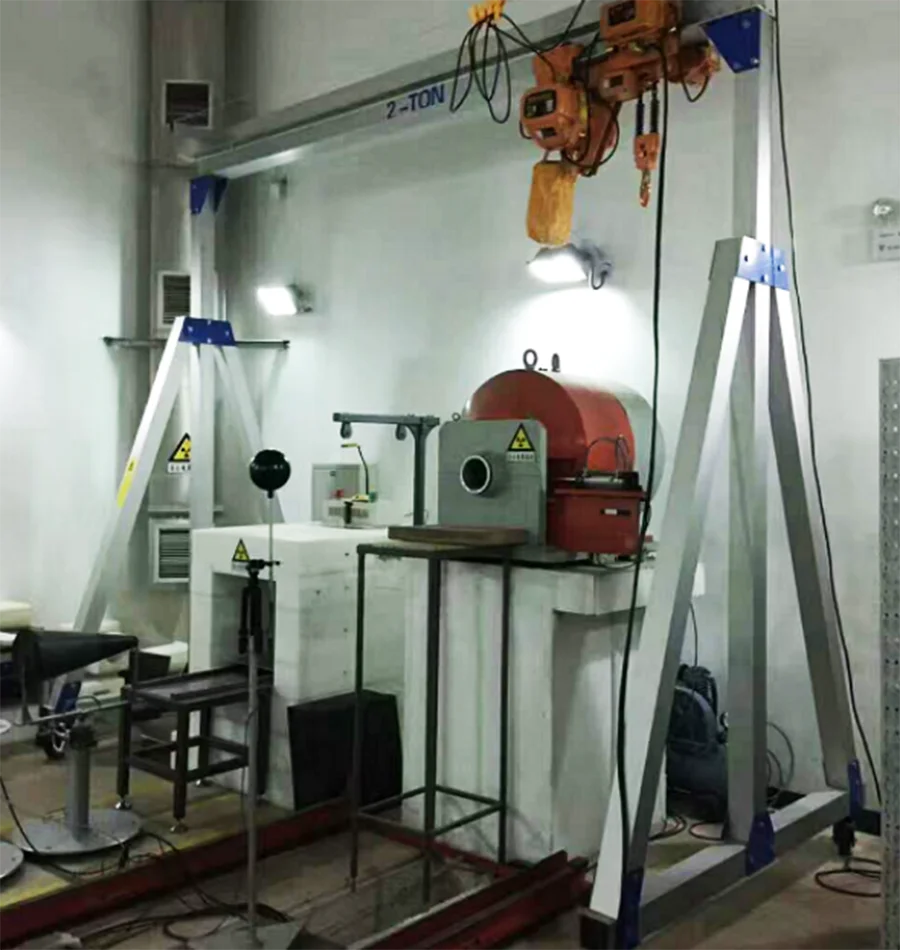

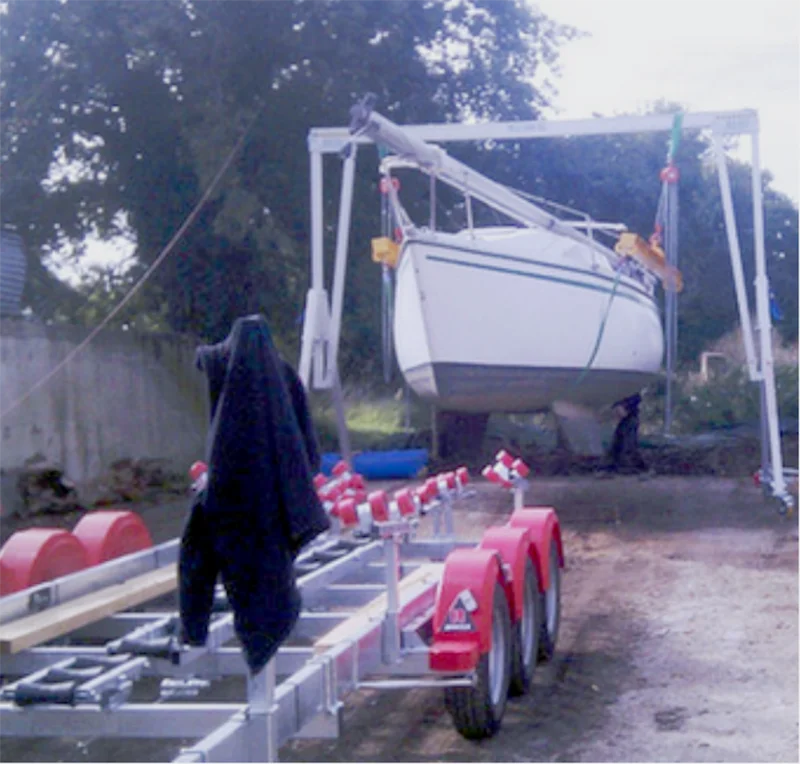

Application Scenarios
This kind of lifting equipment is widely used in industrial production and logistics fields. They can provide flexible and portable lifting equipment that can be easily transported from one job site to another. Therefore, they are particularly popular in HVAC, construction, manufacturing, power generation, etc. and electrical industries.
Packing & Delivery
Company Profie
