Машина для прокатки листового металла
US $10000
Легкая в эксплуатации Автоматическая стеллаж для хранения прокатная машина полка панельные полки оборудование производства
- Категории: >>>
- Поставщик: Botou,Shibo,Machinery,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

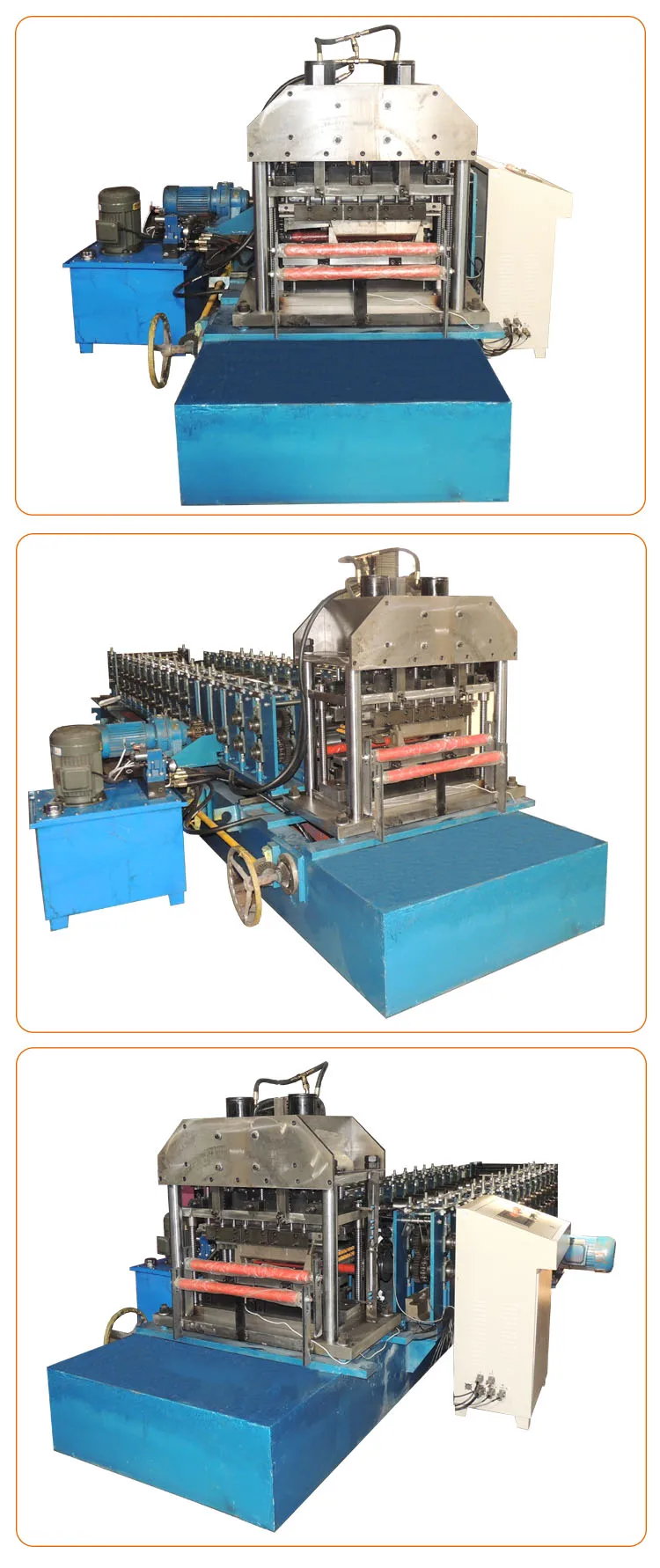

Easy to operate automatic steel storage rack rolling forming machine Shelf Panel Shelves Making Machinery
Product Description
Storage rack Pallet Rack box Upright Beams roll forming machine | |
Feeding material | Galvanized sheet |
Thickness of the plate | 2-3mm |
Machine size | About 6500mm*800mm*800mm |
Diameter of the axle | Φ80mm |
Material of rollers | Gcr15 |
Rolling stages | 18 stages |
Productivity | 10-12m/min (without punch) |
Total power | 11 kw motor+11 kw motor+4kw Hydraulic motor |
Voltage | 380V 60Hz 3phase or as requirement |
Weight | About 4.5T |
Base frame | 350 H-beam steel |
Cutting blade | Cr12 with heat treatment |
Cutting system | Hydraulic cutting system after forming |
Control cabinet | PLC and frequency changer in it |
Main Products
Please click on the top to learn more about the product↑↑↑
Company Information
Packaging & Shipping
FAQ
