Product Overview

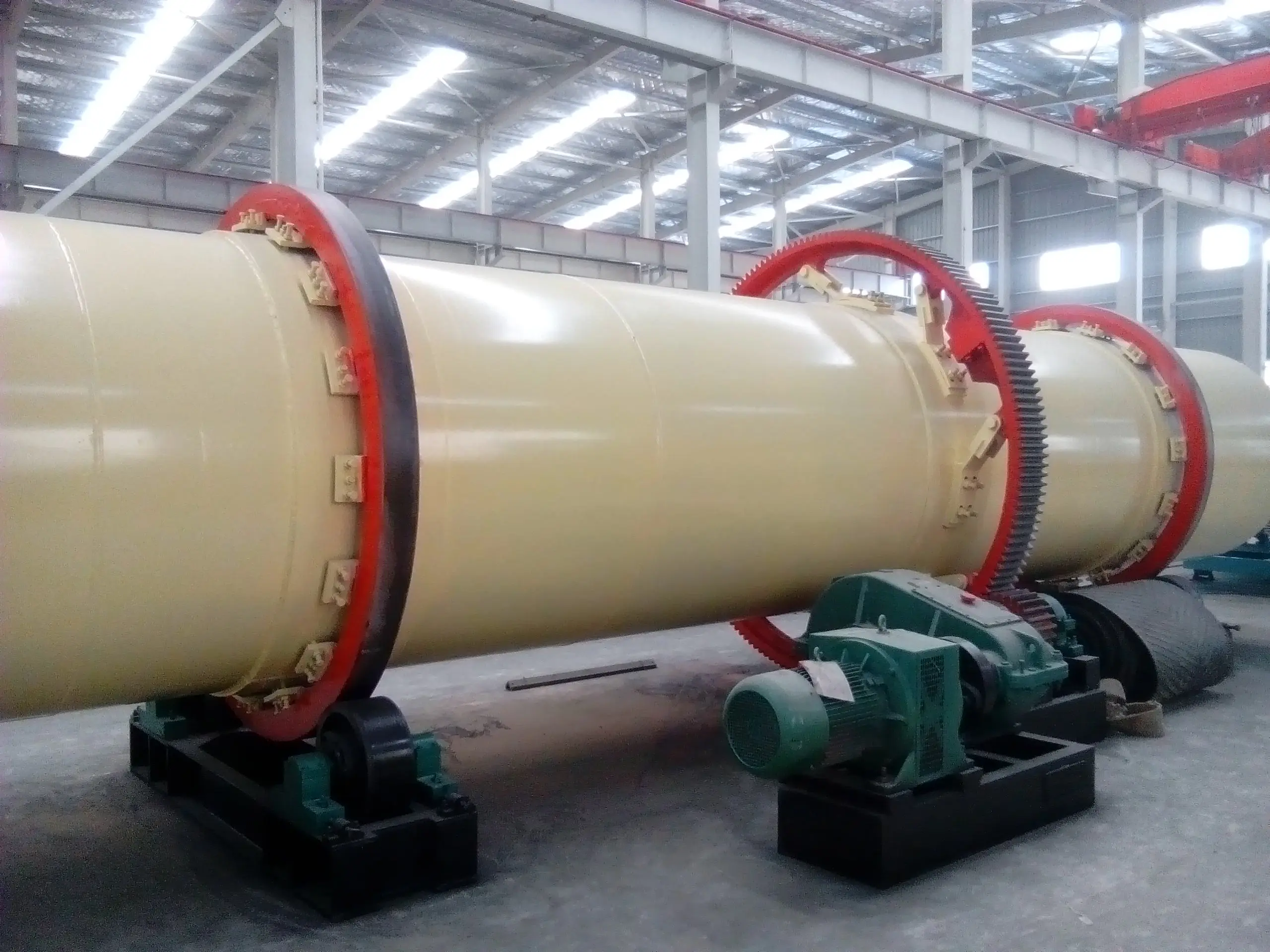

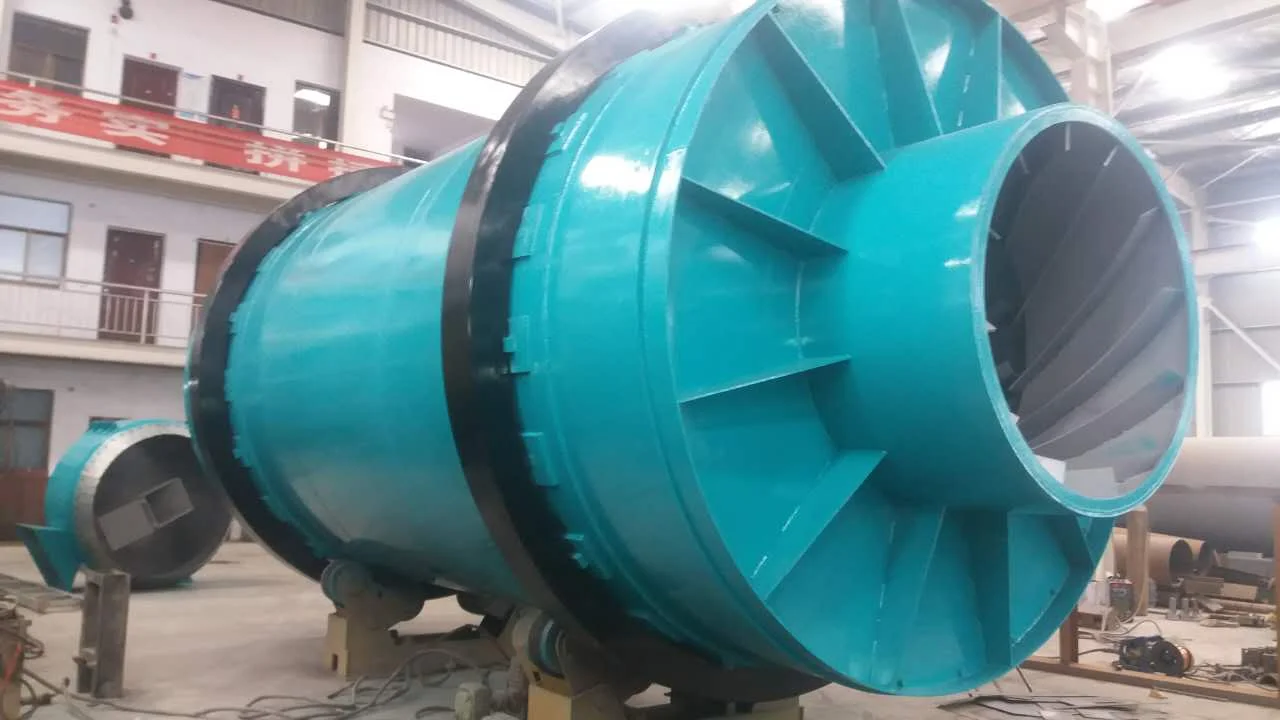

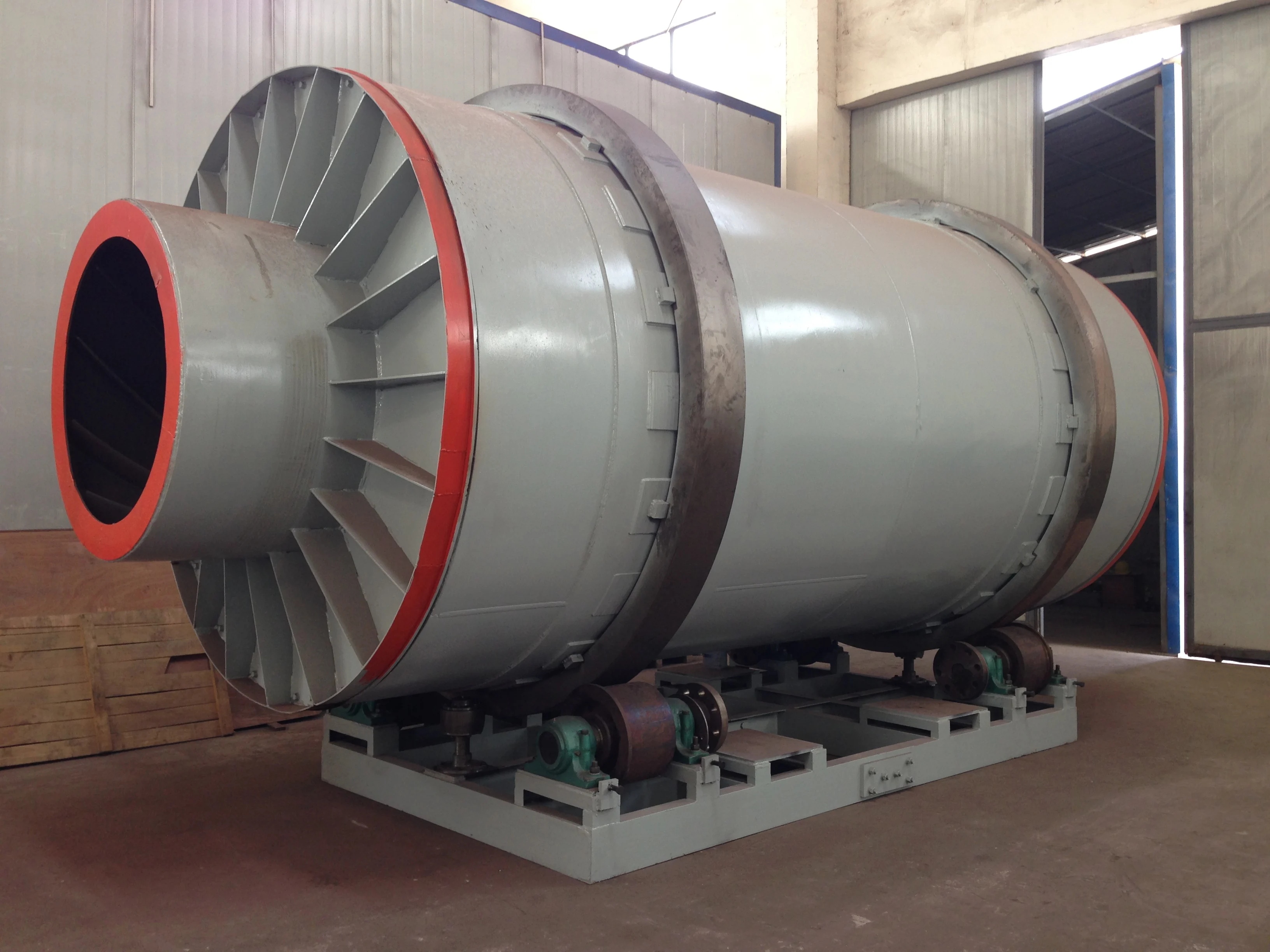

Rotary Dryer
Dryer is widely used for processing the materials in the areas of building mater ials,metallurgy,cement,slag,limestone,coal prodwer,clay,It is mainly composed by gytator,material feeding plate,gearing,support device and seal corcle,ect.It has the advantages of reasonable structure,perfect in workmanship,high producttion,low consumption and easy to operation.
FEATURES AT A GLANCE
Rotary Dryer
It is mainly composed by gytator,material feeding plate,gearing,support device and seal corcle,ect.It has the advantages of
reasonable structure,perfect in workmanship,high producttion,low consumption and easy to operation.
reasonable structure,perfect in workmanship,high producttion,low consumption and easy to operation.
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Model | Gradient(%) | Rotation Speed(r/min) | Feed-in Gas Temperature(^c) | Power(kw) | Output(t/h) | Weight(t) |
600*6000 | 3-5 | 3-8 | <=700 | 3 | 0.5-1.5 | 2.9 |
800*8000 | 3-5 | 3-8 | <=700 | 4 | 0.8-2.0 | 3.5 |
800*10000 | 3-5 | 3-8 | <=700 | 4 | 0.8-2.5 | 4.5 |
1000*10000 | 3-5 | 3-8 | <=700 | 5.5 | 1.0-3.5 | 5.6 |
1200*10000 | 3-5 | 3-8 | <=700 | 7.5 | 1.8-5 | 14.5 |
1200*12000 | 3-5 | 3-8 | <=700 | 11 | 2-6 | 14.8 |
1500*12000 | 3-5 | 2-6 | <=800 | 15 | 3.5-9 | 17.8 |
1800*12000 | 3-5 | 2-6 | <=800 | 18 | 5-12 | 25 |
2200*12000 | 3-5 | 1.5-6 | <=800 | 18.5 | 6-15 | 33 |
2200*18000 | 3-5 | 1.5-6 | <=800 | 22 | 10-18 | 53.8 |
2200*20000 | 3-5 | 1.5-6 | <=800 | 30 | 12-20 | 56 |
2400*20000 | 3-5 | 1.5-5 | <=800 | 37 | 18-30 | 60 |
3000*20000 | 3-5 | 1.5-5 | <=800 | 55 | 25-35 | 78 |
3000*25000 | 3-5 | 1.5-5 | <=800 | 75 | 32-40 | 104.9 |
PRODUCT CONFIGURATION
CHANGCHAI high power engine
Imported EATON control valve
Japan Shimadzu hydraulic motor
SALES AND SERVICE NETWORK

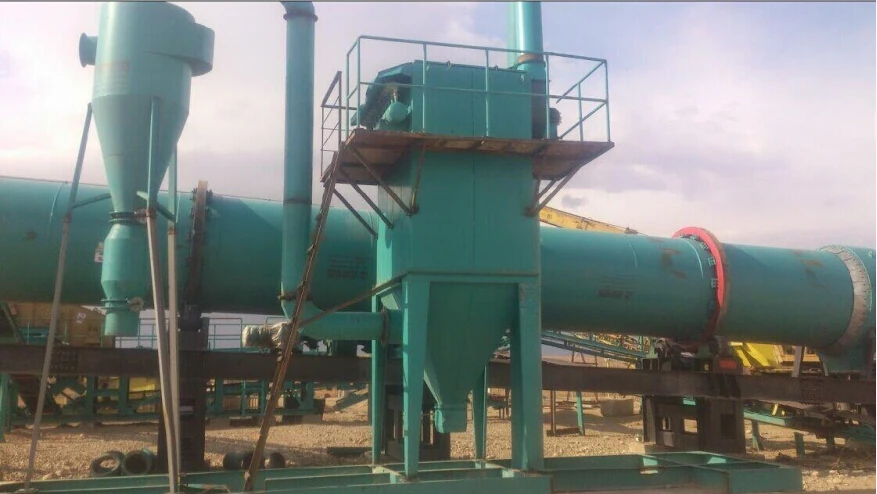

Successful Project
Project in Thailand
Project in India
Project in Russia
SIMILAR PRODUCTS
FAQ
After-sales and logistics issues:
After-sales problems: Henan Shanteng machinery equipment sold equipment warranty for one year, provide technical support and
accept overseas installation. Therefore, you do not have to worry about the use of subsequent products, and you can contact us in
time if there is any problem in the use process.
Logistics: Our company will arrange logistics methods and routes that are more suitable for you according to your needs. Customer satisfaction is our greatest pursuit.
After-sales problems: Henan Shanteng machinery equipment sold equipment warranty for one year, provide technical support and
accept overseas installation. Therefore, you do not have to worry about the use of subsequent products, and you can contact us in
time if there is any problem in the use process.
Logistics: Our company will arrange logistics methods and routes that are more suitable for you according to your needs. Customer satisfaction is our greatest pursuit.
