Горячий продукт машина для дробеструйной обработки каменных

Описание и отзывы

Характеристики

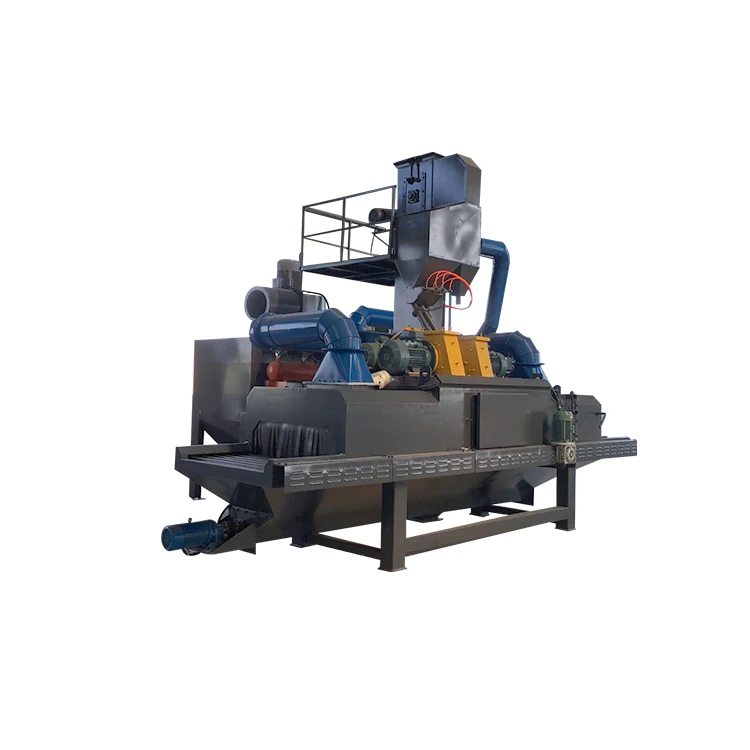

Brief introduction (Shot Blasting Machine):

It is developed for the derusting and painting treatment of steel plate, steel profiles and structural parts used for ships, automobiles,bridges, engineering machines and so on, It could be tailored according to customers’ needs, and its work flow is mainly consist of preheating, shot blasting, painting and drying.

Advantage (Shot Blasting Machine):

Our steel profile shot blasting machine achieves accurate, effective paint spraying. A workpiece width measuring device is installed at the inlet of the spray booth. The PLC controls paint spraying operations of the spray gun according to the measured data. In this way, the paint squeezed out of the nozzle can be effectively sprayed onto the workpiece surface, which helps improve paint utilization.

Application (Shot Blasting Machine):

It is a piece of shot blast equipment which can perform preheating, shot blasting, paint spraying and drying processes. It is mainly used for removing surface rust, contaminants and spraying paint from the surface of steel boards, steel profiles and structural components in industries such as shipping, automobile, motorcycle, bridge, machinery, etc.

 Advantage :

 1. Professional senior enginners to find the best solutions for you;

 2. 15 years' production experience in shot blasting machinery industry;

 3. Timely after-sale service, if any problem occurs, we would reply to you within 8 working hours;

 4. Timely delivery, 3 hours to Shanghai Port;

 5. Our experienced workers for site installation and commission

Specification for KBSB full automatic stone usage shot blasting machine

Item Type	QG698	QG6912	QG6915	QG6920
The effective cleaning width (mm)	800	1200	1500	2000
The room feed-in size	1000x400	1400x400	1700x400	2200x400
The length of cleaning workpiece	1200-12000	1200-16000	1200-12000	1200-12000
The speed of wheel conveyor (m/min)	0.5-4	0.5-4	0.5-4	0.5-4
The thickness of cleaning steel sheet (mm)	3-60	3-60	1.5-60	3-60
Steel Specification	800x300	1000x300	1500x300	2000x300
The quantity of shot blasting (kg/min)	4x180	4x250	4x250	6x250
The first enclosed quantity (kg)	4000	4000	4000	4500
Roll brush adjusting height (mm)	200	200	350	450
Air capacity (m³/h)	22000	17560	19000	19550
Exterior size (mm)	25107x4500x9015	12180x4250x7095	15200x5370x6797	30650x6850x9095
Total power (kw)	90	78.3	113.5	156.6



Yancheng Kebo Hydraulic Machinery Manufacturing Co., Ltd. is located along the beautiful seaside of Huanghai Sea, enjoying very convenient transportation. We are one of the first manufacturers specializing in the research and development of hydraulic machinery, including cement colorful-tile machines, building-block molding machines, oil cylinders and hydraulic systems in China.

We are furnished with advanced CAD system and we cooperate with colleges and universities to develop hydraulic machinery. Our manufacture and sales of cement colorful-tile machines keep ranking among the top manufacture in the industry. In addition, our building-block molding machines enjoy a good reputation in building materials industry. What's more, our special hydraulic system for colorful-tile machine and hydraulic system for building-block molding machine have been supplied to the related manufactures, winning customers' trust.

We are also equipped with complete processing equipment for lathing, grinding, cutting, folding and milling. Therefore, our product quality is in a leading position in the industry both at home and abroad. Besides, we can also provide product cost to meet clients' needs.

The new century is full of opportunities and challenges. However, "Kebo People" will grasp the opportunities and face the challenge bravely with hard working and wisdom. We would like to cooperate with friends for mutual development and benefits. All the friends and clients are warmly welcome to visit us. You must feel satisfied with our advanced technology, excellent brand and perfect service.
