Eaton 9PX5K UPS 9PX 5000i 5kVA 5000VA 4500 Вт 230Vac однофазная стойка башня Кабриолет 3U с батареей 12V
- Категории: >>>
- Поставщик: Shenzhen,Pocasa,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Product name | Eaton 9PX UPS |
Catalog number | 9PX5Ki |
Power level | 5000 VA | 4500 W |
Rated voltage | 220/230/240 Vac |
Installation type | Rack/tower |
Topology | On line double conversion with Power Factor Correction (PFC) system |
Output voltage/THDu | 220/230/240 Vac +/- 1%; THDu <2% |
Efficiency | Up to 94% in Online mode, 98% in Hi-Efficiency mode |
Short circuit current | 90A |
Overload capacity | 102-110%: 120s, 110-125%: 60s, 125-150%: 10s, >150%: 500ms |
Input | output phase | Single |
Dimension | 440(19’’)*130(3U)*685 mm |
Extended battery capability | Yes |
Battery type | Lead acid maintenance free (replaceable) |
Communication ports | 1 USB port, 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously), 4 dry contacts (DB9), 1 mini terminal block for remote On/Off and 1 for remote power Off, 1 DB15 for parallel operation |
Communication slot | 1 slot for Network-M2 card, INDGW-M2 or Relay-MS cards |
Battery management | ABM® & temperature compensated charging method (user selectable), automatic battery test, deep discharge protection, automatic recognition of external battery units |
Input connection | Terminal block (up to 10 mm2) |
Output connection | Terminal block + 2 controlled groups of 4 IEC C13 (10A) + 2 IEC C19 (16A) |
Noise level | < 45dB |
Company Introduction
About POCASA
Company Background
Since 2012, Shenzhen Pocasa Electronic Co., Ltd. has engaged in development, manufacturing, and sales of high reliable and cost-effective uninterruptible power supply (UPS) including offline, line interactive and online types to global customers. By 2018, POCASA outgrew a high-tech enterprise (Shenzhen) that had passed ISO9001, ISO14001, ISO45001 certifications.
Production Abilities

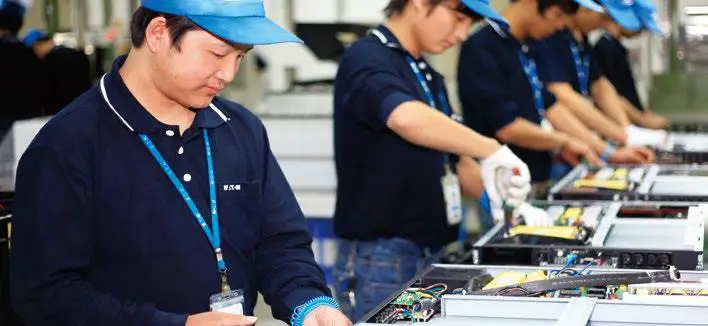

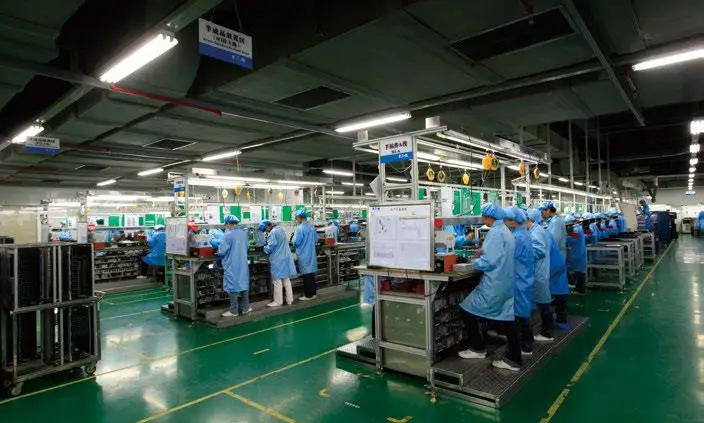

Nowadays, POCASA factory has a total area of 15,000 square meters, 7 assembly lines, which produces some 10,000 units equipment each month with power levels from 500 VA to 200 kVA. POCASA optimizes Just-in-Time (JIT) resource planning and inventory control to support our customers with minimized lead time and flexible delivery schedule.
Company Background
Since 2012, Shenzhen Pocasa Electronic Co., Ltd. has engaged in development, manufacturing, and sales of high reliable and cost-effective uninterruptible power supply (UPS) including offline, line interactive and online types to global customers. By 2018, POCASA outgrew a high-tech enterprise (Shenzhen) that had passed ISO9001, ISO14001, ISO45001 certifications.
Production Abilities
Nowadays, POCASA factory has a total area of 15,000 square meters, 7 assembly lines, which produces some 10,000 units equipment each month with power levels from 500 VA to 200 kVA. POCASA optimizes Just-in-Time (JIT) resource planning and inventory control to support our customers with minimized lead time and flexible delivery schedule.
Quality Assurance
POCASA products were recognized by CE, RoHS, UL, TUV, CSA, FCC etc. to assure quality and safety. POCASA’s modern facilities incorporate world-class manufacturing capabilities and technologies to produce high quality power supplies.

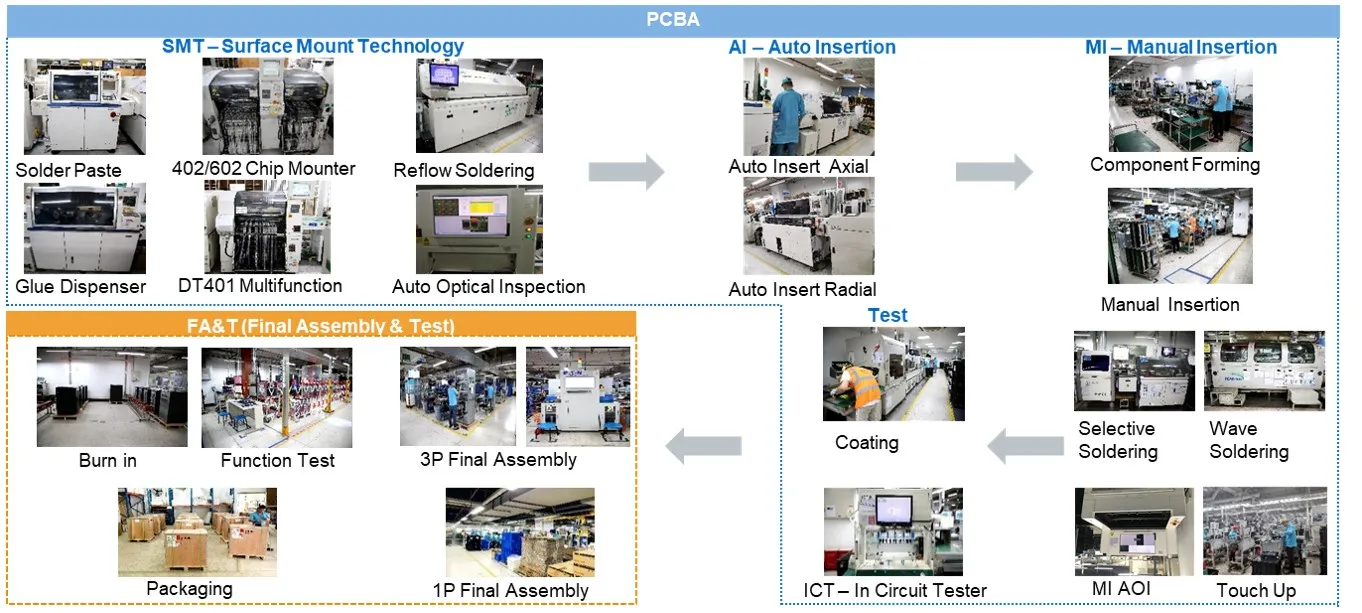

SMT Systems
Solder Paste Screen Systems
In-circuit Auto-test Systems
Automated Parts Storage & Retrieval Systems
Wave Solder Systems
Burn-in Racks
Burn-in Racks
Our Advantages
POCASA will continue to excel towards providing perfect power management solutions, we are confident to be your outstanding supplier through:
The latest technologies
Real-time technology supports from dedicated and trained engineer team
Rapid response to pre-sales and after-sales requests
POCASA takes pride in our expertise to offer high quality power supplies for all purpose applications. You are invited to visit POCASA plant to see how do we design and manufacture, also you are welcomed to contact us to obtain professional technology assistances.
We are looking forward to cooperate with you and establish a long-time win-win relationship.
POCASA will continue to excel towards providing perfect power management solutions, we are confident to be your outstanding supplier through:
The latest technologies
Real-time technology supports from dedicated and trained engineer team
Rapid response to pre-sales and after-sales requests
POCASA takes pride in our expertise to offer high quality power supplies for all purpose applications. You are invited to visit POCASA plant to see how do we design and manufacture, also you are welcomed to contact us to obtain professional technology assistances.
We are looking forward to cooperate with you and establish a long-time win-win relationship.
Packing&Shipping
FAQ
Q1. How long is your lead time?
A1. Sample order will be delivered within 7-14 days, bulk order will be 21-30 days.
Q2. Do you provide OEM or ODM service?
A2. Yes, we accept OEM or ODM order, and we offer customized logo for free if order >= 100 units.
Q3. Can I get sample before bulk order?
A3. Yes, 1-10 pcs sample supported before bulk order.
Q4. What kinds of certification have you applied?
A4. Our products have passed CE, RoHS, UL, TUV, CSA, FCC....
Q5. What kinds of payment method do you accept?
A5. We support T|T, Western Union, credit card or Master card.... Welcome to pay via alibaba online order.
Q6. What kinds of trade term do you offer?
A6. We support EXW, FOB, CIF, DDP.... We will offer FOB | ShenZhen if order amount > $20,000
Q7. How long warranty do you offer?
A7. Our standard warranty is 3 years; if you want extended warranty, extra 5% for each year.
Q8. How high is your product defect rate?
A8. Average 2% according to our records, we offer 2% spare parts. We sell components at cost price if you need more.
Q9. What is your MOQ?
A9. MOQ 10 pcs, but usually we have some in stock for popular models.
Q2. Do you provide OEM or ODM service?
A2. Yes, we accept OEM or ODM order, and we offer customized logo for free if order >= 100 units.
Q3. Can I get sample before bulk order?
A3. Yes, 1-10 pcs sample supported before bulk order.
Q4. What kinds of certification have you applied?
A4. Our products have passed CE, RoHS, UL, TUV, CSA, FCC....
Q5. What kinds of payment method do you accept?
A5. We support T|T, Western Union, credit card or Master card.... Welcome to pay via alibaba online order.
Q6. What kinds of trade term do you offer?
A6. We support EXW, FOB, CIF, DDP.... We will offer FOB | ShenZhen if order amount > $20,000
Q7. How long warranty do you offer?
A7. Our standard warranty is 3 years; if you want extended warranty, extra 5% for each year.
Q8. How high is your product defect rate?
A8. Average 2% according to our records, we offer 2% spare parts. We sell components at cost price if you need more.
Q9. What is your MOQ?
A9. MOQ 10 pcs, but usually we have some in stock for popular models.
