Production Name | Facial recognition Bus Validator NFC card bus fare collection validator with QR code Bus Ticketing Machine with voice broadcast |
Model No. | GC158 |
| Application industry | Bus Transportation Cashless Payment Collection System, bus fare collection validator, Bus Ticketing Machine, Prepaid card pos payment terminal, automatic ticketing bus fare collection validator. |
| Application software | OS installed, free SDK, bus validator apps not included |
| 2D code decoding | Built-in 2D code decoding software, based on Android |
| Operation System | Android 6.0 / Android 7.1.2 |
| CPU | Unisoc SL8541E, ARM Cortex-A53, quad core, 1.4GHz |
| DDR | 2GB RAM LPDDR3 |
| Storage | 16GB EMMC |
| LCD display(either-or) | Landscape mode: 7 inch RGB LCD, 1024*600 pixel |
| or Portrait mode: 5 inch RGB LCD, 480*800 pixela | |
| Driver's display | 8 segment 4 bit LED |
| Touch panel | no touch as default |
| Barcode scanning module | 1D code: UPCA,UPCE0,Code 11,Codabar,Matrix2of5,Industrial25, RSS14,RSSLimited,RSSExpanded, MSIPlessey,UPCE1,EAN13,EAN8, CODE39,CODE 93,CODE 128, ISBN13,INTERLEAVED 2 of 5; |
| 2D code: PDF417 DATAMATRIX QRCode | |
| RFID reader(NFC) | 13.56MHZ contactless, ISO/IEC14443A/B, ISO/IEC 15693, MIFARE and FeliCa specifications. |
| RFID Card Reader (optional) | 13.56MHZ contactless, meet standard of philips Mifare, ISO14443, ISO10536(For windows) |
| Ai Facial Recognition Camera | (Optional)Binocular camera RGB+IR 2.0M Depth camera,living body detection |
| Speaker | High effient DSP processing, SD sound effect, 3W mono output |
| key/button | Enter, Up, Down, Back in the bottom |
| Commucation module (4G module can be changed to user country/region band) | LTE-FDD: B1/B3/B5/B7/B8/B20/B28 |
| LTE-TDD: B38/B40/B41 | |
| WCDMA: B1/B5/B8 | |
| GSM/EDGE: 900/1800 MHz | |
| WIFI module: 2.4/5 GHz, 802.11a/b/g/n/ac | |
| Bluetooth 5.0 | |
| GGNSS: GPS + GLONASS or GPS | |
| Interface (may vary for different product batch,OEM available) | USB OTG x 1 |
| Comport x 1, ethernet plug | |
| DC x 1 (Φ12MM aircraft connector, 10-40V, 2.5A) | |
| GPS antenna plug: x1, RP-SMA plug | |
| SIM card x3, PSAM x1, more SIM card slot and PSAM slot is available upon customization | |
| Accessories | Car cigarette lighter socket, 10-40V, 2.5A |
| (Optional)3.7v 2600mAh polymer battery pack, | |
| Working temperature | -10℃~50℃ |
| Storage temperature | -40℃~80℃ |
| Humidty | 95% without sticky |
| ESD protection | 12Kv |

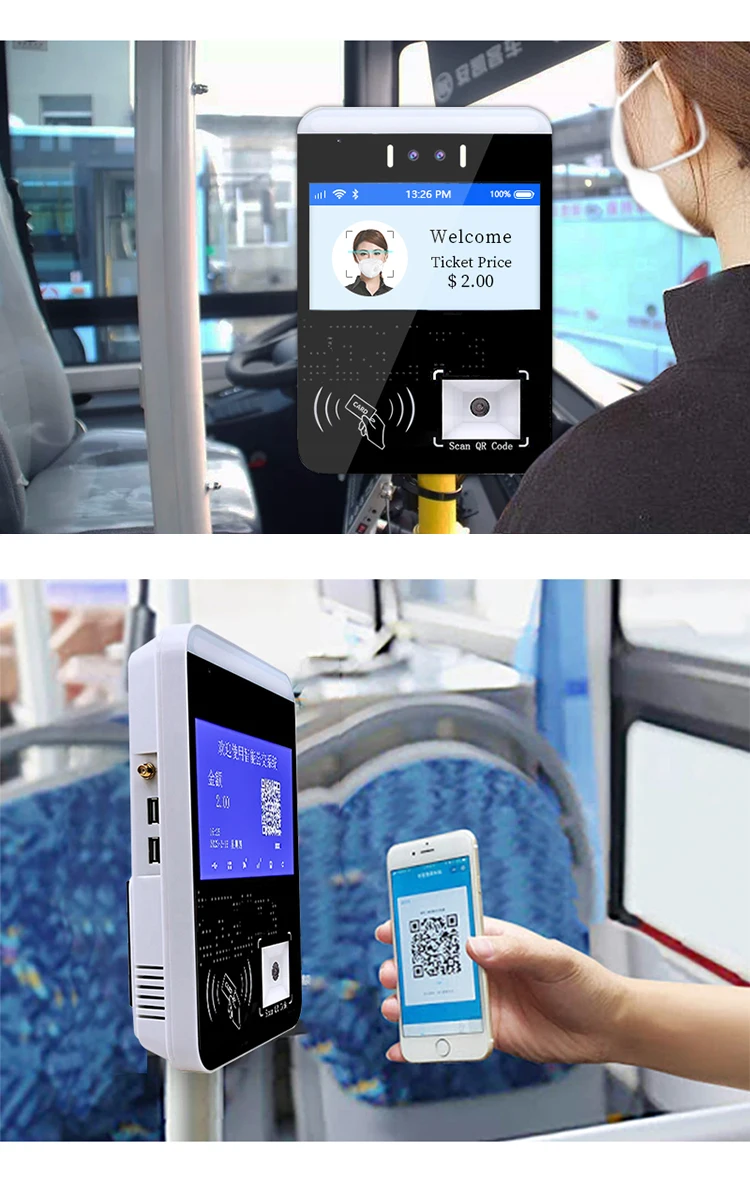

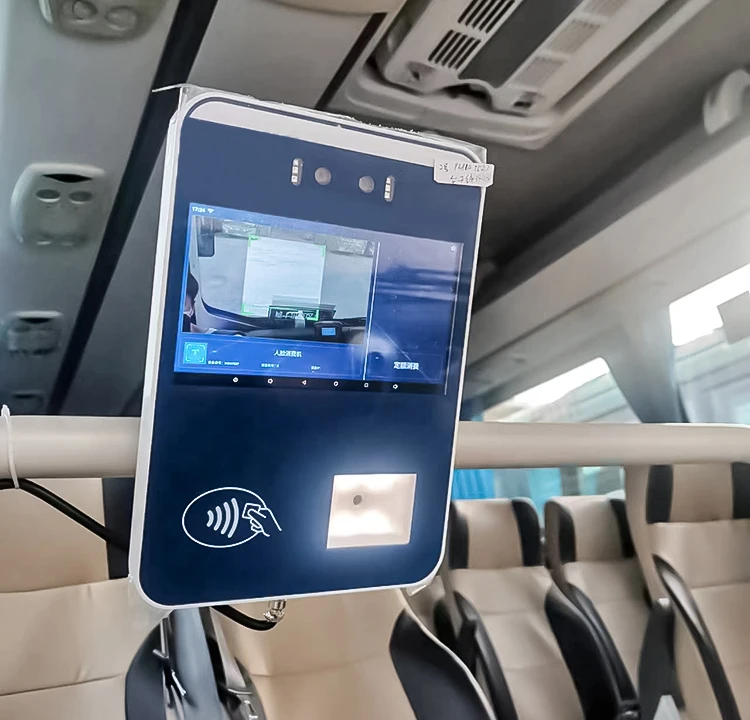

Product Detailed Images
Packaging & Shipping
Packing
Box size: 315mm*227mm*123mm
Unit weight: 1.73kg
Qty/carton: 10 pcs
Carton size: 634mm*328mm*480mm
Gross Weight: 18.5kg
Standard industrial package, gift box, paper tray, user manual, warranty card, carton, EVA holder, EPE foam
Shipping
we can delivery the good to the warehouse assigned by customers if you have your own forwarder;
And we can arrange shippment with our cooperated forwarder at best price;
We are VIP customer for DHL, UPS, FedEx, TNT and EMS, we accept any one upon your requirement.
Company Information
- 1.More than 8 years experience in wireless pos terminal.
- 2.More than 30 professional engineer in our R&D.
- 3.More than 7000 square meter factory,4 production line with more than 200 workers.
- 4.China telecom,China Unicom,China Mobile,Alibaba,Jin Dong,Wan DA are all our clients.
- 5.Haagen-Dazs,Sony,Pakistan Ufone operator all purchase from us.
- 6.The most innovative technology to ensure our best quality and competitive price.
- 7.Provide technology support for your secondary development after sale.
FAQ
1.Q:Are you manufacturer?
A:Yes.our factory and headquarter located in Pingshan High-tech Zone, Shenzhen.China, we are professional POS terminal source supplier,
2.Q:Can you provide application software for the hardware?
A:We provide free SDK and User manual of all API to support your development or programming.
3.Q:What is the warranty?
A:The warranty time is 1 year for all devices, anyhow man-made damage is not included.
4. Q: Can we have our logo and set boot screen in the product?
A:Yes, we accept OEM/ODM, just send your logo in .cdr format and clear boot screen, we can set for you, on body logo, we can print, stick and laser.
5.Q: what is your sample policy?
A: Usually, customers should pay for the sample and the sample price will be a little higher than the bulk order.We will return the sample cost in the bulk order if the quantity is large enough. We warmly welcome you to come to our factory to test the sample
6. Q: Waht's the terms of payment?
A: We acceptTelegraphic Transfer(T/T), Western Union, Paypal, L/C.
A: We acceptTelegraphic Transfer(T/T), Western Union, Paypal, L/C.
The final price depends on factors such as the selected product configuration,purchasing quantity, and shipping cost. If you need more information, please contact Julia.
