Products Description
Main Feature | ||
20X optical zoom | USB/HD-MI/LAN | |
Full HD 1080P@60FPS | pan:340°, tilt:120° | |
RTSP, RTMP, ONVIF | 4k/SDI/NDI or more version optional | |
20X 30X PTZ Camera for live streaming and video conferencing
* 1080p@60fps smooth videos
* 20x lossless optical zoom lens supports framing adjustment

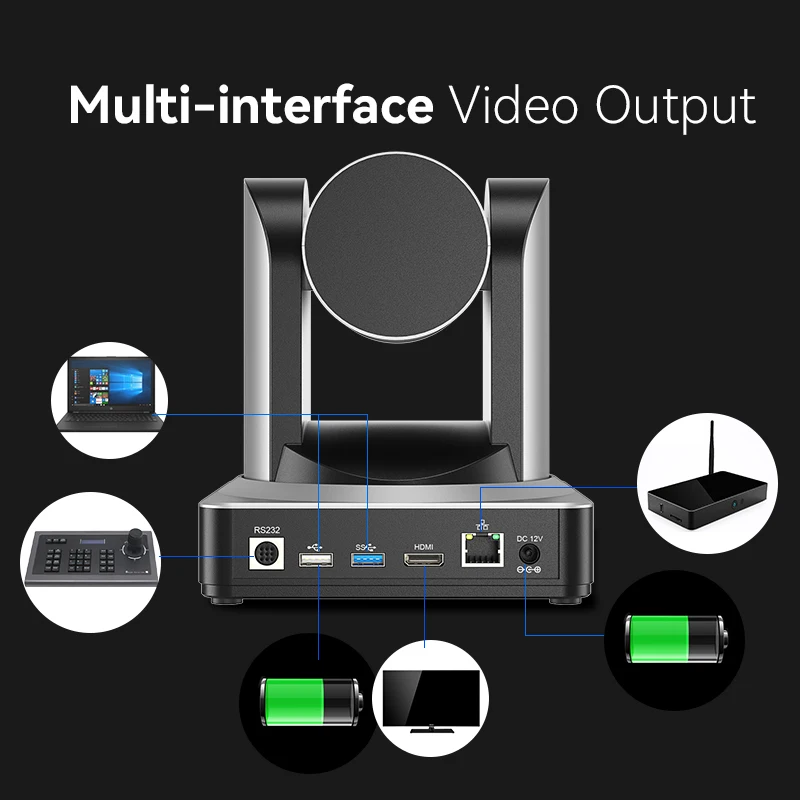

* USB2.0/USB3.0/HD-MI/LAN video output(POE SDI NDI Version is optional)
* Support H.265/H.264 encoding, making the picture smoother and clearer under low bandwidth.
* Various nertwork protocols: support ONVIF, GB/T28181, RTSP, RTMP protocols
* Various nertwork protocols: support ONVIF, GB/T28181, RTSP, RTMP protocols
* Pan 340°, tilt 120°; achieve fast, quiet and precise pan-tilt movement
* Multiple presets setting, 10 presets via infrared remote control, 255 presets via RS232

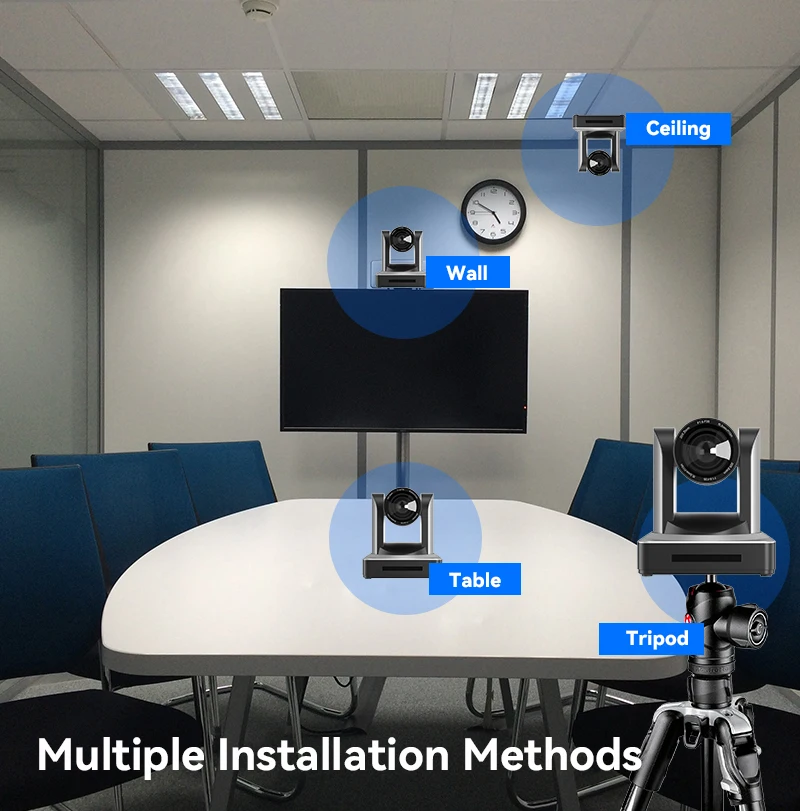

* Various Installtaion method, Desktop,tripod,wall mount, ceiling mount(inversion installation)
* Multiple presets setting, 10 presets via infrared remote control, 255 presets via RS232
* Various Installtaion method, Desktop,tripod,wall mount, ceiling mount(inversion installation)
If you need additional speakerphone, ptz joystick controller, etc. pls contact us to get product catalog for more informations and get best price!
Product Paramenters
Resolution | Full HD 1080p |
Lens optical zoom | 20x optical zoom |
Lens focal length | f=5.5~110mm |
FOV-H | 3.3° (narrow angle) - 54.7° (wide angle) |
Aperture | F1.6 - F3.5 |
Video Signal | 1080P 60/50/30/25/59.94/29.97fps 1080i 60/50/59.94fps |
Video formats | H.265, H.264 |
Signal-to-noise ratio | 2D and 3D digital noise reduction >55dB |
Video output | USB2.0/USB3.0/HD-MI/LAN |
Network Protocols | RTSP, RTMP, ONVIF, GB/T28181 |
Control Interface | RS232 |
Control protocols | VISCA/Pelco-D/Pelco-P |
Horizontal rotation | -170°～+170° |
Tilt rotation | -30°～+90° |
Preset bits | User can set up to 255 preset positions (10 presets for remote control) |
Random Accessories | 12V/1.5A power supply, RS232 control cable, USB3.0 connection cable, USB2.0 connection cable, remote control, manual, warranty card |
Delivery&Package
Hot Sale Products
Our service & Strength
■ Patented private models and certified CE FCC RoHS
■ ISO9001 direct factory
■ 13 years OEM ODM, we has our own R&D team, design team
■ Rich experience in various customized projects such as logo/packaging/mold/specification, etc
■ Offer 1 year warranty or spare parts
■ 24 hours online, fast response, any views are welcome!
Company Profile
■ One-stop Service
Complete R&D team, SMT workshop, assembly factory, full control from product concept to finished product to delivery.
■ IS09001 Factory
ISO9001 international quality management system, standardized production process and product quality inspection.
■ Patent Private Molds
Professional ID designer team, the product appearance design won the IF award and the red dot award.
■ R&D and innovation
Complete R&D system with over 20 years of experience in the industry, releasing over 10 new products every year.
■ Product Certification
All products are CE FCC RoHS certified, providing strong support for customers to retail in many regional markets.
FAQ
Does the factory have any management system certification?
How long about the lead time and Shipping time?
Our factory has passed the ISO9001 international management system certification
Can we place order by OEM/ODM?
Of course you can.Welcome to do OEM/ODM. including logo/packaging/mold/specification/application software, etc.
Of course you can.Welcome to do OEM/ODM. including logo/packaging/mold/specification/application software, etc.
I can get product catalogs and certificates?
Of course, just contact us
About the sample: How could I get the sample?
Pls click 'contact supplier' to contact us. Once received your sample payment. We will send it by express. Delivery time is about 5 to 7 days
How to order in alibaba?
Tell me the product and quantity you want to buy, and your delivery address, phone number, zip code. I will draft an Alibaba payment link to you by email, you just need to click the link to pay.
Which payment term can be accepted?
We accept TT/ Visa/Paypal/Westem Union/Alipay/Wechat.
About shipment: what type of shipment will you use?
Usually by express. If the order quantity is large,we may ship by logistic forwarder.
How long about the lead time and Shipping time?
The general delivery time is about 4-7 days.Shipping time depends on the shipping way you choose.
How long is the warranty?
You can choose 0.3% of order quantity as free spares to replace the warranty or send faulty back by yourselves within 1 year
