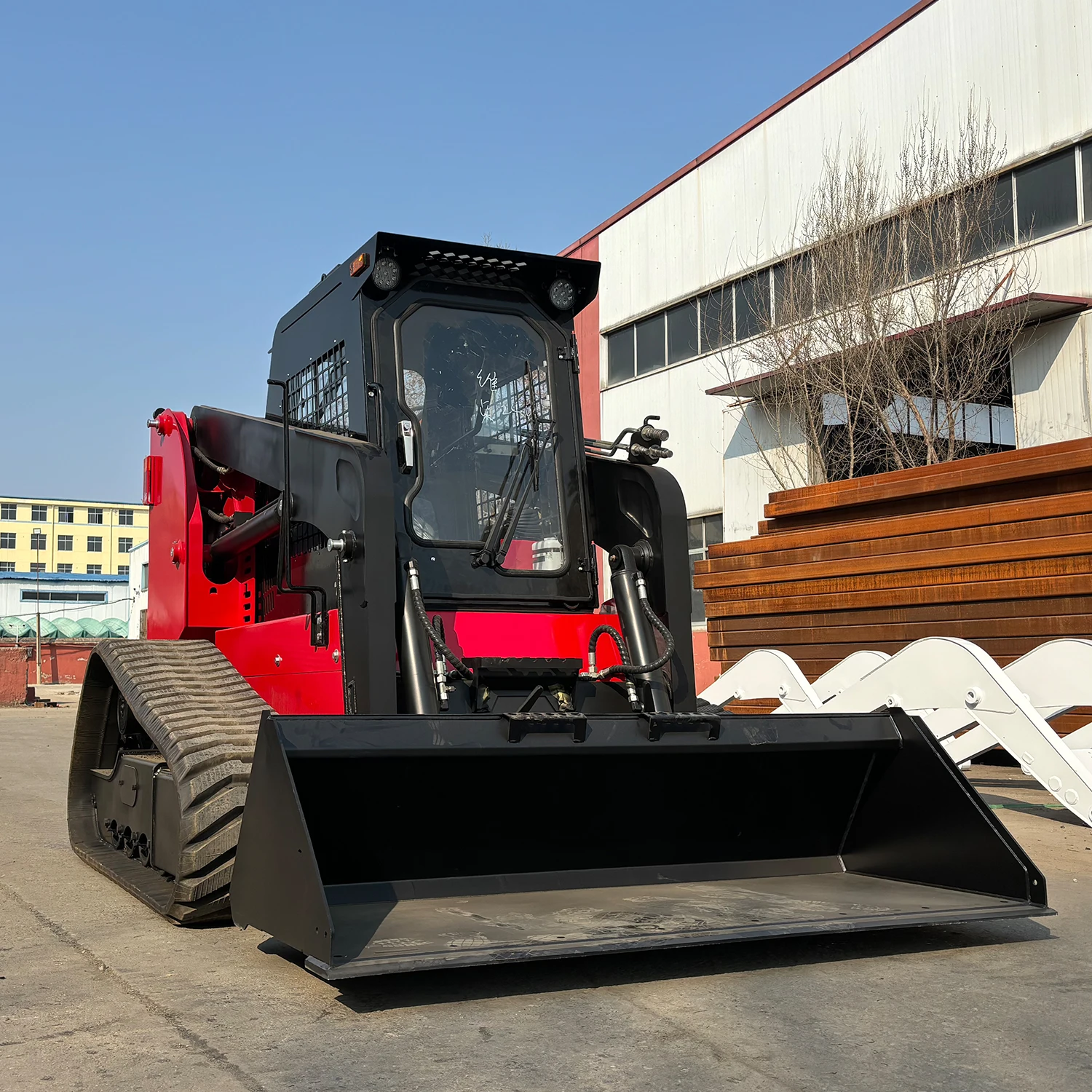

Китайский завод компактные погрузчики гусеничные с бортовым поворотом погрузчик управлением EPA
- Категории: >>>
- Поставщик: Jining,Tonlita,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Standard:
⭐ China Weichai 1G102E301 Engine⭐ Optional EPA Engine:
LS / Foton Cummins
⭐ Italy Hansa hydraulic valve
⭐ US. Eaton hydraulic motor
⭐ Italy Hansa hydraulic valve
⭐ US. Eaton hydraulic motor
⭐ Rexroth Hydraulic pump
Optional Configuration:
⭐ High flow hydraulic system
⭐ Air conditioner
⭐ Backup camera
⭐ Low temperature cold start
⭐ Heater
⭐ Air conditioner
⭐ Backup camera
⭐ Low temperature cold start
⭐ Heater
Product Description
Specifications | |
Rated operating capacity(kg) | 1500 |
Tipping load(kg) | 2400 |
Operating weight(kg) | 4800 |
Max. travel speed(km/h) | 12/18 |
Hydraulic pump flow(L/min) | 80/140 |
Fuel tank capacity(L) | 90 |
Overall dimensions(mm) | 3700×1990×2150 |
Dimensions | |
Track width(mm) | 450 |
Wheelbase(mm) | 1185 |
Ground clearance(mm) | 260 |
Dump angle | 40° |
Dumping height(mm) | 2450 |
Rollback at ground | 26° |
Angle of departure | 20° |
Engine | |
Maker/Model | Weichai WP4.1G102E301 |
Net power | 140HP/2200rpm |
Type | 4 Cylinder in-line, Water cooled, 4 stroke, Diesel engine |
Displacement(L) | 4.1 |

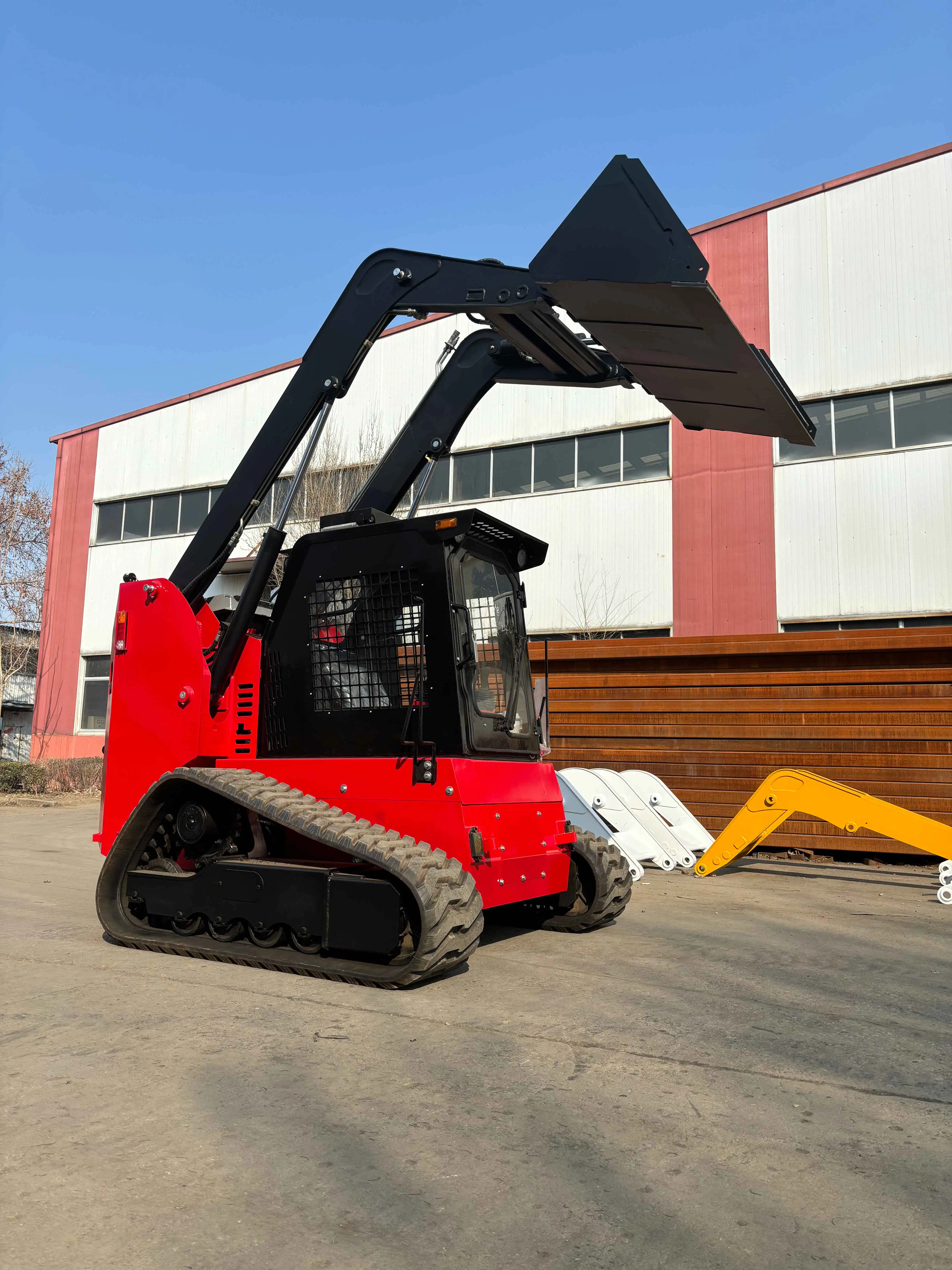

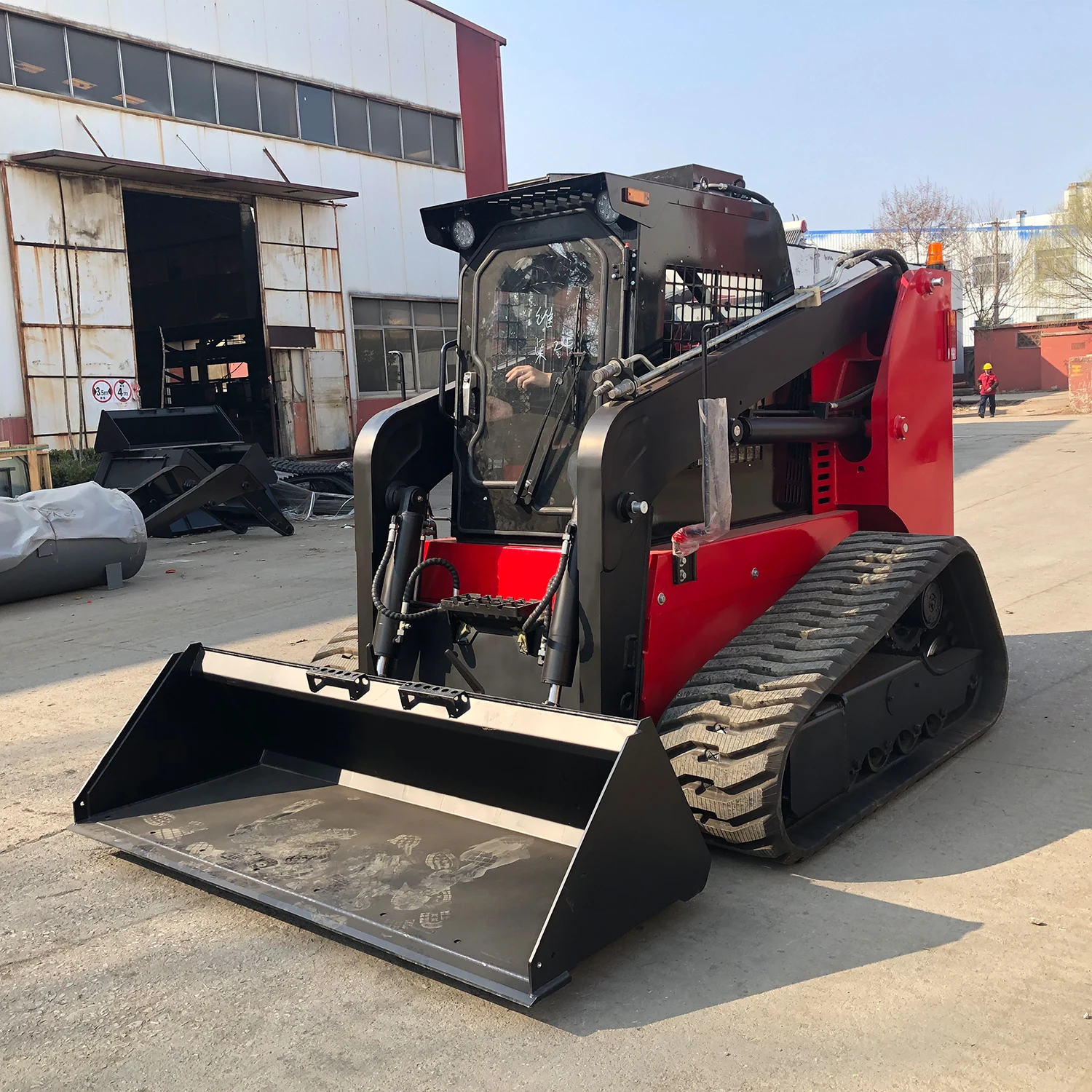

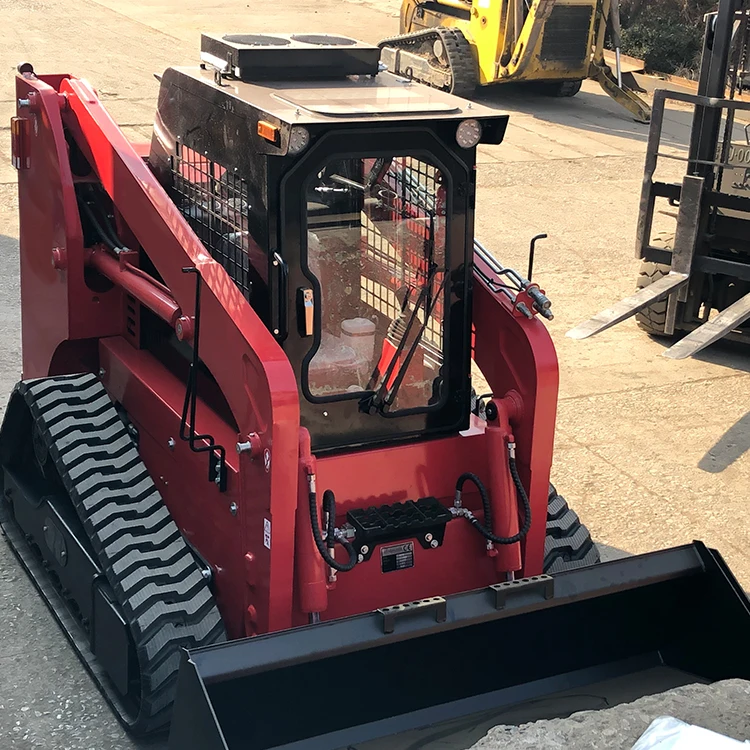

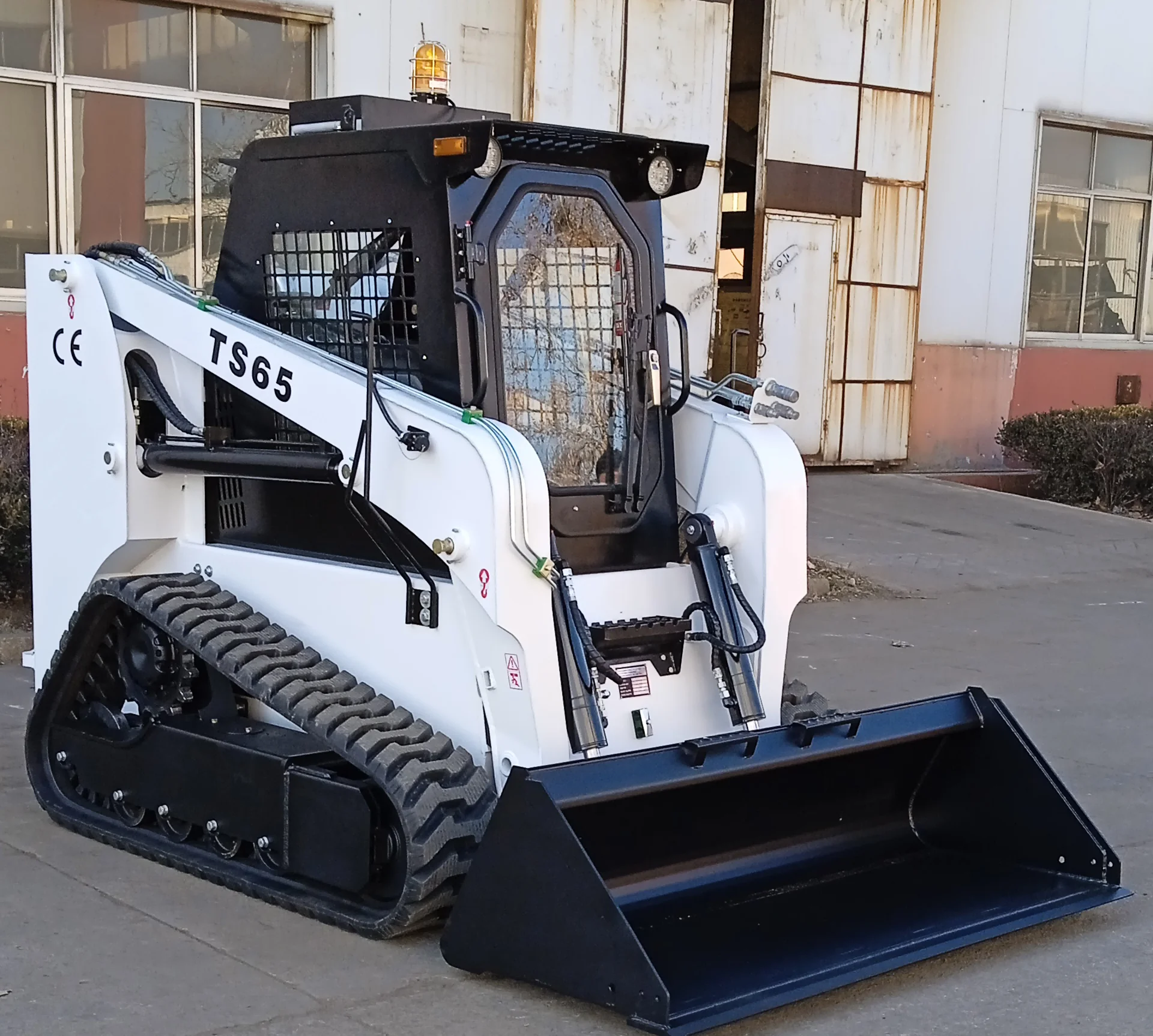

TS65 skid steer loader is compact, light weight and designed for very narrow space, it can easily pass through various corridors, aisles, alleys and low spaces. The machine adopts Xinchai engine and famous brand hydraulic system accessories, full hydraulic pilot control, flexible and convenient operation, excellent performance, and can be equipped with a variety of attachments to achieve a variety of functions such as shoveling, sweeping and shredding. It is the new power for construction, gardening and other fields.
Details Images
√ Advantages:
5-Link Torsion Suspension
Experience elevated levels of performance and comfort. It will reduce maintenance requirements and reduces noise and vibration while you're working.
Joystick Control
It gives you all the capabilities of standard controls, along with additional functions that propel your productivity with better control of your loader and attachments.
Powerful Hydraulics
The engine, pumps and hydraulic system – is engineered to deliver maximum hydraulic performance so you can work quicker, lift more and outperform your competition.
Quick-Hitch Attachment Systems
Change attachments quickly using the quick-hitch. Our skid steers include a stronger connection point for swapping attachments without leaving your seat.
Quick Connector As Bobcat
Hydraulic line
High-flow hydraulic system:
80/130 L/min

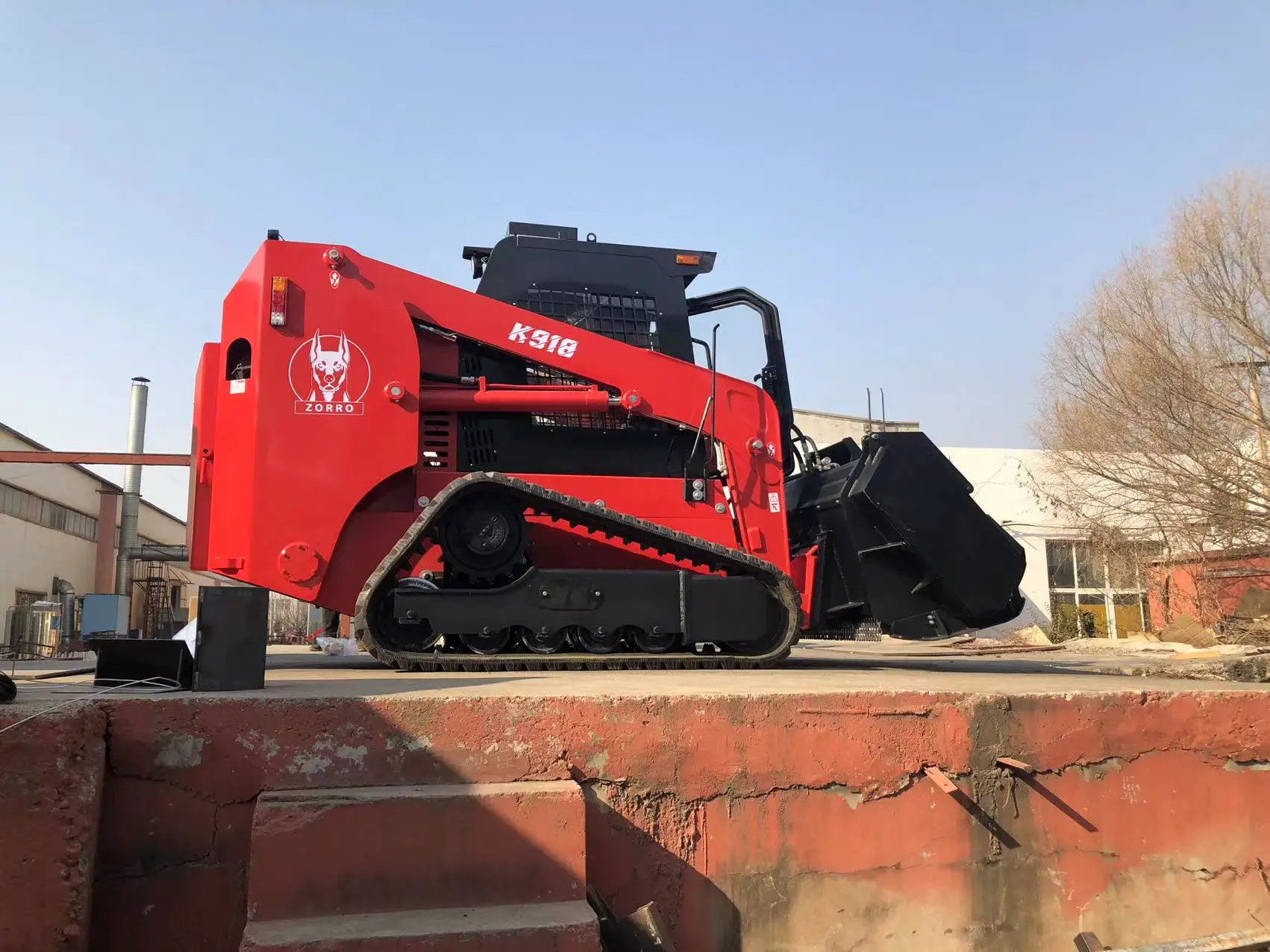

Durable Track
450mm width
Steel track
Rubber track
Rubber track
Details Images
ENGINE are optional from:
Foton Cummins
LS
Yanmar
Kubota
Perkins
Weichai
Attachments
Hundreds of Attachments are optional.
Mixer
Sweeper
Grass Grapple
Forest Mulcher
Wheel Saw
Harley Rake

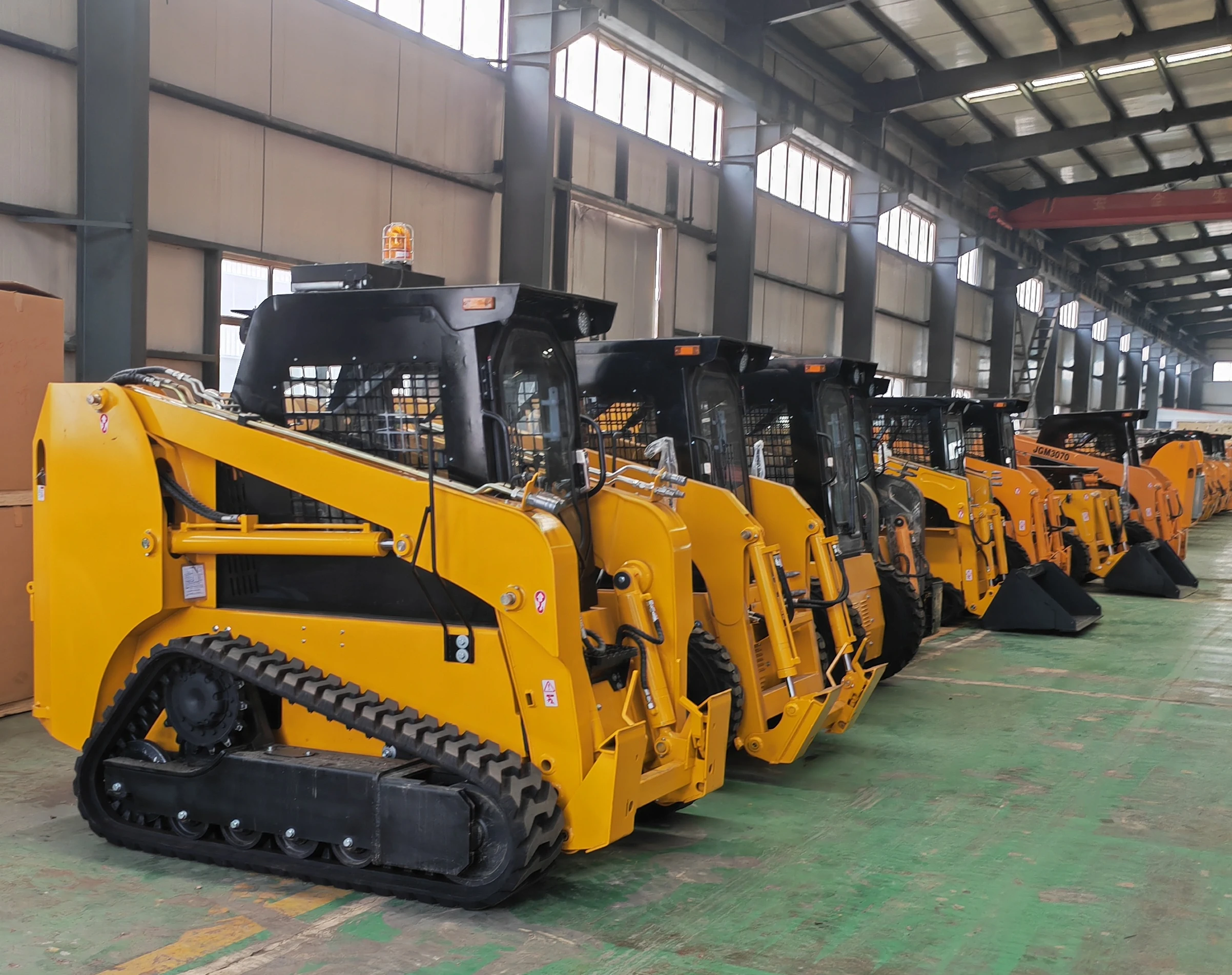

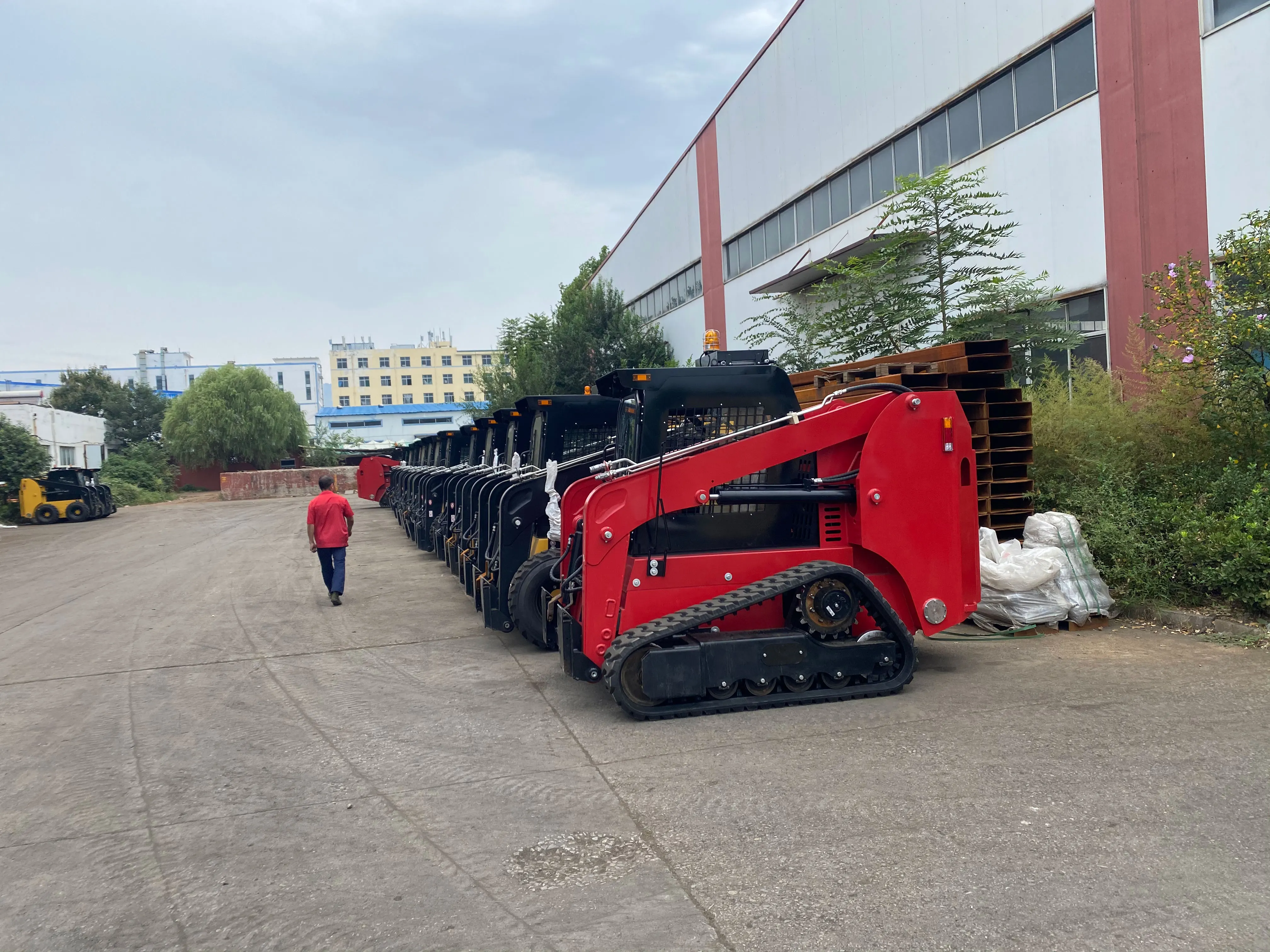

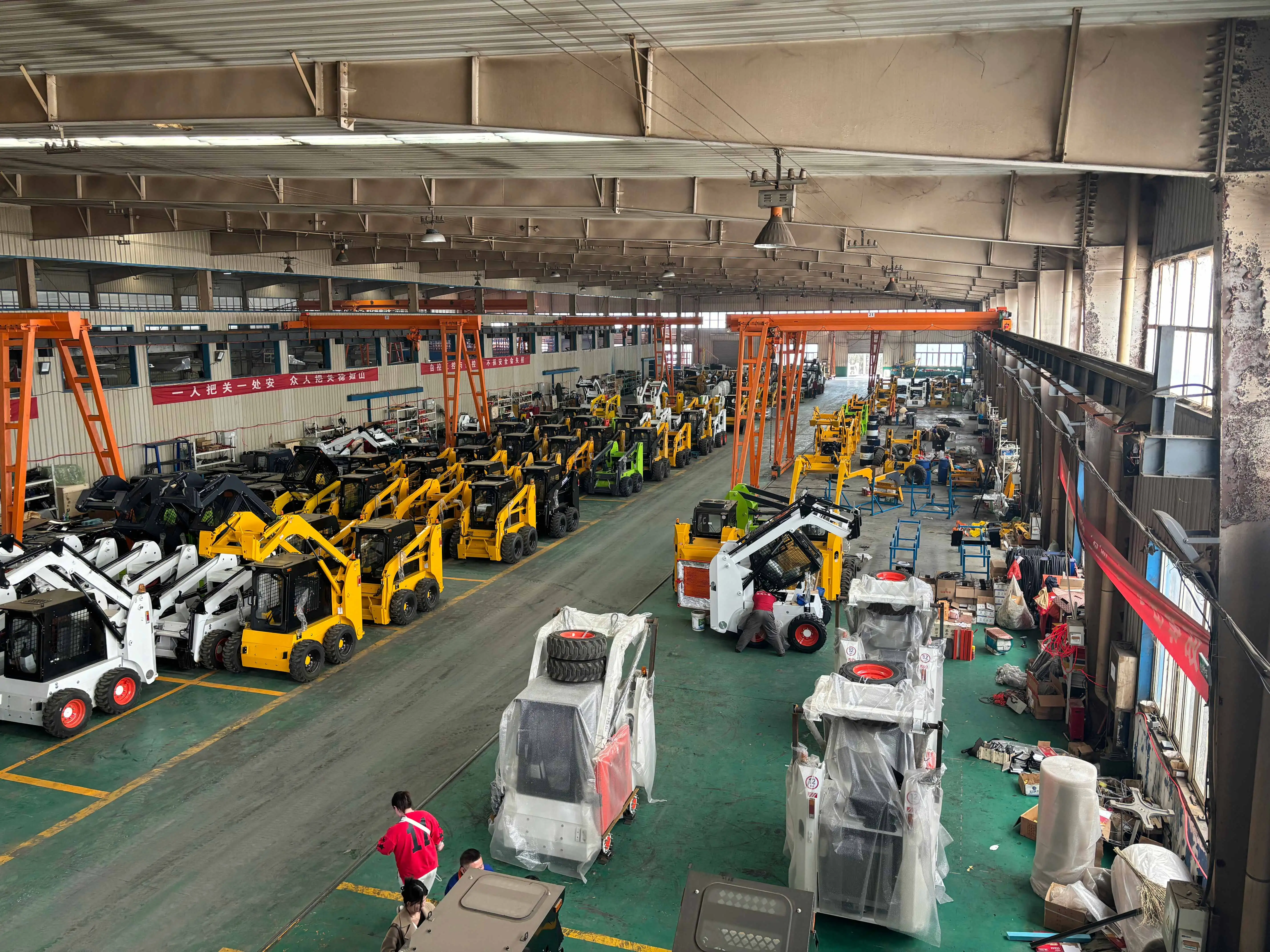

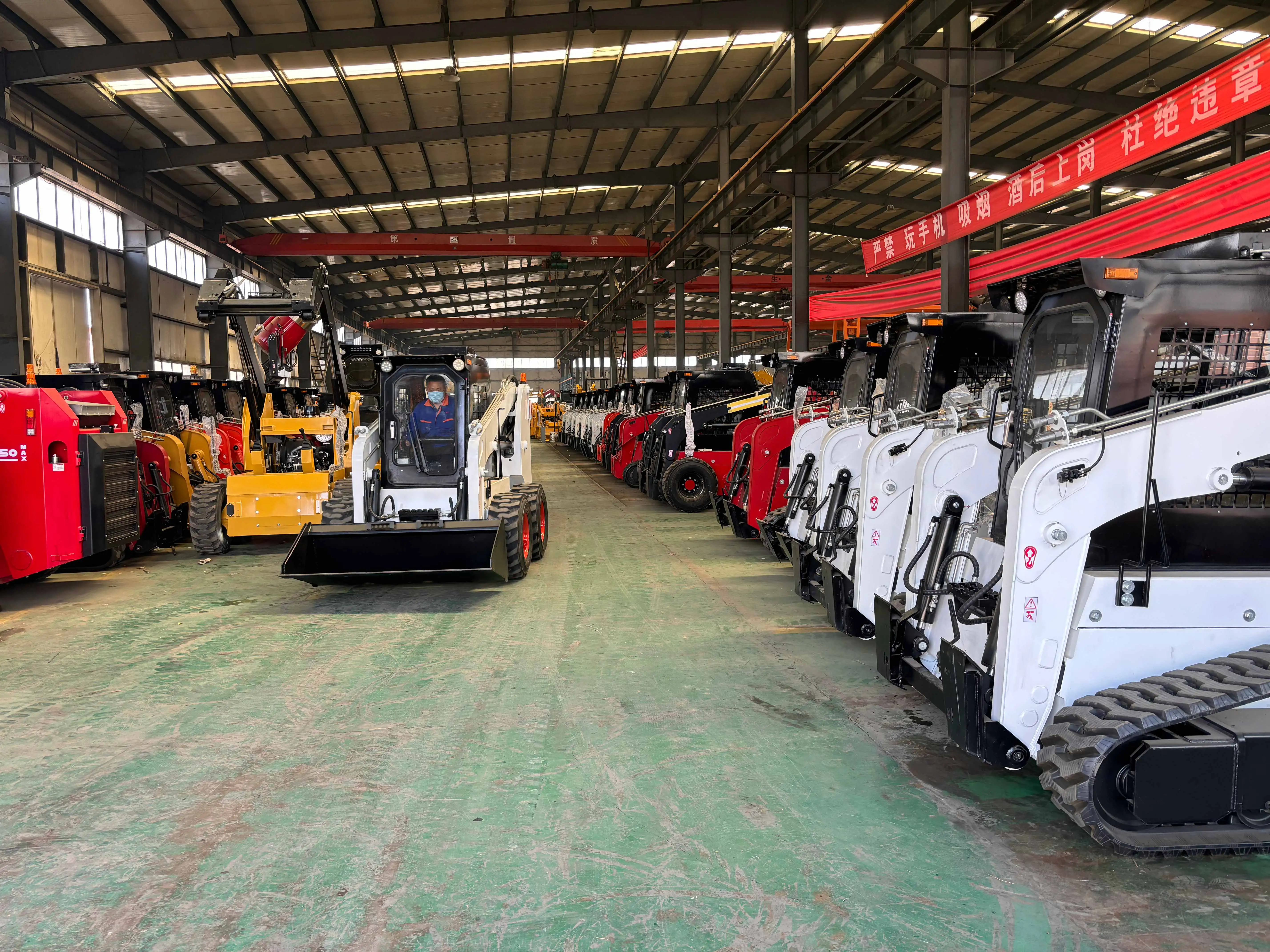

Factory Profile
1993
The Chinese Ministry of Machinery Industry introduced the skid steer loader project and we set up a joint venture with the Czech Republic to cooperate in the production of skid steer loaders and their auxiliary products.
1994
The first skid steer loader assembled with imported parts came off the line.
1996
The first skid steer loader with Chinese domestic components rolls off the production line.
2004
JC series skid steer loader completed design and put into production.
2007
JC75 heavy duty skid steer loader put into production.
2009
The whole series of skid steer loader auxiliary tools are put into production.
2014
TS series of tracked skid steer loaders put into production.
2016
V series vertical lift skid steer loader put into production.
2019
Ultra-long wheelbase skid steer loader put into production.
2022
Factory sales are about to break the record of 100 million RMB.
The Chinese Ministry of Machinery Industry introduced the skid steer loader project and we set up a joint venture with the Czech Republic to cooperate in the production of skid steer loaders and their auxiliary products.
1994
The first skid steer loader assembled with imported parts came off the line.
1996
The first skid steer loader with Chinese domestic components rolls off the production line.
2004
JC series skid steer loader completed design and put into production.
2007
JC75 heavy duty skid steer loader put into production.
2009
The whole series of skid steer loader auxiliary tools are put into production.
2014
TS series of tracked skid steer loaders put into production.
2016
V series vertical lift skid steer loader put into production.
2019
Ultra-long wheelbase skid steer loader put into production.
2022
Factory sales are about to break the record of 100 million RMB.

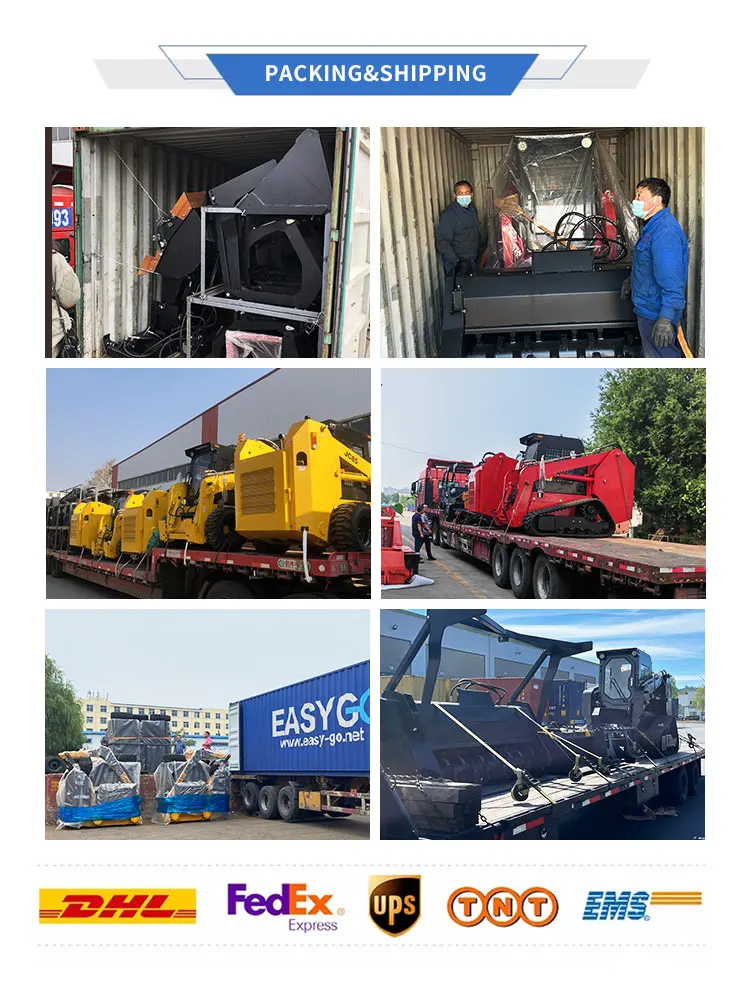

Packing&Shipping
