UVC светодиод 225nm 235nm пиковая длина волны 230 нм 0 5 Вт 120 градусов для
- Категории: >>>
- Поставщик: Shenzhen,Trillion,Auspicious,Lighting,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Specification
Deep Ultraviolet Light Emitting diode Peak wavelength 230 nm
Features:
Light Source for Sterilization and Medical Application
▪ Lighting Color(Peak Wavelength) : 230 nm

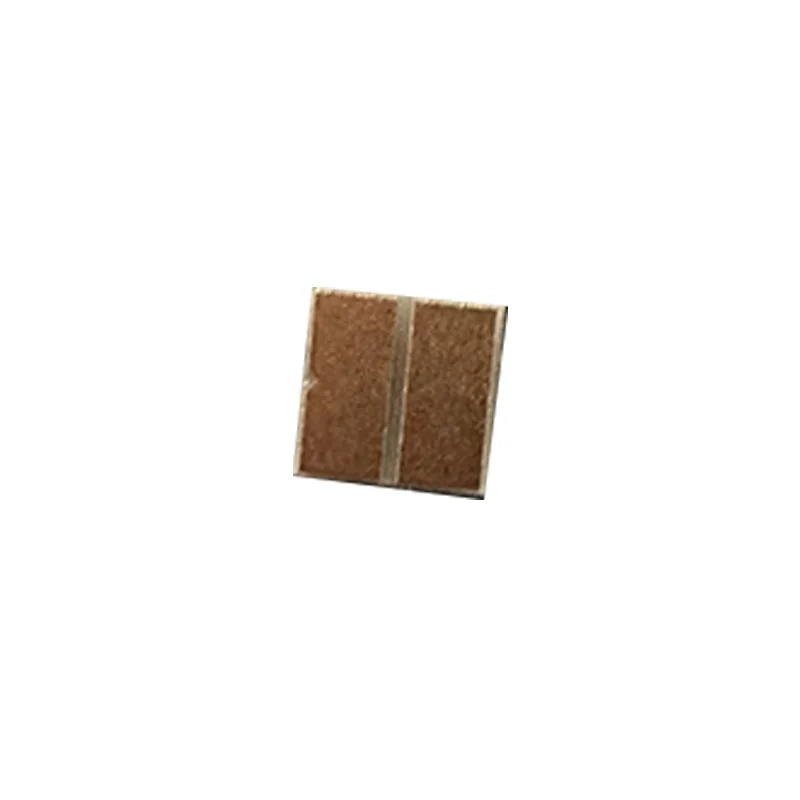

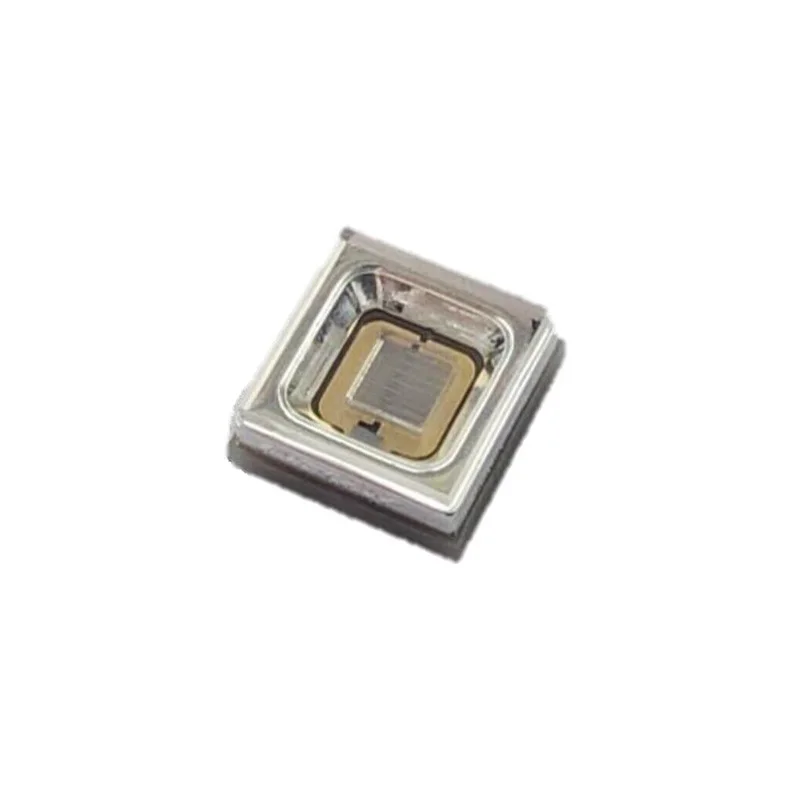

▪ Surface Mount Type LED: 3.6 x 3.6 x 1.5 (L x W x H) [Unit : mm]
▪ Soldering Methods: Reflow Soldering
Electro-Optical Characteristics (I F = 100 mA, T a = 25 ℃)
Forward Voltage:6-8V;
Radiant Flux:3MW
Peak wavelength:225-230-235nm
Spectrum Half Width:11NM
Viewing Angle:TBD
Thermal Resistance Note 2
(Junction to Solder point):TBD

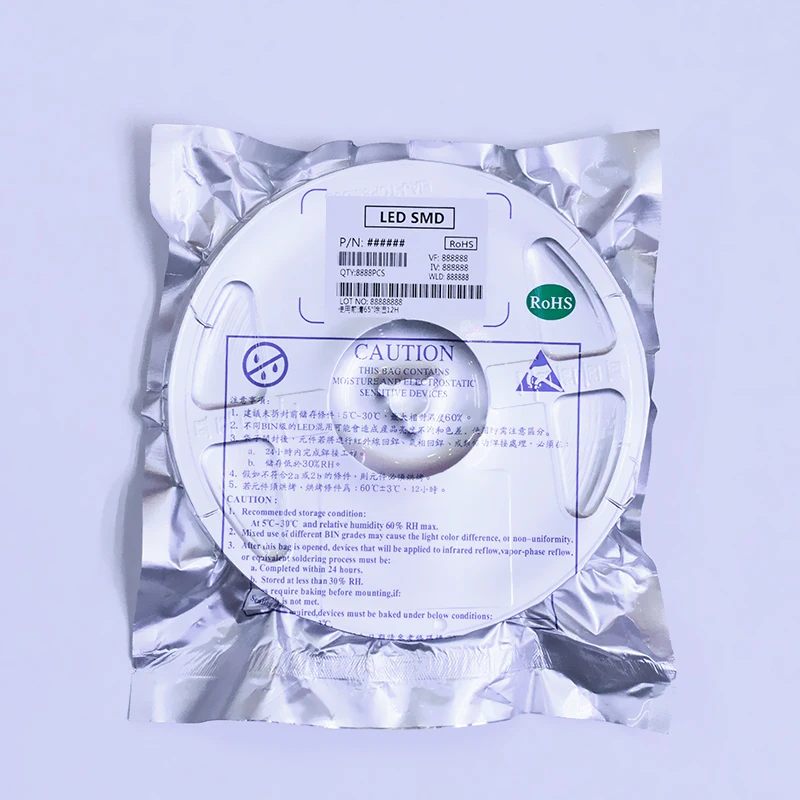

Package:1000pcs/roll
Notes :
1. Measured by optical spectrum analyzer of YSLED, some values may vary depending
on the conditions of the test equipment.
- Forward Voltage (Vf) : ±0.1V
- Peak Wavelength (λ p ) : ± 3nm
- Radiant Flux (P o ) : ±10%
2. Thermal resistance can be increased substantially depending on the heat sink design/operating
condition, and the maximum possible driving current will decrease accordingly.
applications:
▪ Disinfection, Phototherapy, Fluorescent Spectroscopy, Sensor Light,
Bio-Analysis / Direction, Counterfeit Detector etc.
Operating the LED beyond the listed maximum ratings may affect device reliability and
cause permanent damage. These or any other conditions beyond those indicated under
recommended operating conditions are not implied. The exposure to the absolute maximum
rated conditions may affect device reliability.
- The LEDs are not designed to be driven in reverse bias.
Features:
Light Source for Sterilization and Medical Application
▪ Lighting Color(Peak Wavelength) : 230 nm
▪ Surface Mount Type LED: 3.6 x 3.6 x 1.5 (L x W x H) [Unit : mm]
▪ Soldering Methods: Reflow Soldering
Electro-Optical Characteristics (I F = 100 mA, T a = 25 ℃)
Forward Voltage:6-8V;
Radiant Flux:3MW
Peak wavelength:225-230-235nm
Spectrum Half Width:11NM
Viewing Angle:TBD
Thermal Resistance Note 2
(Junction to Solder point):TBD
Package:1000pcs/roll
Notes :
1. Measured by optical spectrum analyzer of YSLED, some values may vary depending
on the conditions of the test equipment.
- Forward Voltage (Vf) : ±0.1V
- Peak Wavelength (λ p ) : ± 3nm
- Radiant Flux (P o ) : ±10%
2. Thermal resistance can be increased substantially depending on the heat sink design/operating
condition, and the maximum possible driving current will decrease accordingly.
applications:
▪ Disinfection, Phototherapy, Fluorescent Spectroscopy, Sensor Light,
Bio-Analysis / Direction, Counterfeit Detector etc.
Operating the LED beyond the listed maximum ratings may affect device reliability and
cause permanent damage. These or any other conditions beyond those indicated under
recommended operating conditions are not implied. The exposure to the absolute maximum
rated conditions may affect device reliability.
- The LEDs are not designed to be driven in reverse bias.
item | value |
Color Temperature(CCT) | 225-235NM |
Input Voltage(V) | DC 6-8V |
Warranty(Year) | 1-Year |
Type | SMD LED |
Support Dimmer | NO |
Lighting solutions service | Lighting and circuitry design |
Luminous Efficacy(lm/w) | 0 |
Lifespan (hours) | 10000 |
Working Time (hours) | 10000 |
Product Weight（kg） | 0.01 |
Chip Material | INGAN |
Emitting Color | UV-C |
Luminous Intensity | 1-3MW |
Luminous Flux(lm) | 1-3MW |
Optical Attenuation(%) | 5 |
Power | 0.5W |
Power Dissipation | 0.5 |
Viewing Angle(°) | TBD |
Color Rendering Index(Ra) | TBD |
Color Temperature | 225-235NM |
Operating Temperature(℃) | -30-85 |
Storage Temperature(℃) | -40-100 |
Place of Origin | China |
Brand Name | RZXLED |
Application | Disinfection, Phototherapy, Fluorescent Spectroscopy, Sensor Light, |
Product name | UV-C 225-235NM LED diode |
Size | 3.6*3.6*1.5mm |
Forward Voltage | 6-8v |
Forward Current | 100mA |
Package | 1000 PCS/Roll |
Keywords | Deep Ultraviolet Light Emitting diode |
Wavelength | 225NM 237NM 230NM 235NM 240NM |
Package Type | SMD LED |
Packing & Delivery
Company Profile
Shenzhen Trillion Auspicious Lighting Co., Ltd is a professional manufacturer of and sales of 3535,3030,2835,3020,XHP70,XHP50,XML2,3570,1860,3528,5050,3014,4014,5730 and a series of SMD LED lamp products and high power 1-300W Integrated and COB 3-50W surface light source. mainly used in indoor lighting, automotive lighting, road and architectural landscape lighting, home and intelligent lighting and other fields. According to different customer requirements tailored to meet the appropriate lighting requirements of LED light source products. Our company is engaged in the LED industry for more than ten years, from the original Taiwan chip agents to the development of light source packaging manufacturers, strong technology, testing equipment. In addition, we have always adhered to the principle of being customer-centered, carrying forward the entrepreneurial spirit of "beyond ourselves and striving for excellence" and advocating the concept of "greener, more environmentally friendly, and more perfect". We has already owned its own brand "RZXLED" and can be authorized to join the agency. Some products have passed CE certification. Welcome to join our team to create a better future.
FAQ
1. who are we?
We are based in guangdong, China, start from 2013,sell to North America(33.00%),South America(21.00%),Eastern Europe(19.00%),Southeast Asia(14.00%),Africa(6.00%),Mid East(4.00%),Western Europe(3.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
UV Light,SMD LED,COB LED,LED Light Boards,LED Car Headlight
4. why should you buy from us not from other suppliers?
led headlight,Customized CRI> 95, color tolerance within 3, warm white, natural white, white light. UV LED 222-430NM,Red yello blue green purple pink ,Infrared LED 800-1300NM,all kinds of medical, education, commercial commercial lighting board design.
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:null;
Accepted Payment Type: null;
Language Spoken:null
We are based in guangdong, China, start from 2013,sell to North America(33.00%),South America(21.00%),Eastern Europe(19.00%),Southeast Asia(14.00%),Africa(6.00%),Mid East(4.00%),Western Europe(3.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
UV Light,SMD LED,COB LED,LED Light Boards,LED Car Headlight
4. why should you buy from us not from other suppliers?
led headlight,Customized CRI> 95, color tolerance within 3, warm white, natural white, white light. UV LED 222-430NM,Red yello blue green purple pink ,Infrared LED 800-1300NM,all kinds of medical, education, commercial commercial lighting board design.
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:null;
Accepted Payment Type: null;
Language Spoken:null
