Product Description

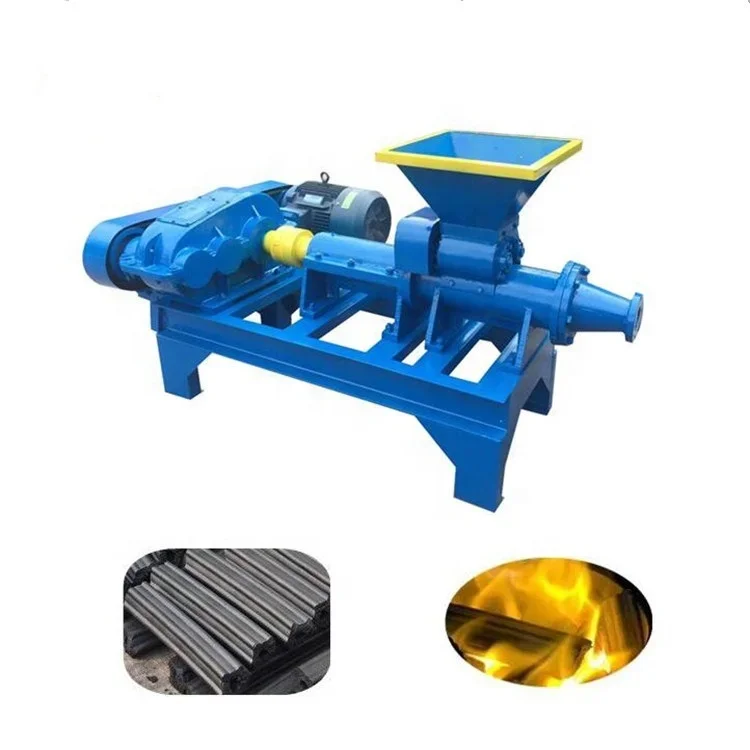

Coal Rods Making Charcoal Briquetting Machine Carbon Powder Molding Machine
Coal rods machine (also called coal rod extrusion machine) is the use of the principle of screw extrusion, the modulation good pulverized coal compressed into a predetermined shape of a certain intensity of coal rods molding equipment. Charcoal is a kind of widely used fuel product both in our daily life and industrial use.For example, it is well accepted for BBQ because it is smokeless and odor free; it is a kind of ideal fuel source for the cold winter, so it becomes more and more popular. Besides, the charcoal can also be used in steel factories or many other industries.
In a word, charcoal is in great demand recently. But the amount of natural charcoal is decreasing sharply. As a result, the
machine-made charcoal becomes a good replacement.Usually the machine-made charcoal is made from sawdust or similar biomass powder
(like straw, stalk, etc.
machine-made charcoal becomes a good replacement.Usually the machine-made charcoal is made from sawdust or similar biomass powder
(like straw, stalk, etc.

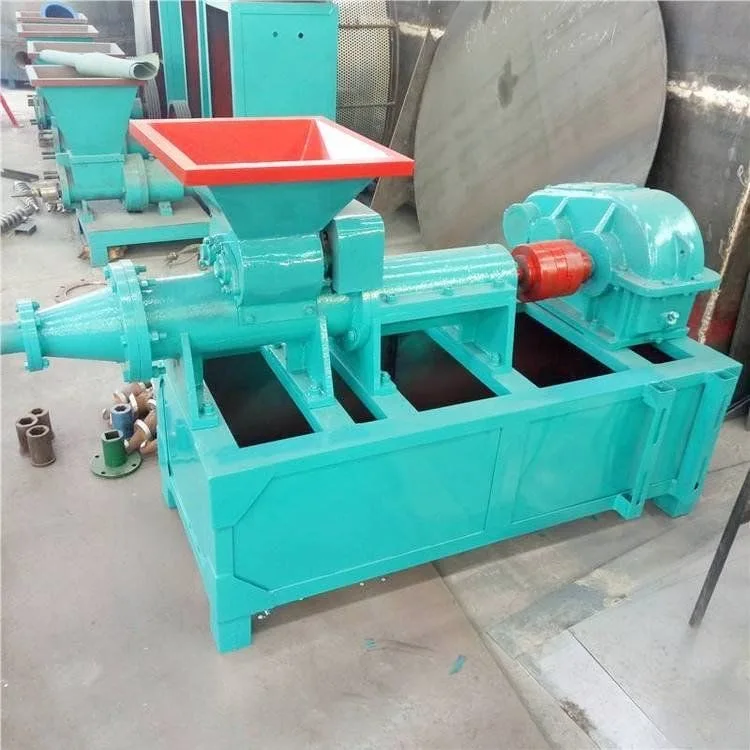

Working Principle of Hollow Briquette Rod Extruder / Round Charcoal Making Machine
Rotation of the impeller from the loading port into the raw coal, and coal pushed forward, raw coal gradually compressed,
particles close together, at the same time produce larger stirring and mixing.The raw coal particle, particle between the vane and simplified and the intense friction and shear, at the same time under the action of heat, the temperature of the raw coal, water and binder is more even, coal has been greatly increased, plasticity after mold cone restraint effect, compression between coal particles more closely, and then pressed into the straight part of the mould, the coal rods machine and molding.
Rotation of the impeller from the loading port into the raw coal, and coal pushed forward, raw coal gradually compressed,
particles close together, at the same time produce larger stirring and mixing.The raw coal particle, particle between the vane and simplified and the intense friction and shear, at the same time under the action of heat, the temperature of the raw coal, water and binder is more even, coal has been greatly increased, plasticity after mold cone restraint effect, compression between coal particles more closely, and then pressed into the straight part of the mould, the coal rods machine and molding.

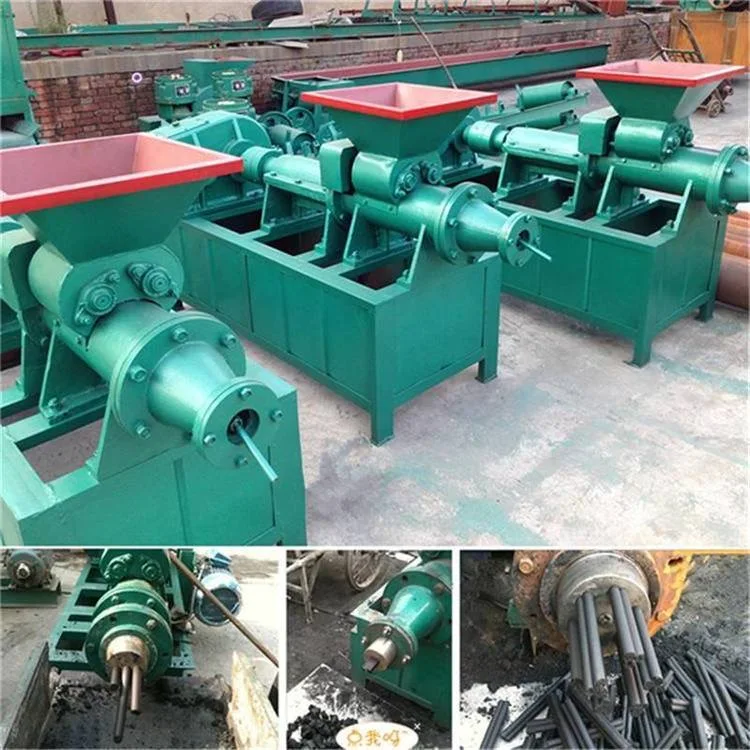

Coal rods machine adopts machine of decelerate of hard tooth flank, small volume, high bearing capacity.Coal rod extrusion machine impeller adopts thickening blade design, impeller and cylinder liner plate adopts wear-resisting precision casting materials, life 4-5 times higher than that of ordinary steel;Sports a coal rods to export a replaceable wear resistant alloy steel production, easy to change.Head and cylinder in the form of splicing, maintenance can be open, replacement within the impeller and cylinder liner is very convenient.

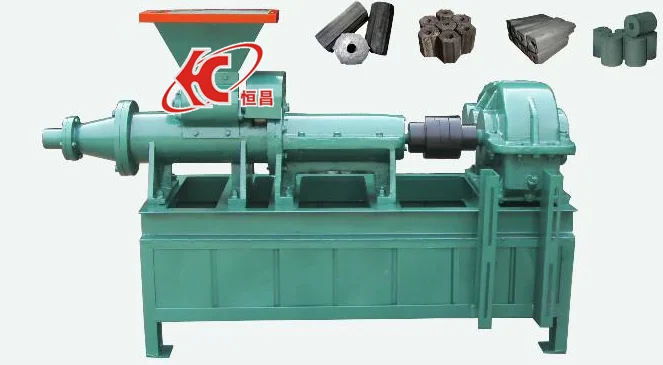

Main features of Hollow Briquette Rod Extruder / Round Charcoal Making Machine
1. coal briquette machine is to make coal and charcoal powder into sticks. It can also suitable for wood charcoal powder,rice husk charcoal powder,charcoal dust etc.
2. The shape of the sticks can be made by customers requirements.like round , hexagon , cinquefoil shape, it can with hole or not
.3.The product made by this machine is no pollution and smoke. It is the most suitable machine for you.

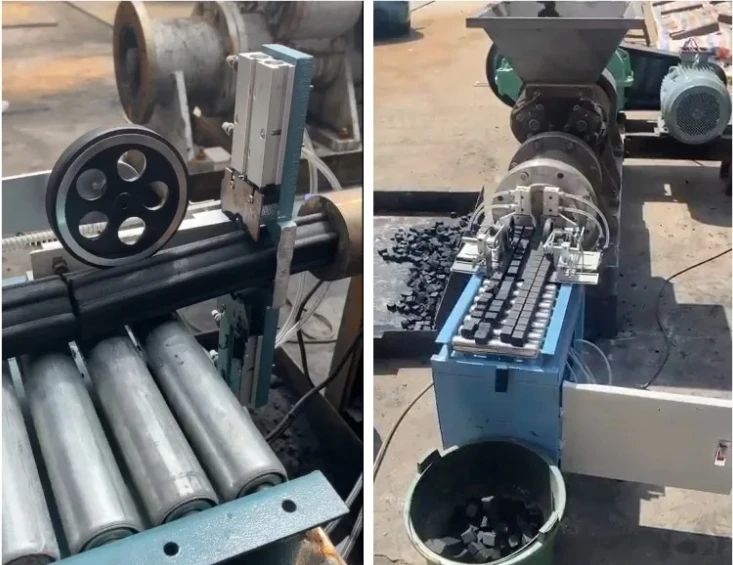

4.For the length , it has the auto cutter,you can cut it by manual.
1. coal briquette machine is to make coal and charcoal powder into sticks. It can also suitable for wood charcoal powder,rice husk charcoal powder,charcoal dust etc.
2. The shape of the sticks can be made by customers requirements.like round , hexagon , cinquefoil shape, it can with hole or not
.3.The product made by this machine is no pollution and smoke. It is the most suitable machine for you.
4.For the length , it has the auto cutter,you can cut it by manual.
Product Advantage of Hollow Briquette Rod Extruder / Round Charcoal Making Machine
1. The shape of the sticks can be made by customers requirements.
2.The product made by this machine is no pollution and smoke. It is the most suitable machine for you.
3.it can suitable for charcoal powder , wood charcoal powder , coco nut shell charcoal powder , rice husk charcoal powder ,charcoal dust , coal powder
4.Material suitable size : <3mm
5.The shape and size of stick can be made as require , like round , hexagon , cinquefoil , and others , in the stick center , it
can with hole or not .
6.adopt special alloy coating technique to manufacture the most important parts - screw propeller.
7. electric control panel can protect the briquette machine when sudden stop or overload.
2.The product made by this machine is no pollution and smoke. It is the most suitable machine for you.
3.it can suitable for charcoal powder , wood charcoal powder , coco nut shell charcoal powder , rice husk charcoal powder ,charcoal dust , coal powder
4.Material suitable size : <3mm
5.The shape and size of stick can be made as require , like round , hexagon , cinquefoil , and others , in the stick center , it
can with hole or not .
6.adopt special alloy coating technique to manufacture the most important parts - screw propeller.
7. electric control panel can protect the briquette machine when sudden stop or overload.

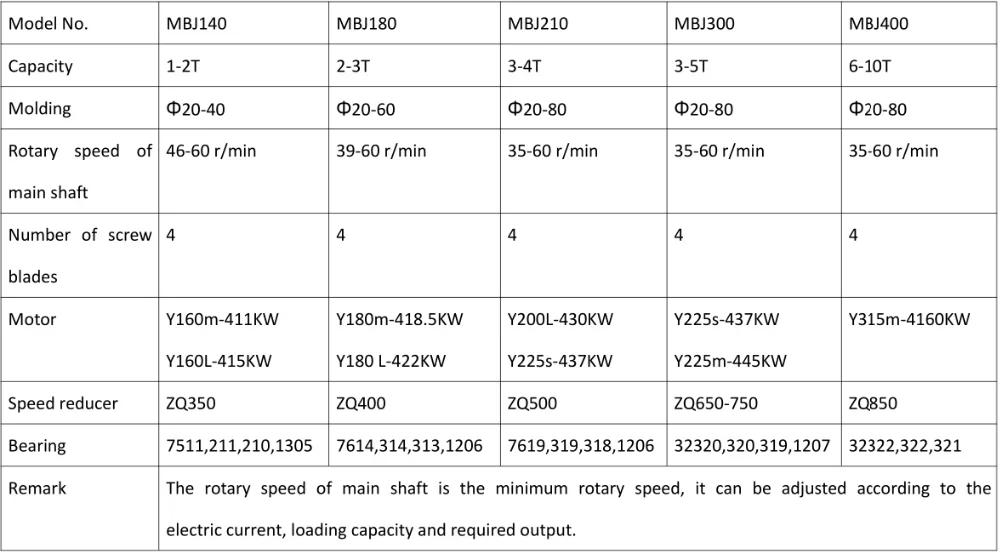

Technical parameters of Hollow Briquette Rod Extruder / Round Charcoal Making Machine

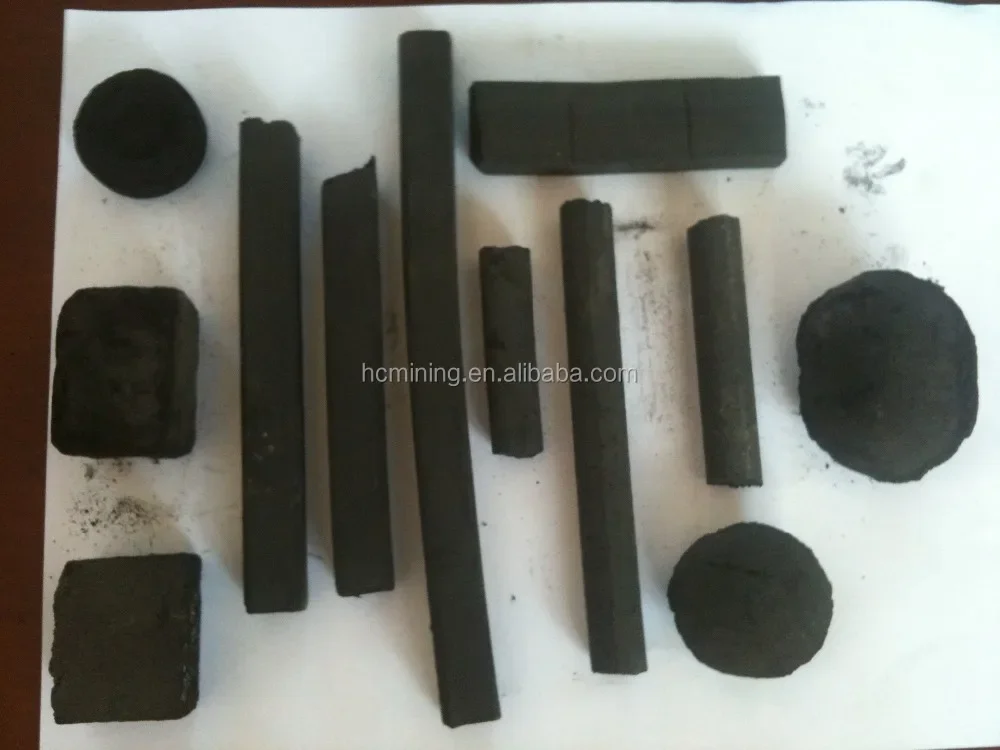

Final products of Product Advantage of Hollow Briquette Rod Extruder / Round Charcoal Making Machine
A. The requirements of feeding materials:
1. The inlet particle size of materials must be less than 5mm.
2. We have to add suitable binder for some kind of materials for shaping easily.
3. The moisture of materials must be moderate, and the water content usually is 12%-14%.

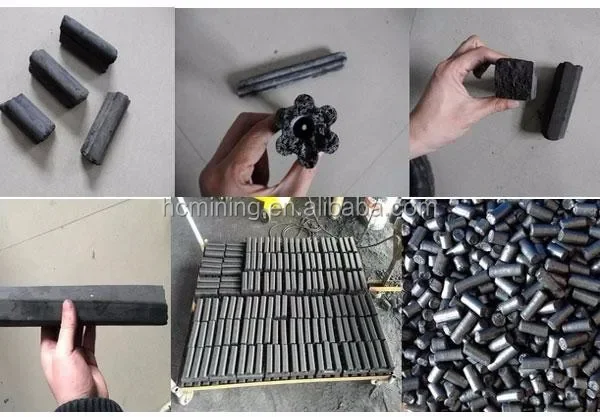

B. The final briquettes of coal rod extrusion machine:
1. The outlet shapes can be round, rectangular, hexagonal, plum-flower, triangular etc.
2. With our special binder, the outlet briquettes are of high density, esay shaping, smokeless, easy fire, long burning, etc.
3. Smooth surface and convenient to store and transport.
4. The final briquettes usually used for BBQ, burning for stove, cooking, etc.
A. The requirements of feeding materials:
1. The inlet particle size of materials must be less than 5mm.
2. We have to add suitable binder for some kind of materials for shaping easily.
3. The moisture of materials must be moderate, and the water content usually is 12%-14%.
B. The final briquettes of coal rod extrusion machine:
1. The outlet shapes can be round, rectangular, hexagonal, plum-flower, triangular etc.
2. With our special binder, the outlet briquettes are of high density, esay shaping, smokeless, easy fire, long burning, etc.
3. Smooth surface and convenient to store and transport.
4. The final briquettes usually used for BBQ, burning for stove, cooking, etc.
Our company
Gongyi Hengchang Metallurgy Building Material Equipments plant is a professional manufacturer specializing in the production of mineral beneficiation equipments, sand and stone crushing equipments, briquetting equipments, egg incubator,coal preparation equipments, drying and calcining equipments, cement plant equipments and compound fertilizer equipments.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: What is your terms of payment ?
A: 30% advanced payment by T/T, balance paid before shipment.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: What is your terms of payment ?
A: 30% advanced payment by T/T, balance paid before shipment.
