Products Description
Container Battery Energy Storage System | ||||
Model | ESS-100KWH | ESS-200KWH | ||
Parameter-BATTERY (DC) | ||||
Rated Voltage (V) | 358.4 | 716.8 | ||
Voltage range (V) | 313.6-403.2 | 627.2-806.4 | ||
Rated Capacity (Ah) | 280Ah | |||
Rated Energy (kWh) | 100.3kWh | 200.7kWh | ||
Cycle Life | ≥6500 Times | |||
AC(on -grid) | ||||
Recommend Input Power | 50KW | 100KW | ||
Rated Voltage | 380V/400V | |||
Output | 3W+N+PE | |||
Rated frequency | 50/60Hz | |||
AC(off -grid) | ||||
Rated Power | 50Kw | 100Kw | ||
Rated Current | 43A | 144A | ||
Rated Voltage | 380V / 400V/ 440V | |||
Size & Installment | ||||
Approx Dimension(W*D*H) mm | 1680*1500*1700mm | 1680*2270*1700mm | ||
Approx Weight | 1100kg | 2300kg | ||
Max. Conversionefficiency | 95% | |||
Max.imum Altitude | 4000m(derate over 2000m) | |||
Cooling Forced-air | Intelligent fan adjustment | |||
Display Touch Screen | LCD(Optional) | |||
For detailed requirements, please contact us to provide customized solutions | ||||

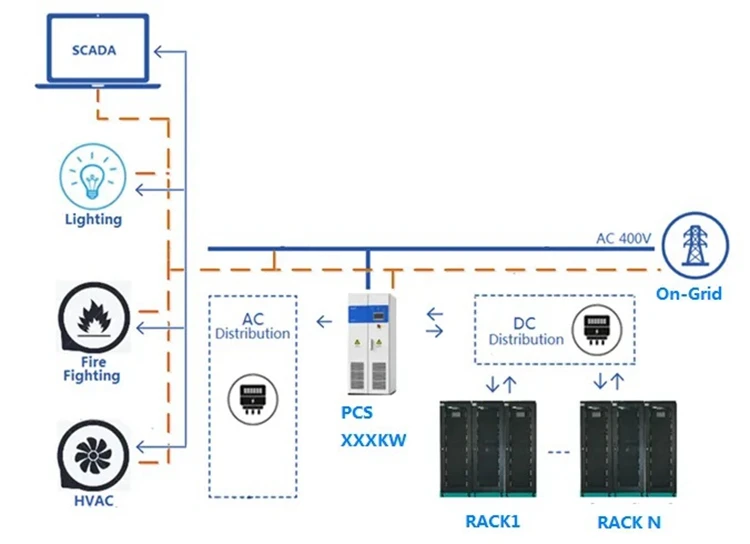

Container Energy Storage Battery System Function Diagram
● LiFePO4 Battery System
● PCS Inverter
● HVAC(Heating, Ventilation and Air Conditioning) ( 1 Set)
● Fire Fighting, Lighting System ( 1 Set )
● Thunder-proof, AC& DC Distributor, optional parts
● SCADA(Supervisory Control And Data Acquisition) System
All of the above are designed in a 20/40ft Standard Container.

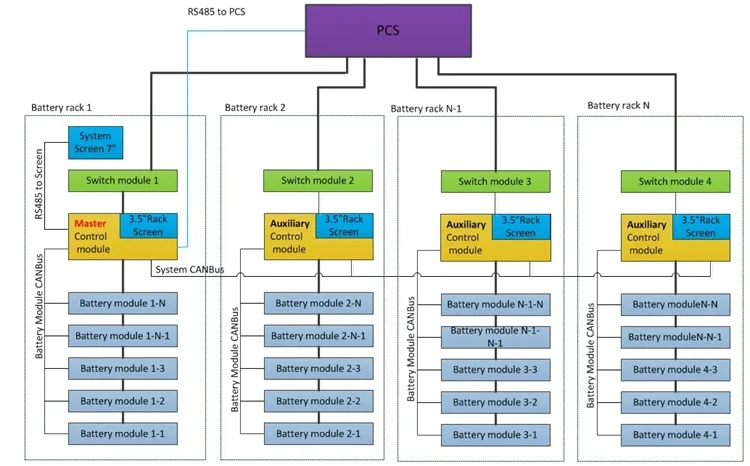

Battery System Introduction:
Battery Features:
◆Using long lifetime (≥6000cycles)，high efficient ( reach 98%)、High safety LFP cells；
◆Actively balance management, improve battery efficiency, maintain battery consistency, and increase the cycle life.
◆Complete fault and operation log recording function, system.
◆Info storage time last one month ;
◆Support RS485、Ethernet communication；
◆Battery design according to UL1973 standard
Megawatt Mobile Box ESS Structure Oblique View
2. air conditioning indoor unit
3. monitoring system cabinet
4. stepped air duct
5. fire protection system
6. bidirectional converter
7. sub-mother door
8. battery rack
10. power distribution cabinet
11. battery rack air duct
12. double door
13. grid-type ventilation escape door
14. battery module
15. main control box

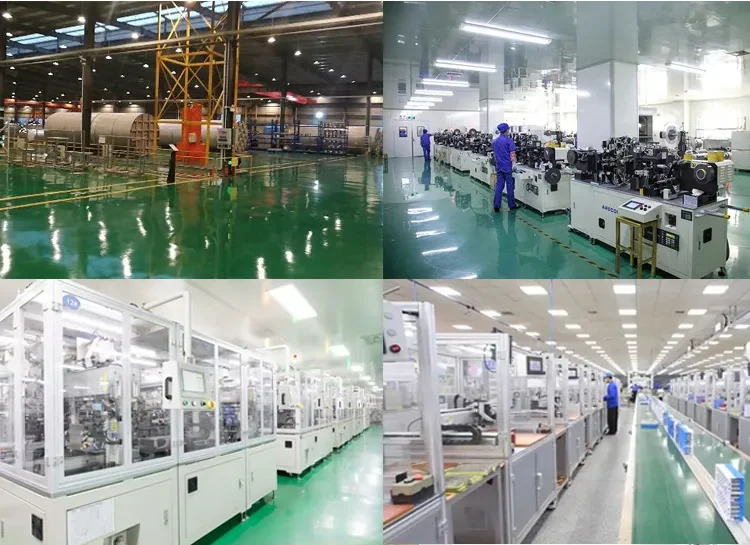

Manufacturing Technique
Stringent quality control is the cornerstone of GREENSUN's manufacturing. Our customers have come to expect uncompromising quality standards in our products. To meet this expectation of high quality, we continue to invest in state-of-the art equipment and professional training of our employees .
We are proud of our product quality and their reliable performance even in the most extreme conditions.
GREENSUN has received certifications for Quality Management System (ISO 9001:2015), Environment Management
System (ISO 14001:2015) and Occupational Health and Safety Management System (ISO45001:2018) from both DNV GL and GZCC.
System (ISO 14001:2015) and Occupational Health and Safety Management System (ISO45001:2018) from both DNV GL and GZCC.
The production of all lithium batteries will go through no less than 10 procedures from testing the quality of the battery cells to testing the current and voltage in the middle to the final charge and discharge test.
To ensure that the products received by our customers are free of any defects.
To ensure that the products received by our customers are free of any defects.

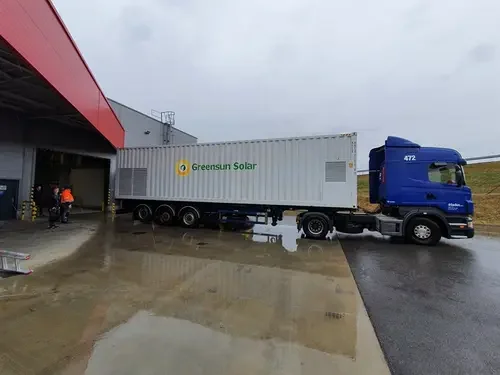

Packing & Delivery

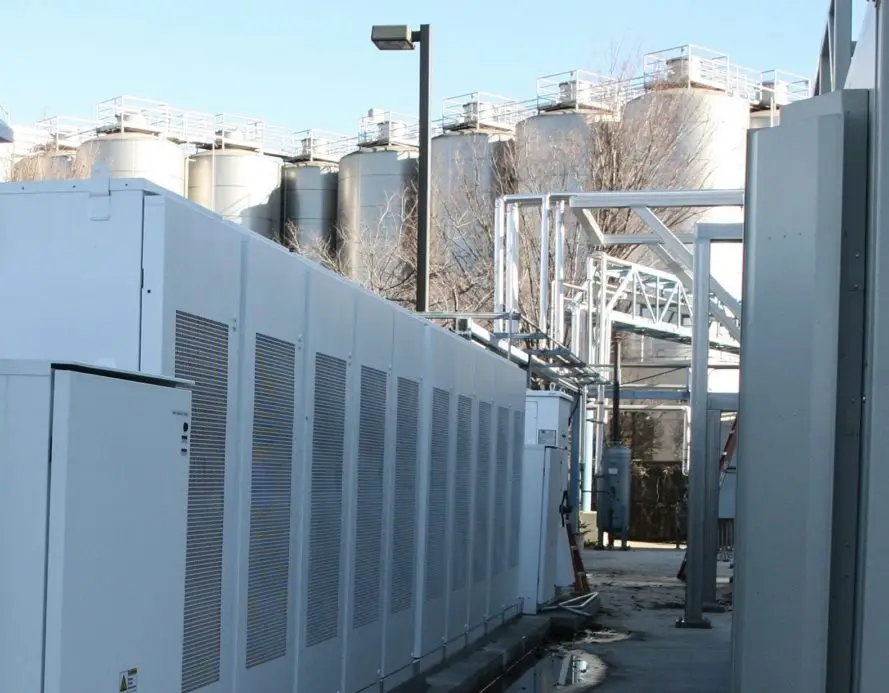

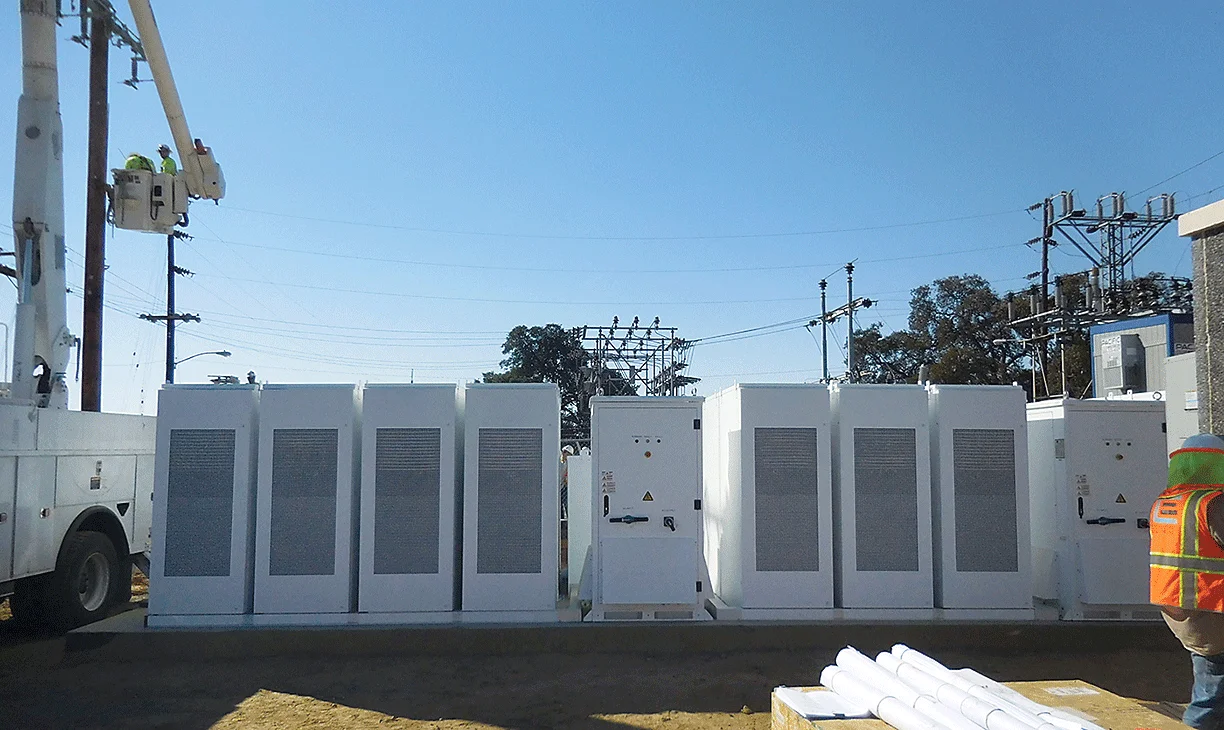

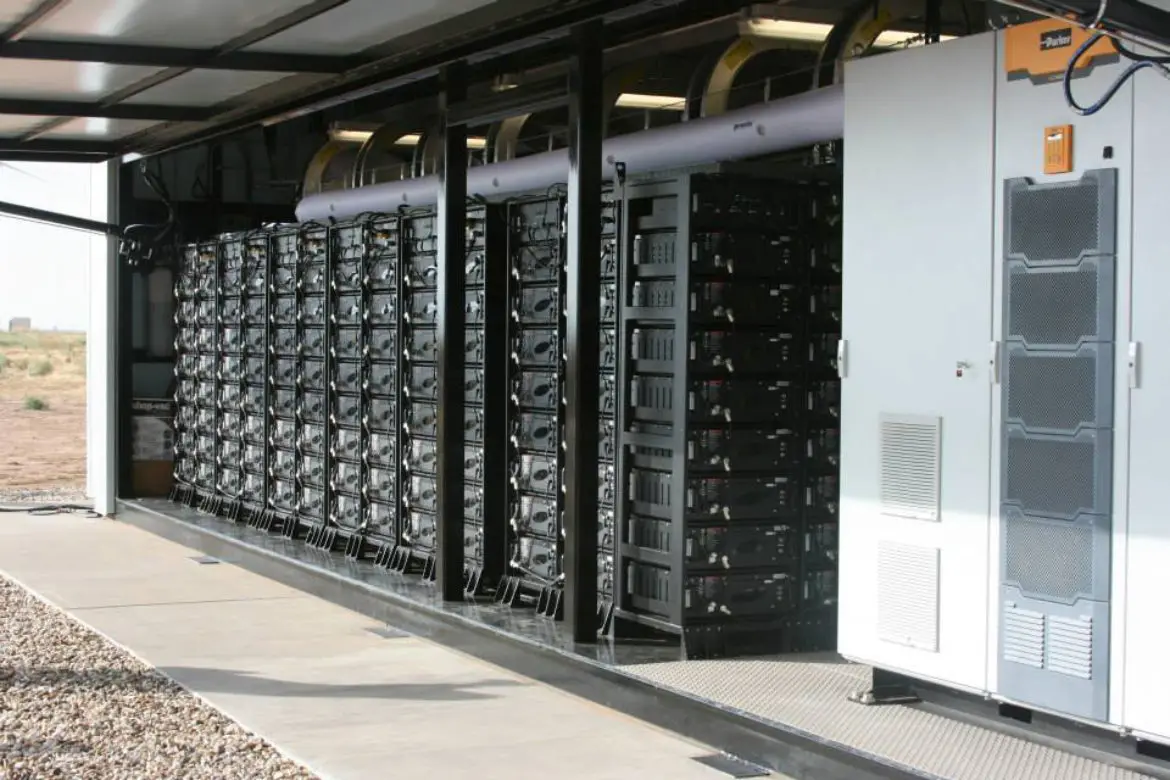

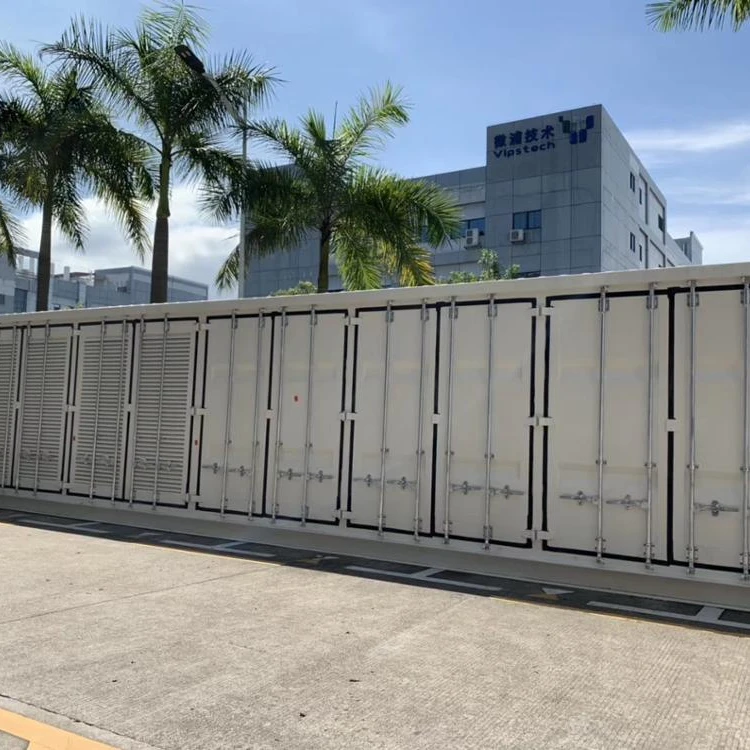

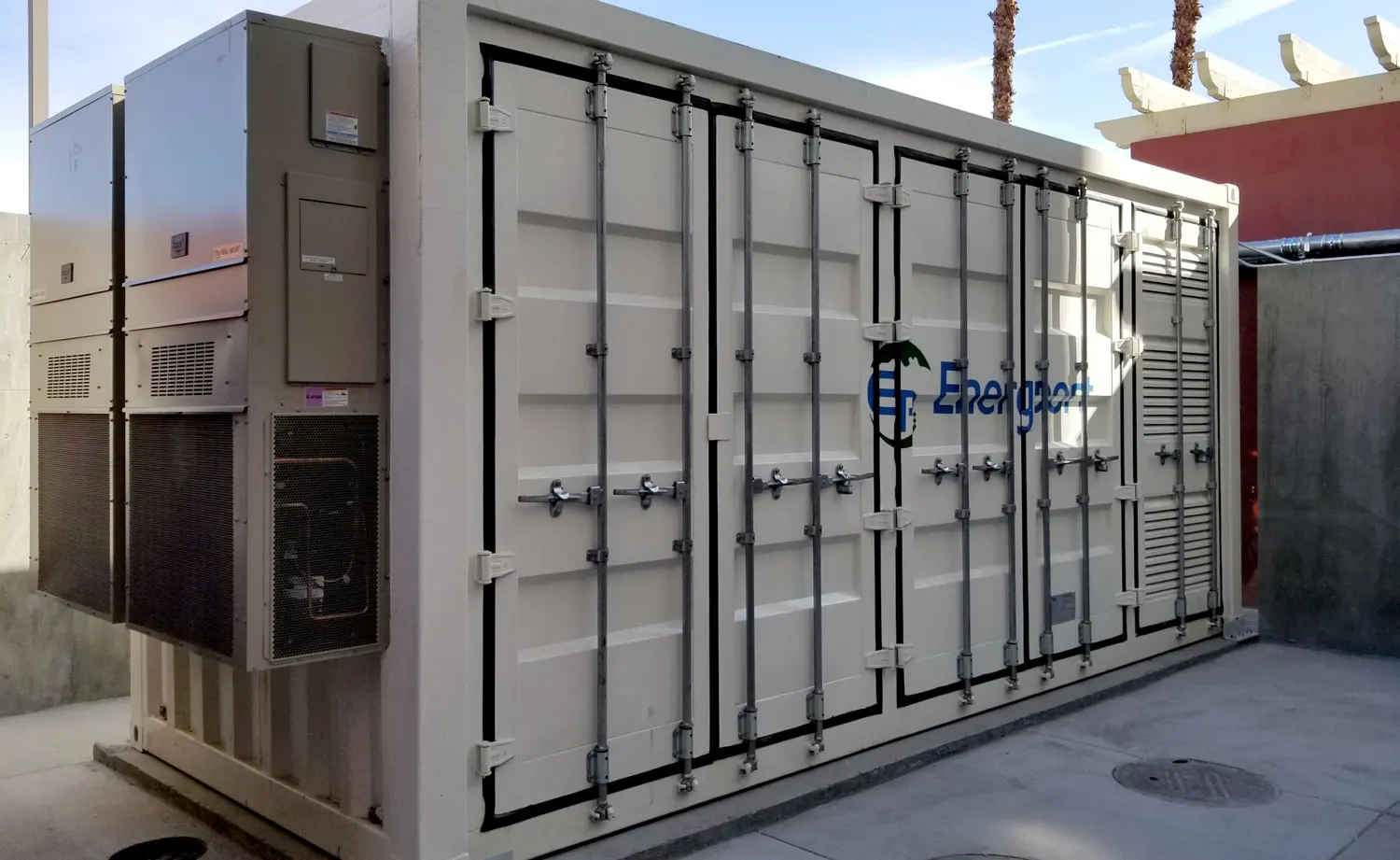

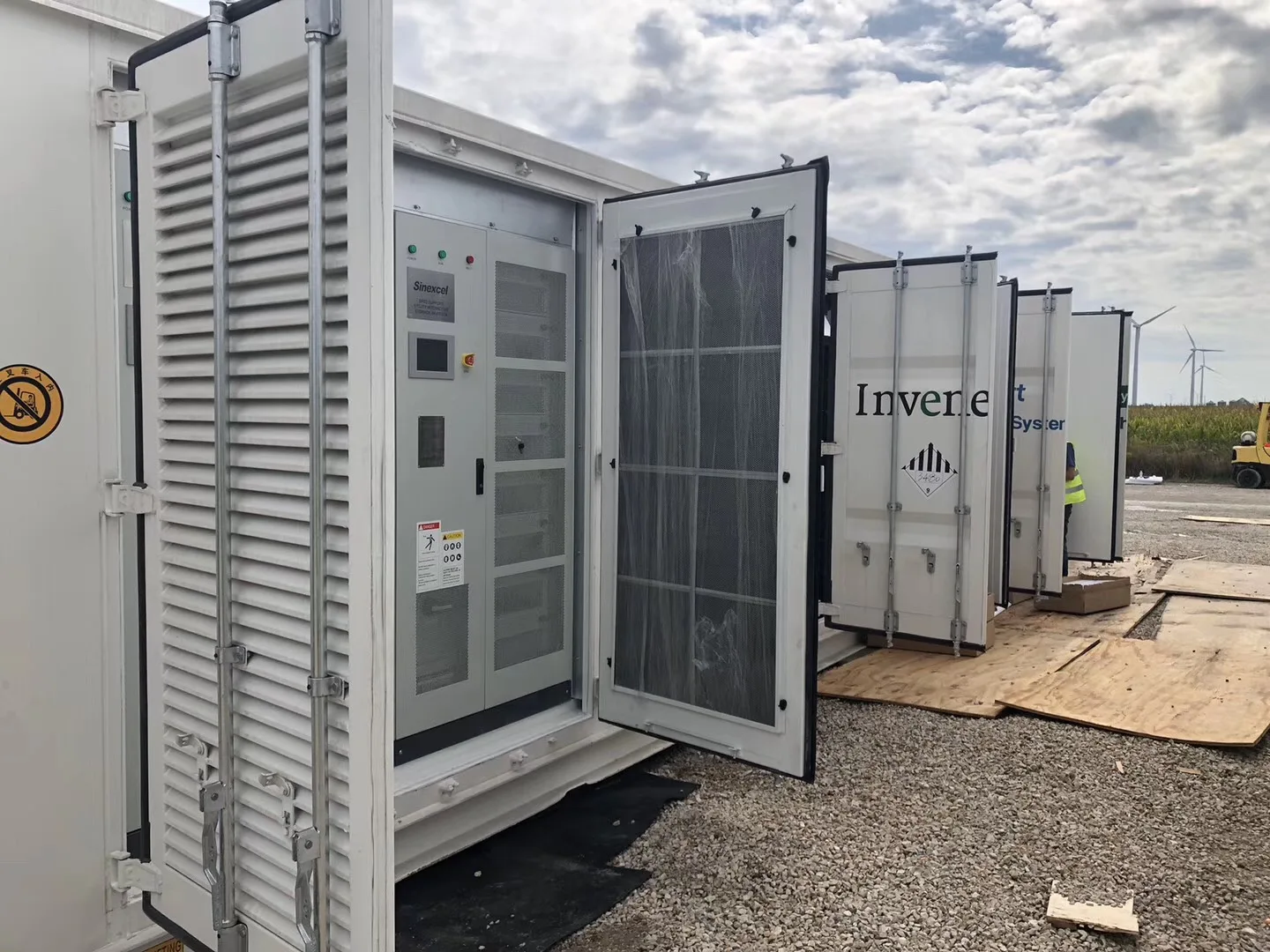

Global Project
Why Choose Us
1. We are a real factory and have strict requirements on the quality of products.
2. We provide OEM services for many leading companies around the world.
It has long-term cooperation with Longi, Risen, Jinko and other first-line brands.
3. As a factory, we have better control over product costs.
4. Both production and delivery are very fast.
5. Also, we provide stable and long-term after-sales service.
2. We provide OEM services for many leading companies around the world.
It has long-term cooperation with Longi, Risen, Jinko and other first-line brands.
3. As a factory, we have better control over product costs.
4. Both production and delivery are very fast.
5. Also, we provide stable and long-term after-sales service.
