3000 тонн Китай лидер продаж песчаная баржа цена


Поделиться:

Цена:53 133 591,00 ₽ - 54 217 950,00 ₽*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики



Product Description

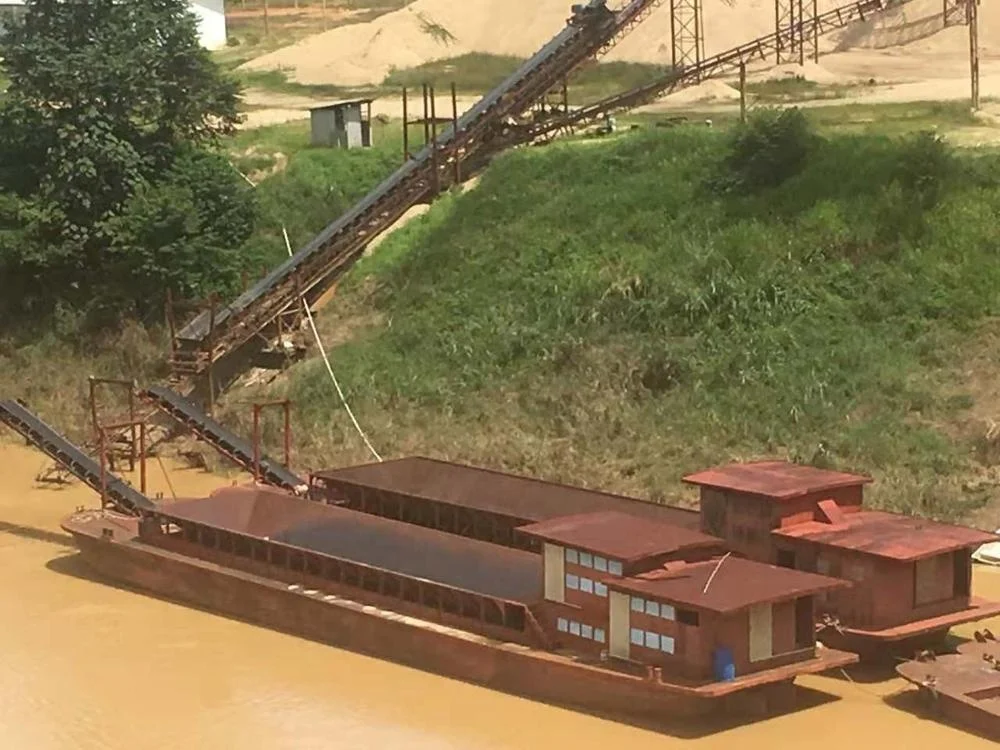

Sand barge
Yongli self propelled sand transport barge is designed and used for sand transport in river,lake,sea and channels. Usually it
matches up with sand dredger. After sand and gravels are digged up, and if the stock area has a long distance from the dredging
area, you have to use the transport barge to transport the sand and gravels. There are conveyor belts on the barge. The sands and
gravels will be discharged onshore when the barge reaches the stock area and the unloading work will be very fast.


Specification


Name
Specification
Hull length
36m
Hull breadth
7.5m
Hull height
2.6m
Bottom steel plate
6mm
Side steel plate
6mm
Deck steel plate
6mm
Engine power *2 sets
120kw
1500rpm,
Origin: WEICHAI,China
Gearbox
Quantity: 2pcs
Model: 135
Ratio: 3:1
Shaft diameter
95mm
Propeller diameter
1.0m
Hydraulic steering machine
3 tons
Conveying belt
L:38m*W:0.8m
Diesel generator
50kw
Transport volumes per time
500 tons per hour
Empty load sailing speed
18.5km/hour
Full load sailing speed
12.2km/hour
Total weight
90 tons


Company Profile






Established in 1990, we are one of China leading manufacturers for equipments which integrated dredging and recovery system for gold, diamond, garnet, iron and all precious and semi-precious stone that have higher specific gravity. The construction and producing of our new mining, dredging and processing plant 100% supervised and quality controlled done by South African engineer with rich experiences.

Currently we are the only Chinese company that produces such a combination of dredging, mining and processing for gold, diamond, garnet, iron and all precious and semi-precious stone that have a higher specific gravity.

We use very simple but proven technology, no plc. system to eliminate potential problems, such as centrifugal concentrator for gold, pulsating gravity separating jig, as well as in the primary concentration process.

We do not use any chemicals in the primary mining and concentration process, in order to protecting environment. Our equipment especially suit for more remote and less infer structure and support mining areas because of its simplicity.

We have exported our products to Kazakhstan, Nigeria, Russia, South Africa, North Korea and the Middle East. We have received a wide acclaim and established long-term cooperation relationships with domestic and overseas customers.

We have a dozen of series with more than 80 kinds of products for you to choose, including gold mining ships, sand-digging machinery, mineral processing machinery, sand washing machines, sand pumping ships, auto-load and auto-unload sand transporting ships, iron extraction machinery (water election and dry election), high standard sand washing machinery, sand making machinery, transport ships, stone crushing machinery, large and medium-sized dredging ships, and sprinkling irrigation ships.

We have been enjoying a public praise for our abundant strength, top grade quality, good credit, reasonable price and the most attentive service. We manage according to the concept of "Credit-Cooperation-Mutual Benefits". We warmly welcome customers from at home and abroad.


FAQ


1. who are we?
We are based in Shandong, China, start from 2010,sell to Domestic Market(40.00%),Southeast Asia(30.00%),Africa(28.00%),Mid East(2.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Cutter Suction Dredger,Gold Dredger,Diamond Dredger,Gold Washing Plant,Work Boat

4. why should you buy from us not from other suppliers?
We are the professional manufacturers who has been dedicated in R&D, designing, producing, assembling and testing services.Our main products is cutter suction dredger,jet suction dredger,bucket chain dredger,gold dredger,diamond dredger and so on.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,EUR,GBP,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Japanese,Korean
