Поворотный Селекторный переключатель 4 полюса 16 ампер 250 Вольт 2 положения включения-выключения поворотный 49 27215520 других эталонных
- Категории: >>>
- Поставщик: Guangdong,Shalan,Technology,Co.,Ltd.Guangdong,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
| Rated current and rated voltage of switch | 16 A AC 250V |
| Temperature | T150 |
| Function | 2-3-4....12 |
| Insulation resistance | > 100MΩ (normal) |
| Dielectric strength | 2000V. AC 1min (normal) |
| Life cycles | >10000 |
| Test gradient | ≤1.0℃/min (liquid medium) |
| Max. ambient temp. of main body | 150℃ |
| Rotating torque of adjustment shaft | <40N.cm |
| Switch type | SPST / SPDT |
| Certificate | TUV&CE&CQC |
Advantages:
• accurate temperature controlling;
• great contact capacity;
• wide control range;
• high reliabilities;
• About 90% of the parts of our products are produced by ourselves, with excellent quality control, strong competitive prices, and timely delivery. We have many source factories and look forward to your visit!
Our advantage
1.Shell color and logo can be customized.
2. We provide EU/US/UK/Australia plugs,also can be customized according to customer requirements.
3. Free professional packaging design, support OEM and ODM custom packaging.

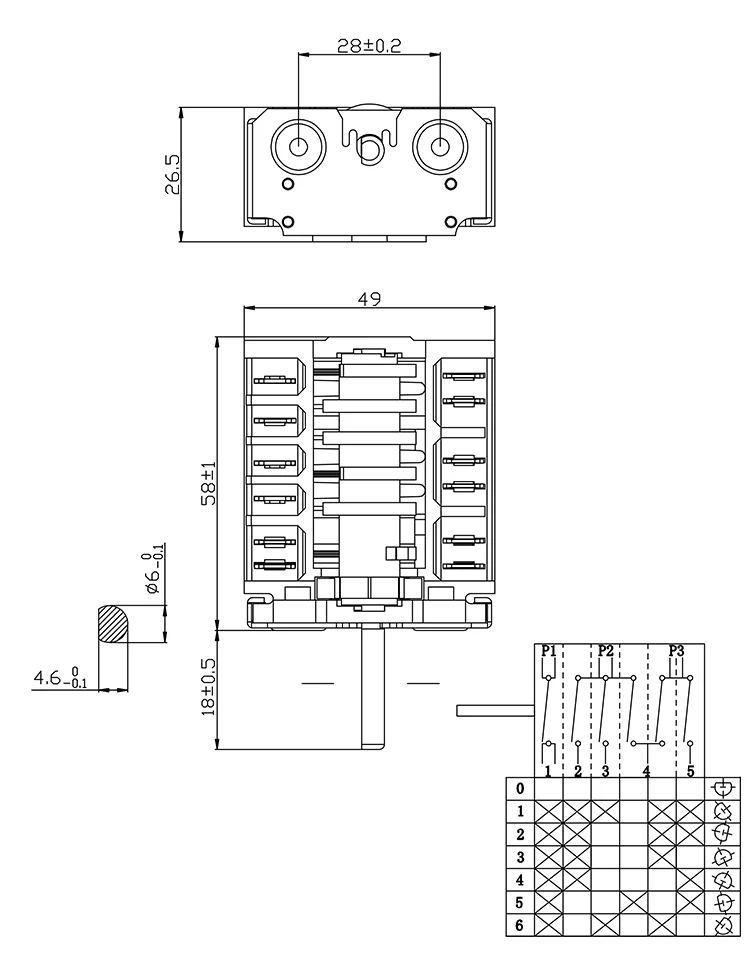

Dimensional drawing
Certificate
Packaging & Shipping
FAQ
1. Do you provide free samples? How long will the samples be ready?
Yes. Samples are FREE. You just need to pay the delivery cost.
Usually, we need 7 days to prepare samples.
2. Can I have your pirce list?
Sorry, price list is not available. All of our products are customized. We need to know the cable
size, length and other specifications to count the prices.
3. What is your shipping method?
We will help you to choose the best shipping method according to your orders. If you have pointed forwarder in China, we will help to arrange the shippment ASAP.
4. What is your payment term?
T/T. 30% deposit, 70% before delivery
Exhibition case
Company Information
Guangdong Shalan Technology Co., LTD. is a comprehensive company, We have more than 15 years experience for production and OEM service.
