Завод по индивидуальному заказу 75 м3/ч HZS 75-180 м3 бетонная машина центральный цементный завод Бетонный
- Категории: >>>
- Поставщик: Zhengzhou,Corey,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

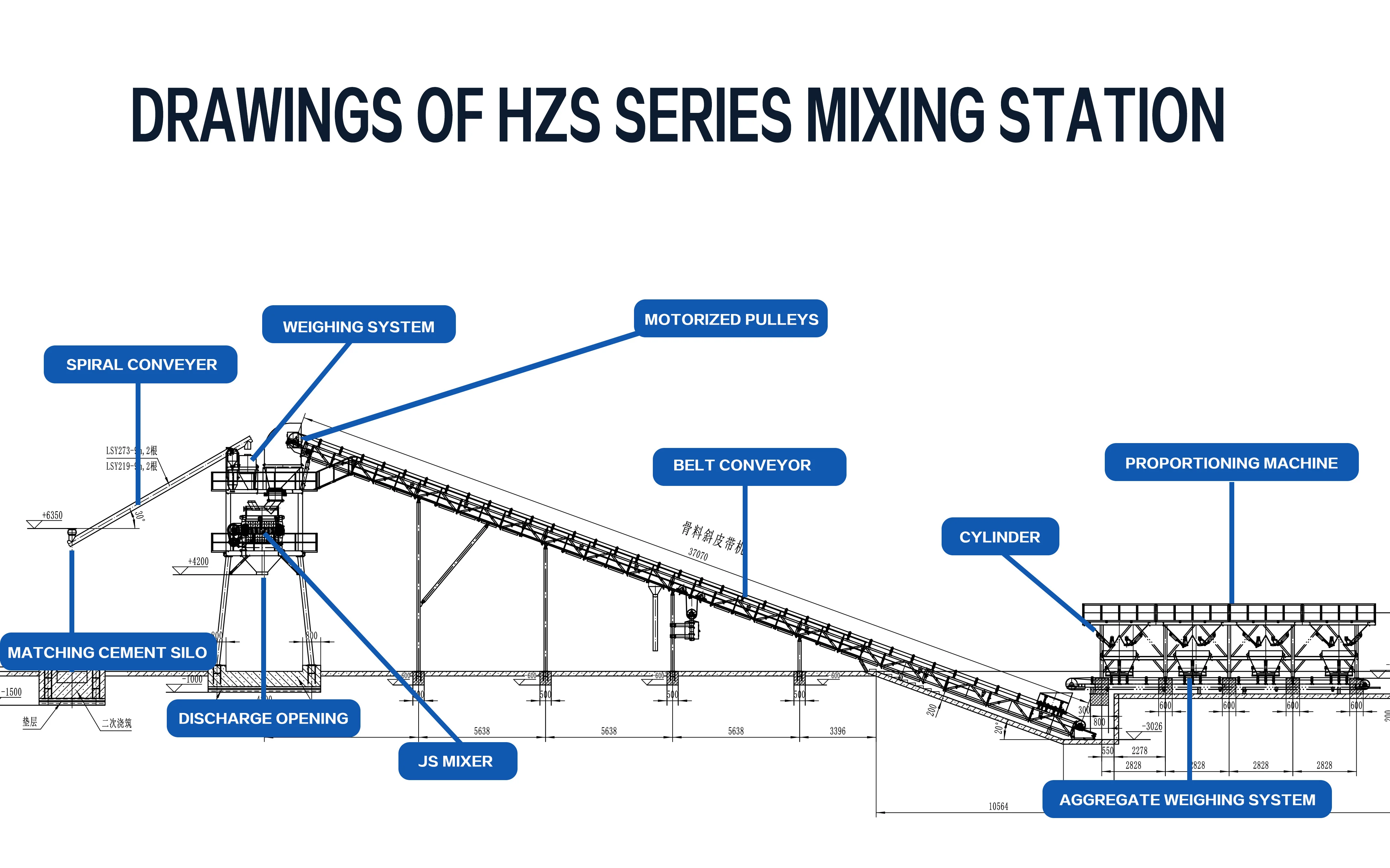

HZS series mixing station can be composed of double horizontal shaft mixer.batching machine and related equipment flexible combination, this simple mixingstation has the single independent use and PLD series batching machine into theproduction capacity of 25m3/h-180m³/h the concrete mixing station doubleadvantages, and simple structure, convenient disassembly, convenient construction;

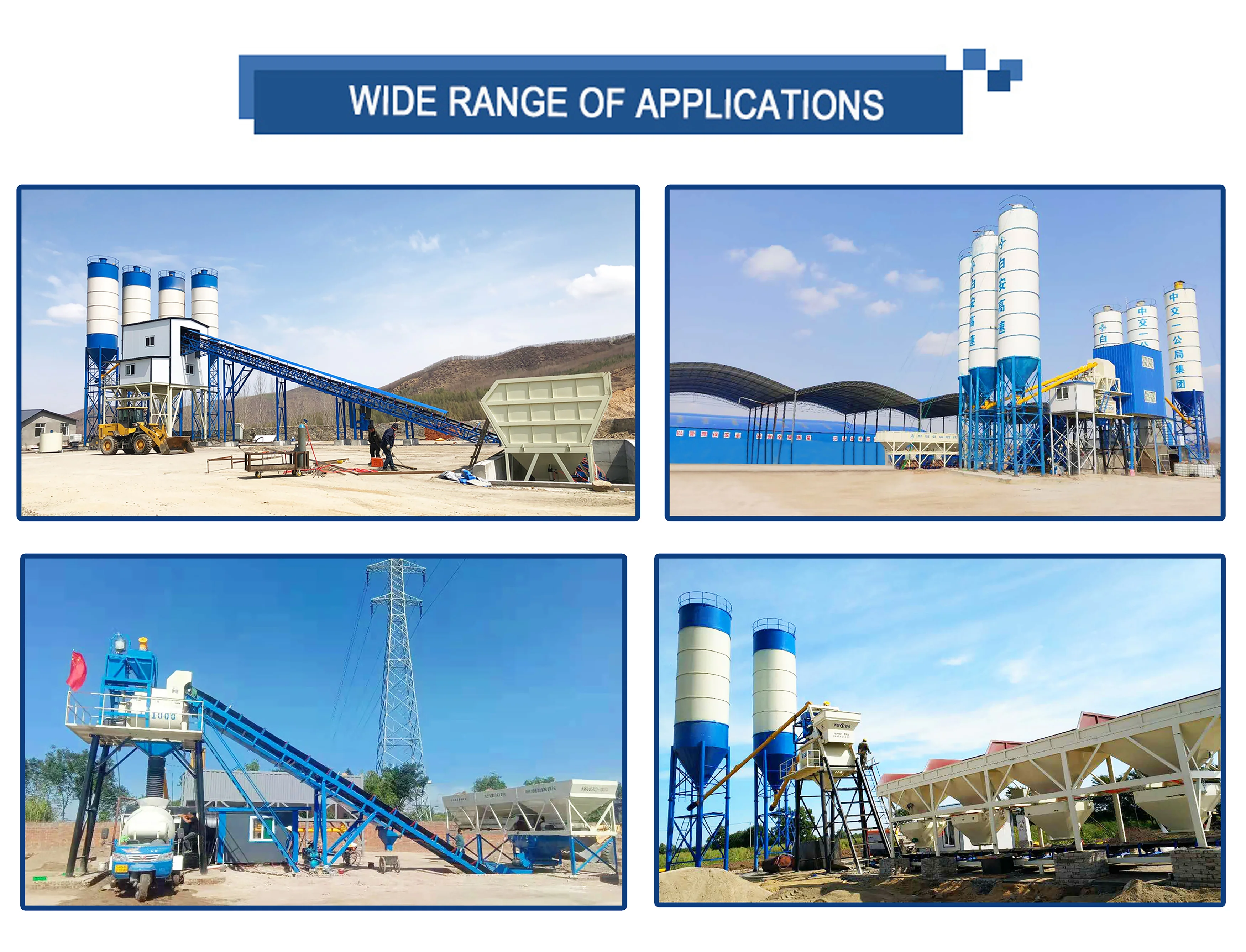

lt is suitable for all kinds of large and medium-sized prefabricated parts factoriesand industrial and civil construction projects such as highway, bridge, waterconservancy, wharf, etc, lt can mix dry hard concrete, light aggregate concrete andvarious mortar. lt is a kind of high efficiency mixing station.
HZS series mixing station is a simple mixing station with automatic feedingfunction, the combination of double horizontal shaft mixer and batching machineproposed mixing station can give full play to the advantages of batching machineand mixer.
lt is suitable for all kinds of large and medium-sized prefabricated parts factoriesand industrial and civil construction projects such as highway, bridge, waterconservancy, wharf, etc, lt can mix dry hard concrete, light aggregate concrete andvarious mortar. lt is a kind of high efficiency mixing station.
HZS series mixing station is a simple mixing station with automatic feedingfunction, the combination of double horizontal shaft mixer and batching machineproposed mixing station can give full play to the advantages of batching machineand mixer.
We are specialized in manufacturing concrete mixing plant factory, doing export for more than 12 years. Diversified mixing plant customization, common fixed mixing plant, mobile mixing plant, drum mobile mixing plant truck, foundation-free simple mixing plant, etc., you can also according to the site conditions we can provide you with suitable for your mixing plant program to build, choose us you can quickly get the product offer, no middleman to earn the difference in price, the price will make you satisfied, we have professional engineers and technicians are responsible for your product installation guidance and We have professional engineers and technicians responsible for your product installation guidance and lifelong after-sales service. Welcome to visit our factory!

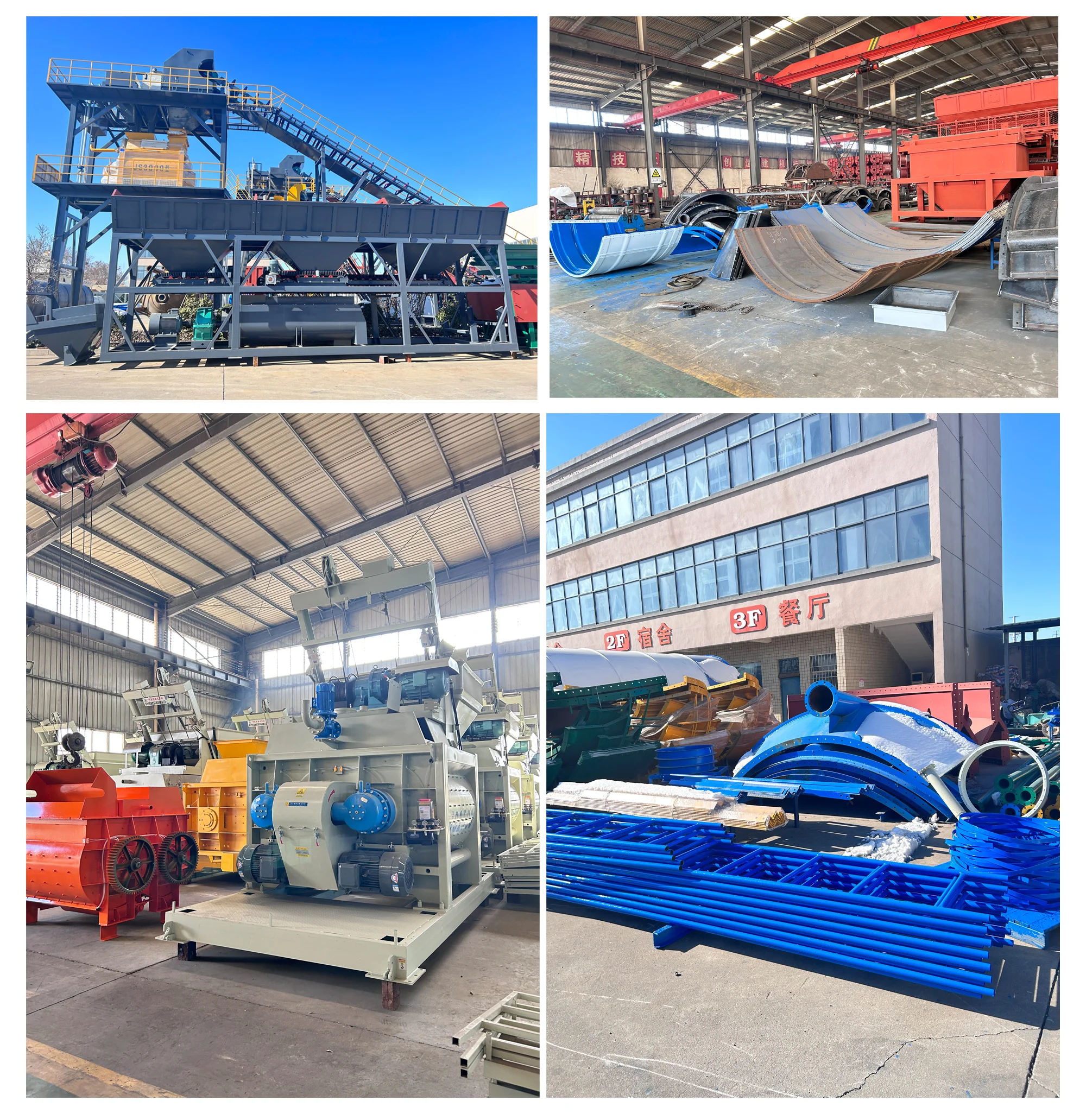

Factory Show
Product Details
JS （500-3000）Mixing Machine
Mixing system selection JS/SICOMA twin shaft concrete mixer, high efficiency, high mixing quality.
Steel Frame
Base frame of the host: standard channel steel 32#
Host leg: 4.54 meters, 6mm thick Ф273 round tube Structural are durable.
Host leg: 4.54 meters, 6mm thick Ф273 round tube Structural are durable.
Belt Feeder and Midway Storage Silo
Fast feeding speed, large conveying distance, high efficiency, reduce failure
Aggregate Batching Machine
PLD800, PLD1200, PLD1600, PLD2400, PLD3200, PLD4800, PLD6400 is available
Measuring System
Powder and water are measured using
electronic scales, ensuring high batching
accuracy.
electronic scales, ensuring high batching
accuracy.
Control System
Computer plus PLC control system to ensure smart and stable operation, dynamic panel display can make the operator clearly
Cement Silos
Customized 20t/50t/100t/150t/200t etc.
Screw Conveyors
Good sealing, closed trough, long conveying distance
Product Parameters
Type | HZS25 | HZS35 | HZS50 | HZS60 | HZS75 | HZS90 | HZS120 | HZS180 |
Mixing Power | 18.5KW | 30kw | 37kw | 37kw | 30kw*2 | 30kw*2 | 37kw*2 | 55kw*2 |
Motor Power | 50.25KW | 65kw | 90kw | 110kw | 110kw | 120kw | 210kw | 260kw |
Discharge Method | Manual/Pneumatic | Manual/Pneumatic | pneumatic. | pneumatic. | hydraulic | hydraulic | hydraulic | hydraulic |
Dimensions | 17843×11430×13000 | 18815x11525x13250 | 14950x17840x17245 | 24120x9940x17190 | 15950x18840x17245 | 51093x19100x21600 | 55885x20200x21600 | 59811x20660x23700 |
Number of Arms | 2*7 | 2*7 | 2*7 | 2*7 | 2*8 | 2*8 | 2*9 | 2*10 |
Mixing Shaft Speed | 35r/min | 31r/min | 25.5r/min | 25.5r/min | 25.5r/min | 25.5r/min | 23r/min | 21r/min |
Hopper Lifting Speed | 18m/min | 18m/min | 21.9m/min | belt conveyor | 23m/min | belt conveyor | belt conveyor | belt conveyor |
Rated Feeding Capacity | 800L | 1200L | 1600L | 1600L | 2400L | 2400L | 3200L | 4800L |
Max. Aggregate Size | 60/80mm | 60/80mm | 60/80mm | 60/80mm | 60/80mm | 60/80mm | 60/80mm | 100/120mm |
Rated Discharging Capacity | 500L | 750L | 1000L | 1000L | 1500L | 1500L | 2000L | 3000L |
Concrete Machinery Type | Mixing Plant | Mixing Plant | Mixing Plant | Mixing Plant | Mixing Plant | Mixing Plant | Mixing Plant | Mixing Plant |
Theoretical Conveying Capacity | 25m³/h | 35m³/h | 50m³/h | 60m³/h | 75m³/h | 90m³/h | 120m³/h | 180m³/h |
Company Profile
