Products Description
Application

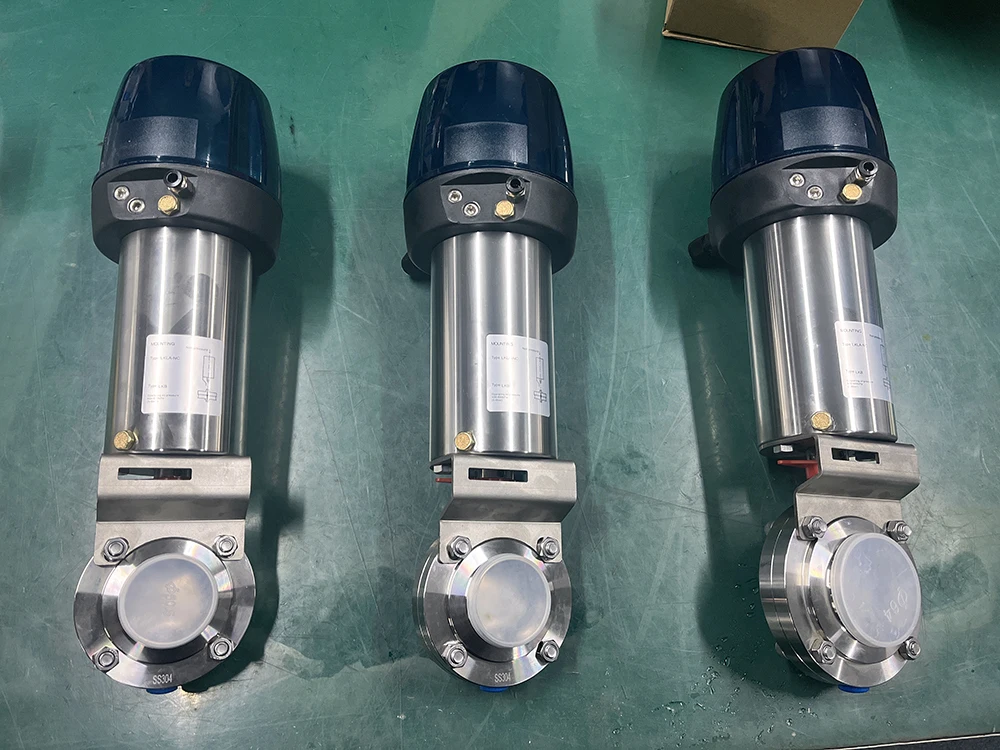

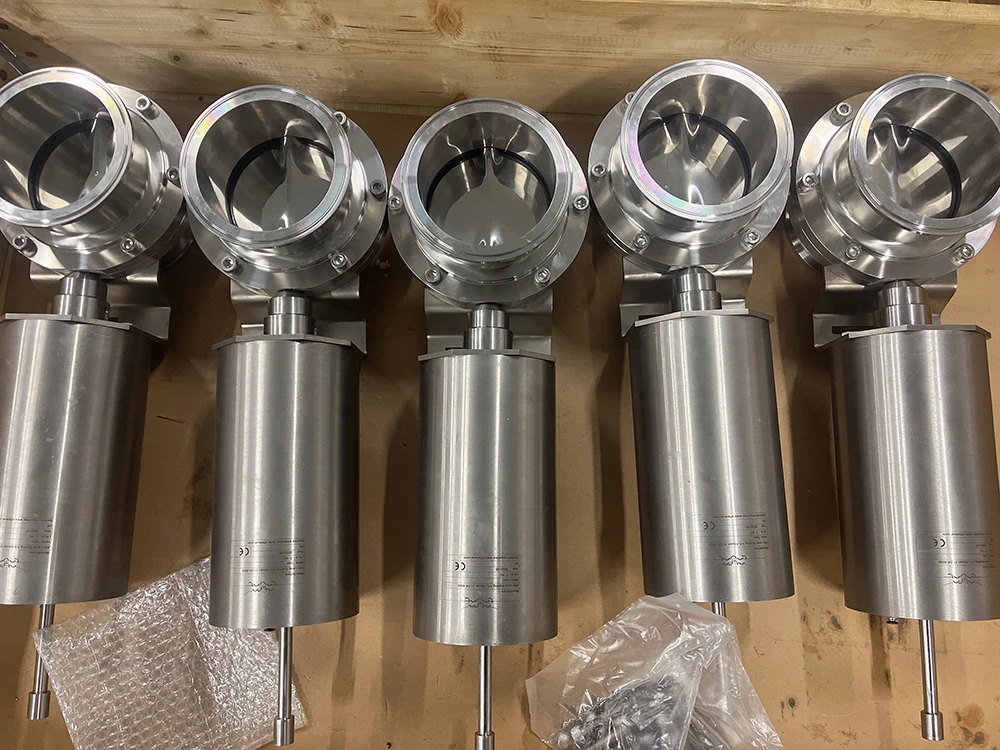

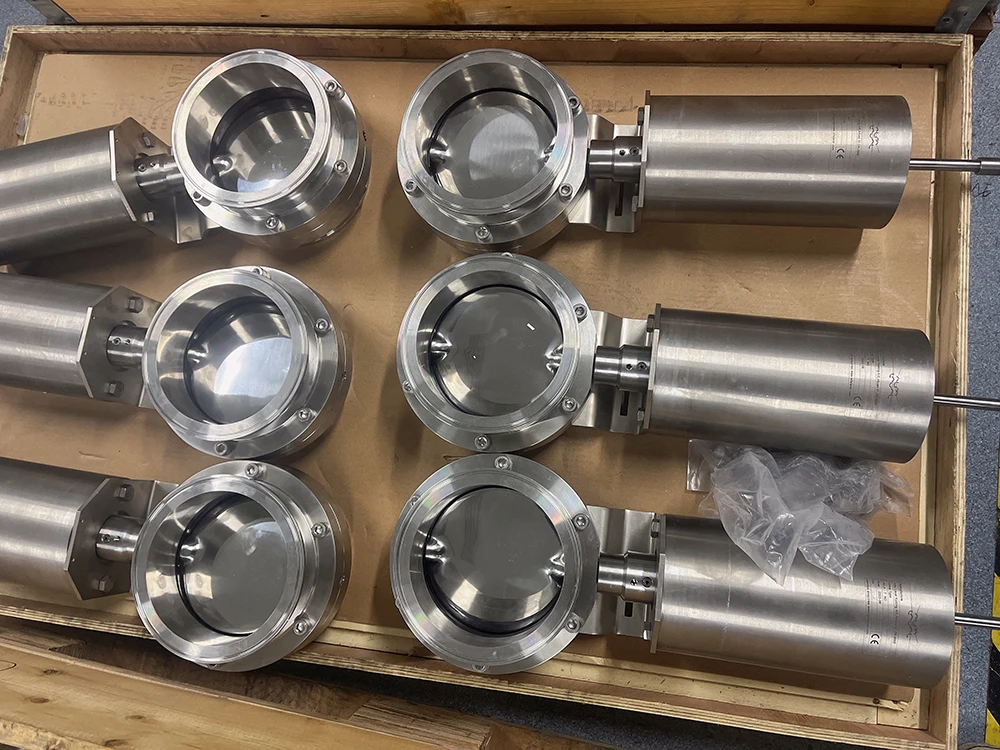

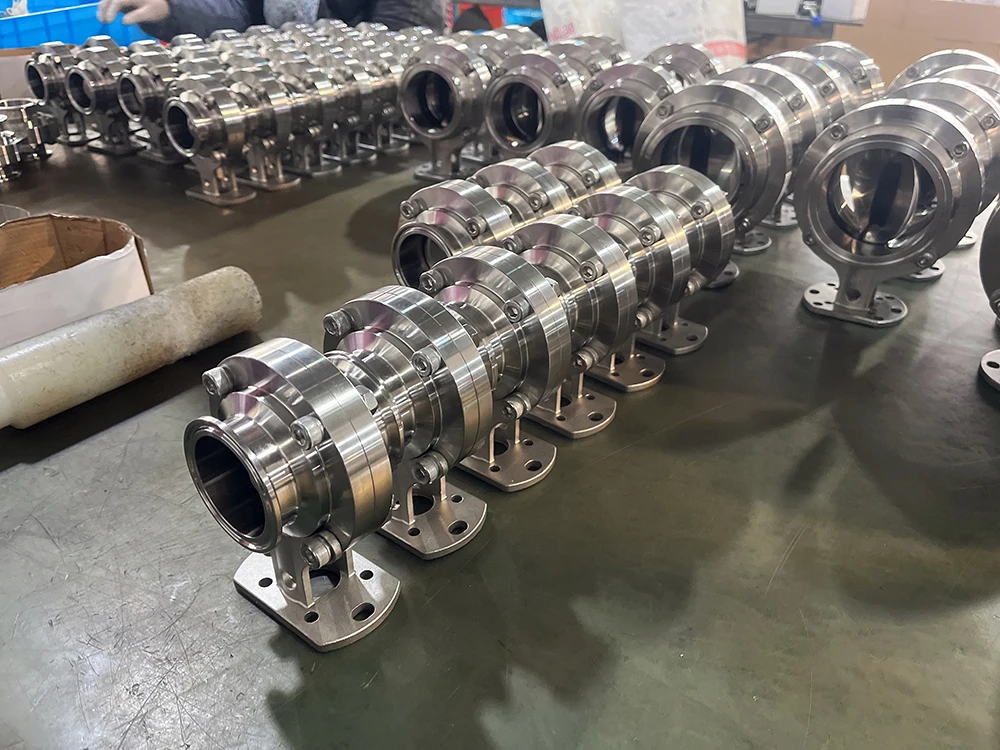

We could be offered with Weld end, Screw end, and Clamp end. The butterfly valves can be installing with different type handles like 4 position pull handle, 12 position gripper handle and 10 more other types or installing with actuator for automatically control for your widely using.
Valve Body Material | AISI304/AISI316L |
Seal material | EPDM/VMQ/FPM/PTFE |
Working pressure | ≤10bar(145psi) |
Size | 1/2"~6", DN10~DN150 |
Working temperature | PDM: 14~248ºF(-10~120ºC) |
VMQ:- 58~356ºF(-50~180ºC) | |
FPM: -22~446ºF(-30~230ºC) | |
PTFE: -4~482ºF(-20~250ºC) | |
Other materials are avaible upon request | |
Outside surface treatment | Ra16~32 (0.4~0.8um) |
Inside surface treatment | Ra32~64 (0.8~1.6um) |
Connetion ends | butt-weld, clamped ends, screw ends, flange ends |
Pneumatic head | Normally closed(NC)-Air to open,spring to close |
Normally open(NO)-Air to close,spring to open | |
Air to air(AA)-Air to open,air to close | |
Electric head | Normally closed(NC)-Electric to open, electric to close |
Normally open(NO)-Electric to close, electric to open |
● Serviceable Valve - Can be taken apart via threads, Female NPT Ports
● Handle: Heavy duty handle with blue vinyl insulation
● Body & Ball Type:304 Stainless Steel. Temp Range: -60 F to 450 F
● Nominal Working Pressure:1000 WOG: Max 1000 psi for Water, Oil, Gas
● Fluid temp range: -20°f to 410°f
● The valve is fitted with PTFE seals for maximizing corrosion resistance and lifespan of the ball valve
● This multi-purpose manual lever ball valve has excellent corrosion resistance and is fit for many applications
● Handle: Heavy duty handle with blue vinyl insulation
● Body & Ball Type:304 Stainless Steel. Temp Range: -60 F to 450 F
● Nominal Working Pressure:1000 WOG: Max 1000 psi for Water, Oil, Gas
● Fluid temp range: -20°f to 410°f
● The valve is fitted with PTFE seals for maximizing corrosion resistance and lifespan of the ball valve
● This multi-purpose manual lever ball valve has excellent corrosion resistance and is fit for many applications
Company Profile
Wenzhou Kinding Machinery co.,Ltd is located at a beautiful and traffic-convenient Longwan district of Wenzhou city, ,mainly engaged in developing,manufacturing,installation and techanical service in food, beverage, biology, pharmacy, chemical industry fields. We have advantage in producing high quality stainless steel equipment, such as fruit pulping machine, sanitary centrifugal pump, rotary lobe pump, high shear pump, etc. The enterprise has passed ISO9001:2008, our products are made of SUS304, SUS316 and SUS316L, conforming to sanitary standard stated in GMP specification.
Certifications
Best stainless
Design material according to customer ' s requirement, test all the raw material to confirm SS304, SS304L, SS316, SS316L.
