Product Description

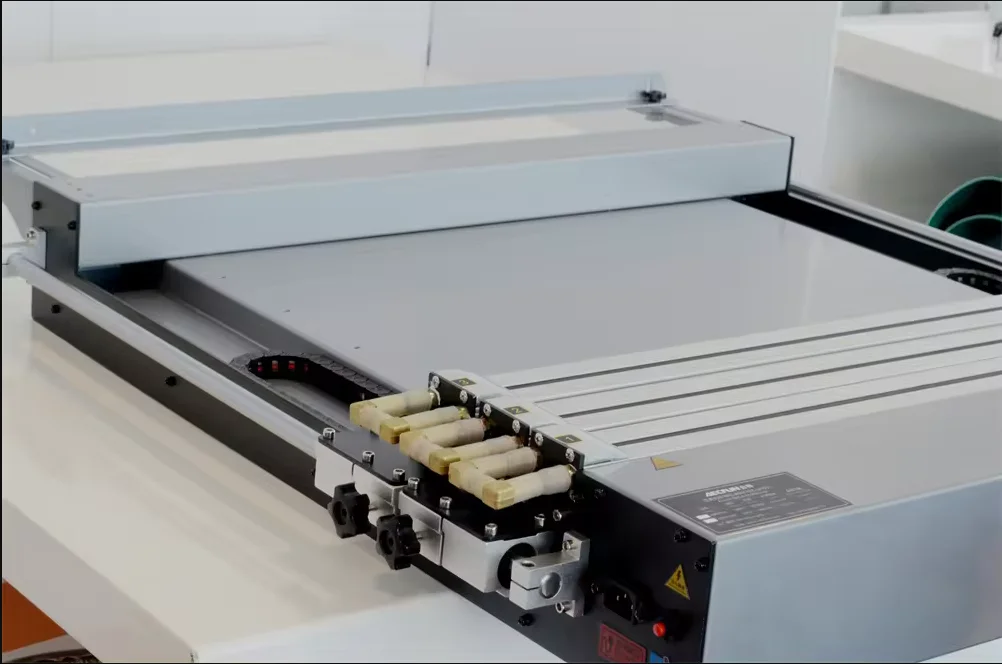

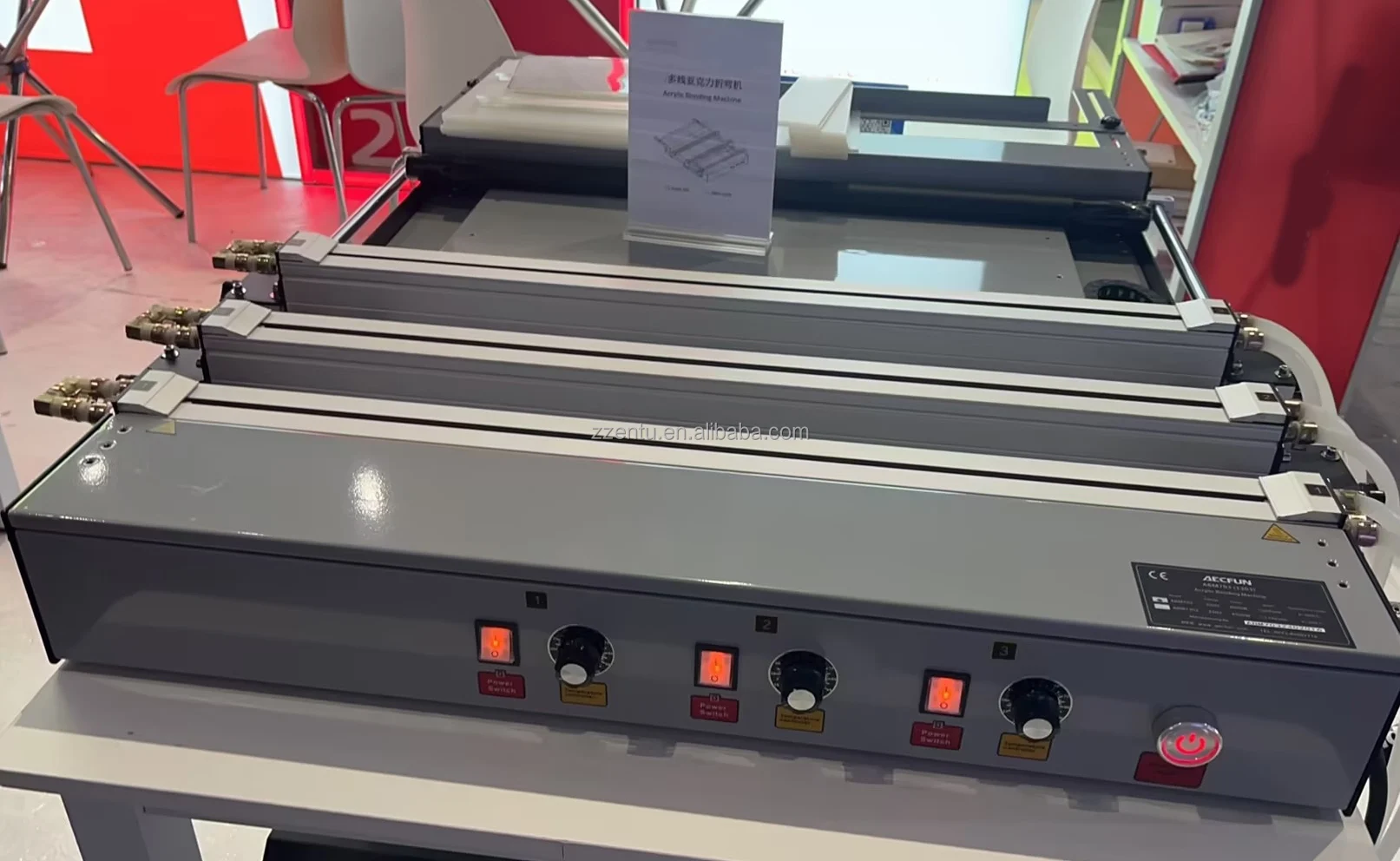

Acrylic bending machine ABM(Three heating module)

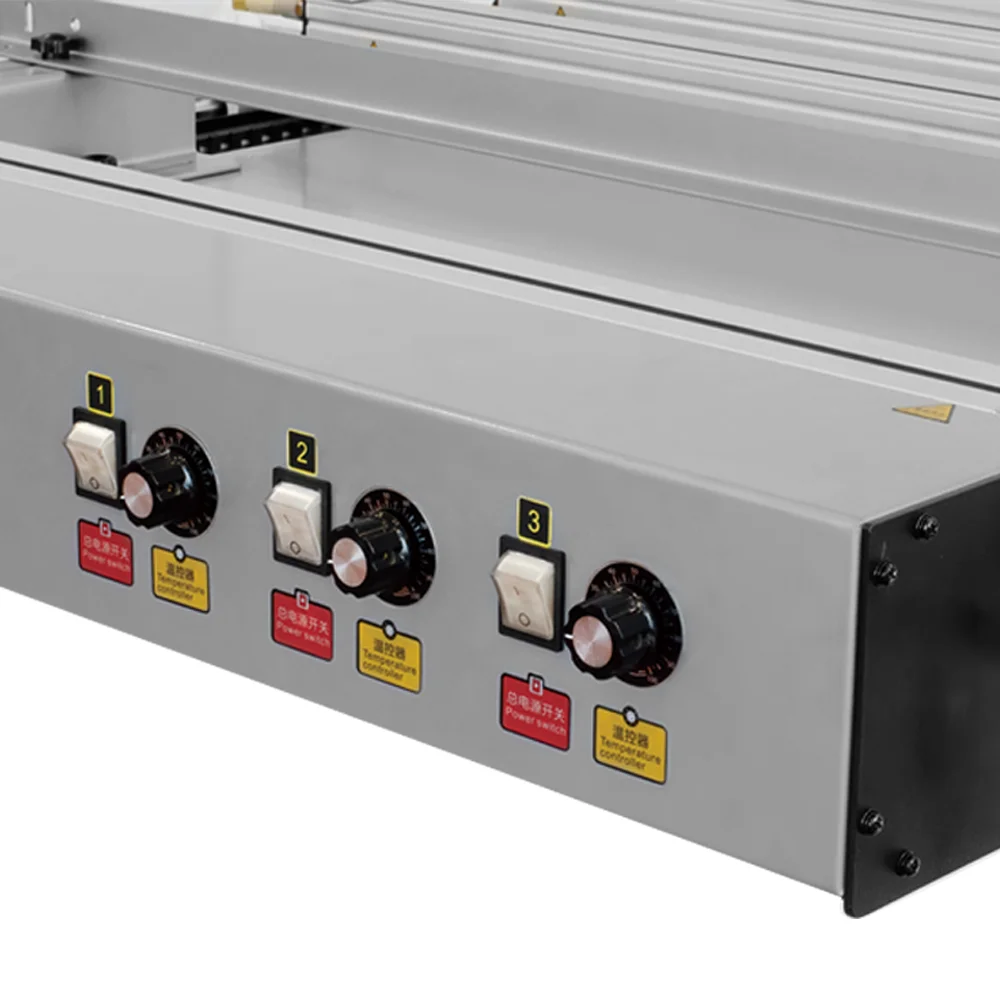

The acrylic bending machine uses module design, with 3 heating module, everyone with independent switch to control.
The three heating modules can be worked together, which accelerate the product processing speed.

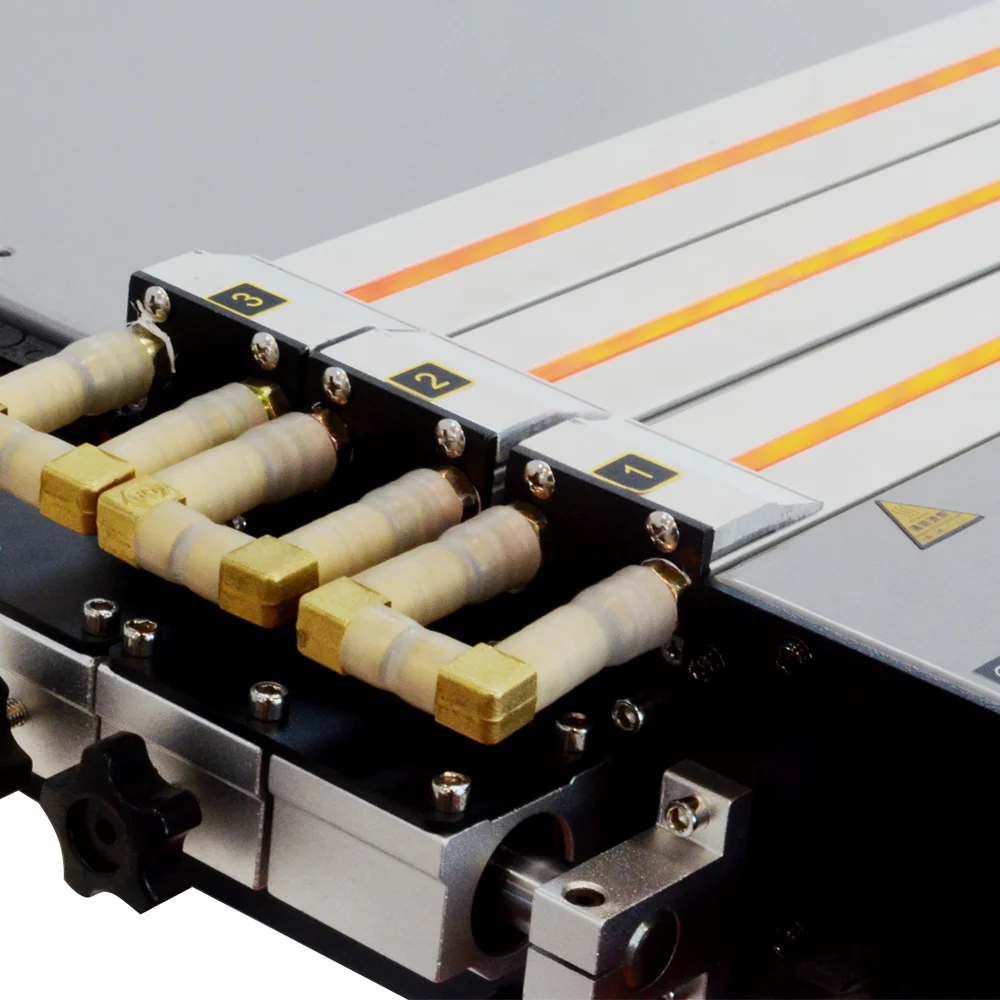

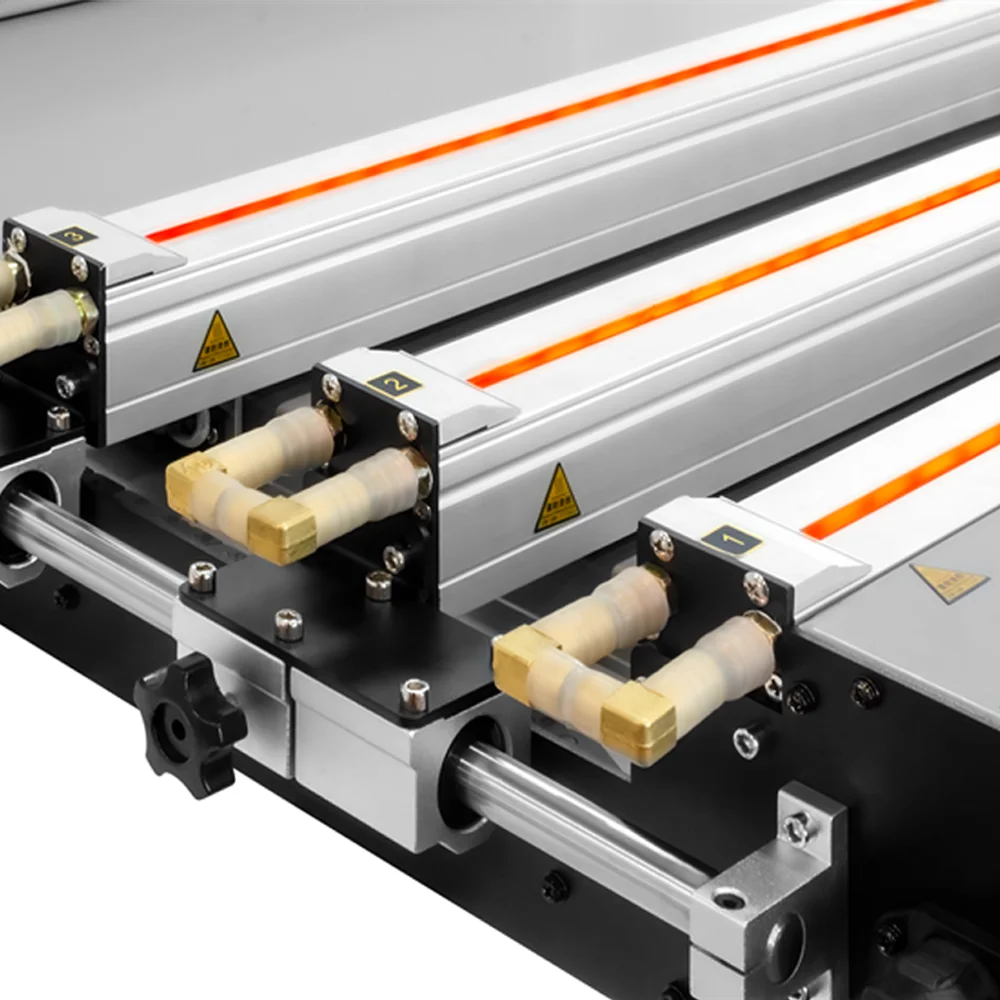

With chain design, the distance between every heating module can be adjusted easily, to satisfy the different requirement of the size, enhance the using experience.
Main Features
1.Adopted far-infrared heating technology, only need one minute to preheat. Sheet thickness is from 1-5mm.
2.Temperature is adjustable from 0-600℃. It only takes 15 seconds to bend a 3mm thickness sheet.
3.Heating gap width is 8mm.
4.The distance between three heating module can be adjusted to satisfy the different requirement of the size.
5.Circulating water cooling system by submerged pump(random color), keep the worktable stay in cool condition to protect hand and machine.
6.With fuse protection, high safety. ABM has passed CE certification.
Specification
| Model | ABM703 | ABM1303 |
| Applicable Length | ≤650mm | ≤1250mm |
| Apllicable Thickness | 1-5mm | 1-5mm |
| Temperature Range | 0-600°c | 0-600°c |
| Voltage | 220V | 220V |
| Working power | 3000W | 4500W |
| Working principe | Thermal Forming | Thermal Forming |
| Carton size | 110*99*22cm | 172*102*31cm |
| Gross weight | 55kg | 100kg |
Detailed Images
Apllication
Packaging & Shipping
