Высококачественная электрическая гибочная машина для листового металла
3 000,00-3 100,00 $
2 мм оцинкованная стальная стойка формовочная машина c балка автоматическая меняющая
- Категории: >>>
- Поставщик: Cangzhou,Zhongheng,Machine,Manufacture,Co.,ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Victory won't come to us unless we go to it. What are you waiting for ?
This automatic CU purlin roll forming machine can produce both C and U shape purlin, C U shape change by computer automatically in1 minute, which highly improve the efficiency and save space&time&cost.
Product Paramenters
1 | Raw Material | Type | GI&PPGI | |
Thickness | 0.3-3mm | |||
Yield Strength | 235Mpa to 350Mpa | |||
2 | Decoiler | Operation | Manual/ Hydraulic for option | |
Weight Capacity | 5Tons | |||
3 | Main Body | Roller Station | 18 rows | |
Diameter of Shaft | 80-100 mm | |||
Material of Rollers | Cr12 | |||
Material of shaft | 45# steel with chrome 0.05mm | |||
Transmission | Gear | |||
4 | Cutter | Operate | Automatic Hydraulic / Electric type | |
Blade material | Cr12MOV | |||
5 | Power | Pump motor for cutter | 7.5KW | |
Main Motor | 11KW | |||
Voltage | 380V 50Hz 3 Phase | |||
6 | Electric Box | PLC control system , Inverter | ||
Language | English / Chinese | |||
7 | Speed | 10-20 M/min | ||

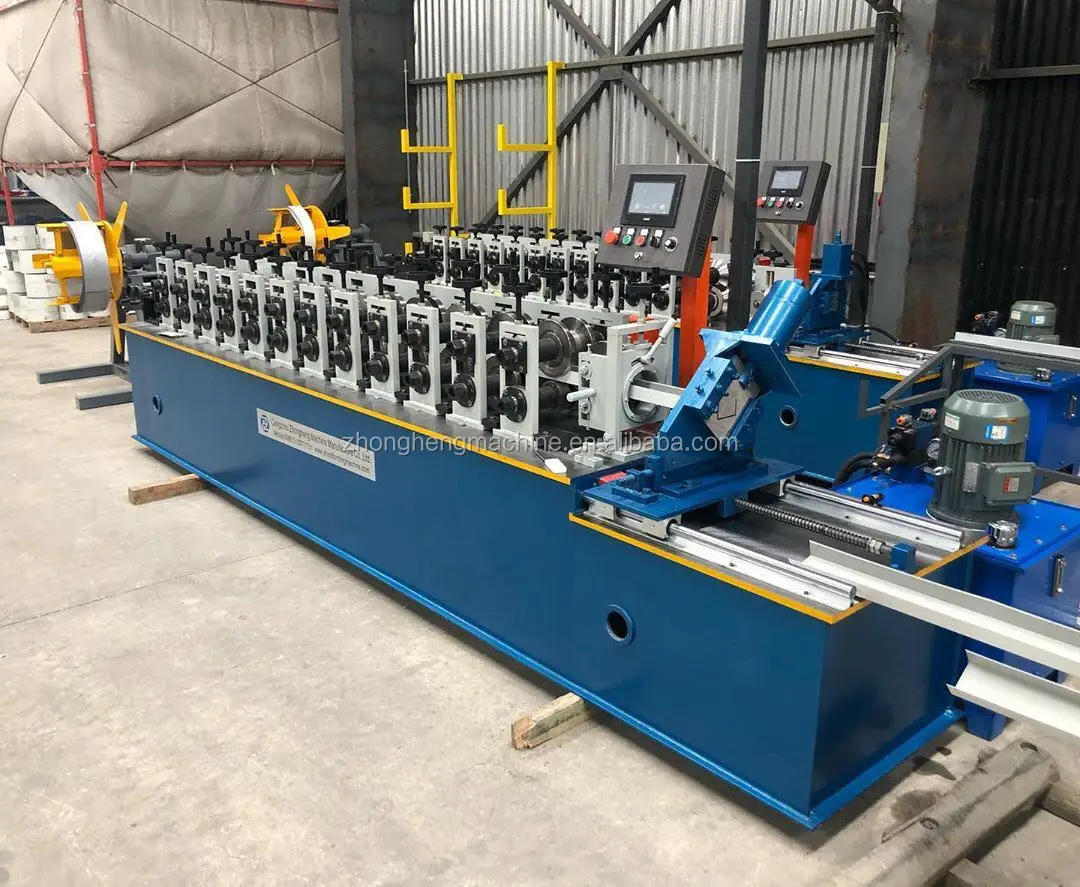

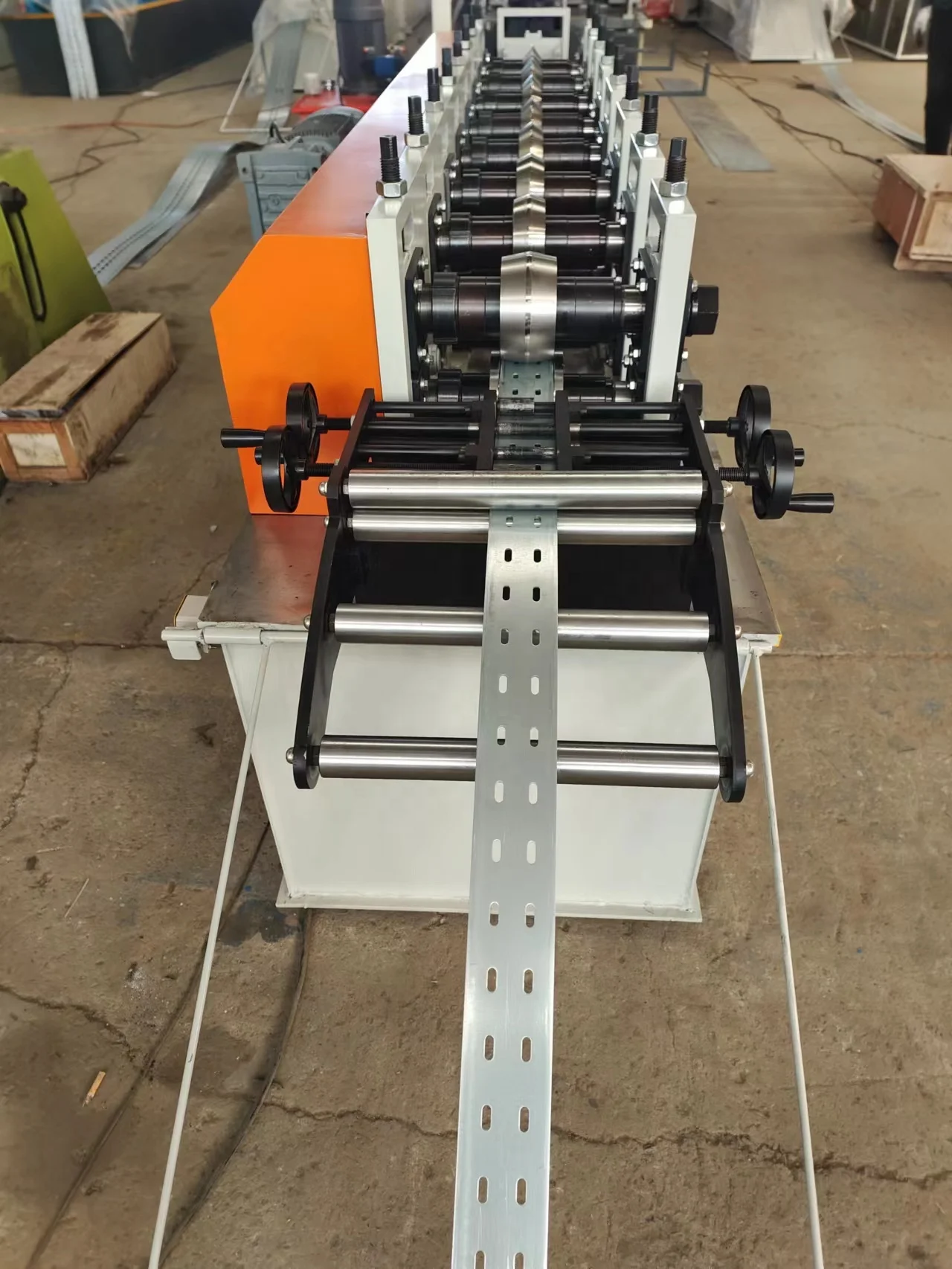

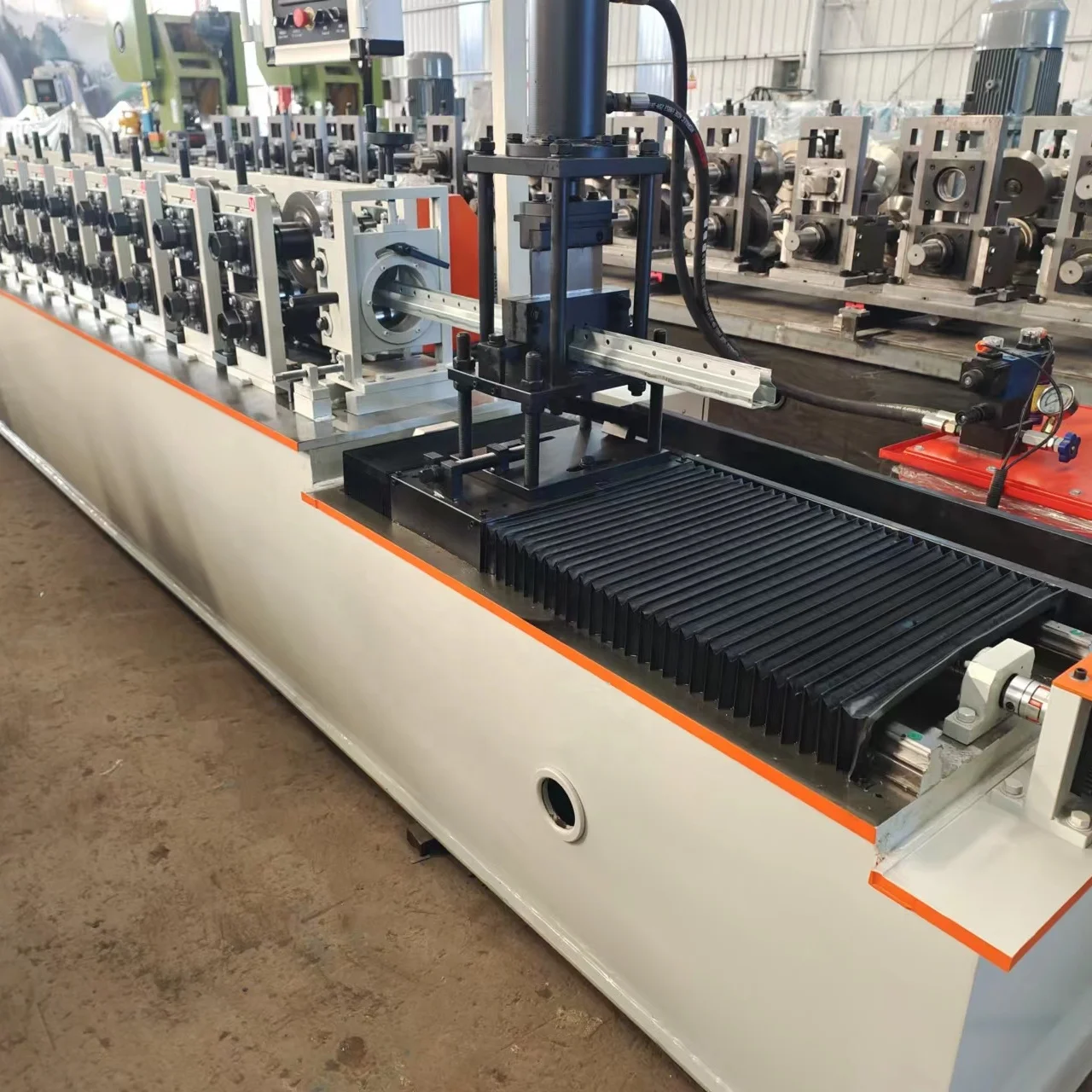

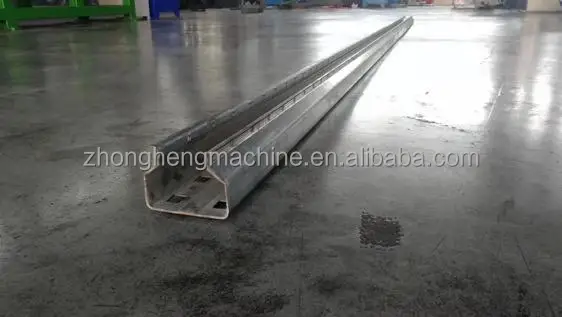

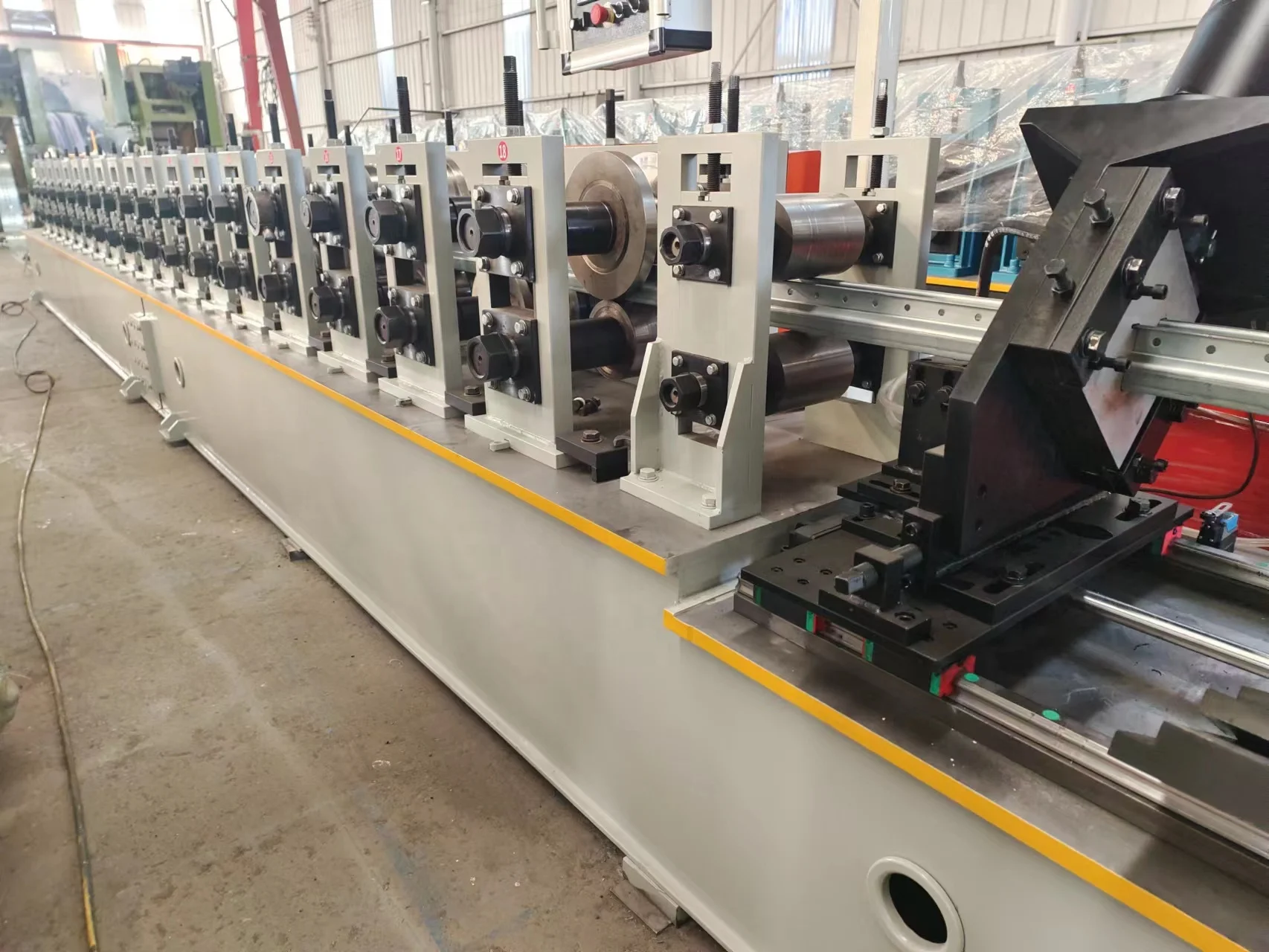

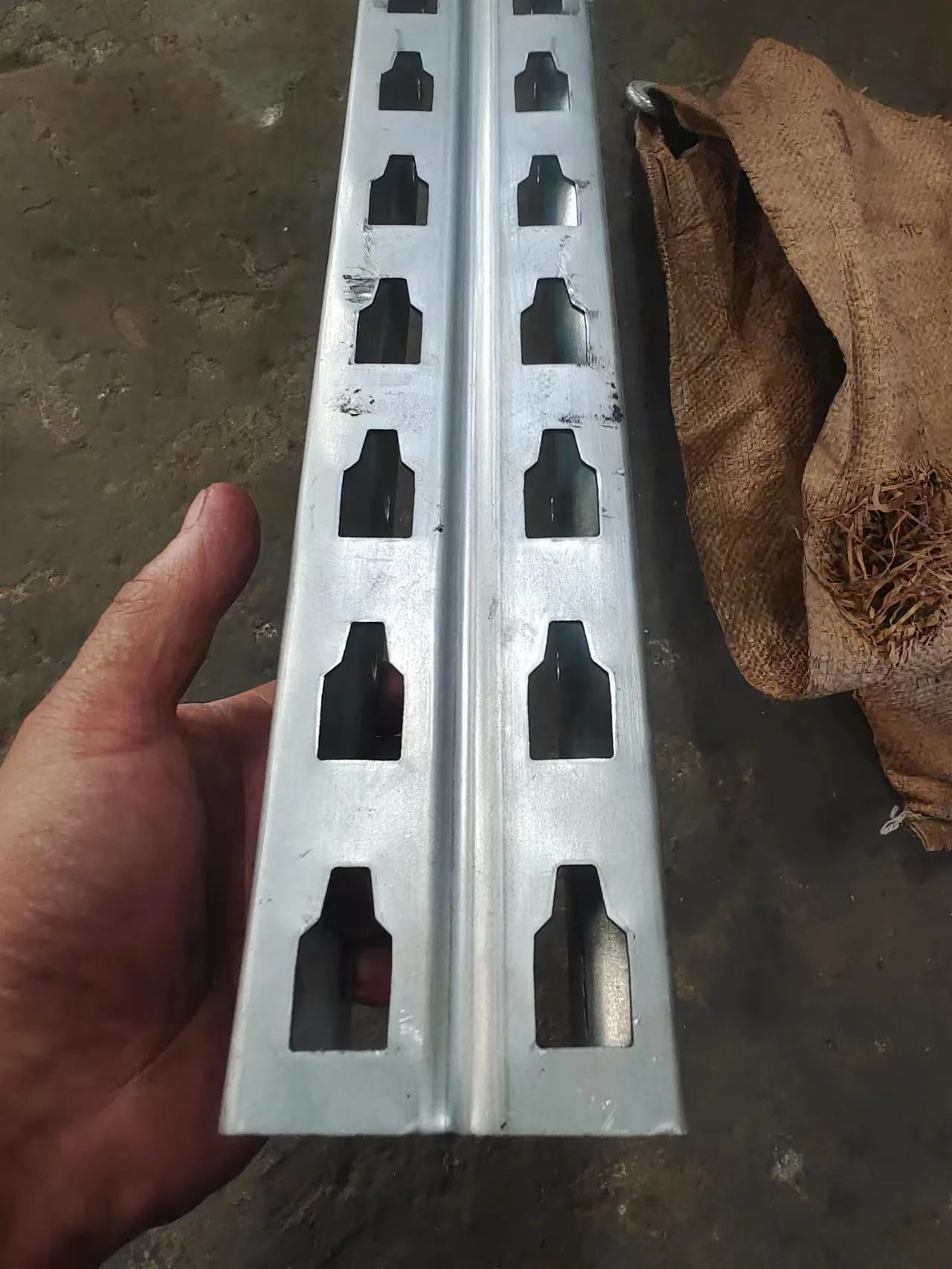

Detailed Images

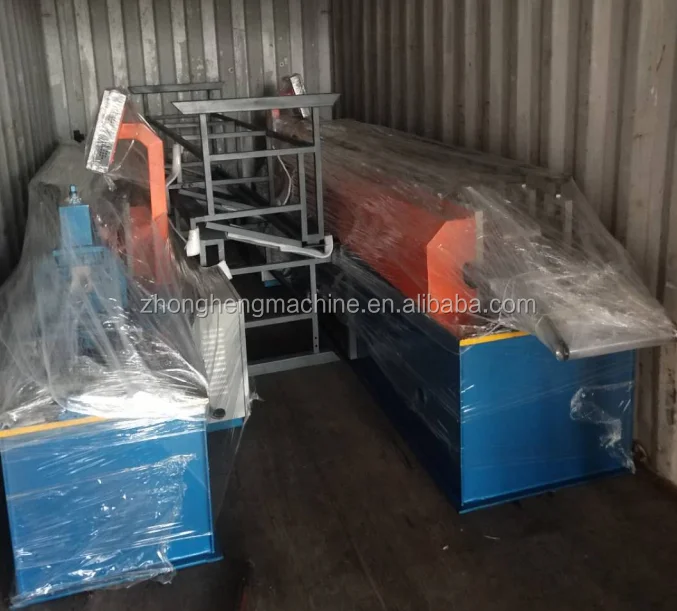

Packing&Shipping
1. Metal roof tile making machine need one 20/40 feet container to load .
2.We have professional technicians for loading to make sure machine has no damage.
3.Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you.
2.We have professional technicians for loading to make sure machine has no damage.
3.Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you.
After Sales Service
Engineer go abroad for testing and trainning
2. 24X7 Online Service
3. Spare Parts available and Free
4. Technolory update notice
5. Technical support for whole life
Company Introduction
FAQ
1. Can you make the machine according to my design or photo type?
A: Yes. We have an experienced engineers to work out the most suitable design and production plan for the machine.
2: How can we be assured that you will deliver us quality machine with spare parts?
A:1. Customers to send the technical people to our factory for checking the quality.
2.We can send the technicians to the buyer`s factory for the installation and trainning .
3.What about your warranty?
A: Within the One-YEARS period, we could supply you the replacement parts for free .
If any damaged parts caused by quality problems after two years,we will also help but customer pay the cost .
A: Yes. We have an experienced engineers to work out the most suitable design and production plan for the machine.
2: How can we be assured that you will deliver us quality machine with spare parts?
A:1. Customers to send the technical people to our factory for checking the quality.
2.We can send the technicians to the buyer`s factory for the installation and trainning .
3.What about your warranty?
A: Within the One-YEARS period, we could supply you the replacement parts for free .
If any damaged parts caused by quality problems after two years,we will also help but customer pay the cost .
