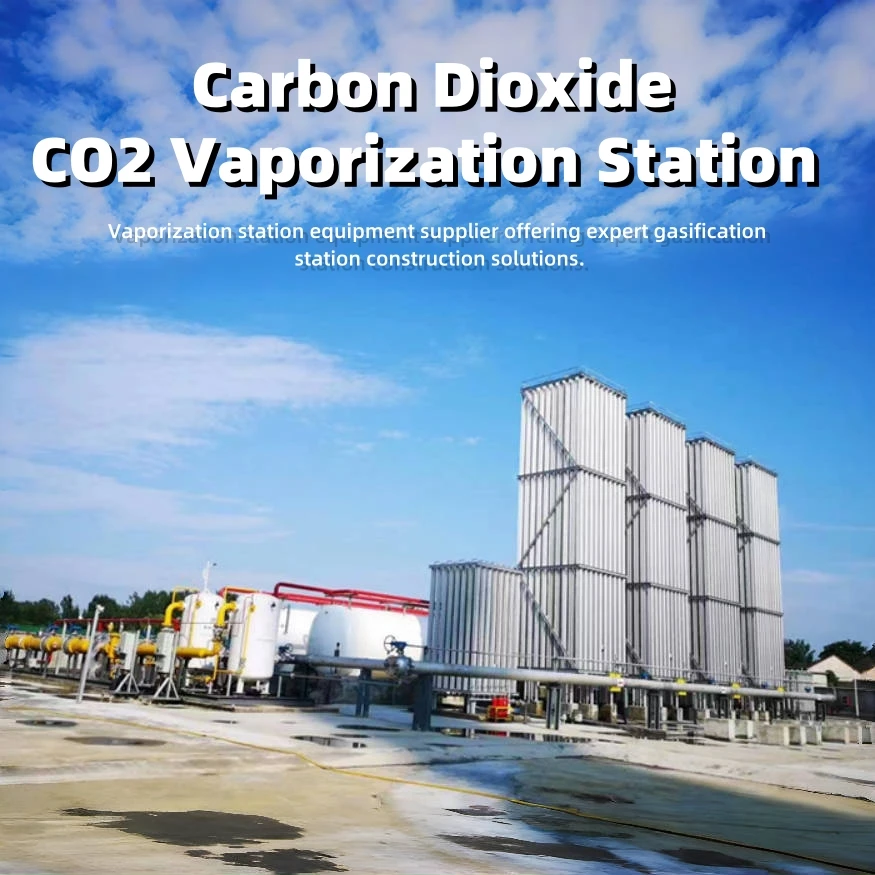

Enviromentally Friendly High Efficient Carbon Dioxide CO2 Vaporization Station
ISO9001 Liquid CO2 Vaporizer 99.99% Carbon Dioxide Vaporization Equipment for Food Industry
The carbon dioxide vaporization plant is a type of equipment used to convert liquid carbon dioxide into gaseous carbon dioxide. It is commonly employed in various industrial applications such as food and beverage processing, chemical production, pharmaceuticals, and more. This equipment efficiently transforms liquid carbon dioxide into high-purity gaseous form to meet the diverse needs of different industries. WOBO specializes in manufacturing efficient conversion equipment and pipeline systems,
offering professional solutions for the construction of gasification stations to meet our clients' requirements.
offering professional solutions for the construction of gasification stations to meet our clients' requirements.
Product Description

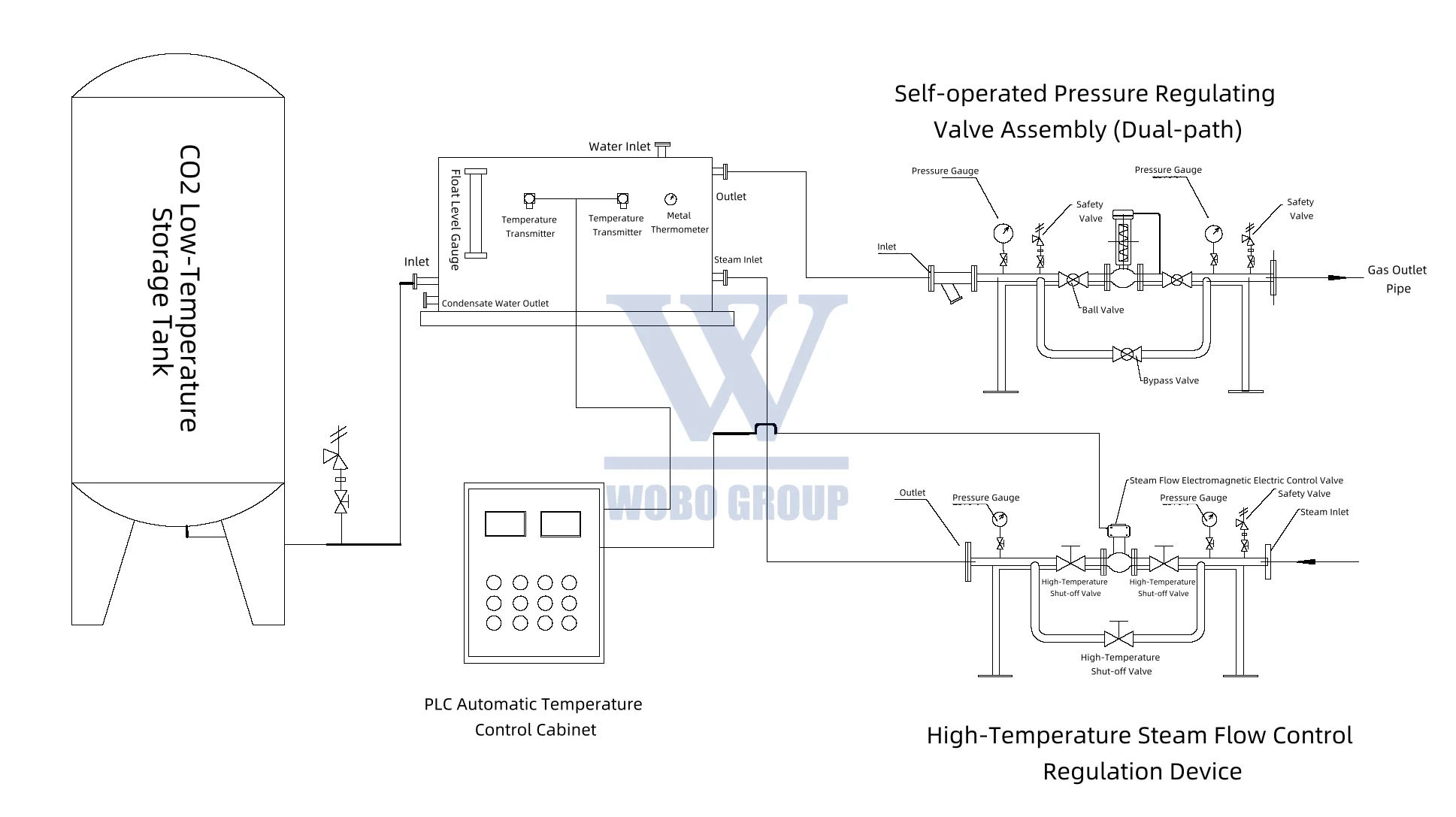

Carbon Dioxide Vaporization and Pressure Regulation Complete Equipment Process Diagram
Parameter | ||
Working Medium | Water | |
Design Pressure | Atmospheric | |
Operating Pressure | Atmospheric | |
Design Temperature | 90℃ | |
Operating Temperature | 60℃ | |
Main Material | Q235 | |
Vaporization Capacity | 2000kg/h | |
Design Pressure | 2.5MPa | |
Inlet Pressure | <2.2MPa | |
Adjustable Outlet Pressure | 0.5-1.0MPa | |
Product Show

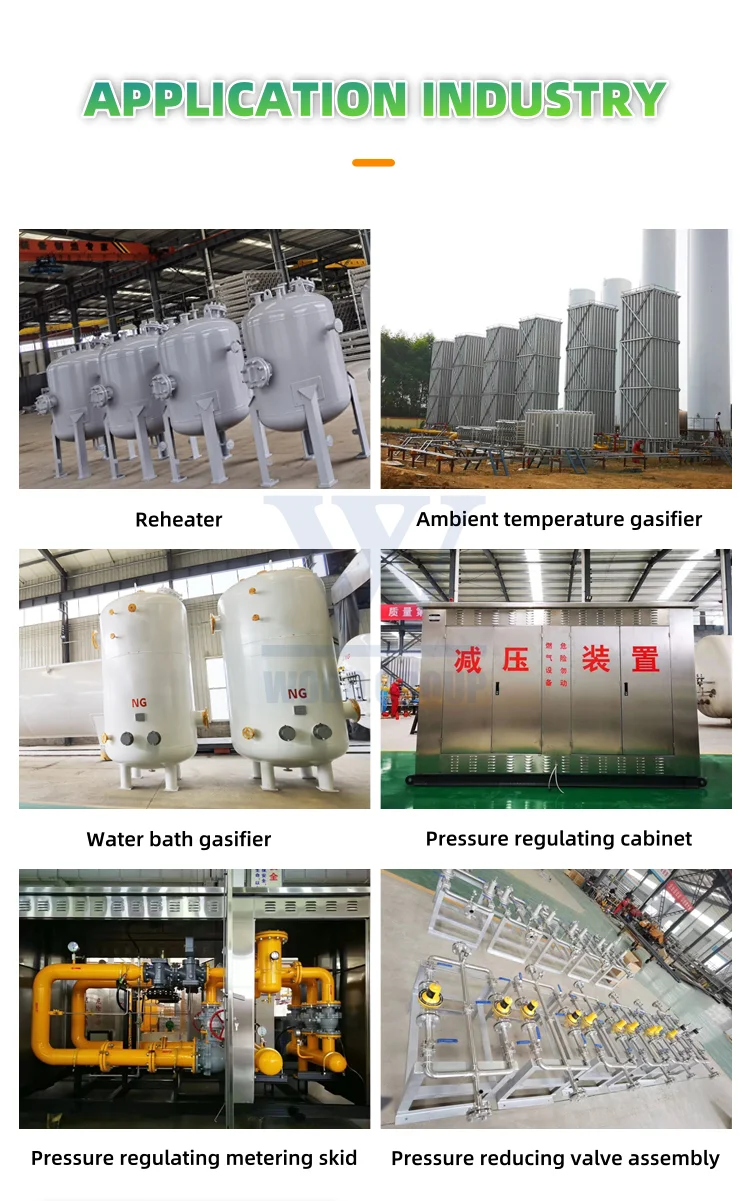

Product Application
Relative Products
Carbon Dioxide Capture and Recovery System :
WOBO is dedicated to the design, manufacturing, and provision of complete systems for Food Grade gases and Industrial Grade gases,liquid carbon dioxide, and solid dry ice. All the essential components of our equipment are sourced from international brands, and the system is made of stainless steel. The recovered CO2 gas meets ISBT standards, as well as GB/T2398-2009 and GB10621-2006 for food additive liquid carbon dioxide.
Our products are exported to various countries and regions, including the United States, Peru, Ukraine, Russia, India, Cameroon, and Algeria. We offer customizable solutions for CO2 recovery systems, ranging from 100,000 Kt/a to 9,000,000 Kt/a. The final CO2 product purity exceeds 99.998%, with oxygen levels below 5ppm.
Our industrial-grade carbon dioxide equipment is primarily used for carbon dioxide capture from various sources, such as lime kiln emissions in metallurgical and cement factories, flue gas emissions from chemical, fertilizer, and power plants, as well as carbon dioxide recovery from fermentation gases like alcohol and xylitol. It is also employed for carbon dioxide recovery in gas fields, among other applications.
CO2 Gas Cylinders
CO2 Cryogenic Insulated Cylinders
CO2 Liquid Storage Tanks
CO2 Liquid Transport Tanks
Anhydrous Ethanol Equipment
Alcohol Equipment
Company Profile
COMPANY PROFILE
The WOBO Group has been involved in the low-temperature air separation industry for several decades. We specialize in manufacturing Low-temperature Application Equipment, Gas Separation Equipment, Green New Energy Equipment. Our primary goal has always been to provide our customers with the best products and solutions.
Our products have obtained certifications such as CE, ASME, and ISO, and they are widely exported to more than 30 countries and regions, including the United Kingdom, Germany, the United States, Australia, and Japan, where they have received positive feedback.
To fully meet our customers' needs, we offer OEM/ODM services for all our products. Additionally, we have our own brand called Cryo Chains. We look forward to the opportunity to collaborate with your esteemed company.
Our products have obtained certifications such as CE, ASME, and ISO, and they are widely exported to more than 30 countries and regions, including the United Kingdom, Germany, the United States, Australia, and Japan, where they have received positive feedback.
To fully meet our customers' needs, we offer OEM/ODM services for all our products. Additionally, we have our own brand called Cryo Chains. We look forward to the opportunity to collaborate with your esteemed company.
