Высокопрочная полиэфирная базальтовая трехосная Двухосная волоконная
- Категории: >>>
- Поставщик: Taian,Lin,Yuan,Engineering,Materials,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

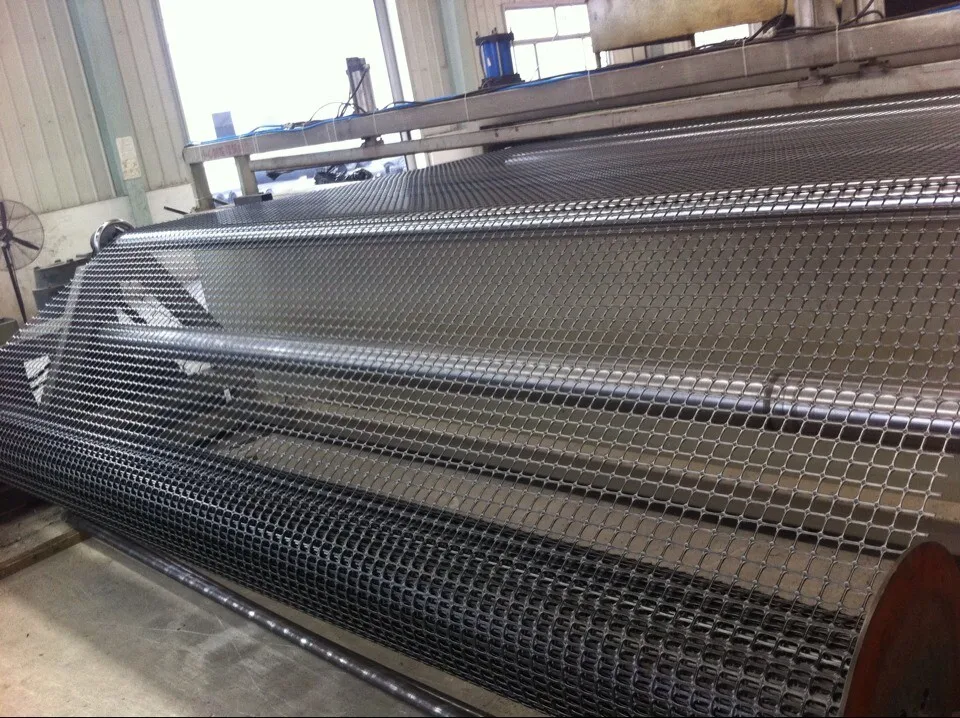

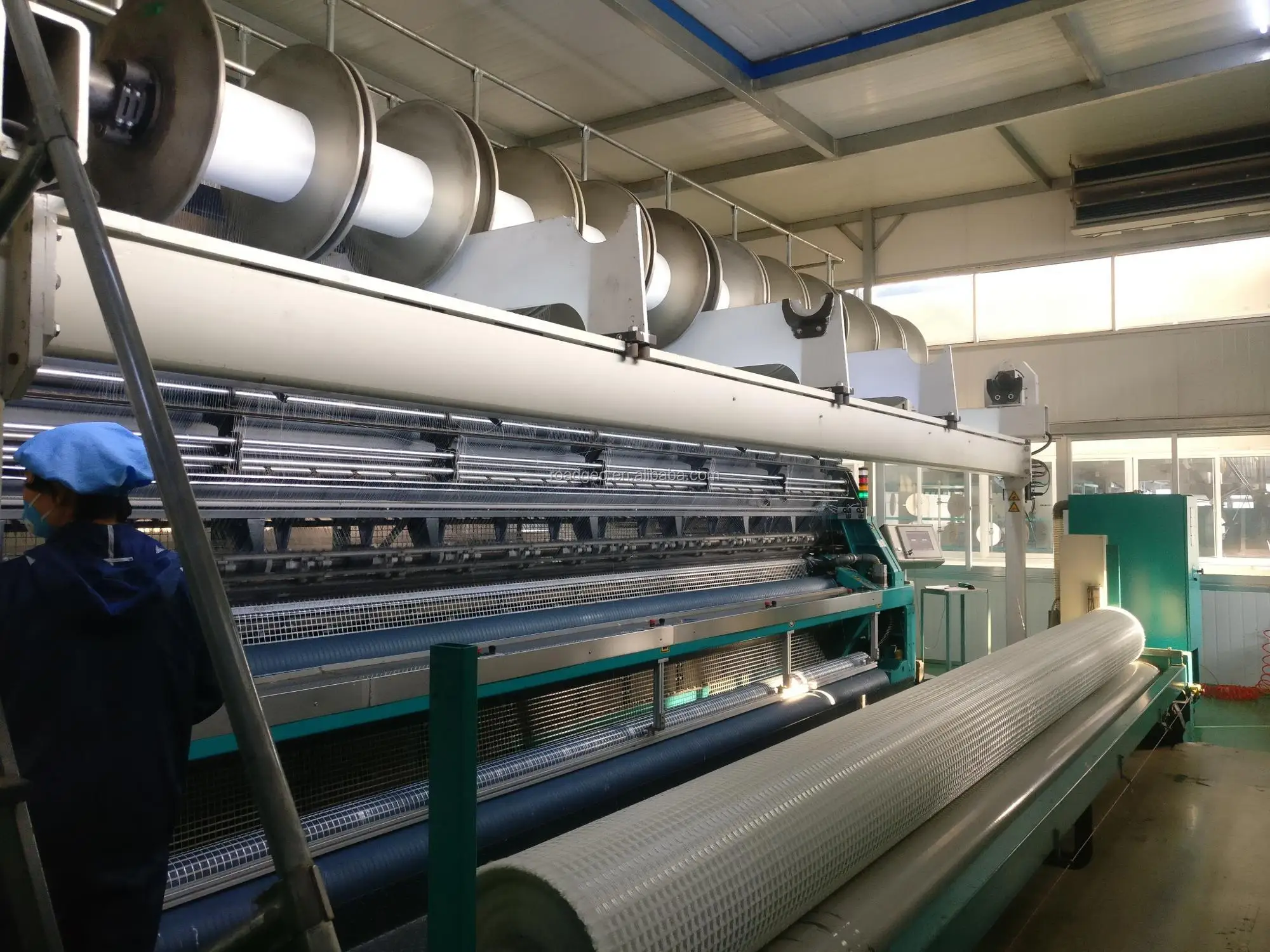

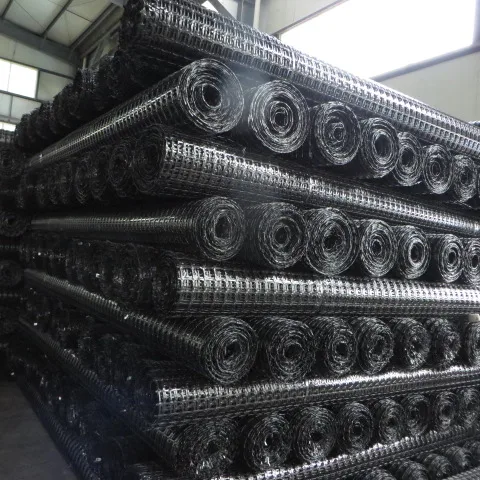

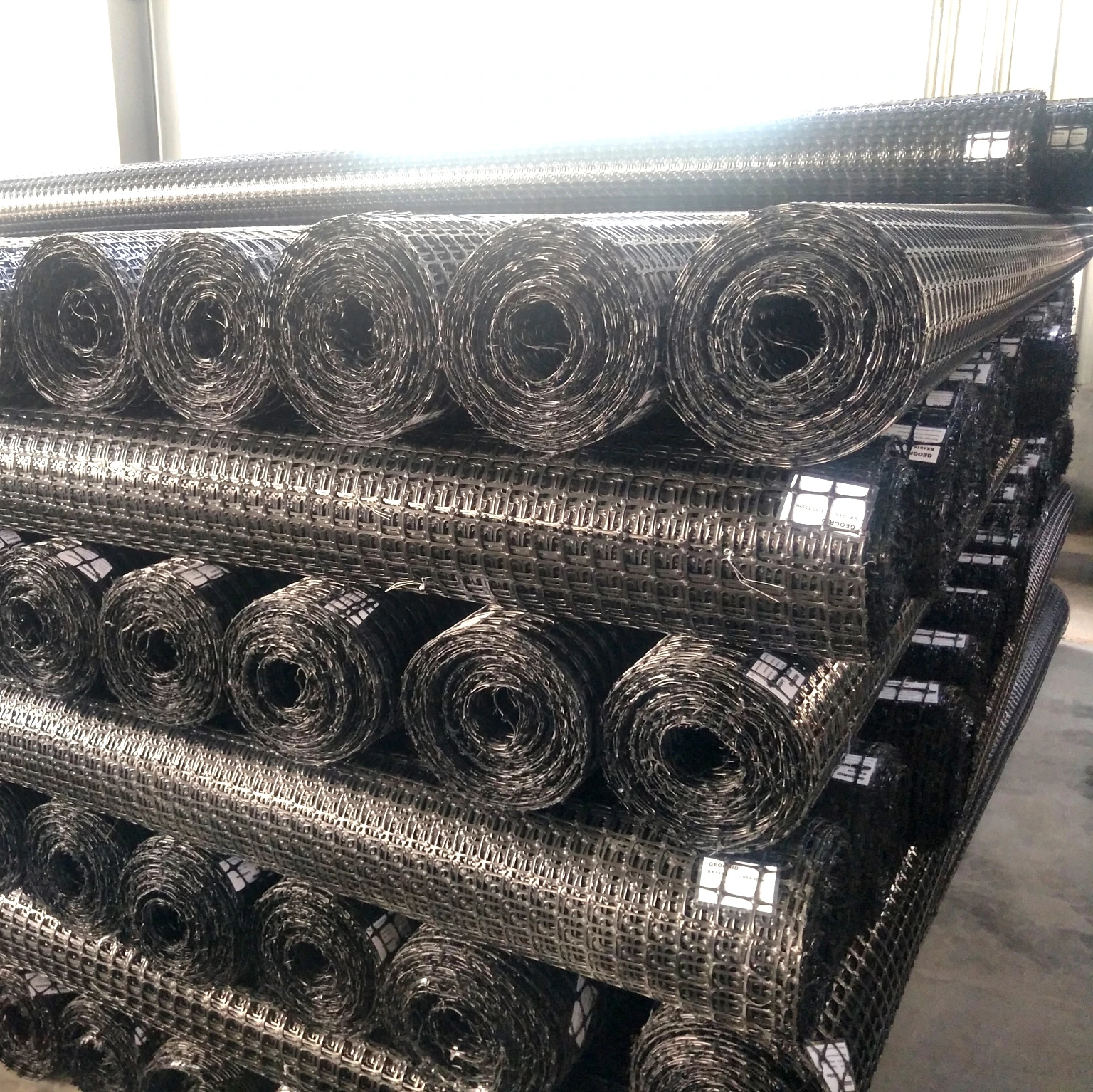

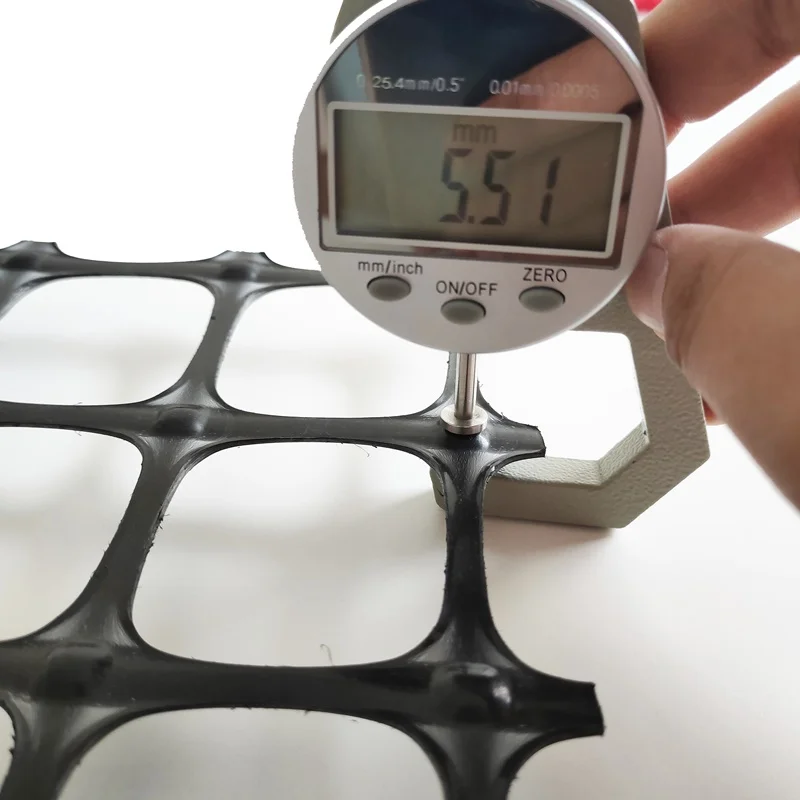

Production Display
PP biaxial geogrid 15-15kN/m
PP biaxial geogrid 20-20kN/m
PP biaxial geogrid 30-30kN/m
PP biaxial geogrid 40-40kN/m
Products Description
Introduction
PP biaxial geogrid is manufactured from Polypropylene, it is produced through the process of extruding, punching, heating,
longitudinal and transverse stretching.
longitudinal and transverse stretching.
Product Name | PP Biaxial Extruded Geogrid |
Tensile Strength | 15/15 16/16 20/20 25/25 30/30 40/40 50/50 kN/m |
Mesh Size | 38x38, 50X50mm |
Roll Width | 3.95 Or 5.95 m |
Roll Length | 50 Or 75 m |
Standard | CE, ASTM, ISO |
Spec | TGSG 15-15 | TGSG 20-20 | TGSG 25-25 | TGSG 30-30 | TGSG 35-35 | TGSG 40-40 | TGSG 45-45 | TGSG 50-50 | |||||||||
Longitudinal Tensile strength≥(kN/m) | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | |||||||||
Transverse Tensile strength≥(kN/m) | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | |||||||||
Longitudinal Elongation≤(%) | 15 | ||||||||||||||||
Transverse Elongation≤(%) | 13 | ||||||||||||||||
Longitudinal Tensile strength at 2% strain≥(kN/m) | 5 | 7 | 9 | 10.5 | 12 | 14 | 16 | 17.5 | |||||||||
Transverse Tensile strength at 2% strain≥(kN/m) | 5 | 7 | 9 | 10.5 | 12 | 14 | 16 | 17.5 | |||||||||
Longitudinal Tensile strength at 5% strain≥(kN/m) | 7 | 14 | 17 | 21 | 24 | 28 | 32 | 35 | |||||||||
Transverse Tensile strength at 5% strain≥(kN/m) | 7 | 14 | 17 | 21 | 24 | 28 | 32 | 35 | |||||||||
Width≤(m) | 6 | ||||||||||||||||
Application
PP Biaxial Geogrid is mainly applied in strengthening soft ground of railway, highway, slope protecting projects, airfields, and foundation reinforcement of large area permanent bearing engineering fields, It can increase stability and loading capacity of fundus, prolong the project life.

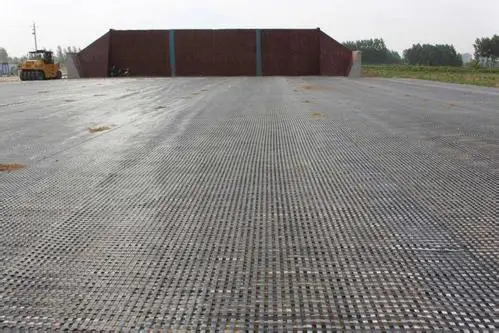

Airport Reinforcement

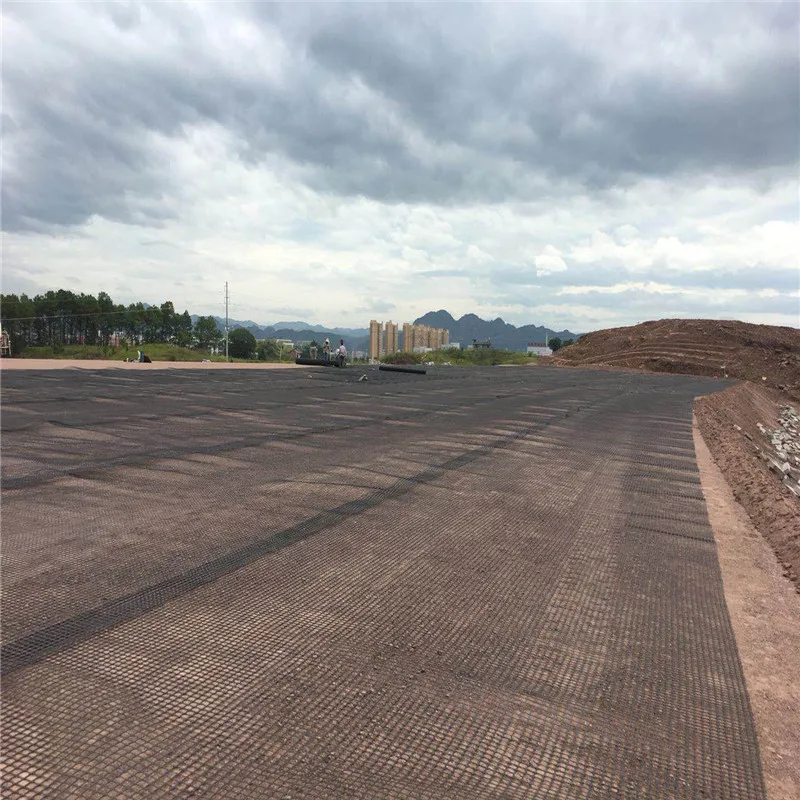

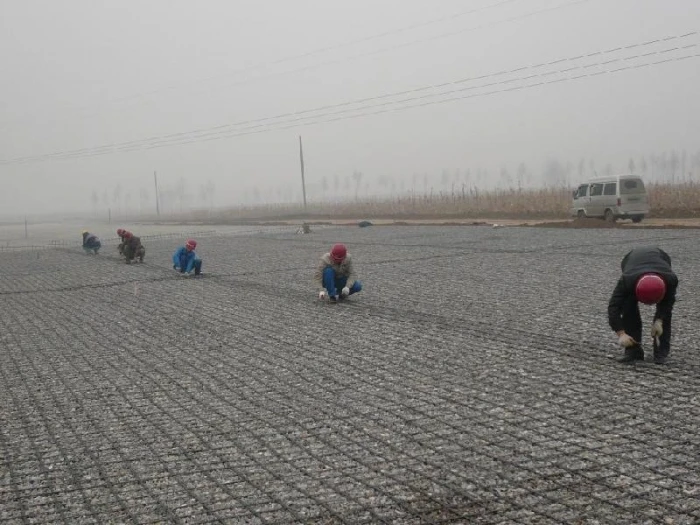

Road Reinforcement

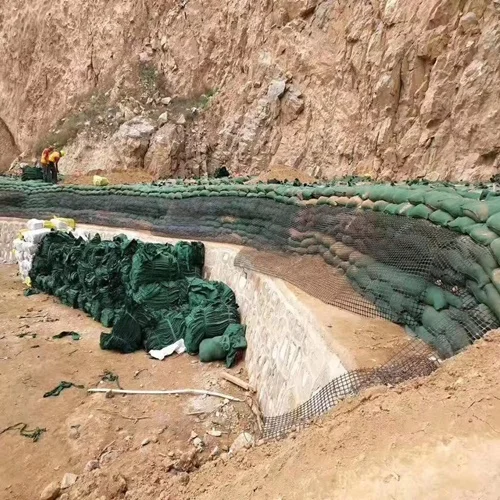

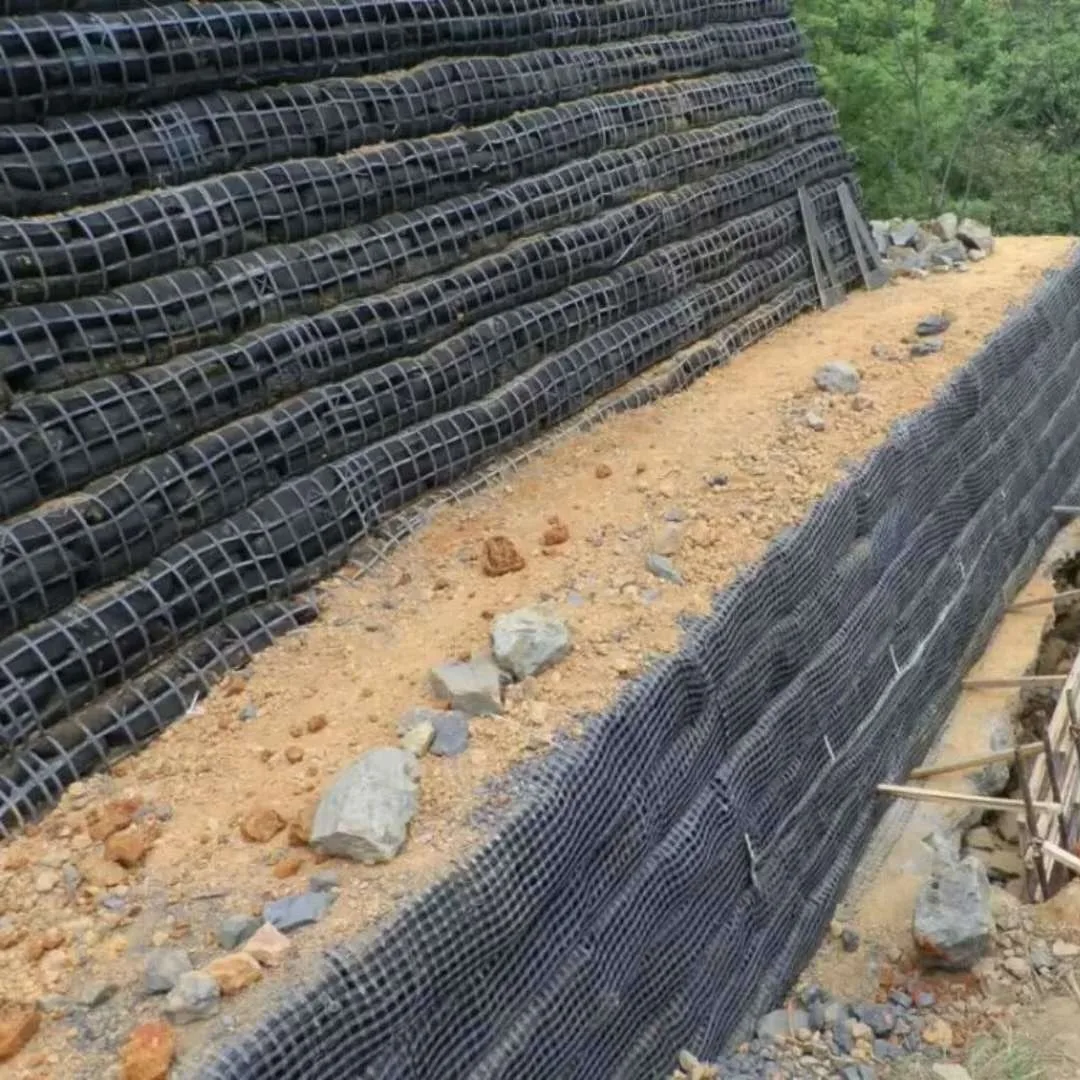

Slope Protection

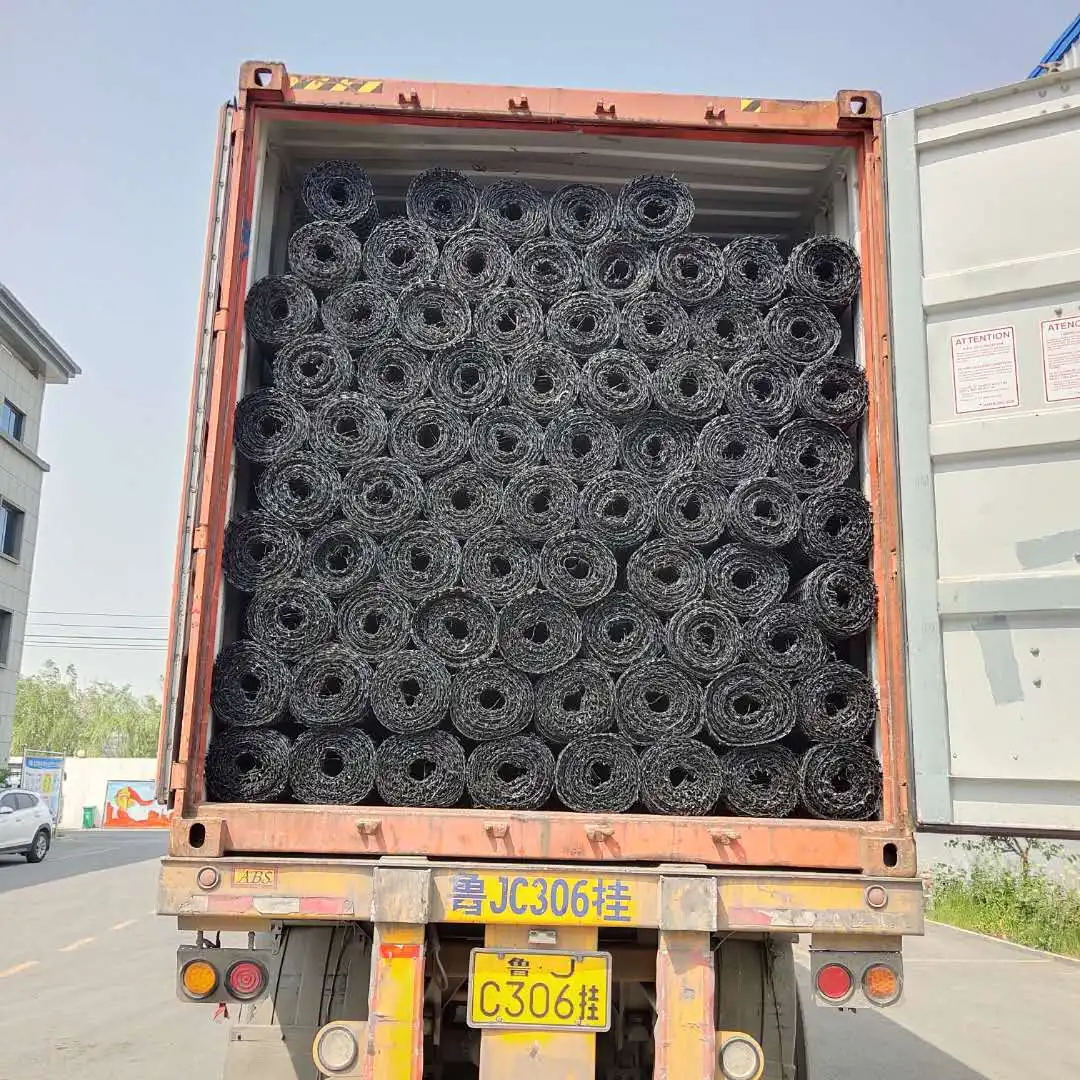

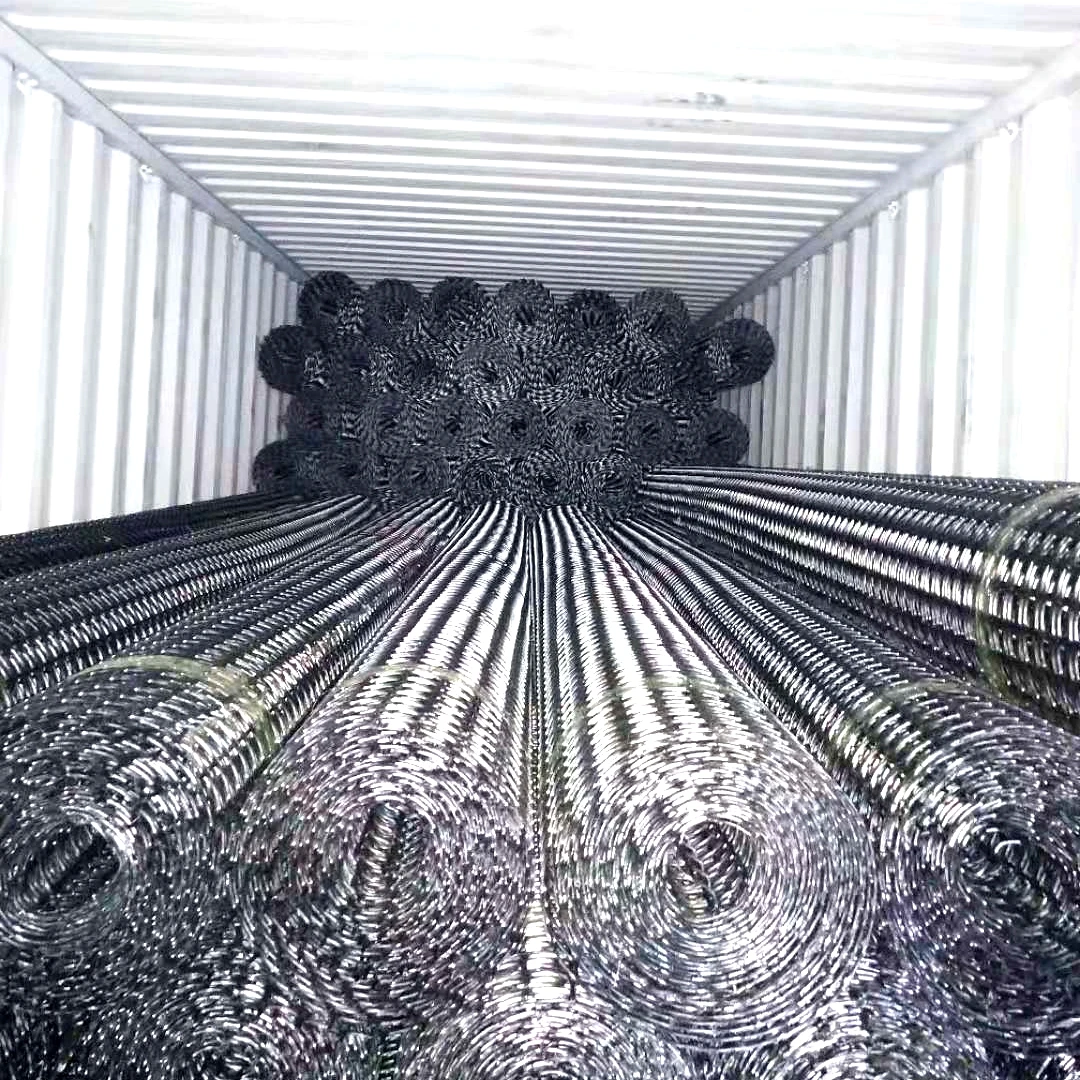

Packaging &Shipping
Packaging: Strips packaging or Pallet Packaging
Lead time: Winthin 10-15 days after receiving the deposit payment
Producing capacity: Two 40FCL per week
Lead time: Winthin 10-15 days after receiving the deposit payment
Producing capacity: Two 40FCL per week
Company Introduction
Company Introduction
Engineering materials products are mainly used in highway, railway, water conservancy, electric power, water and soil conservation and environmental greening and other infrastructure areas, has been widely applied to tongsan expressway, shanghai-hangzhou inter-city railway, basis of high-speed railways, the qinghai-tibet railway, beijing-shanghai expressway, the beijing-shanghai high-speed railway, mansion deep railway, Shi Wuke designed, shanghai-nanjing intercity railway and hangzhou customer designed, an hundreds of national key projects such as railway; The company has successively won the bidding of various national key projects; Our products are well known by the engineering experts and the majority of users; We are using complete and scientific quality management system. Please trust us!
FAQ
Q: What product can I buy from you
A: Geocell, Geotextile, Geomembrane, Geocomposite, Geonet 3D Geomat etc.
Q: Can I have a sample?
A: Yes. And sample for free.
Q: What's the payment terms?
A: T/T or L/C. Others could be negotiated.
Q: What's the delivery time?
A: 3-20 days after confirming order, detail delivery date should be decided according to production season and order quantity.
A: Geocell, Geotextile, Geomembrane, Geocomposite, Geonet 3D Geomat etc.
Q: Can I have a sample?
A: Yes. And sample for free.
Q: What's the payment terms?
A: T/T or L/C. Others could be negotiated.
Q: What's the delivery time?
A: 3-20 days after confirming order, detail delivery date should be decided according to production season and order quantity.
