Product Description
An ozone leakage alarm is a critical safety device designed to detect and alert individuals to the presence of ozone gas leaks in an environment. Ozone, a highly reactive and potentially harmful gas, is commonly used in various industrial processes such as water treatment, disinfection, and air purification. However, exposure to elevated levels of ozone can pose serious health risks, including respiratory irritation and damage to lung tissue. The ozone leakage alarm operates by continuously monitoring the surrounding air for ozone concentrations using specialized sensors or detectors. These sensors are sensitive to even small traces of ozone, enabling the alarm system to promptly detect leaks or spills before they reach hazardous levels. Upon detecting elevated ozone levels, the alarm triggers audible and visual alerts, such as sirens, flashing lights, or digital displays, to notify personnel of the potential danger. Ozone leakage alarms are crucial safety devices deployed in facilities where ozone is used or generated, including laboratories, water treatment plants, and industrial manufacturing sites. By providing early warning of ozone leaks, these alarms help prevent accidents, minimize exposure risks, and protect the health and safety of workers and occupants within the premises. Additionally, they facilitate prompt intervention and mitigation measures to contain and address ozone leaks effectively, ensuring a safe working environment.
Specification
Tar Target Gas | O3 | ||||
Principle of Detection | Electrochemistry | ||||
Installation | Hang on wall, in pipeline, or circulating (depending on target environment) | ||||
Resolution | 0.001ppm、0.01ppm、0.1ppm、1ppm (optional) | ||||
Precision | 3%FS | ||||
Signal output | 4-20MA、0-5V、RS485，RS232，relay，wireless digital (optional) | ||||
Time of Response | ≤10S | Time of Recovery | ≤10S | ||
Repeatability | ≤±1% | Linear Error | ≤±1% | ||
Zero Drift | ≤±1%（F.S/Year） | Display Technology | High brightness digital tube display | ||
Connection Mode | G1/2 Relief-thread explosion-proof hose | Dimension of Thread | M45*2mm | ||
Working Temperature | -40℃~70℃ | Working Humidity | 0-95%RH | ||
Explosion-proof Grade | Ex dⅡCT6 | Protection Grade | IP65 | ||
Power | 12-36VDC | Time of Operation | 24h | ||

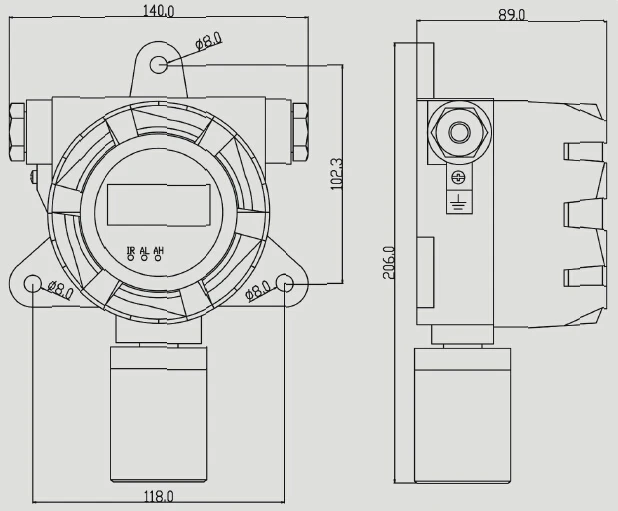

Dimensions | 180×150×90mm | Weight | 1.2kg | ||
Characteristics of the Device
1. The adoption of world cutting-edge sensor and micro-control integration technology,
rapid response, precise in measurement.
2. 4-20mA analog signal output, double relay signals, RS485 signal, wireless digital (optional )
3. Unique function of infrared remote control enables setting of parameters and maintenance
of the device without opening the cap.
4. Compatible with various control alarms, control systems such as PLC, DCS, which realizes
remote monitoring.
5. Explosion-proof design, rapid, precise and stable; Explosion-proof Grade: Ex dⅡCT6
1. The adoption of world cutting-edge sensor and micro-control integration technology,
rapid response, precise in measurement.
2. 4-20mA analog signal output, double relay signals, RS485 signal, wireless digital (optional )
3. Unique function of infrared remote control enables setting of parameters and maintenance
of the device without opening the cap.
4. Compatible with various control alarms, control systems such as PLC, DCS, which realizes
remote monitoring.
5. Explosion-proof design, rapid, precise and stable; Explosion-proof Grade: Ex dⅡCT6
Functions
1.Be able to monitor gas concentration in the environment or in the pipeline for 24h continuously.
2.Software controlled self-calibration and zero calibration functions make the measurement more precise.
3.With temperature compensation, be able to realize gas concentration compensation under conditions of different temperatures.
4.Infrared remote control enables alarm point settings, zero point calibration and address modification etc. without opening the cap.
5.Be able to output one or two switching value signal(s), be able to drive external devices such as the ventilator or solenoid valve.
6.Working Voltage: 12-36V DC power supply
7.Housing Material: Die-casting aluminum
1.Be able to monitor gas concentration in the environment or in the pipeline for 24h continuously.
2.Software controlled self-calibration and zero calibration functions make the measurement more precise.
3.With temperature compensation, be able to realize gas concentration compensation under conditions of different temperatures.
4.Infrared remote control enables alarm point settings, zero point calibration and address modification etc. without opening the cap.
5.Be able to output one or two switching value signal(s), be able to drive external devices such as the ventilator or solenoid valve.
6.Working Voltage: 12-36V DC power supply
7.Housing Material: Die-casting aluminum

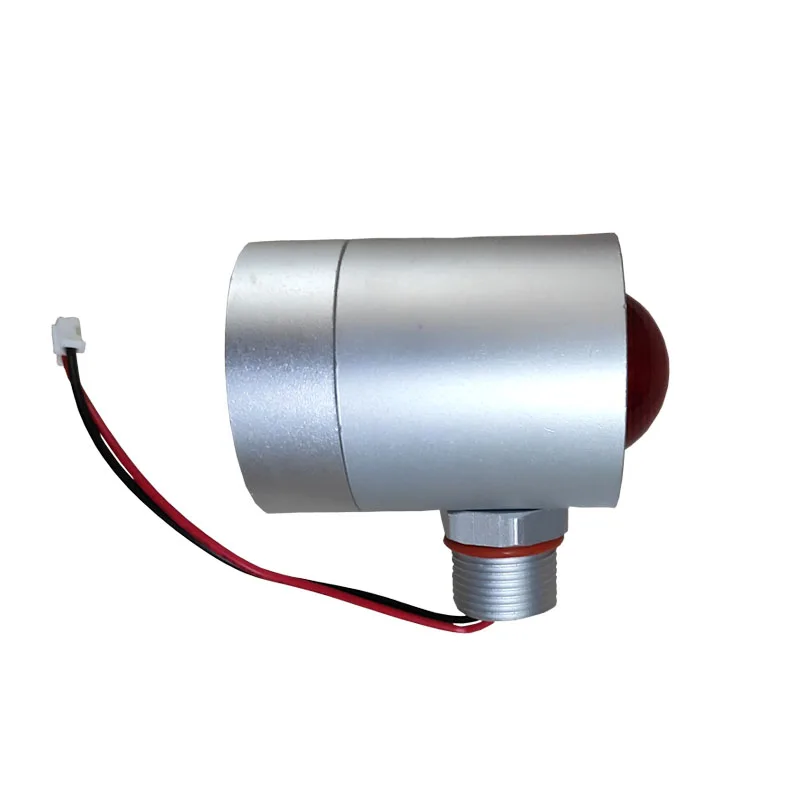

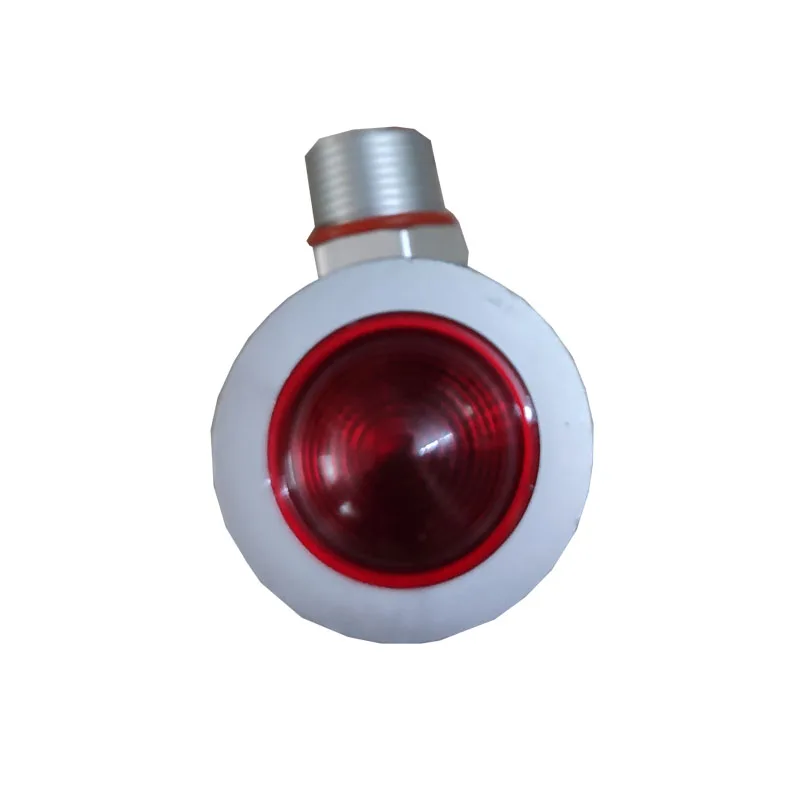

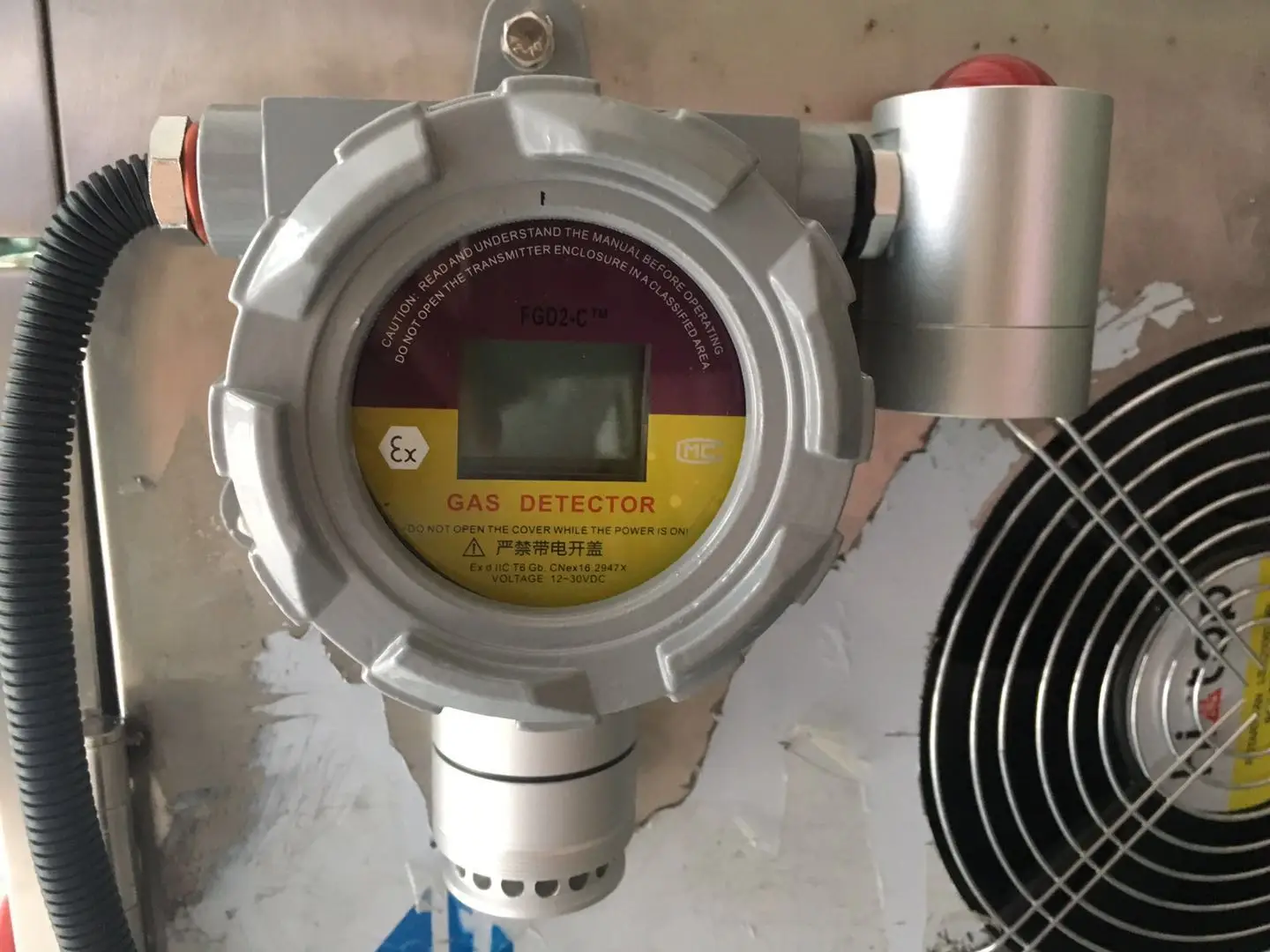

Details Images
Installation Instruction
1. Location Selection
The location selection of the gas detection transmitter is essential to achieve the best detection results. In the selection of
location, we need to consider the following factors: the density of gas in a leaking point, proportion of target gas, the impact of surrounding buildings, condition of production equipment, wind direction and annual meteorological conditions and even the location of windows and doors in an indoor environment.
We provide the following suggestions for your reference:
1. Maintain a proper distance between the detector and the possible gas leaking point. It would react too fast or too frequent if the distance is not enough, which may paralyze people’s mind.
2. The detector must be located in the downwind of the possible leaking point.
3. If installed indoor, but the source of the leak is outdoor, the detector must be installed at the air inlet.
4. Determine the height according to proportion of target gas in air.
5. Determine the quantity of detectors according to the condition of possible leaking point, frequency of staff attendance and time of stay as well as the economic effect.
6. Consider to increase quantity of inspection point if the equipment is old.
7.Protect the detector from radiation of high temperature heart source. Environments of both very high temperature and very low temperature will affect the result and lifespan of the detector.
1. Location Selection
The location selection of the gas detection transmitter is essential to achieve the best detection results. In the selection of
location, we need to consider the following factors: the density of gas in a leaking point, proportion of target gas, the impact of surrounding buildings, condition of production equipment, wind direction and annual meteorological conditions and even the location of windows and doors in an indoor environment.
We provide the following suggestions for your reference:
1. Maintain a proper distance between the detector and the possible gas leaking point. It would react too fast or too frequent if the distance is not enough, which may paralyze people’s mind.
2. The detector must be located in the downwind of the possible leaking point.
3. If installed indoor, but the source of the leak is outdoor, the detector must be installed at the air inlet.
4. Determine the height according to proportion of target gas in air.
5. Determine the quantity of detectors according to the condition of possible leaking point, frequency of staff attendance and time of stay as well as the economic effect.
6. Consider to increase quantity of inspection point if the equipment is old.
7.Protect the detector from radiation of high temperature heart source. Environments of both very high temperature and very low temperature will affect the result and lifespan of the detector.
2. Steps of Installation
Connect wire to correspondent terminals. Don’t do hot-line work. The arrangement of terminals differs according to the type of
transmitter. The definition of different wires:
Red: positive-input of power (12 to 24V)
Black: ground wire of power
Yellow: 4~20mA output.
Orange: RS485A
Blue: RS485B
Brown: spare
Connect wire to correspondent terminal. Don’t do hot-line work. The connection modes differ according to the type of transmitters.
Fix the detector on the wall with expansion bolt, make sure the transmitter is downward, or the detector cannot work properly.
Users can also separate the bracket and transmitter according to the condition on spot, fix the bracket before connection.
For the sake of safety and interference reduction, please connect the housing with reliable ground wire. For the wire between the
transmitter and the main engine, the shorter, the better. And protect the wire with iron pipe as far as possible.
Connect wire to correspondent terminals. Don’t do hot-line work. The arrangement of terminals differs according to the type of
transmitter. The definition of different wires:
Red: positive-input of power (12 to 24V)
Black: ground wire of power
Yellow: 4~20mA output.
Orange: RS485A
Blue: RS485B
Brown: spare
Connect wire to correspondent terminal. Don’t do hot-line work. The connection modes differ according to the type of transmitters.
Fix the detector on the wall with expansion bolt, make sure the transmitter is downward, or the detector cannot work properly.
Users can also separate the bracket and transmitter according to the condition on spot, fix the bracket before connection.
For the sake of safety and interference reduction, please connect the housing with reliable ground wire. For the wire between the
transmitter and the main engine, the shorter, the better. And protect the wire with iron pipe as far as possible.
Application
