CQB-F PTFE накладка магнитный приводной насос Коррозионностойкий магнитная муфта относительно отсутствие утечки для


Поделиться:

Цена:164 090,10 ₽ - 218 786,80 ₽*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики



Product Description



CQB-F fluorine lining magnetic pump,made of Fluorinated Ethylene Propylene,is our new product which developed on base of introducing advanced foreign technolog7.The material is the world's best anticorrosive material currently.The magnetic pump with this material have advantages of wide application,strong corrosion,high mechanical seal, non-aging,non-toxin decomposition. The pump can be widely used in chemical,pharmaceutica1,electroplating,petroleum, environment,rare-earth decomposition,smelting,car manufacture(pickle)End other fields.

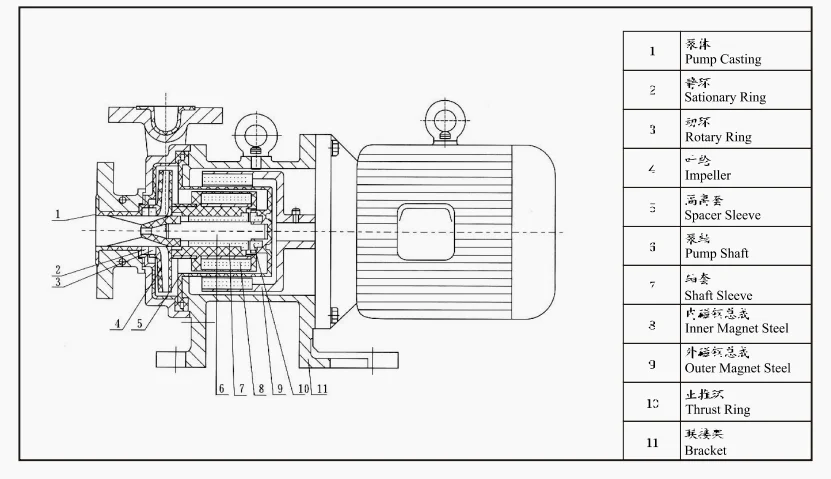

CQB-F fluorine lining magnetic pump with unique design,have no mechanical seal and no leakage.The wetted parts are made of fluorine plastic,ceramics and fluorine rubber,etc. Pump casing with mettel material is enough to support the weight of pipe.

Basic parameters and technical performance of CQB-F fluorine lining magnetic pump conforms to JB/T7742-95"smal1 magnetic drive centrifugal pump"standards.




Details Images

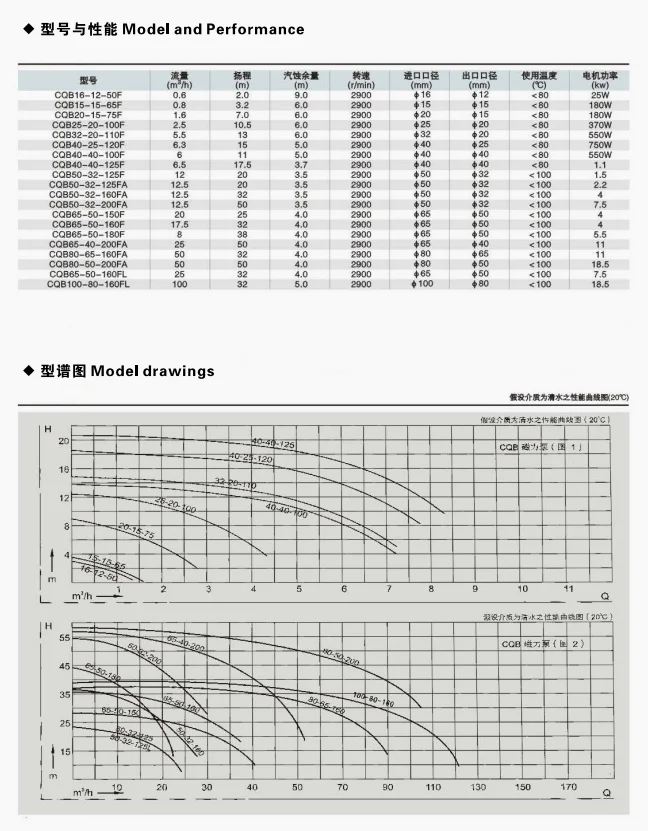

Specification


item
value
Warranty
1 year
Customized support
OEM, ODM, OBM
Brand Name
PIONEER
Model Number
CQB65-50-160F
Place of Origin
Anhui,China
Application
Automotive Industry, Biofuel Industry, Developing World Water Solutions, District Energy, Drinking water treatment, HVAC OEM, Industrial Boilers, Industrial Utilities, Machining, Metal and Equipment Manufacturers, Mining industry, Pharmaceutical industry, Raw Water Intake, Wastewater Transport and Flood Control, wastewater treatment, Water Distribution, Water Treatment Solutions
Power Source
Electric
Structure
Single-stage Pump
Outlet Size
50mm
Voltage
380/400/440V
motor
WNM
Theory
Electric magnetic Pump
Working temperature
-20~90℃
Power Source
Electric
Type
Magnetic Pump
Structure
Single-stage Pump
Voltage
380V/400V/440V


Certifications




Packing & Delivery




Plywood case for safety sea shipping


Company Profile




Has been more than 30 years since set up, Luoyang Pioneer Anti corrosion Equipment Co.,Ltd. ls a top leader in manufacturing anti corrosion equipment,pipes and valves inland.Located in the high-developing area of Luoyang Economic Development zone,the company occupies area more than 32800m³.With modern workshops and facilities, perfect quality control system and advanced inspect method, and well-educated staffsthat can undertake a full set of anti corrosion equipment of research and development,production and Installment.

Recent years,We have imported advanced foreign technology and high-tech material,Continuous technological innovation,we have successfully supplied high quality products and services for the major Engineering project of nation,such as steel cold roll Acid-wash,acid purification,chemical-industry ionicmembrance caustic soda, phosphor fertlizer; environmental protection sewage treatment and so on,which not only substitute the import, settle the exact for these engineerings,but also saved great foreign exchange, that gain considerable economic and social benefit.The main products of the company can be divided into two types:
1.Full plastic type: PTFE, PVDF,PPH, RPP, PE80,PE100, UHMWPE,UPVC and CPVC full plastic valve,pipe fitting,strainer,board material, filing ring and equipments(Tanks,Purifying Tower,Ventilator)series.
2.Steel lining type: PTFE,PVDF,FEP, PEA, PPH,RPP, PO,PE,UHMWPE lining, PU valve, pipe, pipe fitting,equipment,PTFE ripple compensator, and tube,widely used, in the fields of steel,metallurgy,petroleum,chemical industry, fertilizer,dye,pharmacy,electric power,environmental protection sewage treatment,mining industry. Has the advantages of structure innovation,unique craft work,wide temperature adaption,long service life and high benefit,the products is the ideal Anti corrosion engineering material that well favored by the customers and developed its unique outlet in market.

Customer as fundamental, to win the market with credit. Through many years, on the base of strengthening enterprise management. All products in Pioneer have passed the national security (TS) and national industrial product production license certification, the certification of IS09001: 2015 International quality system certification. IS014001 : 2015 Environment management system certification. Continually improve the quality of products and service, was named the titles as "Luoyang city pump valve industrial association vice chairman unit", "National level Spark enterprises","State Torch Program Enterprises", "AA+ degree credit enterprise", "keep the contact and credit "advanced unit, "City level technology center enterprise ","high-tech enterprise", "key enterprise in Luoyang".


FAQ


1. who are we?
We are based in Henan, China, start from 2019,sell to Domestic Market(20.00%),Southeast Asia(20.00%),Eastern Asia(10.00%),Mid East(10.00%),South America(10.00%),Northern Europe(10.00%),Africa(5.00%),South Asia(5.00%),North America(5.00%),Central America(5.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
centrifugal pump,industrial valve,PTFE lined pipe,chemical pump,Plastic pipe

4. why should you buy from us not from other suppliers?
Luoyang Pioneer Anticorrosion is specialized in the manufacturing of international quality anti corrosion pumps,valves,pipes and fittings. The products are widely used for scrubbing, steel pickling, electroplating, paints, dye stuffs, chlor alkali,

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU,DAF;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Russian
