Клапан-бабочка для пневматического привода 3 4 6
- Категории: >>>
- Поставщик: Guangdong,Yuantong,Industrial,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Showcase
Product Details：

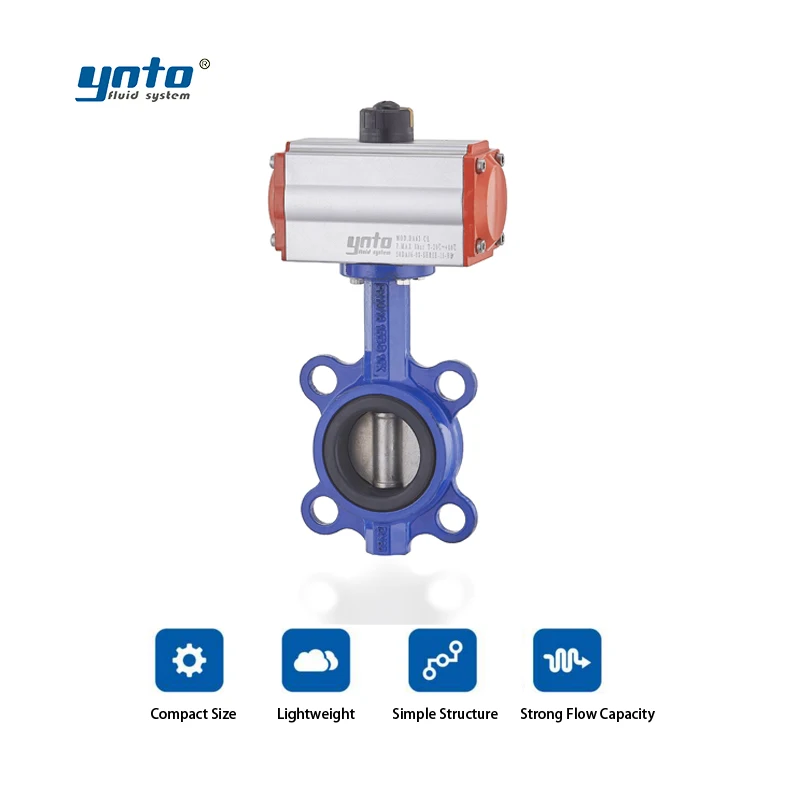

Pneumatic Wafer Soft-Seal Butterfly Valve (D671X) features innovative design, simple structure, and rapid opening and closing. It is characterized by its small size, light weight, low resistance, large flow capacity, and reliable performance. Carefully designed for integrated manual and automatic operation, it offers convenient operation. The bidirectional sealing structure ensures zero leakage, and installation orientation is not restricted by the flow direction of the medium. This product is widely used in industrial automation control systems in industries such as food, environmental protection, light industry, petroleum, chemical, water treatment, and power.
Main outline and connection dimensions | ||||||||||||||
Nominal Diameter | External Dimensions | Connection Dimensions | Pneumatic Actuator Model | |||||||||||
L | L1 | L2 | D | D1 | n-d | |||||||||
50 | 42 | 178 | 121 | 52.9 | 120 | 4-∅23 | AT50D/AT63SR | |||||||
65 | 44.7 | 178 | 121 | 64.5 | 136.2 | 4-∅26.5 | AT63D/AT75SR | |||||||
80 | 45.2 | 210 | 131 | 78.8 | 160 | 4-∅18 | AT63D/AT88SR | |||||||
100 | 52.1 | 210 | 131 | 100.4 | 185 | 4-∅24.5 | AT75D/AT100SR | |||||||
125 | 54.4 | 210 | 131 | 123.3 | 215 | 4-∅23 | AT88D/AT100SR | |||||||
150 | 55.8 | 309 | 160 | 155.6 | 238 | 4-∅25 | AT100D/AT125SR | |||||||
200 | 60.6 | 309 | 160 | 202.5 | 295 | 4-∅25 | AT125D/AT145SR | |||||||
250 | 65.6 | 309 | 160 | 250.5 | 357 | 4-∅29 | AT145D/AT160SR | |||||||
300 | 76.5 | 309 | 177 | 301.6 | 407 | 4-∅29 | AT160D/AT190SR | |||||||
350 | 76.5 | 309 | 177 | 333.3 | 467 | 4-∅30 | AT190D/AT210SR | |||||||
400 | 86.5 | 309 | 177 | 389.6 | 515 | 4-∅30 | AT190D/AT240SR | |||||||
450 | 105.6 | 309 | 177 | 440.51 | 565 | 4-∅30 | AT210D/AT240SR | |||||||
500 | 131.8 | 309 | 177 | 491.5 | 620 | 4-∅33 | AT240D/AT270SR | |||||||
600 | 152 | 309 | 177 | 592.5 | 725 | 4-∅36 | AT270D/AW25SR | |||||||
700 | 163 | 309 | 177 | 695 | 840 | 4-∅36 | AW25/AW28SR | |||||||
800 | 188 | 309 | 177 | 794.7 | 950 | 4-∅39 | AW28/AW35SR | |||||||
Store Hot Sale
Why Choose Us?
Certifications
Product packaging
Exhibition
FAQ
1. Which voltage of the electric actuator?
DC24V, AC24V, AC110V, AC220V AC380V can be customized and DC12V is available for some smaller torque of actuator.
2. What is the actuation time for electric actuator?
It depends on the torque of actuator.
3. Can the actuation time be faster?
Electric actuator can be customized the quick actuation gear, the soonest actuation time can be reach 1 seconds to open and close.
4. What type of electric actuator you provide?
ON/OFF type, Regulation type and Intelligent type.
5. What is the difference from ON/OFF type, Regulation type and Intelligent type?
(1)ON/OFF type ON/OFF type is fully open and fully closed.
(2)Regulation type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system.
(3)Intelligent type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system. 4.With display screen to acheieve site control.
6. Can this electric valve be resettable (normally open / closed) automatically when power is removed?
Our regular electric actuator can't be resettable automatically while power-off. But it can go to the multiturn electric actuator
model with the extra electrical storage device along, which acheieve the valves can be automatic reset(normally closed) while
power failure.
7. Have the electric actuator had the presence of limit switches (contact about the position of the cut-off device)?
Yes, there is the position indicator on the top of actuator. The open/closed status can be checked visually.
8. Which type of protection class of this electric actuator? IP65, IP67, IP68,Explosion proof.
9.Is there any manual override of electric valve?
Yes, every electric valve includes the manual override. You can open/close
10. Have the electric valve had the limiting operating time?
Electric haven't had the limiting operating time. It can be working for 99 hours continually without getting heating.
DC24V, AC24V, AC110V, AC220V AC380V can be customized and DC12V is available for some smaller torque of actuator.
2. What is the actuation time for electric actuator?
It depends on the torque of actuator.
3. Can the actuation time be faster?
Electric actuator can be customized the quick actuation gear, the soonest actuation time can be reach 1 seconds to open and close.
4. What type of electric actuator you provide?
ON/OFF type, Regulation type and Intelligent type.
5. What is the difference from ON/OFF type, Regulation type and Intelligent type?
(1)ON/OFF type ON/OFF type is fully open and fully closed.
(2)Regulation type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system.
(3)Intelligent type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system. 4.With display screen to acheieve site control.
6. Can this electric valve be resettable (normally open / closed) automatically when power is removed?
Our regular electric actuator can't be resettable automatically while power-off. But it can go to the multiturn electric actuator
model with the extra electrical storage device along, which acheieve the valves can be automatic reset(normally closed) while
power failure.
7. Have the electric actuator had the presence of limit switches (contact about the position of the cut-off device)?
Yes, there is the position indicator on the top of actuator. The open/closed status can be checked visually.
8. Which type of protection class of this electric actuator? IP65, IP67, IP68,Explosion proof.
9.Is there any manual override of electric valve?
Yes, every electric valve includes the manual override. You can open/close
10. Have the electric valve had the limiting operating time?
Electric haven't had the limiting operating time. It can be working for 99 hours continually without getting heating.
