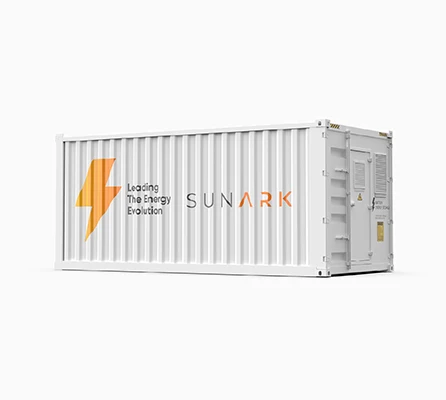

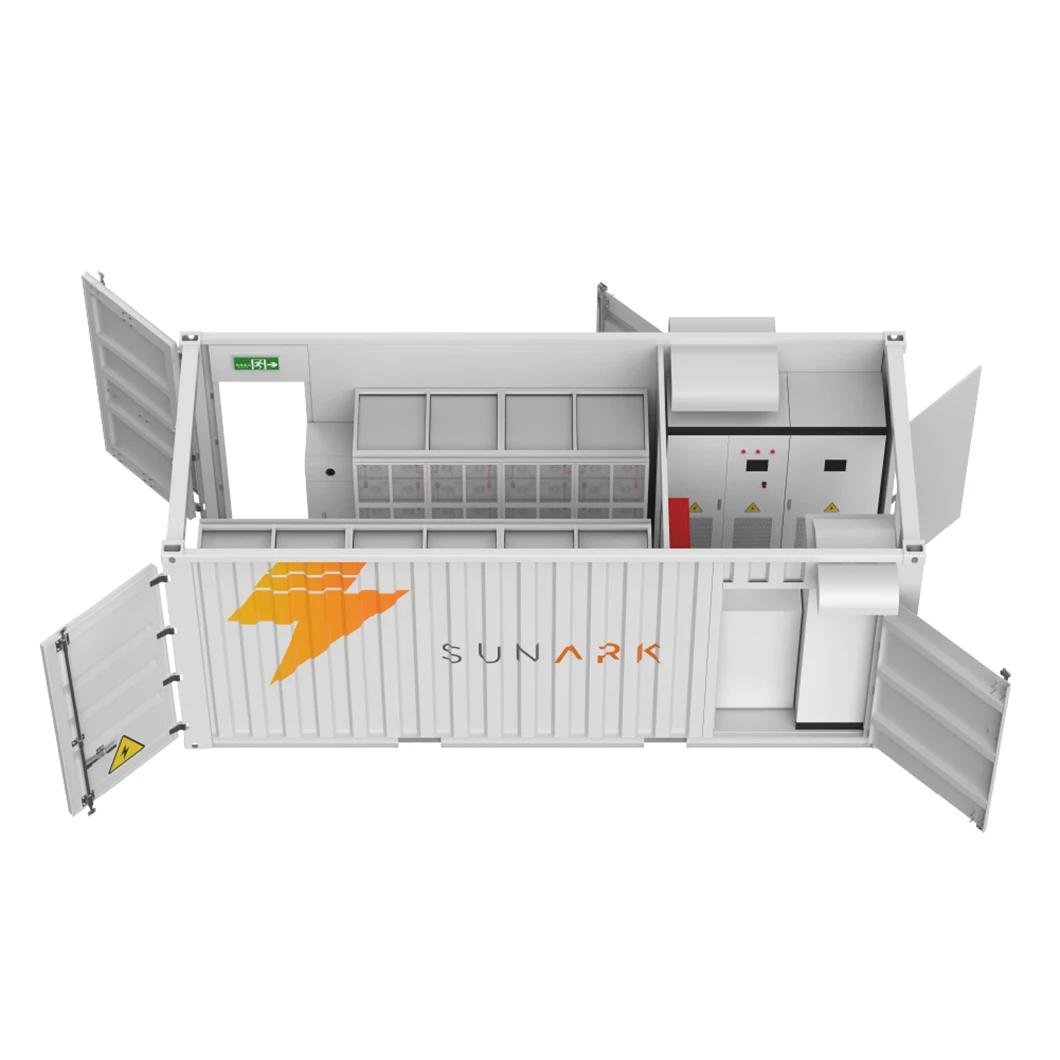

Контейнер для хранения энергии SunArk 20 футов 500 кВтч 1 мвч 2 Bess солнечная батарея промышленная коммерческая
- Категории: >>>
- Поставщик: SunArk,Power,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Battery System Side | ||||||
Model | HV-768V 280AH*3P | |||||
Rated voltage | 768V | |||||
Rated capacity | 840ah(0.2C) | |||||
Charge voltage | 852VDC(adjustable) | |||||
Discharge voltage | 672VDC | |||||
Rated working current | 300A(0.35C) | |||||
Max.working current | 420A(0.5C) | |||||
Rated power | 252KW | |||||
Max.output power | 322KW | |||||
Recommended DoD | 90% | |||||
Range of working temp | -10~50°C | |||||
Working humidity range | 5-85%RH | |||||
Communication method | two way CAN2.0/RS485 | |||||
Working indicator | Blue:Power; Green:Running; Red:Alarm protection | |||||
Cycle life | 25±2°C, 0.2C/0.2C, EOL70%≥6000 | |||||
Display method | 10inch(LCD)/PC Software | |||||
Protective function | Voltage protection Temperature protection Current/Leakage protection Dielectric withstand voltage | Over charge and over discharge Over temperature range protection YES 1000VDC(not less than 1 GΩ) | ||||
Dimension | 20 feet container | |||||
Protection level | IP65 | |||||
Product packaging | Container | |||||
PCS DC Input Side | ||||||
Voltage | 420-850VDC(768V) | |||||
Max.charge power | ||||||
Max.discharge current | 250KW | |||||
PCS-PV Input Side | ||||||
Max.photovoltaic power | 360KW | |||||
Max.photovoltaic voltage | 1000V | |||||
Starting voltage | 150V | |||||
MPPT range | 250-850VDC | |||||
Full load DC voltage | 450-850VDC | |||||
Rated DC input | 600V | |||||
PV input current | single way 36A | |||||
PV input channels | 10 ways | |||||
Communication method | two way CAN2.0/RS485 | |||||
PCS-AC output side(Off-grid) | ||||||
Rated AC power | 275KVA | |||||
Active power | 250KW | |||||
Rated voltage | 400VAC | |||||
Rated current | 361A | |||||
THDU | <2% linear | |||||
Rated frequency | 50/60Hz | |||||
Overload capacity | 110% long-term | |||||
PCS—AC side(On-grid) | ||||||
Rated AC power | 275KVA | |||||
Active power | 100KW | |||||
Rated voltage | 250KW | |||||
Rated current | 361A | |||||
Voltage range | 320-460VAC | |||||
Rated frequency | 50/60Hz | |||||
THDU | <3% linear | |||||
Power factor | Standard:1.0; lead 0.8/lag 0.8 | |||||
AC Phase | Three-phase four-wire+ground wire(3W+N+PE) | |||||
Isolation transformer | 0.68% | |||||
Grid certification | TUV, CE | |||||
Working temp.range | -40~60°C, >45°C Power down | |||||
Communication method | RS485/CAN | |||||
Pictures

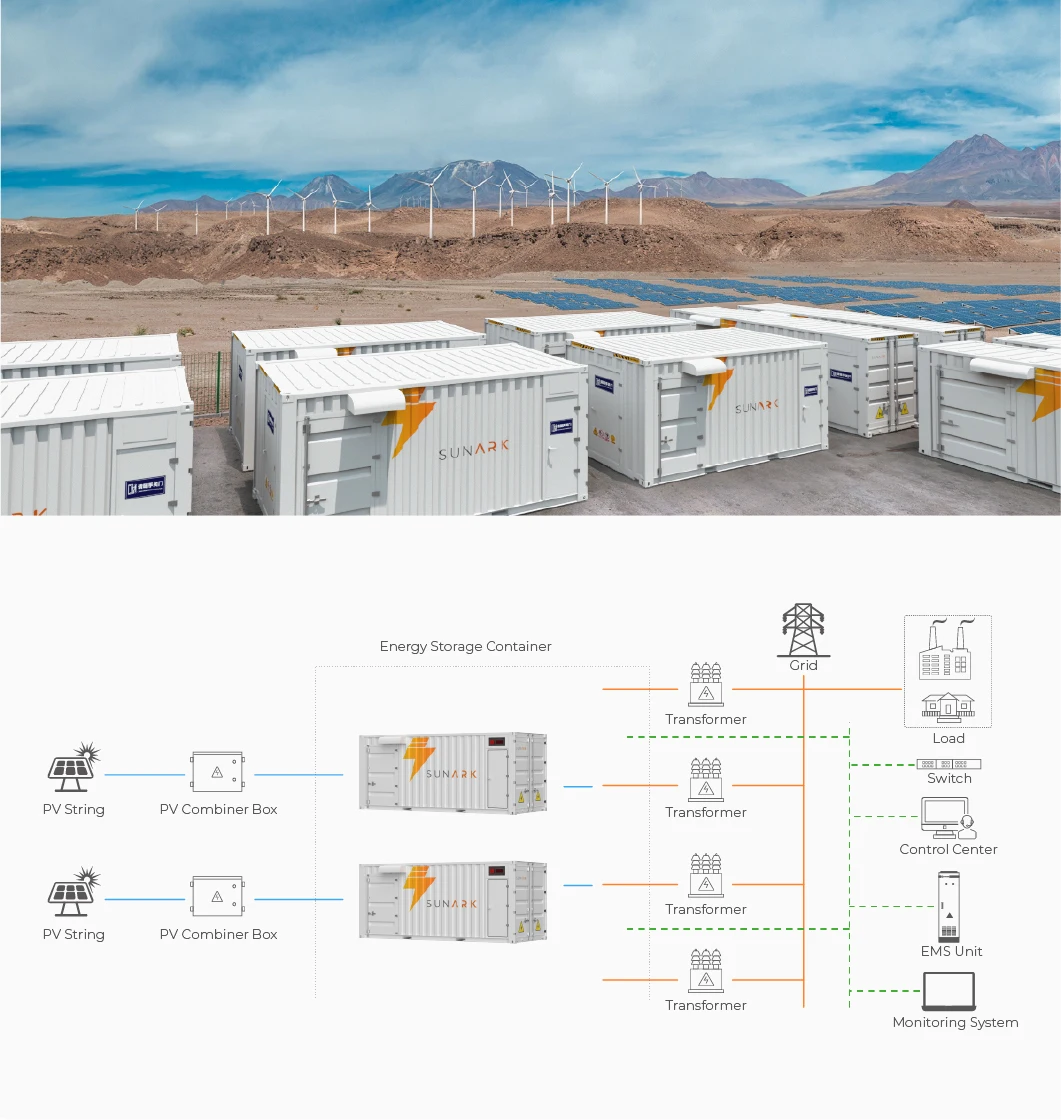

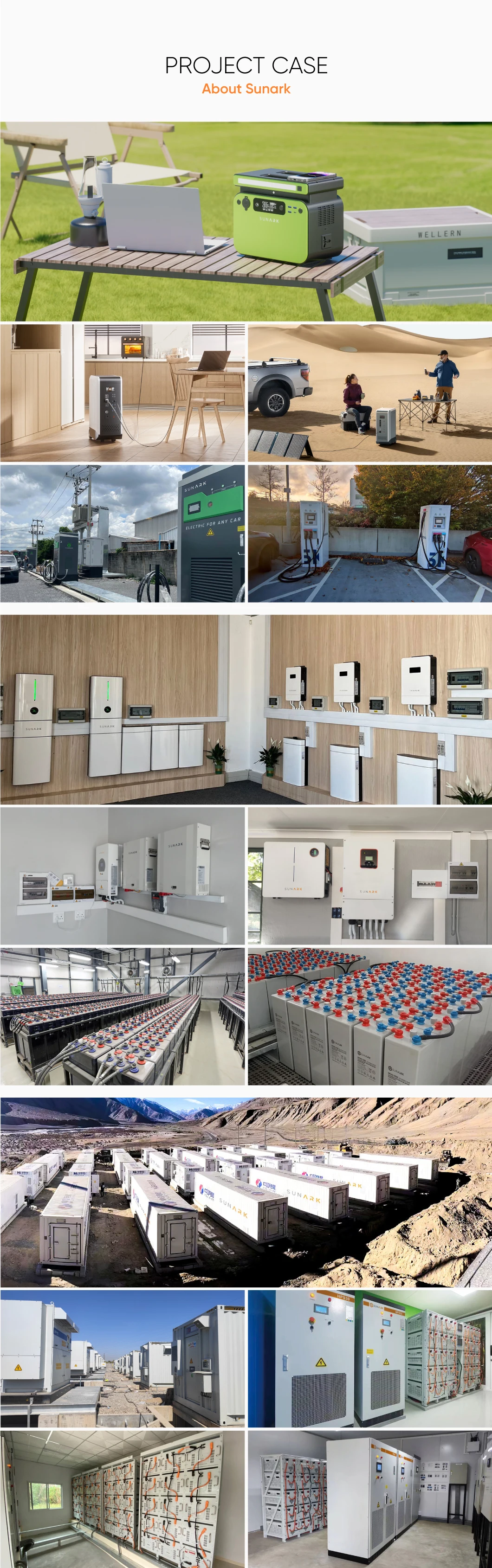

Applications
Products Series

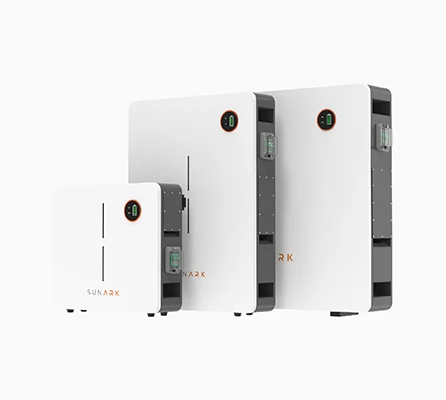

Wall Mount Low Voltage Pack
Voltage: 48V/51.2V
Capacity: 2.5kWh/5kWh/10kWh/15kWh
Voltage: 48V/51.2V
Capacity: 2.5kWh/5kWh/10kWh/15kWh

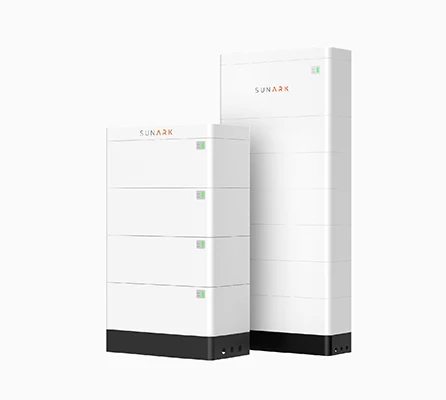

Stackable Low Voltage & High Voltage PackVoltage: 51.2V/129.6-561.6V
Capacity: 5kWh~30kWh

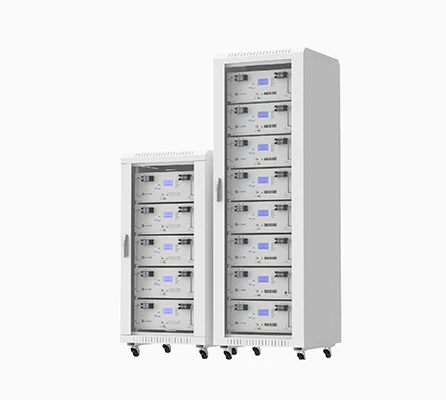

Rack Mount Low Voltage Pack
Voltage: 48V/51.2V
Capacity: 50/100/150/200Ah

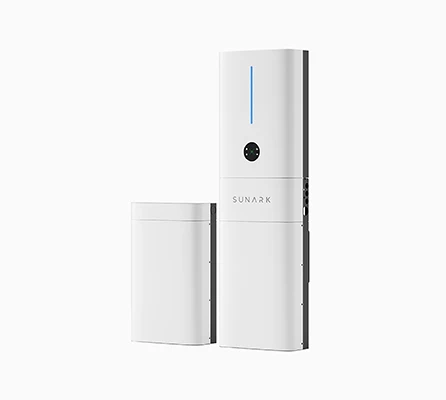

All In One Energy Storage System
Power: 3-12kW
Battery Capacity: 5-45kWh
Power: 3-12kW
Battery Capacity: 5-45kWh

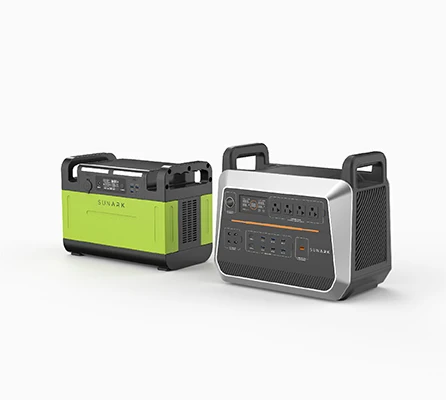

Portable Power Station
Power: 200-3000W
Battery Capacity: 200-3000Wh
Battery Capacity: 200-3000Wh

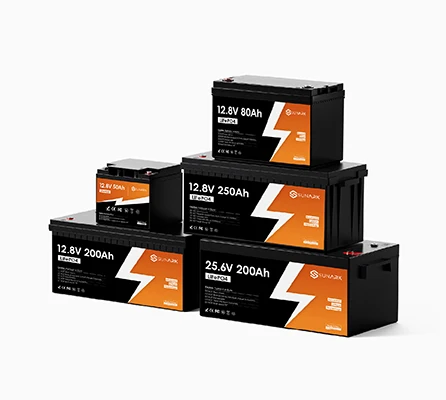

Lead Acid Replacement Solution
Voltage: 12V/24V/48V
Battery Capacity: 5-400Ah
Battery Capacity: 5-400Ah

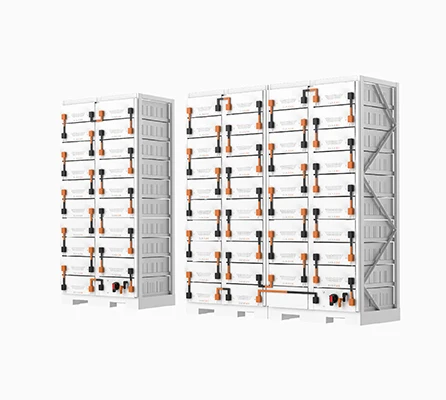

Rack Mount High Voltage Pack
Voltage: 614.6-1305.6V
Capacity: 72-320kWh
Capacity: 72-320kWh

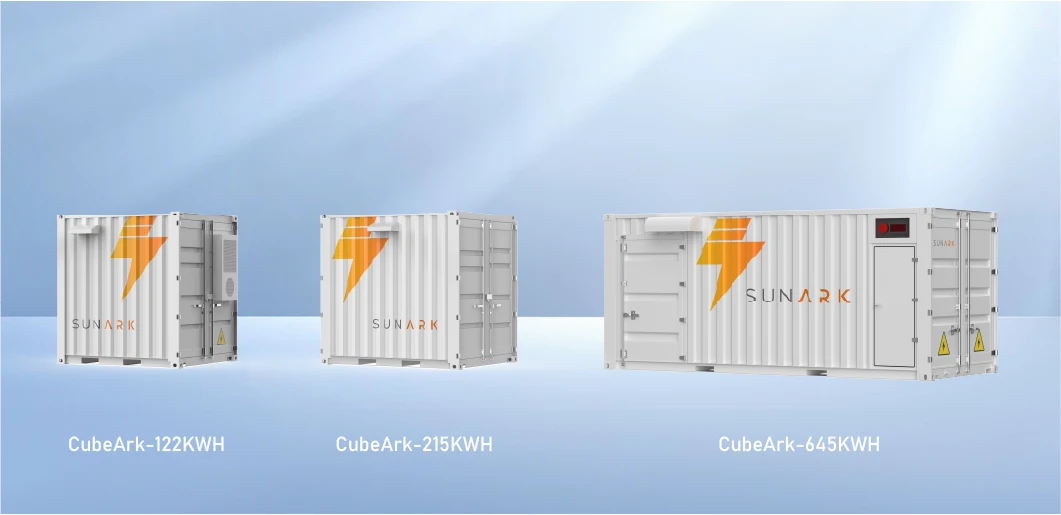

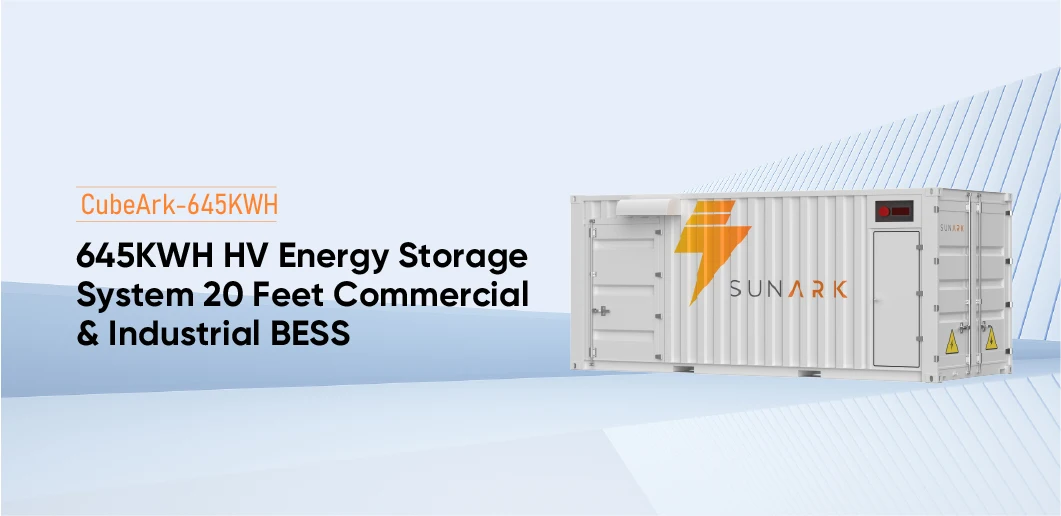

CubeArk Series
Energy Storage Container
Power: 50-1200kW
Battery Capacity: 64kWh~2064kWh
Power: 50-1200kW
Battery Capacity: 64kWh~2064kWh
About Us

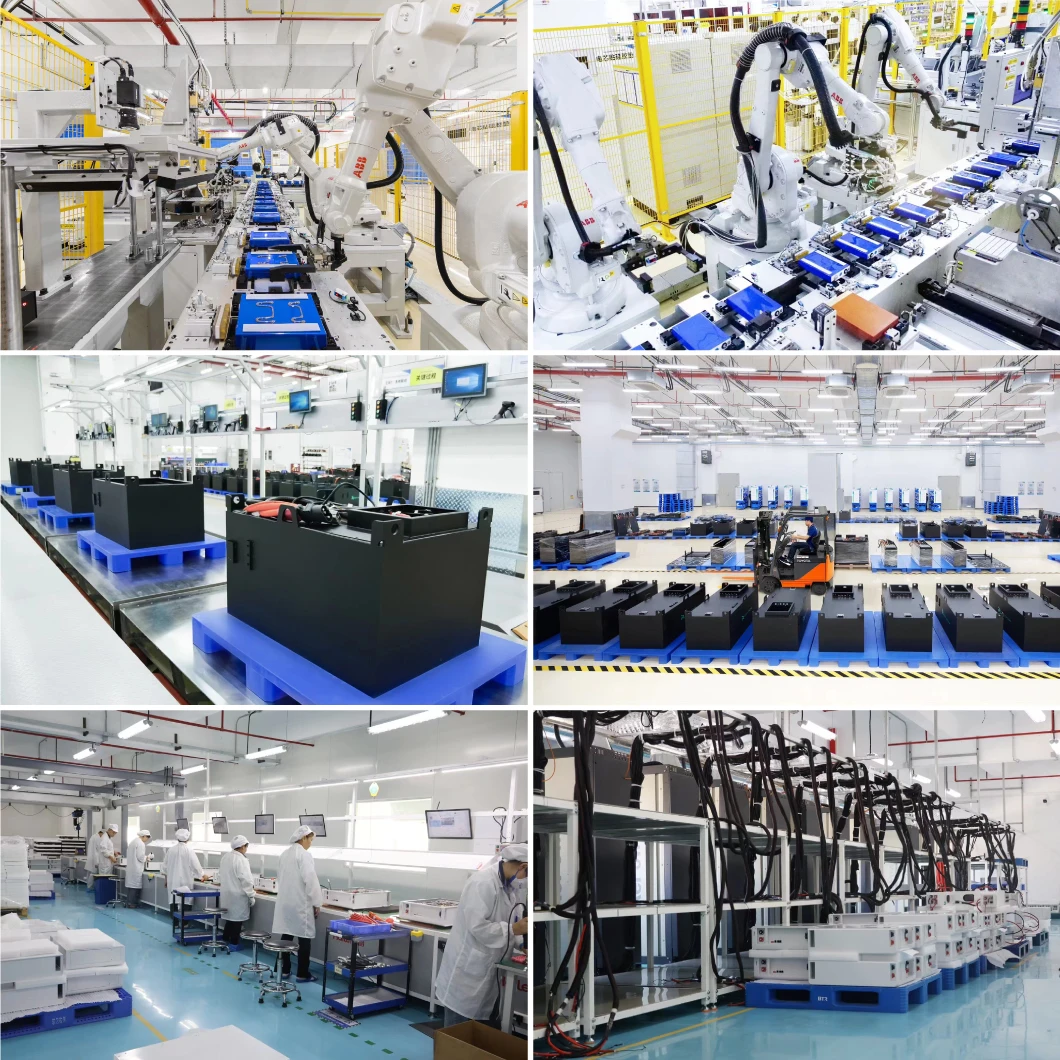

Our Factory
