DP-M1300 USB 4K все-в-одном AI видео бар конференц-связь звуковая панель Вебинар Сова Бар
- Категории: >>>
- Поставщик: Beijing,Daipu,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

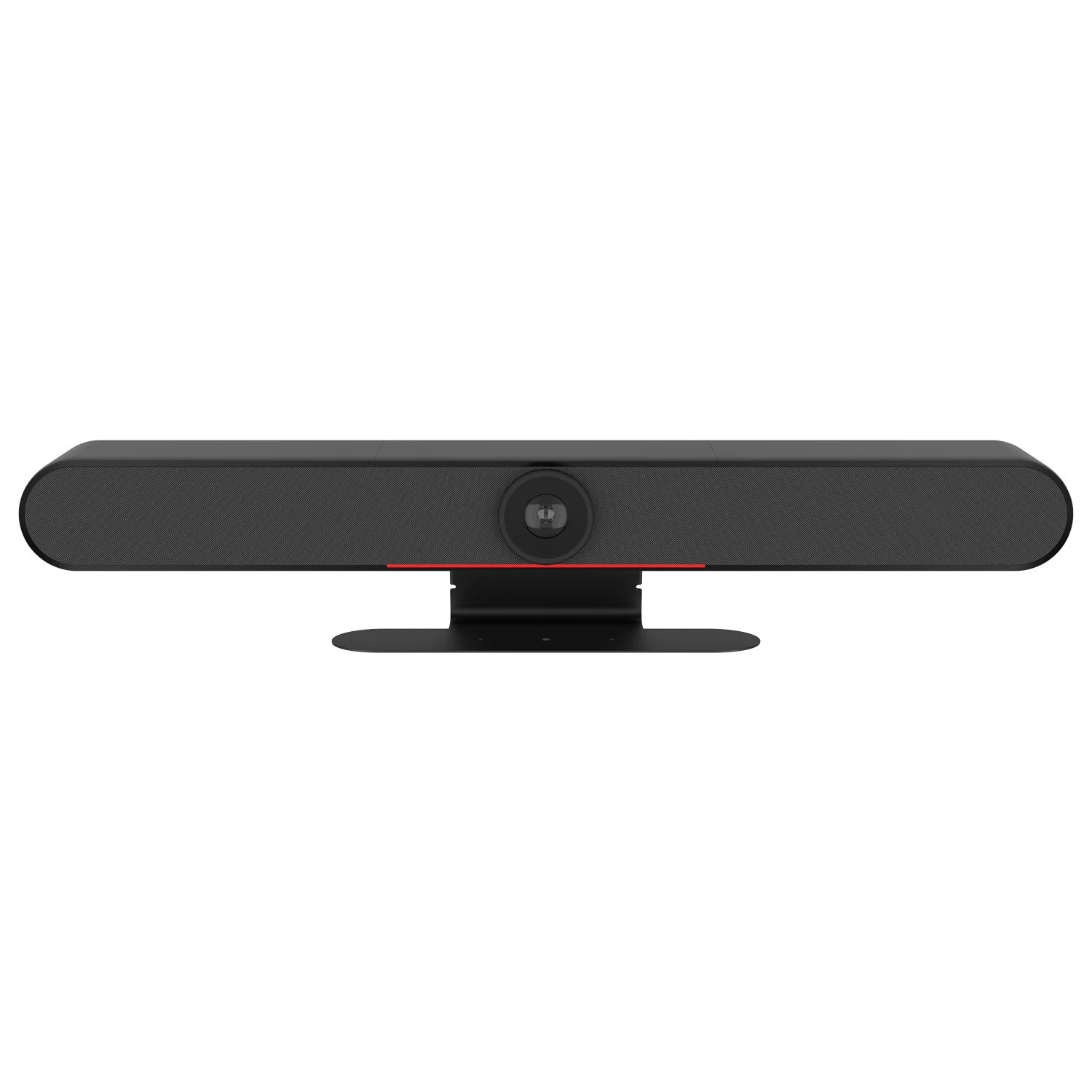

DP-M1300 Intelligent 4K AI Video Bar
4K UHD, large viewing angle 120° without distortion, voice tracking, intelligent auto framing, electric privacy cover, audio and video integration
(OEM Logo Support)
Product Features

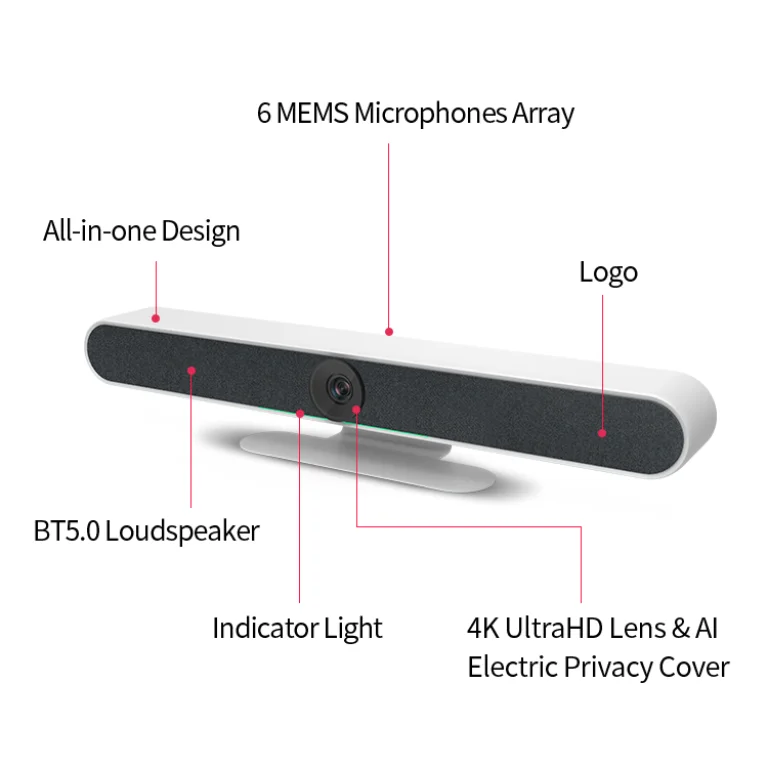

l Integrated Design: Built in 4K UHD camera, microphone array, high fidelity speaker and electric privacy cover
l Ultra HD: M1300 adopts 8MP high quality CMOS image sensor, able to capture 4K ultra HD image to present true-to-life image, bringing excellent image resolution and clarity.
l Distortion-less Wide Angle Lens: 120° wide angle with no distortion lens allows every participant is on the frame with no need to adjust the camera.
l Automatically Privacy Cover: Privacy cover will automatically close to ensure the privacy security.
l Microphone Array: Built in 6 array microphone enable speaker can be tracked in real time. M1300 break the distance limitation to provide virtual meeting as if you are there.
l Built in Speaker: Built in dual 10W high quality studio speaker, ensuring every participant can hear and be heard clearly.
l Audio Processing: The audio processing algorithm adopts high-fidelity 48K audio sampling rate, lossless audio transmission technology, supports AEC, AGC, ANS processing, bringing high-quality calls of 6 meters full duplex;
l Auto Framing: Built in face detection algorithm, automatically detect participant and provide optimal framing.
l Bluetooth 5.0: Connect mobile phone and other devices through Bluetooth to be used as Bluetooth speaker and microphone.
l Low Noise and High SNR: Low noise CMOS ensure the ultra SNR of image. The advanced 2D, 3D noise reduction technology further reduce the noise while ensuring the image clarity.
l Powerful Compatibility: Compatible with Windows7, windows10, Mac OS 10.10 or higher system, applicable to major cloud-based video conference platforms.
Technical Specification
Camera | Lens | FOV | 120°(D) /106°(H)/ 72°(V) |
Iris | F2.0 | ||
Focal Length | 1.89mm | ||
Digital Zoom | 10X | ||
Sensor | High quality CMOS sensor, effective pixel 8 million, 16:9 | ||
Image | Minimum Illumination | 0.5Lux | |
DNR | 2D3D | ||
Focus | Auto/Manual | ||
BLC | On/Off | ||
Exposure | Parameter can be adjusted, and AE(Auto Exposure) is available | ||
Video Adjustment | Brightness, sharpness, saturation, contrast, white balance, gain, anti-flicker, low brightness compensation and other parameters can be adjusted | ||
SNR | ≥50dB | ||
Video Format | HDMI:4KP30,1080P60 compatible downward USB:4KP30,1080P60 compatible downward | ||
Video Compression Format | MJPEG,YUY2,H.264,H.265,NV12 | ||
Privacy Cover | Automatic privacy cover will close when no image output and open when there are image output. | ||
Audio | Microphone | Microphone | 6 X MEMS Microphones |
Pickup Distance | 6 meters | ||
Frequency Response | 120 Hz–16 kHz | ||
Speaker | Speaker | Built in dual speaker | |
Voltage | 2*10W | ||
Output Voice Pressure | 80±3 dB 1.0M/1.0W | ||
Frequency Response | 100 Hz-20 KHz | ||
Audio Processing | AEC,AGC,ANS | ||
AI Function | Group Framing | Automatically adjust the screen size according to the number of participants to present the best framing | |
Speaker Tracking | Track each speaker in real time, and ensure that the speaker is in the center of the screen. | ||
Remote Control | Remote Control | Infrared remote control | |
Physical Interfaces | USB | USB3.0 audio video output interface,Type C Support UVC1.1,UAC1.0 and higher | |
HDMI | HDMI video output interface HDMI also compatible with HDMI2.0 standard | ||
LINE IN | 3.5mm audio line input interface (when an external pickup is connected, the audio input is automatically switched to the external pickup) | ||
LINE OUT | 3.5mm line output, can be connected to external speakers (when connecting to external speakers, the audio output will automatically switch to external speakers) | ||
Expansion Mic Interface | RJ45 interface, able to connect to expansion microphone. | ||
Power Interface | HEC3800 power socket (DC12V), input AC110V-AC220V output DC12V/2.5A | ||
Indicator | Bar-shaped Indicator | While displaying the working status, it can also be lit where the speaker's voice comes from. | |
Bluetooth | Bluetooth 5.0 | Can be connected to a mobile phone or other device via Bluetooth as a Bluetooth microphone and speaker | |
Compatibility | Available System | Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android | |
Power Supply Method |
| Supply power through power adapter | |
Installation Method | Walling Mount | Comes with walling mount bracket. While mounting, the camera need to be as close to the wall as possible. | |
Desktop | Comes with desktop mounting bracket | ||
Installed on monitor | Bracket for monitor installation(optional) | ||
