Product Description

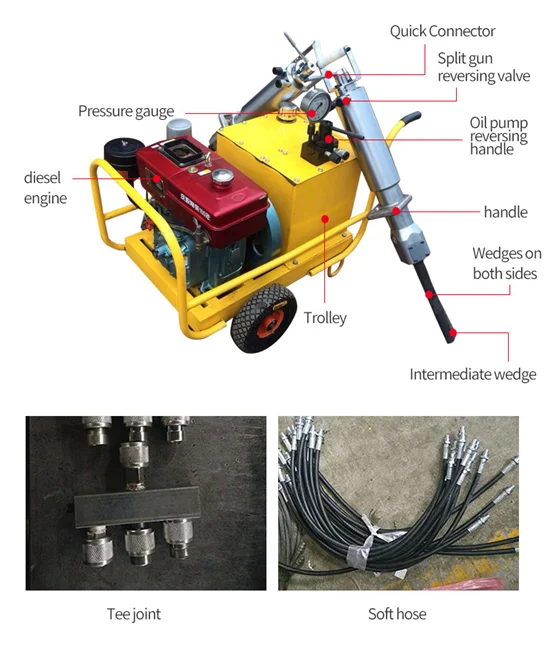

8KW diesel hydraulic rock splitter
Rock splitter is our newly developed Product which is a powerful and extremely cost-effective alternative to other conventional demolition tools. It can develop a very huge splitting force (Maximum 1000T) when it put into the pre-drill holes of rock or concrete, and crack it into pieces within several seconds.
Now it is widely used in mineral mining (cave mining), civil engineering construction and demolition. It is also an indispensable tool in construction, river dredging, salvation etc.
Product Paramenters

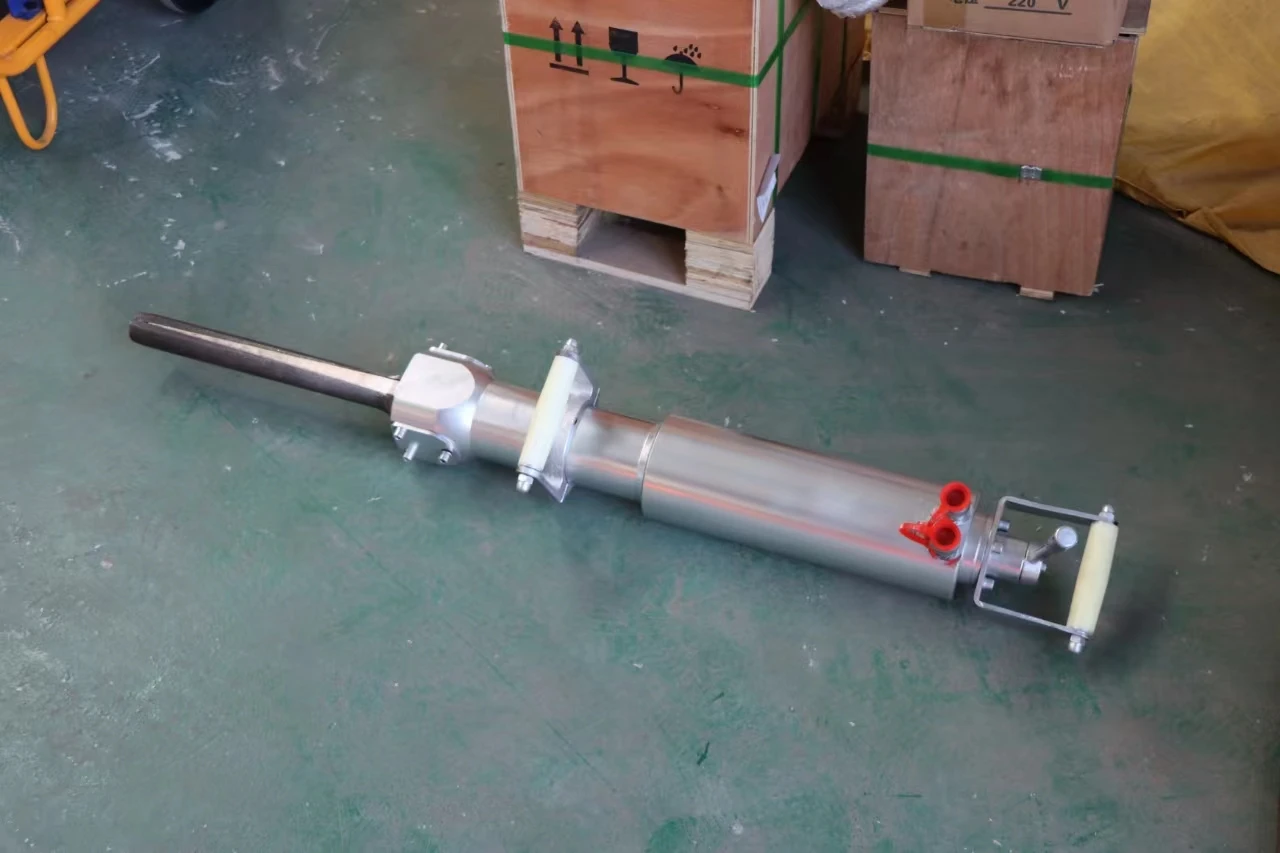

Hydraulic Wedge Rock Splitter Splitting cylinders parameters | ||||||||||||
model | SG80-250 | SG80-350 | SG80-450 | SG90-250 | SG90-350 | SG90-450 | ||||||
piston diameter | 80mm | 80mm | 80mm | 90mm | 90mm | 90mm | ||||||
drilling diameter | 42mm | 45mm | 50mm | 42mm | 45mm | 50mm | ||||||
drilling depth | >500mm | >550mm | >600mm | >500mm | >550mm | >600mm | ||||||
wedge block length | 250mm | 350mm | 450mm | 250mm | 350mm | 450mm | ||||||
crack width | 10~40mm | 10~40mm | 10~40mm | 10~40mm | 10~40mm | 10~40mm | ||||||
splitting time | 5~15s | 5~15s | 5~15s | 5~15s | 5~15s | 5~15s | ||||||
Theory of separatist force | 600T | 600T | 600T | 800T | 800T | 800T | ||||||
The actul split force | 480T | 480T | 480T | 480T | 480T | 480T | ||||||
weight | 28Kg | 29Kg | 30Kg | 31Kg | 32Kg | 33Kg | ||||||

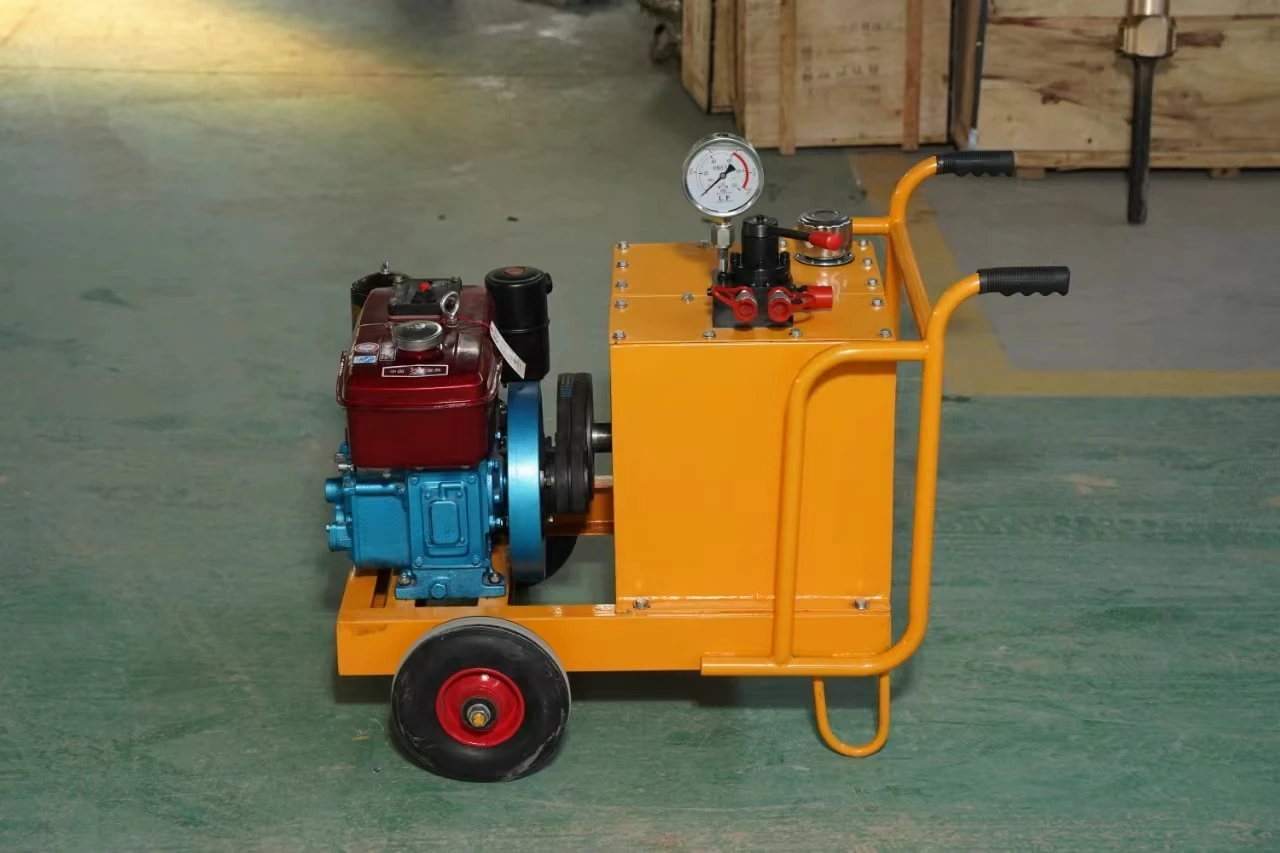

Hydraulic Wedge Rock Splitter Pump pack parameters | ||||||||||||
Engine | Electric engine | Diesel engine | ||||||||||
weight | 60kg | 110kg | 150kg | 100kg | 130kg | 150kg | ||||||
capacity of tank | 40L | 60L | 88L | 45L | 65L | 90L | ||||||
motor power | 3.0KW | 4.0KW | 5.5KW | 3Hp | 5Hp | 7.5Hp | ||||||
working pressure(Mpa) | 55-60 | 55-60 | 55-60 | 55-60 | 55-60 | 55-60 | ||||||
working flow(L/min) | 2 13 | 2 13 | 2 13 | 2 13 | 2 13 | 2 13 | ||||||
configurable guns number | 1 5 | 2 7 | 2 10 | 1 3 | 3 8 | 3 10 | ||||||
