Product Overview

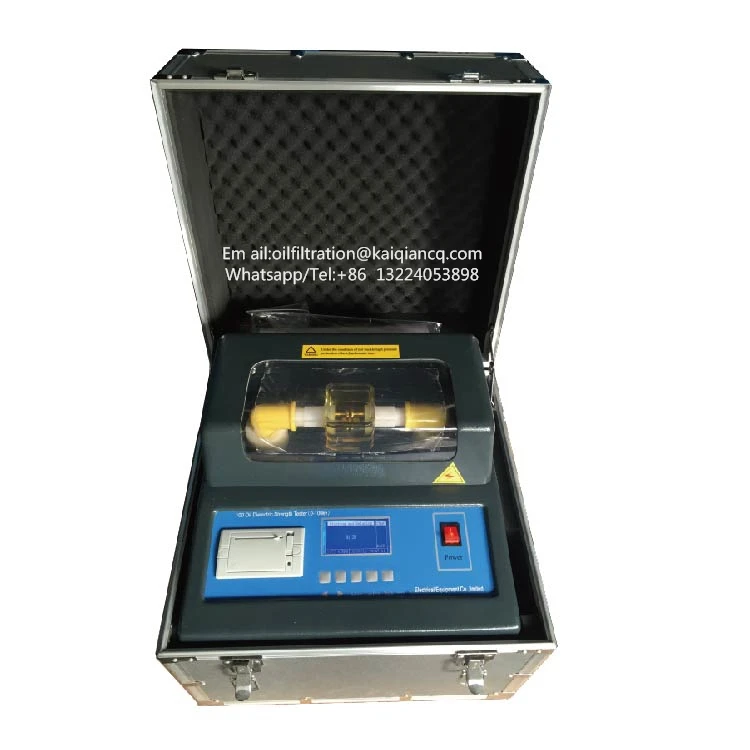

bdv Test Kit Transformer Breakdown Voltage Tester Transformer Oil bdv Testing
Automatic insulation oil breakdown voltage tester ,insulating oil dielectric strength tester are according to the requirement of the international electrotechnical commission standard IEC156 insulating oil dielectric strength test and national standard GB507-2002, give full consideration to the general requirements of users at home and abroad new models. Adopt advanced technology , overcome the disadvantages of high voltage breakdown interference.It has the functions of automatic boost, automatic detection, stirring, automatic processing and automatic printing,equipped with RS-232 download interface include 15 standard test schemes and 5 user self-calibration schemes, with high accuracy, convenient operation, safe and reliable operation.
FEATURES AT A GLANCE
Main features include :
automatic measurement method,
6 times continuous measurement,
and automatically calculate the average,
print out 6 measurement data and average through the panel printer.
automatic measurement method,
6 times continuous measurement,
and automatically calculate the average,
print out 6 measurement data and average through the panel printer.
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
No | Item | Data | ||
1 | Measurement range | 0~80kV | Power | AC220V±10% 50Hz ±2 |
2 | Maximum voltage to earth voltage | 40kV | Using temperature range | 0～50℃ |
3 | Rated power/electrode clearance | 1kVA/2.5mm（regular use） | Using humidity scope | ≤85% |
4 | Measurement accuracy | ±1% | · Oil cup effective volume · | 100～600ml (regular 350~500ml) |
5 | Pressuring speed | 2kV/S±10% | Weight | 25kg |
6 | The biggest release time/electrode form | ≤10mS/semicircle test | Size（mm） | 430×270×230 |
7 | Oil stirring | Continuous stirring or not stirring (optional) | Display mode and print. | LCD display with printing function. |
8 | Repose time/ interval time | First time5min, second time 2min(0～9min adjustable) | Measurement mode | Single, multiple, automatic, manual measurement. |
PRODUCT CONFIGURATION
Successful Project
Project in Southeast Asia
Project in Middle East
Project in Africa
SIMILAR PRODUCTS
Transformer Oil Purifier
Transformer Oil Regeneration
Transformer Vacuum Drying
FAQ
1.What is the usage of a transformer oil breakdown voltage tester?
Dehydration, degassing, impurity removal of old oil, and extend oil life.
2..What is consumable?
There is no consumable except filters.
![]()
![]()
Dehydration, degassing, impurity removal of old oil, and extend oil life.
2..What is consumable?
There is no consumable except filters.
3. Who Should I conact to get more imformations ?
