Product introduction:
Product name: high concentration oxygen machine
Product model: PL-Y2
Power: 250w
Oxygen flow rate: 0-3L/min (adjustable)
Oxygen concentration: ≥93%
Oxygen pressure: 50kpa
Product model: PL-Y2
Power: 250w
Oxygen flow rate: 0-3L/min (adjustable)
Oxygen concentration: ≥93%
Oxygen pressure: 50kpa
Flowmeter: 1pc
Cooling fan: 15050 customized high speed cooling fan

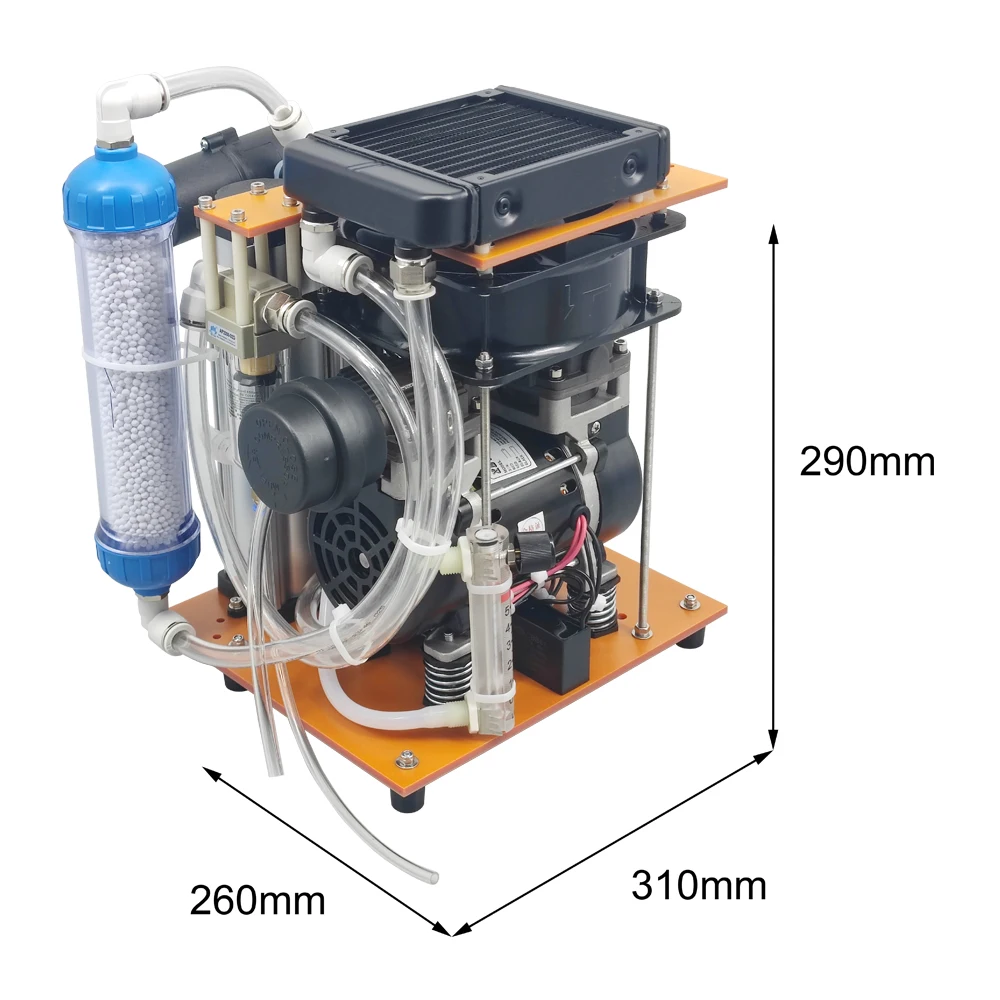

Size: 31*26*29cm
Weight: 8.5kg
Service life / Warranty: more than 15000 hours / 2 years
Characteristic: smaller, higher oxygen concentration, no consumables, high efficiency
Customized: can be customized
.
Product application:
Oxygenation, medical treatment, ozone generator, aquaculture, fish ponds, chemical industry, factory, agriculture, laboratory, hotel, KTV, bar, etc
.

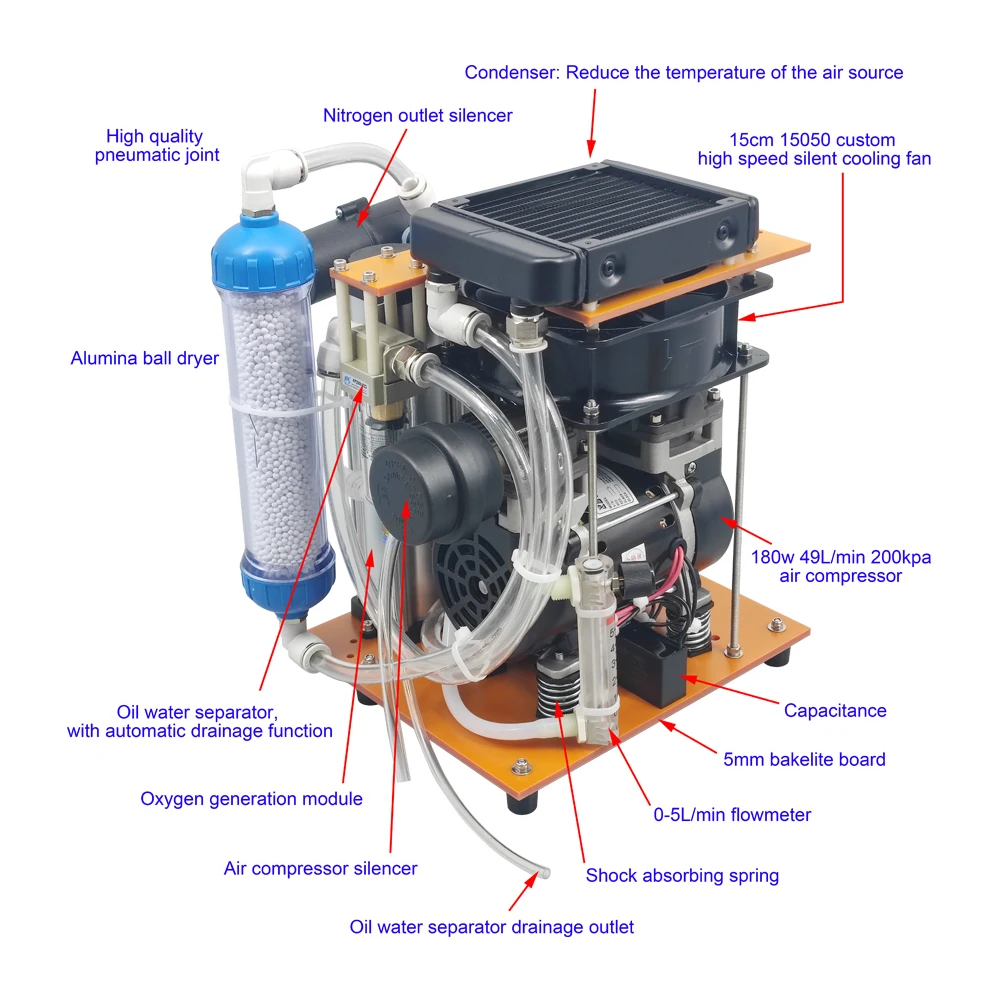

Oxygen generation module:
Intake requirements: dry, oil-free
Intake pressure: 170kpa-250kpa
Intake flow rate: >35L/min
Molecular sieve: new type oxygen sieve - lithium low silicon (imported 0.5mm)
Ambient temperature: <40 degrees Celsius
Ambient humidity: ≤85%RH
Mechanical impurity of compressed air in: <20mg/m3
.
Oil free air compressor:
Power: 180w
Air flow rate: 49L/min
Air pressure: 200kpa
Speed: 1400 rpm
.
Alumina ball dryer:
We recommend you install it vertically.
The air intake is on the bottom and the air outlet is on the top.
The air inlet is connected to the oil-water separator, and the air outlet is connected to the oxygen generation module.
It can further reduce the humidity of the air source and effectively extend the service life of the oxygen generation module.
We recommend that you take out the alumina ball and dry it or replace it after 3 months of use.
.
Packing list:
1pc 5L oxygen machine, 1pc 1.8m pure copper power cord, 1pc flowmeter, 2m 4*6mm PU tube, 1pc air stone.
.
Equipment inspection standard:
Design and manufacturing conditions of oxygen making machine: JB/T6427-92 Pressure Vessel
Design specifications: GB150-89
Manufacturing standard: GB150-89
Flaw detection standard: JB-4730-94
Equipment painting, packaging and transportation: JB2536, GB/T13384
Noise measurement of silencer: JB/T6427-92
Pipeline design and installation: JB5902
Identification standard of oxygen meter: JJ365-1998
Flowmeter design and manufacturing standards: JB/T6844-1993
.
.

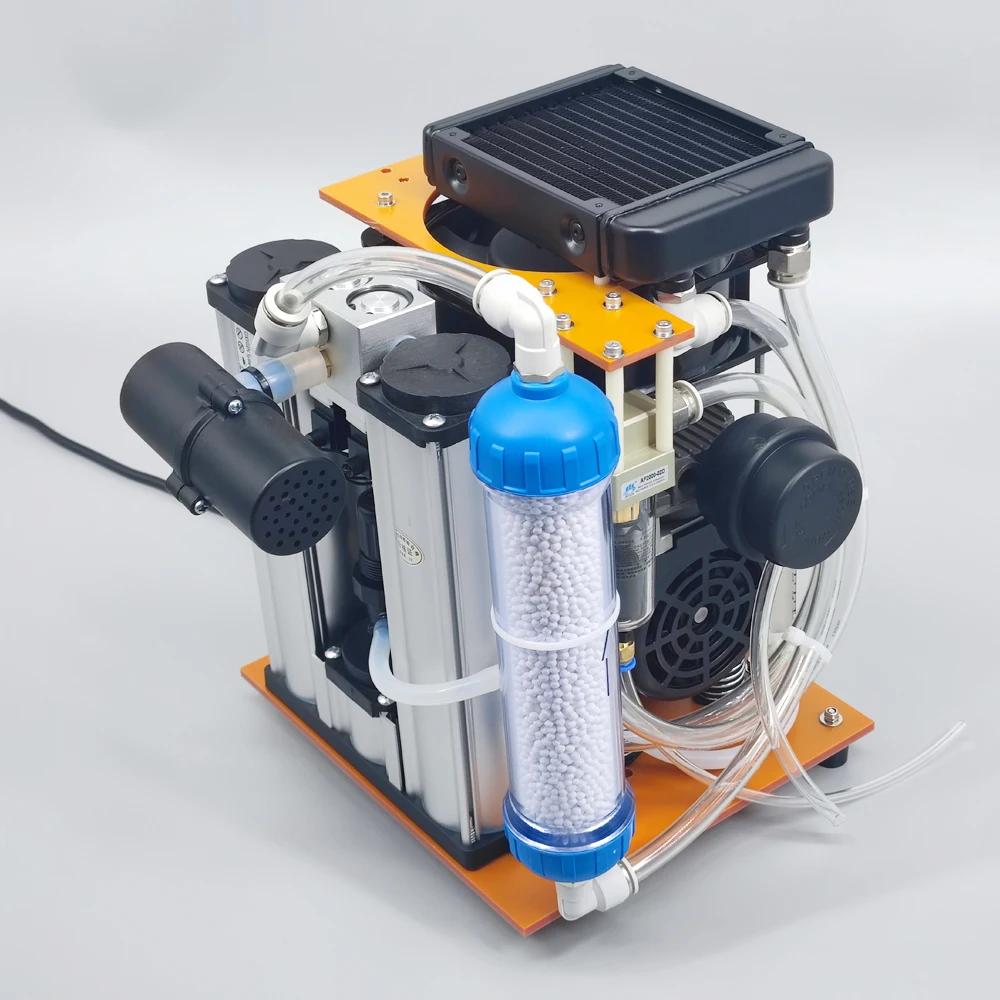

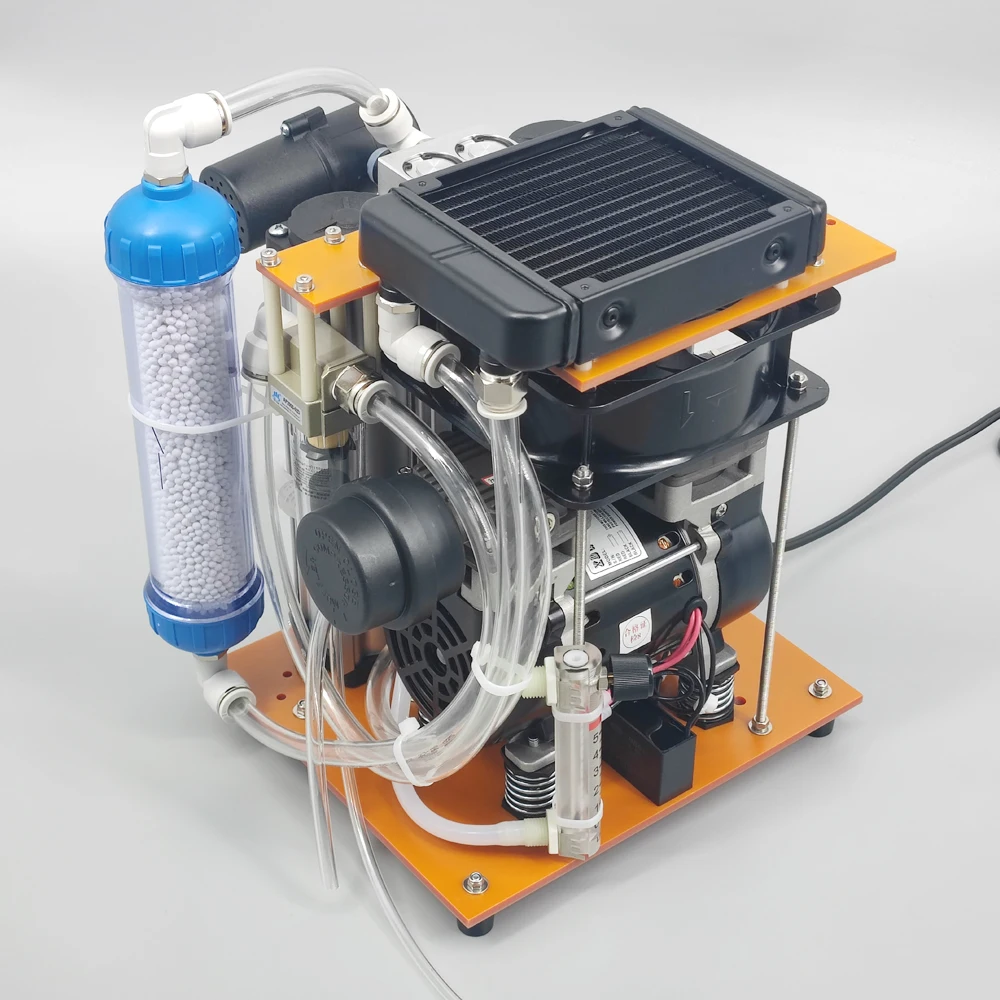

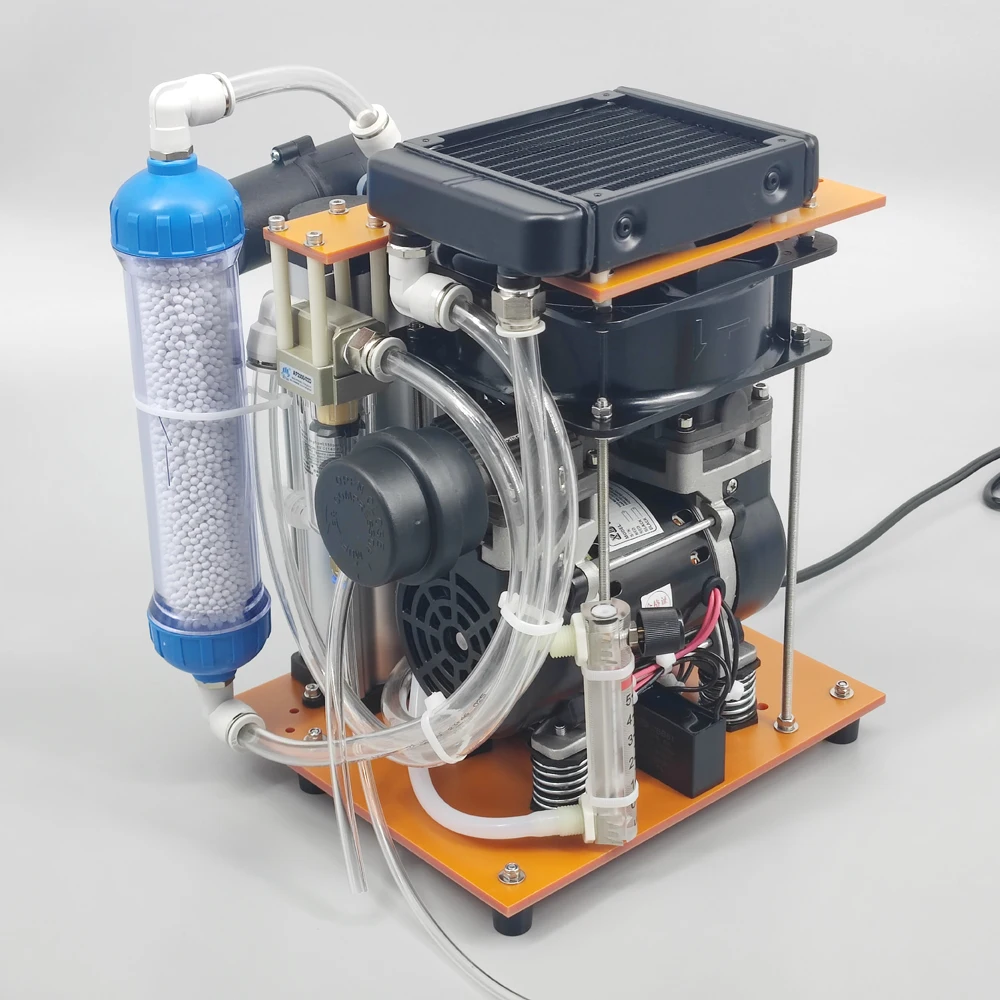

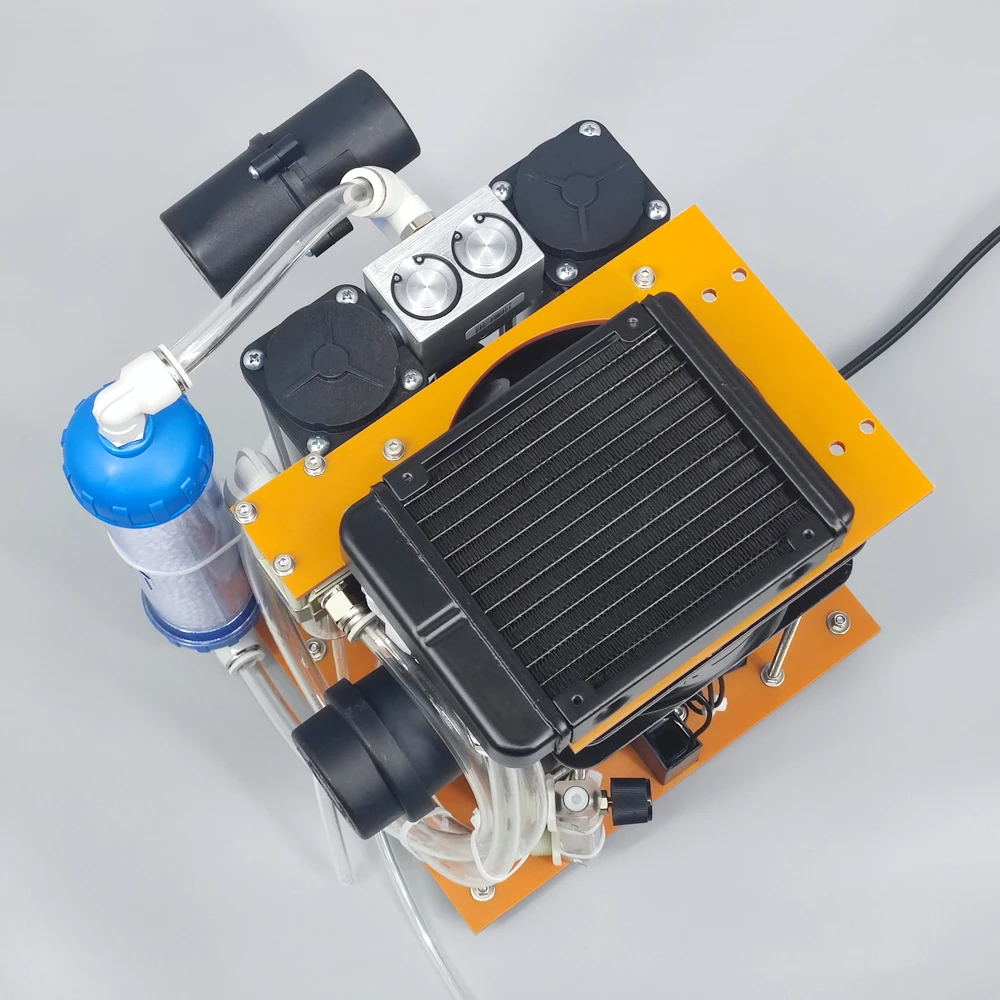

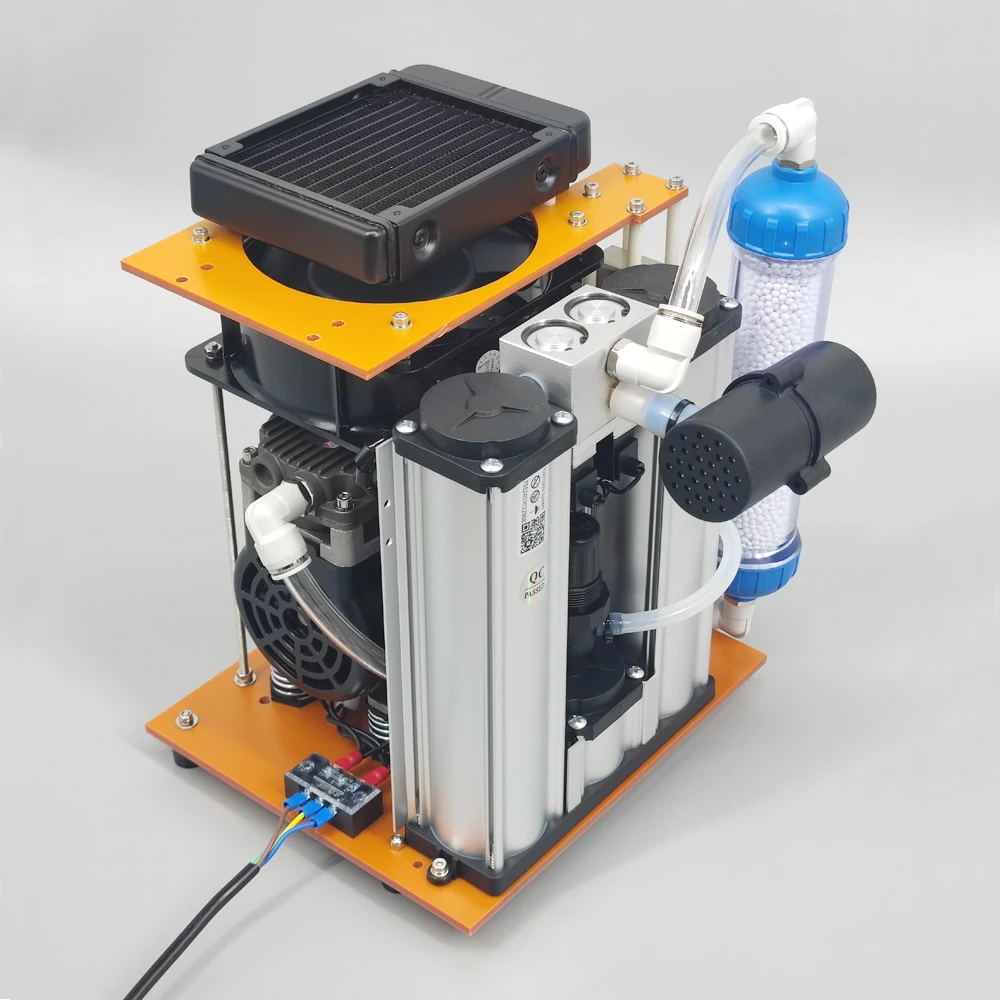

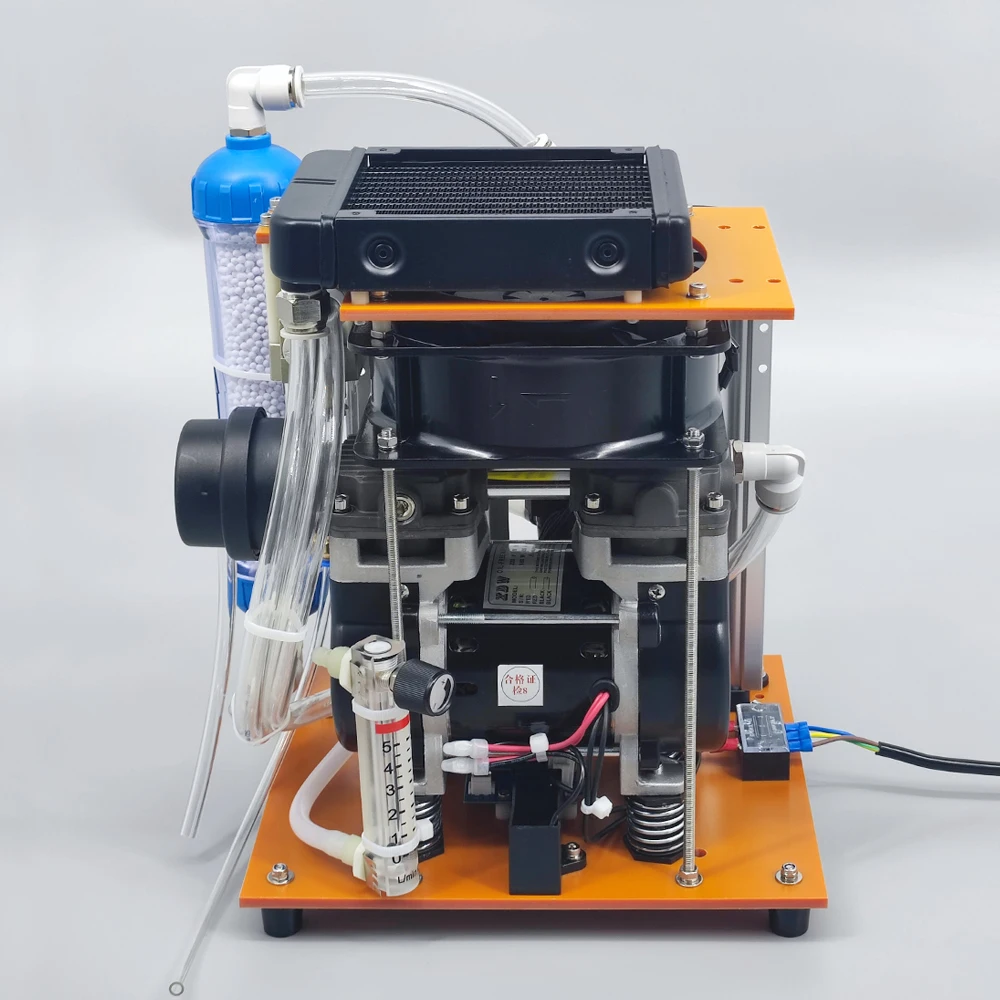

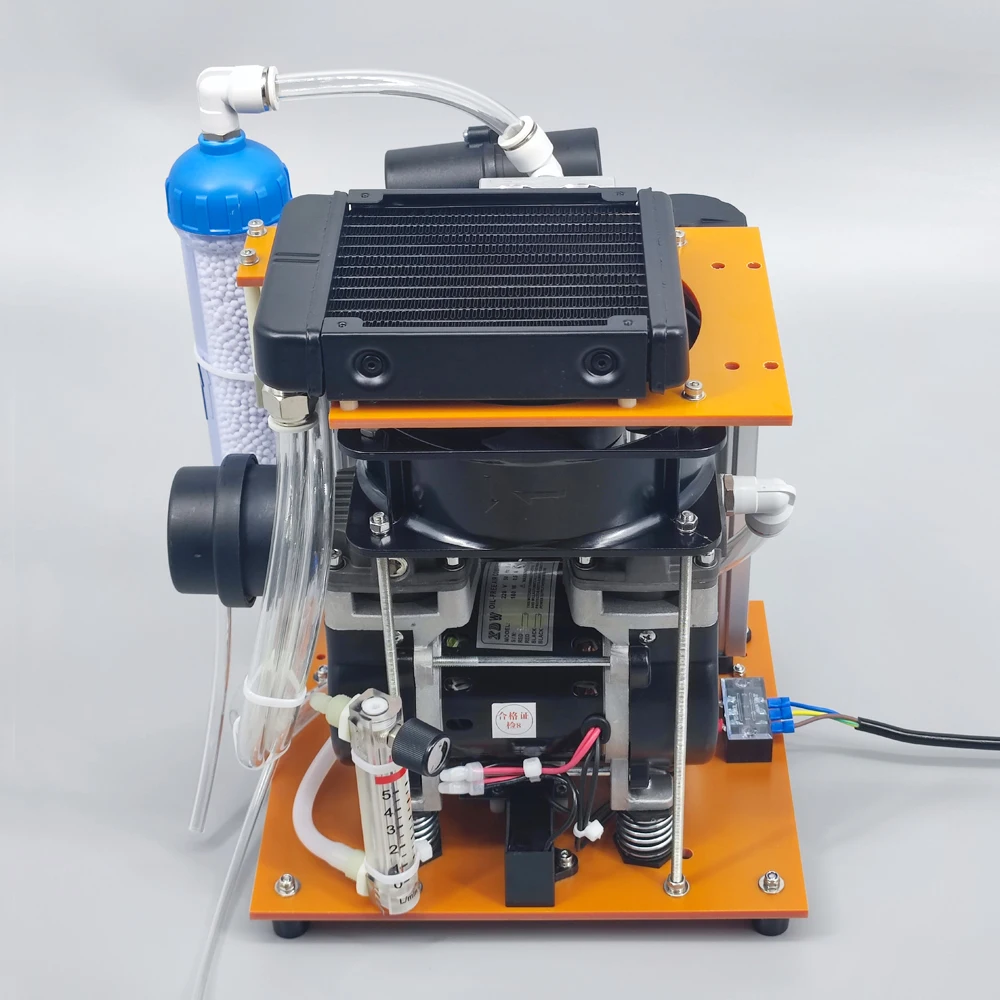

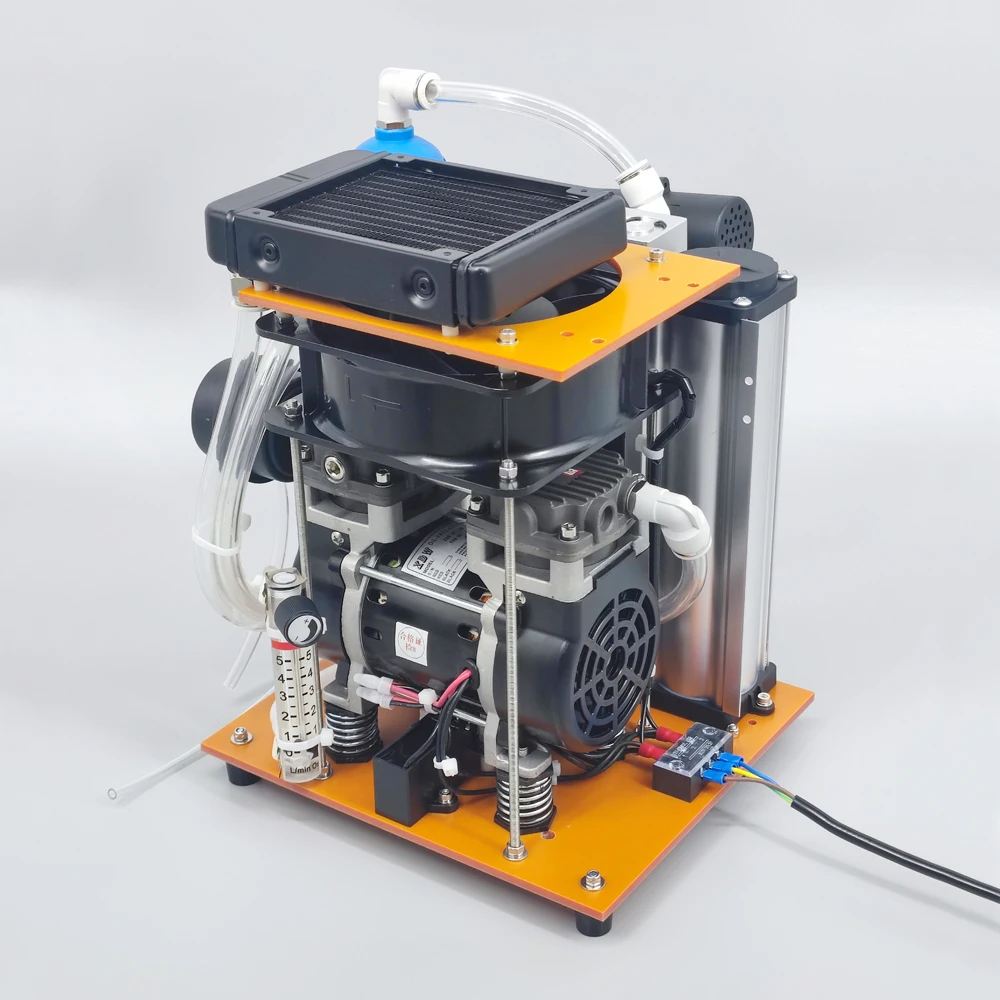

Product picture: (when you get the oxygen machine, please connect the power cord, then it will be able to produce high concentration of oxygen)
.
.
.
.
.
.
.
.
.
.
.
.
.
