Product Description

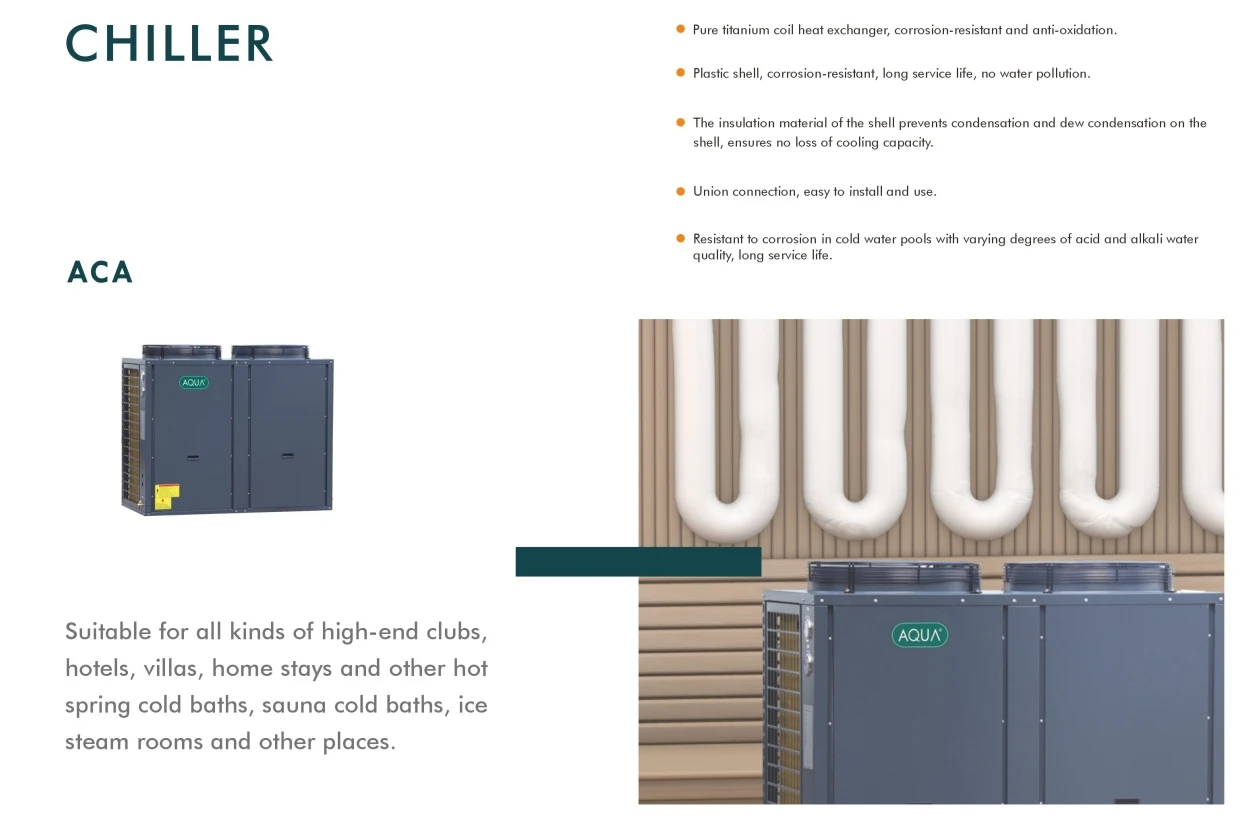

CHILLER ACA
Suitable for all kinds of high-end clubs,hotels, villas, home stays and other hot spring cold baths, sauna cold baths, ice steam rooms and other places.
- Pure titanium coil heat exchanger, corrosion-resistant and anti-oxidation.
- Plastic shell, corrosion-resistant, long service life, no water pollution.
- The insulation material of the shell prevents condensation and dew condensation on the shell, ensures no loss of cooling capacity.
- Union connection, easy to install and use.
- Resistant to corrosion in cold water pools with varying degrees of acid and alkali water quality, long service life.

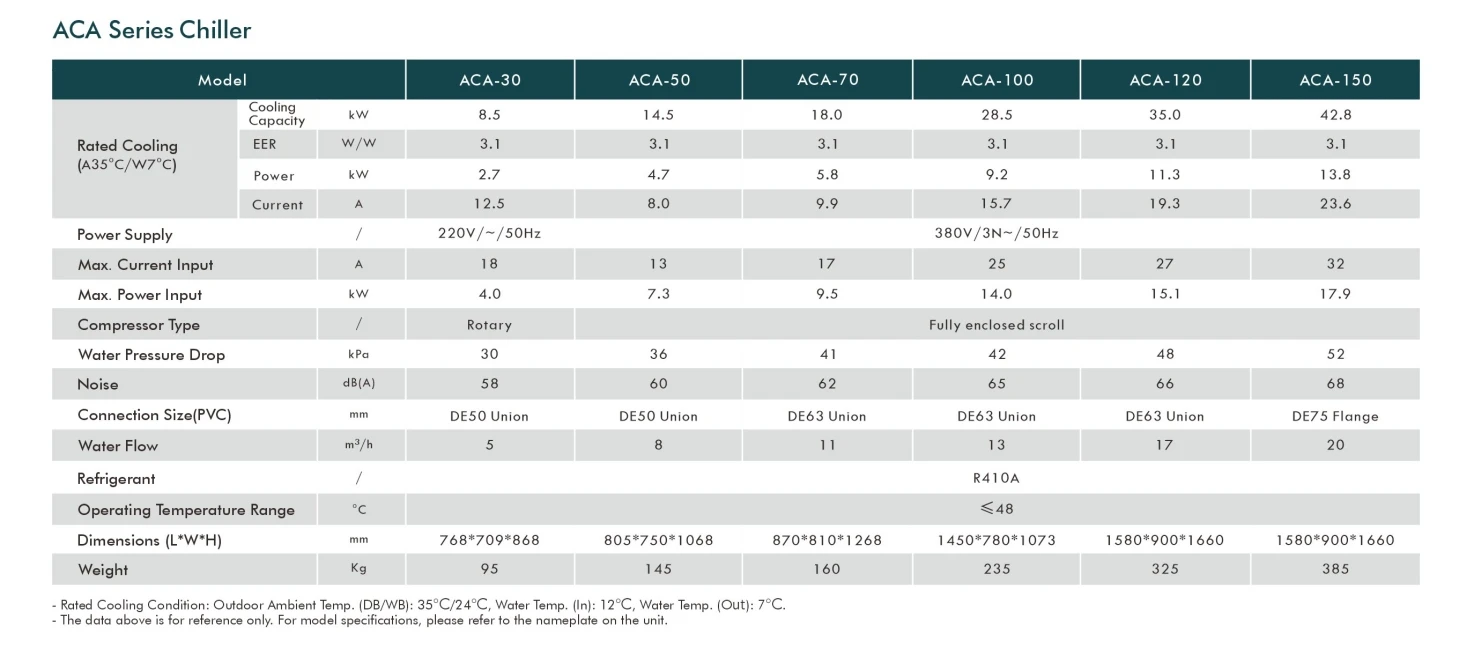

Model | ACA-30 | ACA-50 | ACA-70 | ACA-100 | ACA-120 | ACA-150 | ||
Rated Cooling (A35℃/W7℃) | Cooling Capacity | KW | 8.5 | 14.5 | 18.0 | 28.5 | 35.0 | 42.8 |
EER | W/W | 3.1 | ||||||
Power | KW | 2.7 | 4.7 | 5.8 | 9.2 | 11.3 | 13.8 | |
Current | A | 12.5 | 8.0 | 9.9 | 15.7 | 19.3 | 23.6 | |
Power Supply | / |
|
| 380V/3N~/50HZ |
|
| ||
Max.Current Input | A | 18 | 13 | 17 | 25 | 27 | 32 | |
Max.Power Input | KW | 4.0 | 7.3 | 9.5 | 14.0 | 15.1 | 17.9 | |
Compressor Type | / | Rotary | Fully enclosed scroll | |||||
Water Pressure Drop | KPa | 30 | 36 | 41 | 42 | 48 | 52 | |
Noise | DB(A) | 58 | 60 | 62 | 65 | 66 | 68 | |
Connection Size(PVC) | MM | DE50 Union | DE63 Union | DE75 Flange | ||||
Water Flow | M3/H | 5 | 8 | 11 | 13 | 17 | 20 | |
Refrigerant | / | R410A | ||||||
Connection Temperature Range | ℃ | <=48 | ||||||
Dimensions(L*W*H) | MM | 768*709*868 | 805*750*1068 | 870*810*1268 | 1450*780*1073 | 1580*900*1660 | ||
Weight | KG | 95 | 145 | 160 | 235 | 325 | 385 | |
