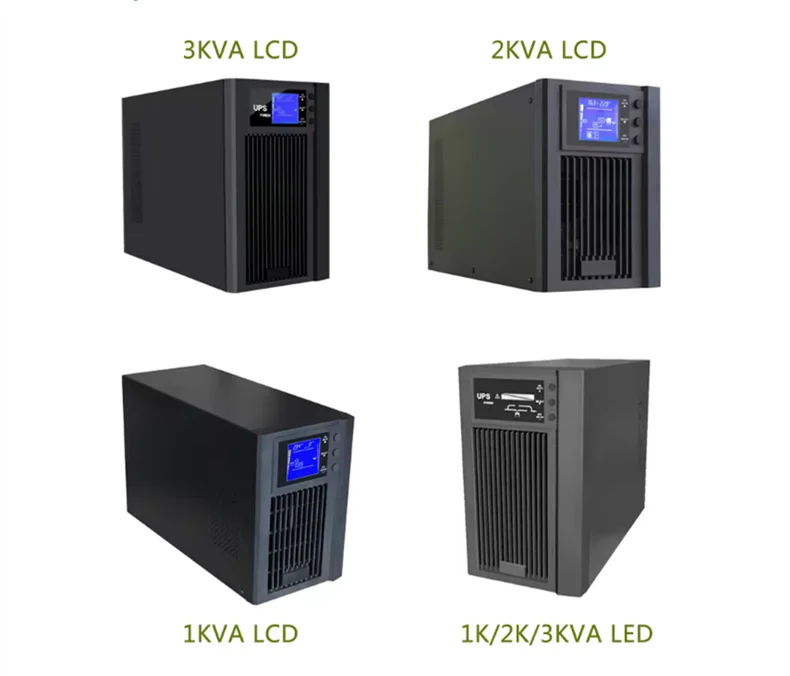

LA ECSUN 1KVA 2KVA 3KVA Online UPS резервная батарея Система бесперебойного питания с интеллектуальным слотом

Описание и отзывы

Характеристики

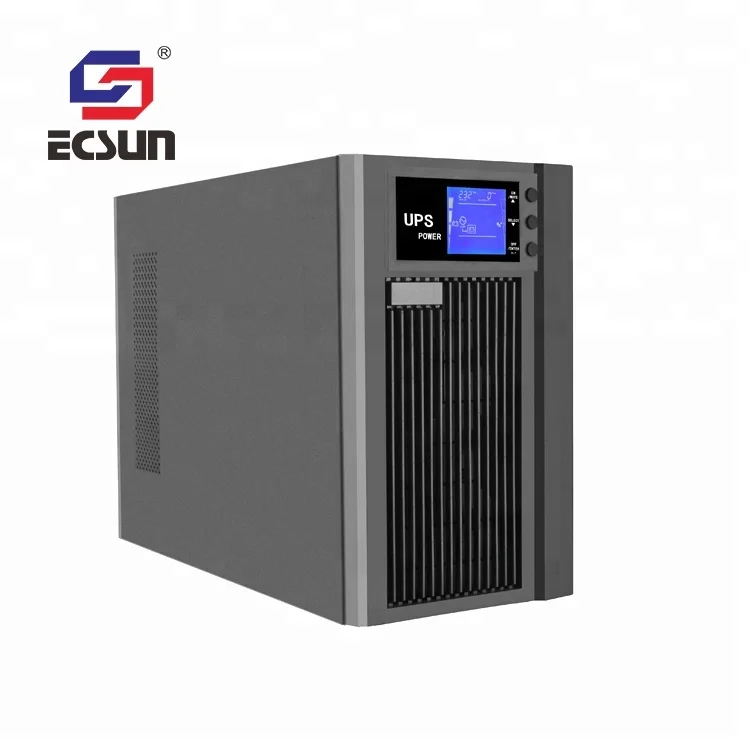

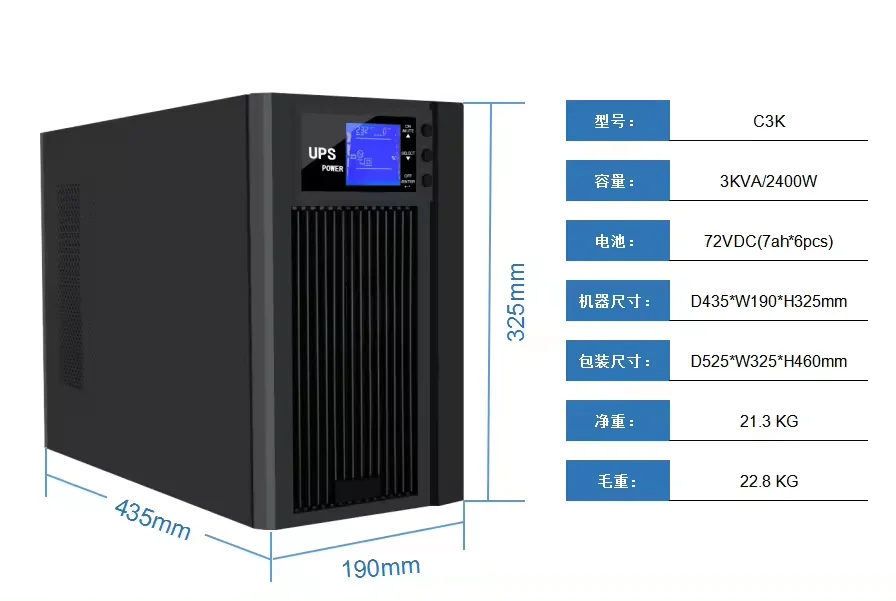

LA ECSUN 1KVA 2KVA 3KVA Online UPS Backup Power Battery Uninterrupted Power Supply System with Intelligent Slot SNMP













Product  Feature

• Advanced DSP digital control technology


• enables UPS’s performance more stable and quality  more superior


•  Load power factor is 0.8, adaptive for the development trend of electrical


• Equipment and the load capacity is more strong;


• Active input power factor correction (PFC), input power factor is over 0.98;


• Wide input voltage and frequency range, adaptive for extreme adverse grid


• Environment of remote areas;


• It can be  connected with generators;


• Zero transfer time effective ensures  the safety and relability of load operation.

Technical Parameters

Online Ups 1KVA/ 0.8KW/0.9KW
MODEL		C1K
Specification		Single Phase In & Out
Rated output capacity		1KVA/0.8KW/0.9KW
Rated	Rated voltage	220VAC
AC input	Input voltage range	115-300VAC±5
	Input frequency range	(45-55)±0.5Hz
	bypass voltage	80VACx(1±5%)-285VACx(1±5%)
Battery Input	battery group voltage	72V
	battery method	Internal 12V 7ah x 2PCS
	backup time(half/full)	half load≥10 minutes,full load≥5minutes(standard)
	maximum input current                     when power on	<150% of rated current
	battery charging time	5hours can charge to 90%(standard)
AC output	Output voltage	220VAC±1%(invert output)
	Output frequency	50±5Hz(when AC input is normal)50Hz±1% (when ac inout is abnormal )
	wave form	sine wave  THD<3%( linear load) sine waveTHD<8(Nonlinear load)
	output power factor	0.8
	Overload ability	130% load lasting not less than 30s,Recovery point is 90% load
	Output current peak coefficient	3:01
	Transfer time between                    AC and Battery	0ms

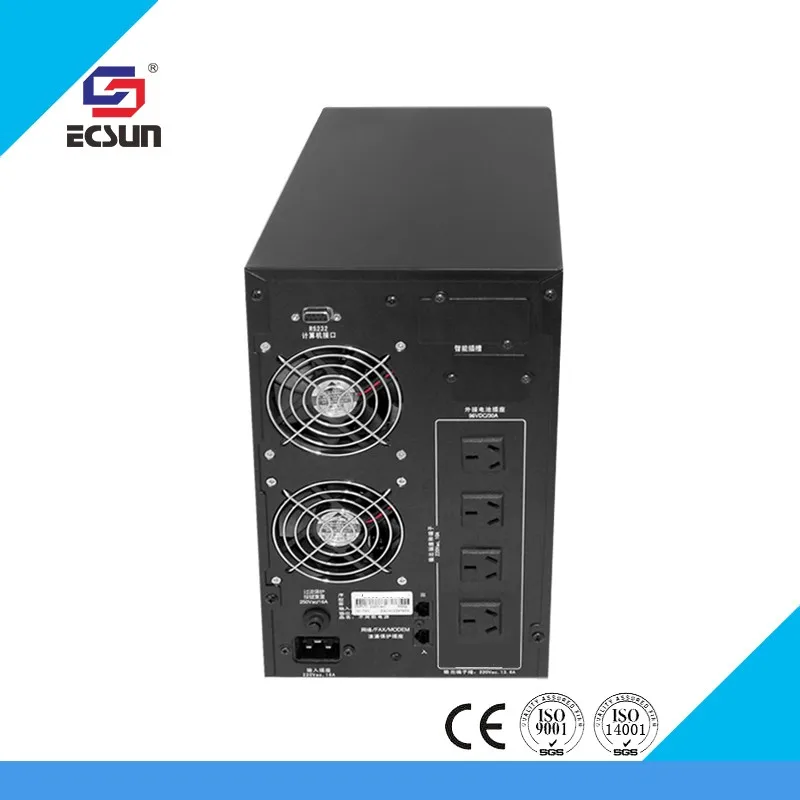

Communication and monitoring functions		RS232(can transfer to 485,Dry node,Smart slot(can expand to SNMP,SMS and other monitoring methods)
Tower	N.W(KG)	8.7
	G.W(KG)	10.5
	Unit Size(W X H X D)mm	28*14.4*22.2
	Carton Size(W X H X D)mm	48*33*36
Business Terms
Production ability		200 Piece/Pieces per Day
Delivery time	Sample delivery time	2 days
	Order delivery time	21 days
Delivery port		SHENZHEN
Application area		Widely used in financial, telcom, govenment, traffic, manufacture, education etc.
Certification		ISO9001, ISO14001, CE, ROHS
