Мини Wi-Fi-маршрутизатор 12 В постоянного тока литиевая батарея источник бесперебойного
- Категории: >>>
- Поставщик: Zhongyi,Technology,(shenzhen),Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
POE 12v dc mini wifi router lithium battery ups poe ups uninterruptible power supply
Main Features

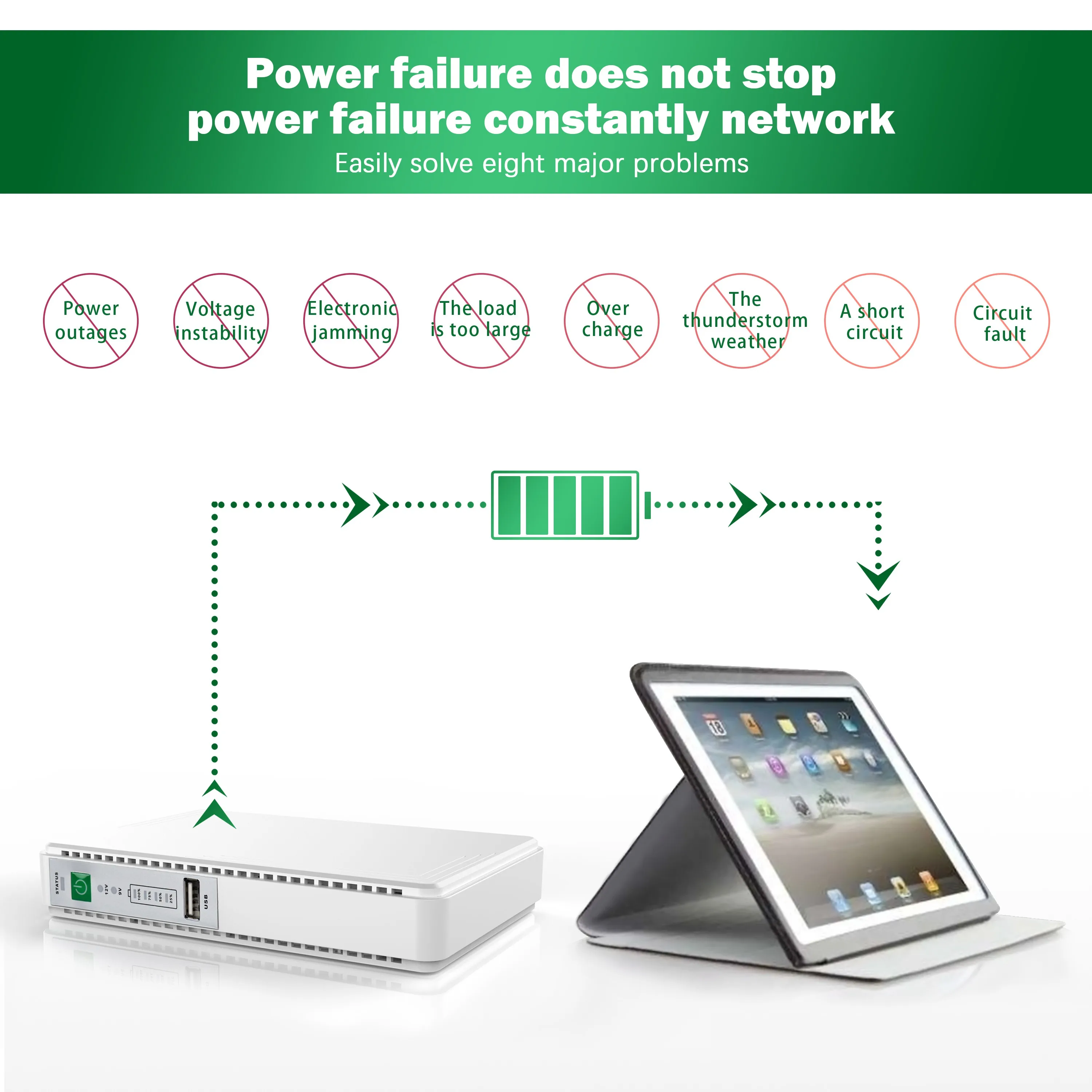

1)High capacity lithium battery, provides long backup to the loads.
2)High compatibility, suitable for most digital products in the market.
3)Power Over Ethernet(POE) can transmit the data and power at the same time to simplify wire set.
4)Intelligent circuit design with over-charging,over discharging and shortcircuit protections.
5)Built-in adapter allows wide AC voltage range(100-240Vac).
6)Auto restart
Product Description
Specifications
| Model | POE1788L | ||
| Related working voltage | 100-240Vac/50-60Hz | ||
| Output power (Max.) | 17W | ||
| Output | USB interface | DC interface | POE interface |
| Output voltage (selectable | 5Vdc | 9Vdc/12Vdc | 5Vdc/24Vdc |
| Output polarity | NA |  | +4,5pins-7,8pins |
| Output power & current (in common) | 1.0A/5W | 1.0A/12W | +4,5pins-7,8pins |
| Qty.& Capacity of battery | 2200mAh*4 | ||

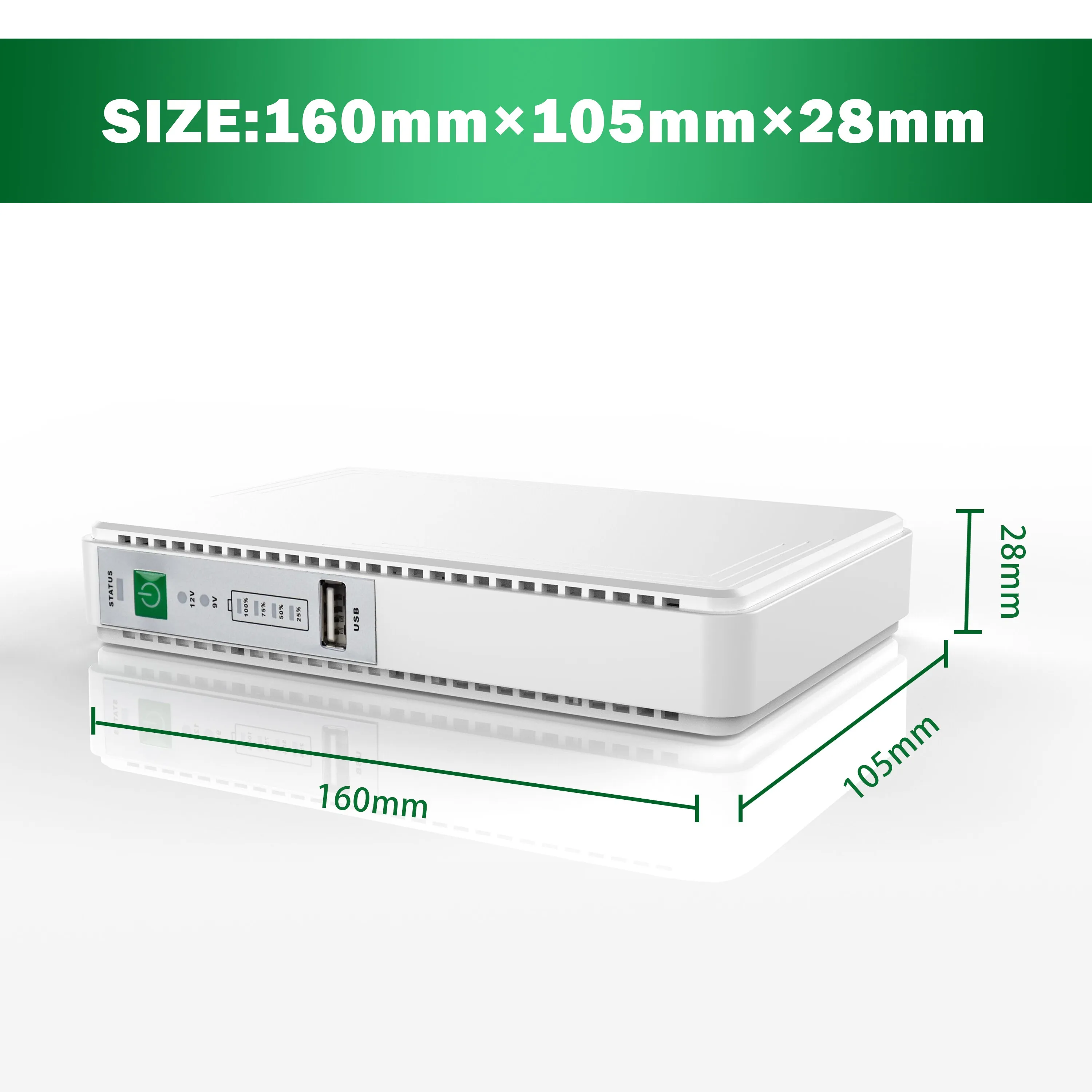

| Unit dimension(mm) | 160*105*28 | ||
| Net weight(kg) | 0.4 | ||

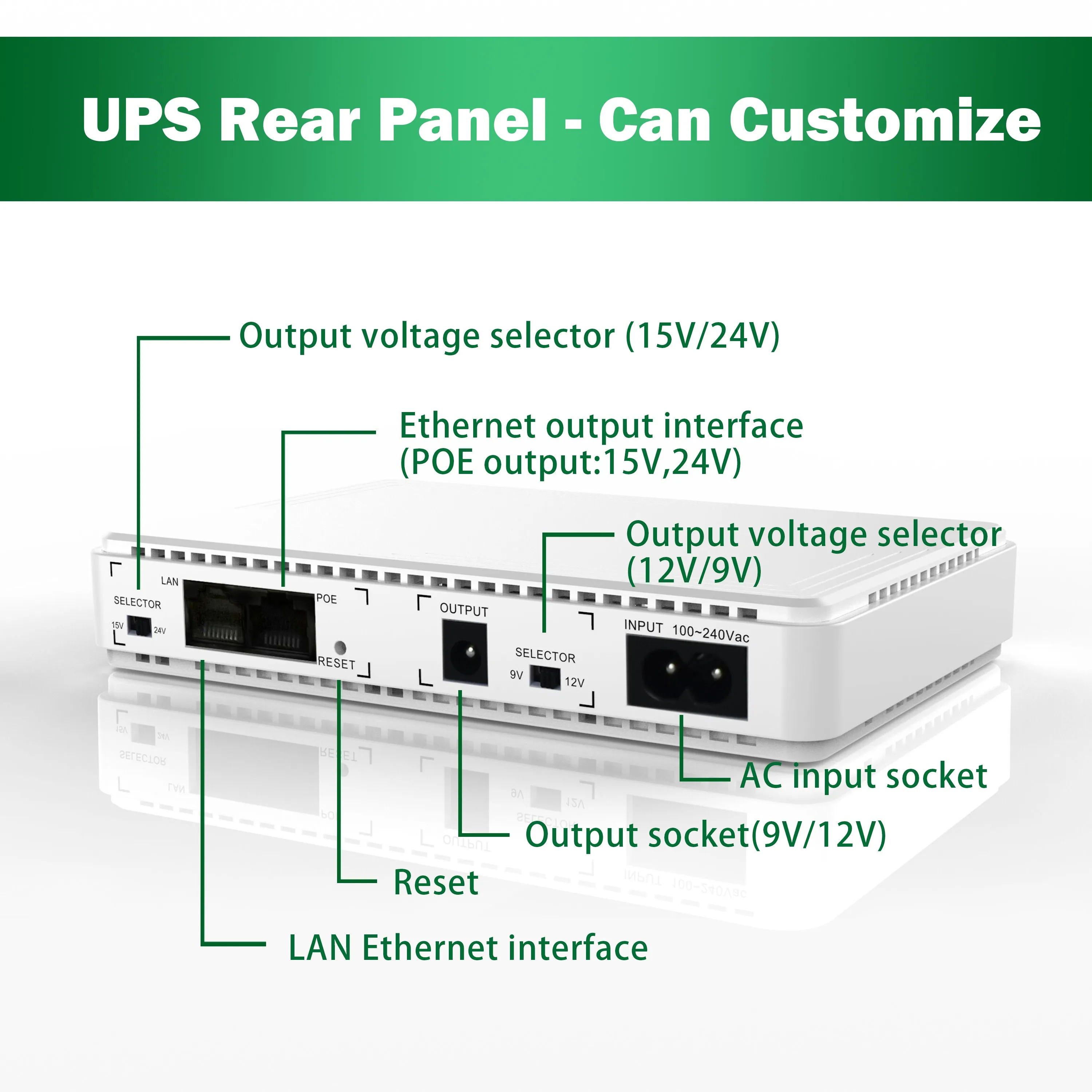

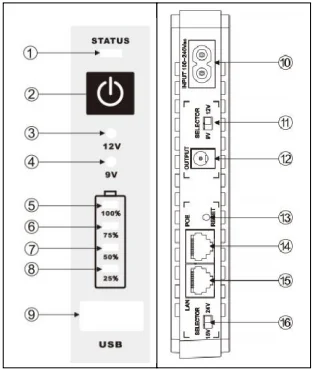

Products Details

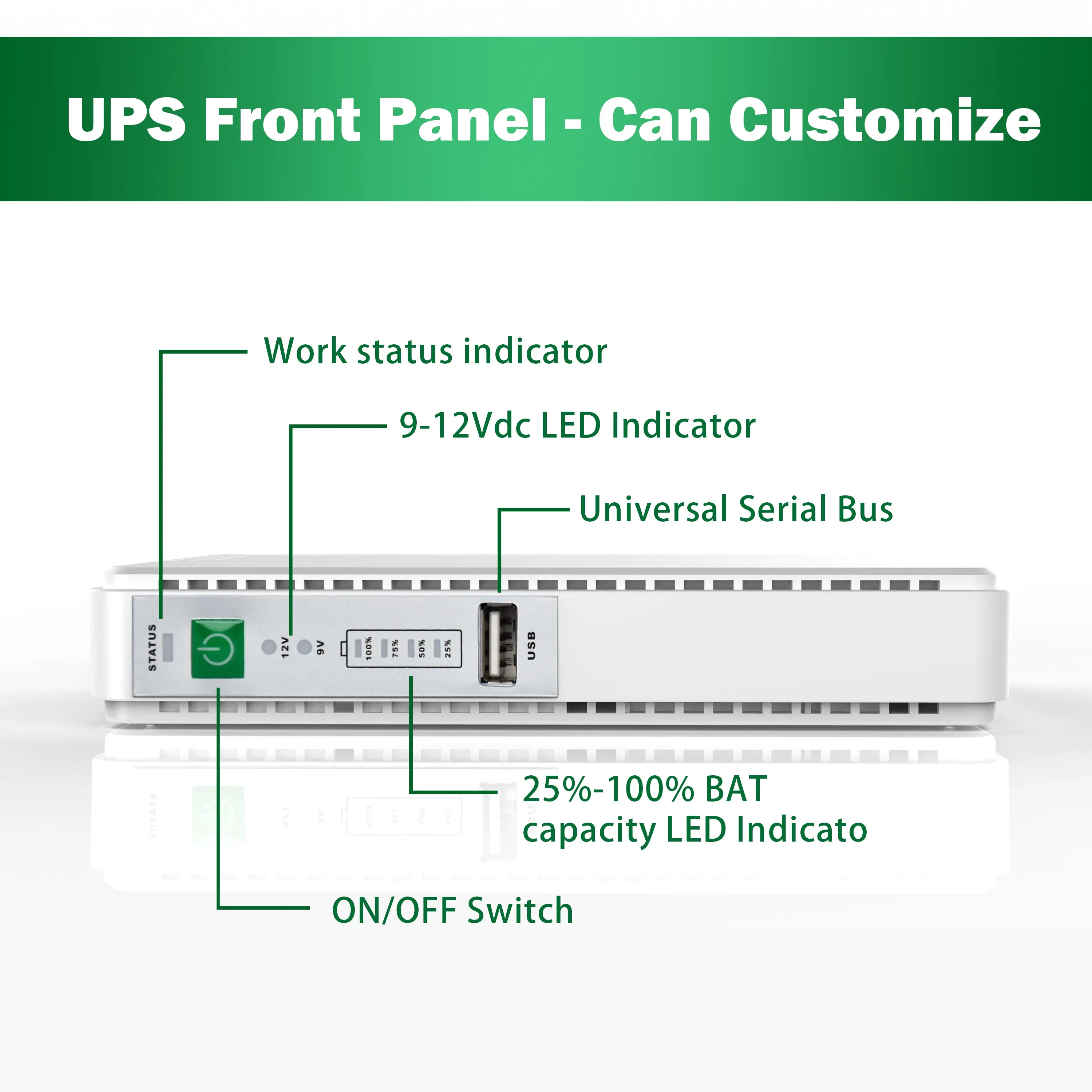

1). Work status indicator 2). ON/OFF Switch
3). 12Vdc LED Indicator 4). 9Vdc LED Indicator
5). 100% BAT capacity LED Indicator 6). 75% BAT capacity LED Indicator
7). 50% BAT capacity LED Indicator 8). 25% BAT capacity LED Indicator

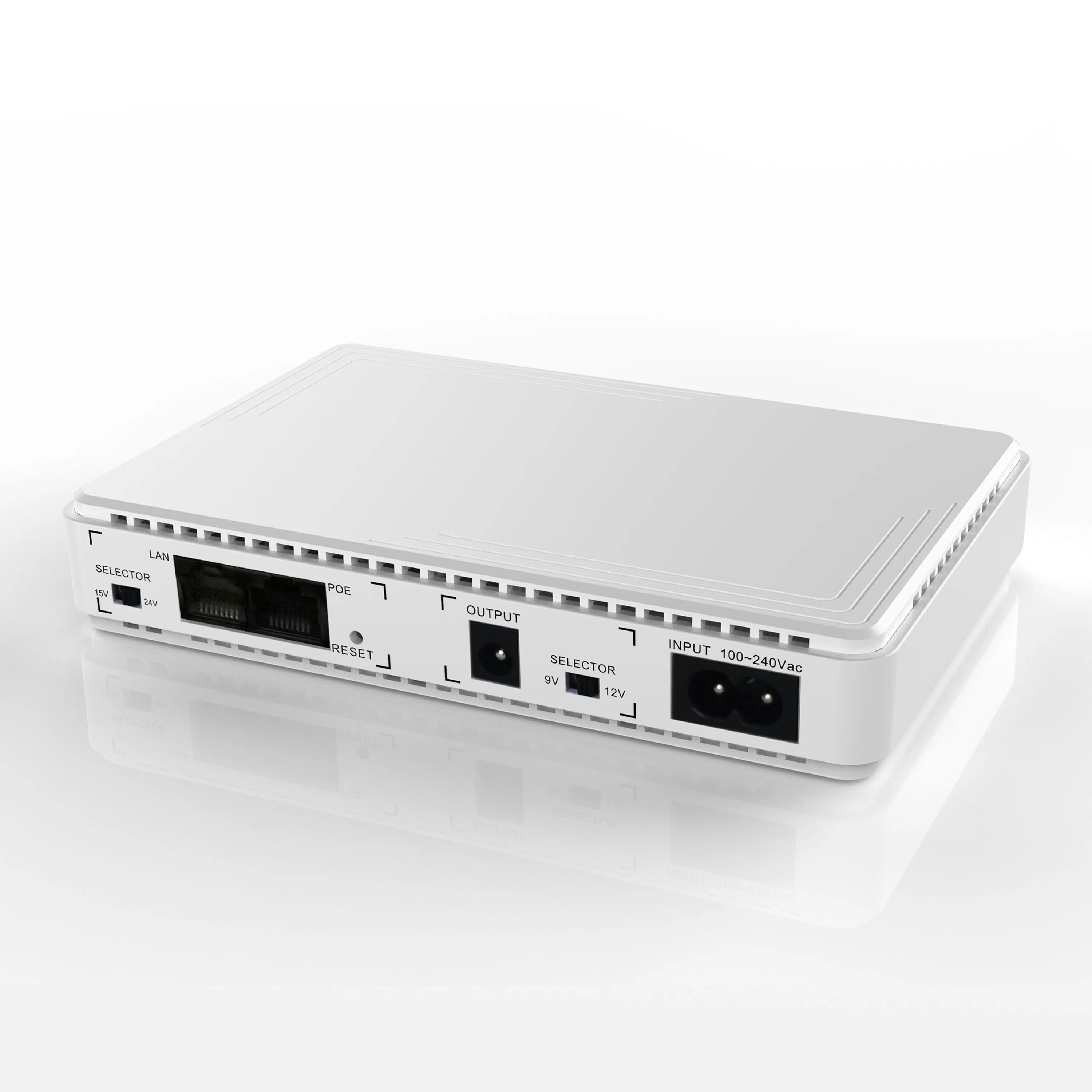

9). USB (5Vdc) output 10). AC input socket
11). Output Voltage Selector(9V/12V) 12). Output socket(9V/12V)
13). Reset Button for POE Devices 14). Ethernet output interface(POE output:15V, 24V)
15). LAN Ethernet interface LAN 16) Output Voltage Selector (15V/24V)
FAQ
1. 100% OEM/ODM manufacturer / factory in UPS and Inverter industry? ---Yes, completely
2. Logo can be printed on the ups?---Yes
3. Color box can be customized? ---Yes
4. Small Order can be accepted? ---Yes, but the prices are different. Generally, MOQ:500 pieces
5. Waveform of your line interactive ups? ---Simulated sine wave or Modified sine wave
6. Waveform of your online ups? ---Pure sine wave
7. How about the quality? ---Top 10 in Shenzhen, China
8. Leading time? ---Sample: 2 days; mass order: 22 days
As technology updating and raw material price fluctuating day by day, we are not able to update price in Alibaba Platform daily, NEW NICE OFFER PLS ASK FROM US DIRECTLY.
