Глобальный производитель кранов HAOY подъемный 7 тонн автокран телескопический манипулятор
Глобальный производитель кранов HAOY подъемный 7 тонн автокран телескопический манипулятор
Глобальный производитель кранов HAOY подъемный 7 тонн автокран телескопический манипулятор
Глобальный производитель кранов HAOY подъемный 7 тонн автокран телескопический манипулятор
Глобальный производитель кранов HAOY подъемный 7 тонн автокран телескопический манипулятор
Глобальный производитель кранов HAOY подъемный 7 тонн автокран телескопический манипулятор
Глобальный производитель кранов HAOY подъемный 7 тонн автокран телескопический манипулятор

Глобальный производитель кранов HAOY подъемный 7 тонн автокран телескопический манипулятор


Поделиться:

Цена:8 900,00 $ - 10 500,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

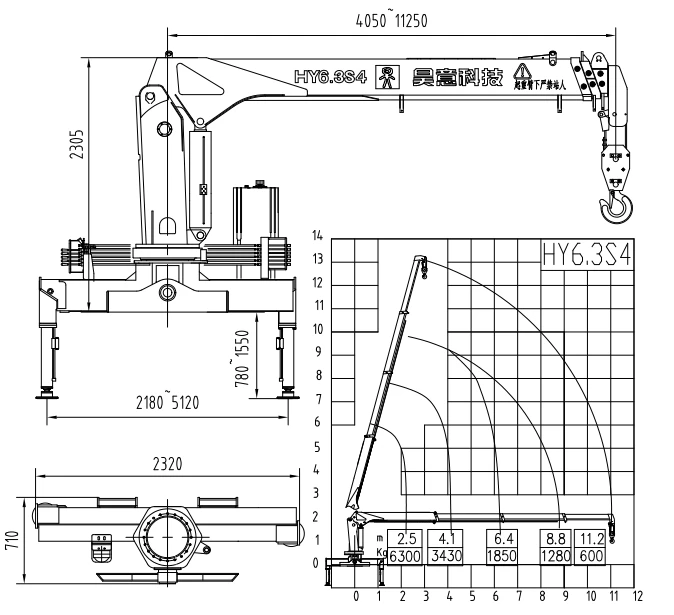

Item
Unit
HY6.3S4
Max.Lifting Moment
Ton.M
15.7
Max.Lifting Capacity
Kg
6300
Max.Working Radius
m
11.2
Max.Working High
m
12.8
Slewing Angle
°
360°Full Slewing
Installation Space
mm
920
Qutrigger Span
mm
5120
Crane Self Weight
Kg
2200
Aerial Working High
m
15.5
Rated system pressure/fow
MPa/L/min
20/40






Cable Agency
42CrMo alloy structural steel,galvanized to prevent rust, high strength and corrosion resistance
Hydraulic Rotary Joint
Low Torque High Speed Long Life Hydraulic Pipeline Can Rotate
360° Infinitely
Copper Based Bushing
Oil-free copper-based casing.Good wear resistance, not easy to deform and crack, long service life


Overwinding Protector
The automatic limiter is sensitive
and reliable, protecting the
wire rope and hook
Hydraulic Cylinder
Adopt Combined Sealing, Resistant To High Temperature, Low Temperature, Moisture and Corrosion
Swing Drive
Simple Dtructure, Small Size, Strong Sarrying Sapacity, Sigh Srecision and Reduced Failure Rate


Three Point Bridge Bracket
The three-point bridge bracket protectsthe truck girder from even stress and will not deformation.
High Quality Balancing Valve
Original Imported Balance Pressure, Adjust Flow, Good Sealing,
Reliable and Durable
Remote Control
Wireless remote control
operation,strong anti-interference
ability distance up to 100 meters




















1) How many years of your factory?
We have 13 years production and nearly 10 years experience, we exported to more than 50 countries & regions. And we are a manufacturer specialized in truck crane,pickup crane,aerial platform truck,marine crane.

2) Which kind of payment you can be accepted?
Normally both of T/T & L/C at sight are ok for us.Alibaba trade assurance,credit card,western union.

3) How about the delivery time?
20-40 working days after received 30% T/T or L/C.70% balance payment before shipping.

4) What's your warranty?
Normally is 1 year, if large quantities we can negotiate.We will mail the accessories to you for free if have
problems within one year.

5) What's your MOQ?
MOQ: 1 set

6) Can you accept OEM service?
Yes for sure my friend.We provide logo,package,customized,and also can customized the product according to your requirements.

7) Optional Attachment?
Remote Control, Basket, Auger, Grapple, Top Seat, Rear Legs
