Легкий микро струйный всасывающий Магнитный приводной насос циркуляционный масляный для деталей печатной машины 40 Вт BLDC
- Категории: >>>
- Поставщик: Zhuhai,Chenhui,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Product Paramenters

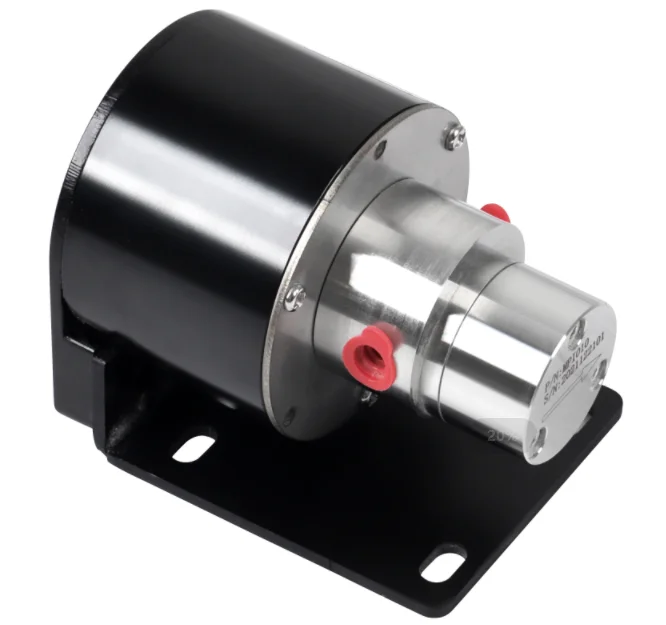

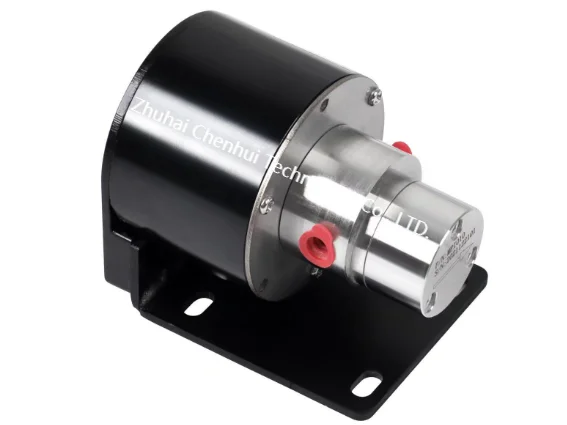

Light Weight Micro Inkjet Suction Magnet Drive Pump Ink Oil Circulation Gear Pump For Printing Machine Parts 40W BLDC Motor
Model | MPC | 010 | B | A | A | A | 24V | 40W | ||||||
Position | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | ||||||
1 | Pump Series | MPB: Rubber O-Ring Seal MPC: PTFE gasket seal MPD: Direct Drive (non-magnetic) | ||||||||||||
2 | Flow | 0-1L/min | ||||||||||||
3 | Pump Body | A:304； B:316L C:PPS D:Hastelloy | ||||||||||||
4 | Gear/Shaft | A: Gear PEEK+ shaft 316L B: Gear PEEK+ shaft ceramic C: Gear PEEK+ shaft tungsten steel | ||||||||||||
5 | Inlet/Outlet Thread | A: G1/8 B: G1/4 C: 3/8 D: 1/2 E: 3/4 F: 1 "G: 1 1/4", H: other customzations; (Letter: tooth) 1:25.4 2:34 3:38 4:50.5 5:649: Other customizations (Number: Chuck) | ||||||||||||
6 | Motor | A：BL( DC Brushless Motor) B：DC(DC Brushed Motor) C：SM(Stepper Motor) D：SVCA（Servo Motor） E：ACIM （3 Phase Asynchronous Motor) F：ACIMB （Explosion -Proof 3 Phase Asynchronous Motor） G：BLB （Explosion-Proof Brushless DC Motor） | ||||||||||||
7 | Voltage | 24V / 48V / 220V / 380V | ||||||||||||
8 | Power | 30W/40W/60W/70W/80W/100W/110W/150W/200W/250W/300W/370W/400W/550W/750W/1000W | ||||||||||||
Technical Parameters
Medium viscosity range | 0-3000cps | ||||||
Medium temperature | -30℃-120℃ | ||||||
Pressure difference | 0-15Bar | ||||||
Type of medium | Almost all liquids except strong acids and bases | ||||||
Inlet filter | Recommended 4000mesh | ||||||
Inlet vacuum | -0.85Bar | ||||||
Drive Motor | 40w DC brushless | ||||||
Working noise | 4000rpm<60dB | ||||||
Working speed | 0-4500rpm | ||||||
Motor Parameters | ||
Power | 40w | |
Electric current | 2A | |
Voltage(V) | 24V | |
Rev/min | 4500RPM | |
Product Features
MPC010-40W DC Brushless Micro Magnetic Drive Gear pump adopt drive integrated motor to run stably, with a controller to achieve accurate control, long lifetime. Motor and drive integrated design, brushless driver integrated in the end of the motor, there are inlet and outlet water in the same side and different sides of the two models, the use of shaftless motor, smaller volume, flexible and convenient installation, can work stably in a small space.
1. No pulse accurate delivery
Through the gears to provide continuous accurate fluid transportation. with servo motor and stepper motor delivery accuracy of +/-0.5%.
2. Strong vacuum suction capacity High and Stable Conveyance Pressure
High conveying pressure and smooth Operation High pressure delivery in low viscosity liquids.
3. No leakage
Magnetic drive and static O-ring seal can ensure that the medium in the pump is isolated from the outside world to achieve no leakage.
4.Long Lifespan
High-performance and precision technology, advanced craftsmanship to extend its operational lifespan.
Through the gears to provide continuous accurate fluid transportation. with servo motor and stepper motor delivery accuracy of +/-0.5%.
2. Strong vacuum suction capacity High and Stable Conveyance Pressure
High conveying pressure and smooth Operation High pressure delivery in low viscosity liquids.
3. No leakage
Magnetic drive and static O-ring seal can ensure that the medium in the pump is isolated from the outside world to achieve no leakage.
4.Long Lifespan
High-performance and precision technology, advanced craftsmanship to extend its operational lifespan.
5.FKM sealing ring structure seal, high temperature, corrosion resistance, acid and alkali resistance.
6.Low noise,High efficiency and energy saving

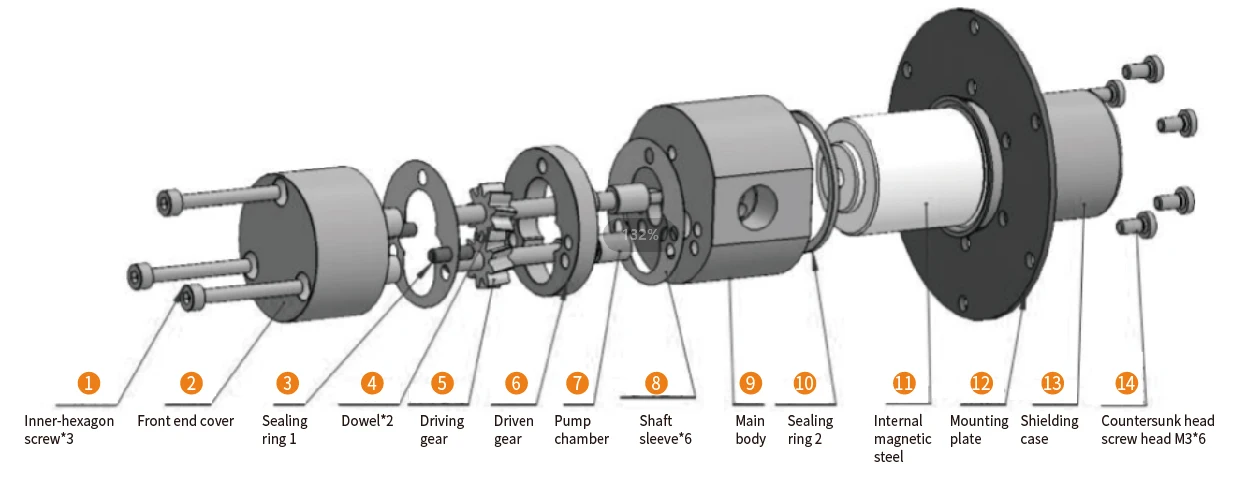

1 | Inner-hexagon screw*3 | 2 | Front end cover | 3 | Sealing ring 1 |
4 | Dowel*2 | 5 | Driving gear | 6 | Driven gear |
7 | Pump Chamber/ Pump body | 8 | Shaft sleeve*6 | 9 | Main body |
10 | Sealing ring 2 | 11 | Internal magnetic steel | 12 | Mounting plate |
13 | Shielding case | 14 | Countersunk head screw head M3*6 |
Main Applications:
Widely used in Laser Cooling Instrument testing; Coffee machine;Food processing; Fine chemistry; Packaging machinery; inkjet printer; Medical treatment and medicine; Agricultural spraying other more fields.
Company Profile

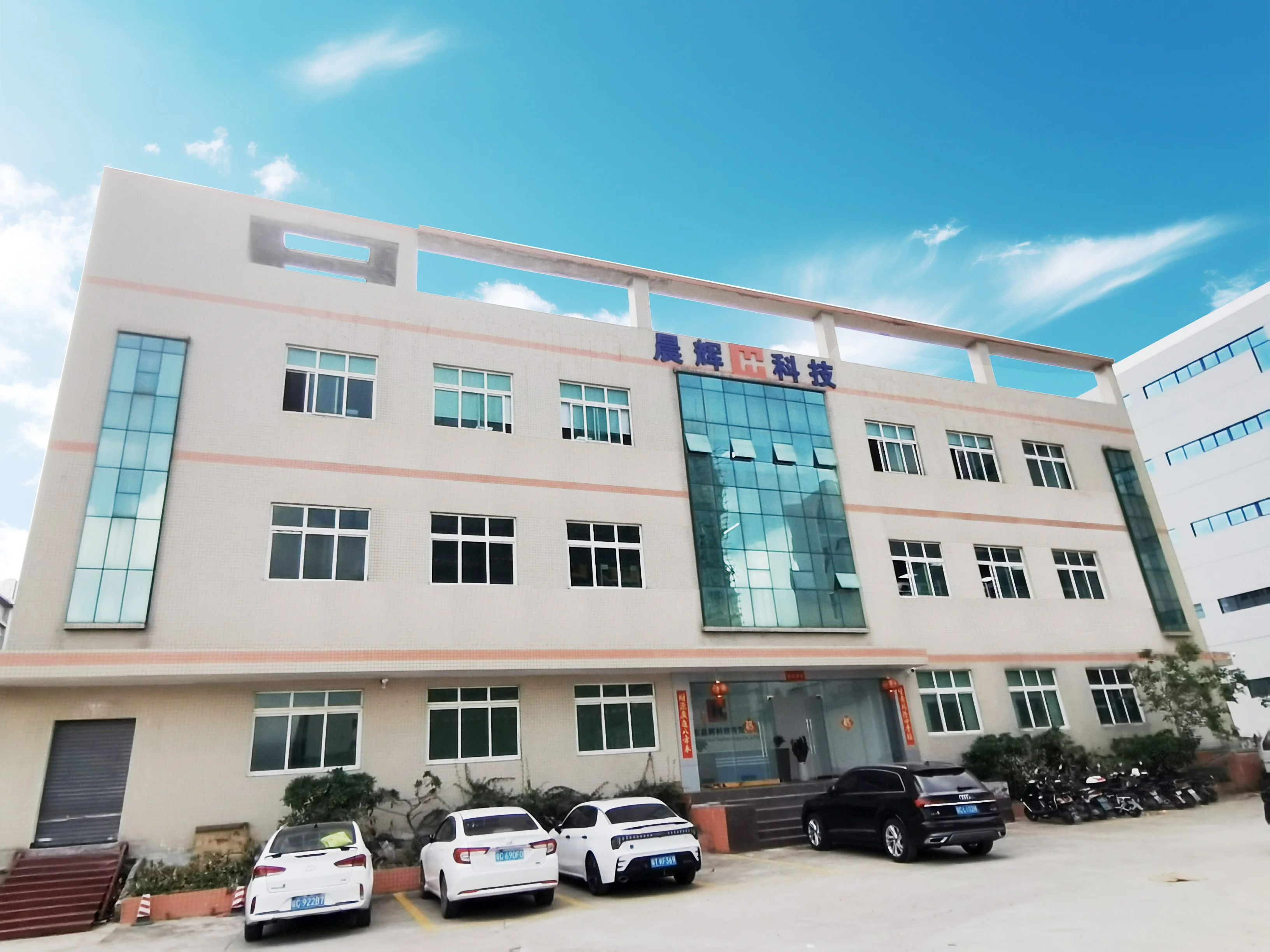

CHENHUI Technology Co., Ltd., located in the of Zhuhai, hailed as the "City of Hundred Islands." Our production and R&D base is located in the Jinwan District, covering an area of over 4000 square meters. With 8 fluid experts and over 20 technical staff, we are a Chinese leading manufacturer of gear pumps.
Our magnetic gear pumps are widely used in various fields, including critical industries such as medical equipment (blood dialysis machines, medication mixing devices), chemical manufacturing (steam engines), the food and beverage sector (beverage filling equipment, coffee machines), printing industry (printing presses, inkjet printers), and the new energy automotive industry (lithium battery injection equipment, methanol fueling equipment), etc.
We have a comprehensive production system that includes precise machining of components, meticulous gear processing, and dedicated motor production（90% of the parts and 100% of the core components are produced by ourselves. Almost complete self-sufficiency. This ensures self-sufficiency at every stage. By adhering to rigorous inspection standards throughout the production process, we not only uphold the highest levels of product quality but also deliver cost-effective solutions and ensure timely product delivery for our customers.Our mission is to continually pursue technological innovation and excellence in quality, and we are committed to providing our customers with professional, stable fluid technology solutions.
Our magnetic gear pumps are widely used in various fields, including critical industries such as medical equipment (blood dialysis machines, medication mixing devices), chemical manufacturing (steam engines), the food and beverage sector (beverage filling equipment, coffee machines), printing industry (printing presses, inkjet printers), and the new energy automotive industry (lithium battery injection equipment, methanol fueling equipment), etc.
We have a comprehensive production system that includes precise machining of components, meticulous gear processing, and dedicated motor production（90% of the parts and 100% of the core components are produced by ourselves. Almost complete self-sufficiency. This ensures self-sufficiency at every stage. By adhering to rigorous inspection standards throughout the production process, we not only uphold the highest levels of product quality but also deliver cost-effective solutions and ensure timely product delivery for our customers.Our mission is to continually pursue technological innovation and excellence in quality, and we are committed to providing our customers with professional, stable fluid technology solutions.
Certifications
Product packaging
FAQ
1.what is your MOQ?
No MOQ, Welcome to how many quantity.
2.How to pay?
We accept Paypal, Western Union, T/T, cAlipay, Ali Assurance Order Payment, Webmoney ,USD Bank Account ect.
3.What is your delivery time?
It depends on your order quantity; it usually takes 7-20days upon receipt of full payment.
4.Can you offer OEM and ODM?
Yes,we can provide OEM and ODM service to meet any of your needs
5.What is your terms of payment?
T/T, Full payment before shipment
6.Can I get free sample?
Yes,We can negotiate about samples
7.Sample time?
Within 7 days
Within 7 days
