Products Description
Strong MgO Floor board
The MgO Floor Board is popular in US, CA, AU, NZ, and European Marketing. Customers using it as subflooring or floor underlayment, because of A1 grade fireproof, high bending strength (19 mm can over 25 Mpa), termite resistance, mildew&mold resistance and waterproof.
Type Mgo Floor Board | Pure Sulfate Premium Sanding Floor board |
Mainly Raw Material | Grade A Magnesium Oxide, Grade A Magnesium Sulphate |
Mainly Filling Material | Bamboo powder,,Perlite filling Water content is lower,flexible(toughness) ,its not easy make mould |
Main size | 610/600mm*2440 and 1220*3000; the main thickness are16mm 18mm and 19/20mm. |
Density | 1250kg/m3 |
For the color | The most popular color is White or gray , other color are also available |
For the load test, the test data is as follows | Concentrated failure load: 450mm joist centers: 3.6KN Uniformly distributed failure load: 450mm joist centers: 5kn |

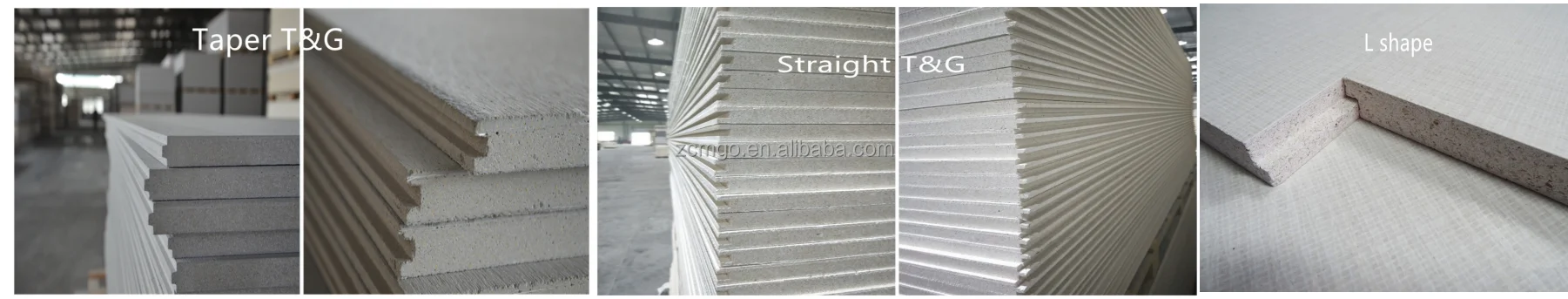

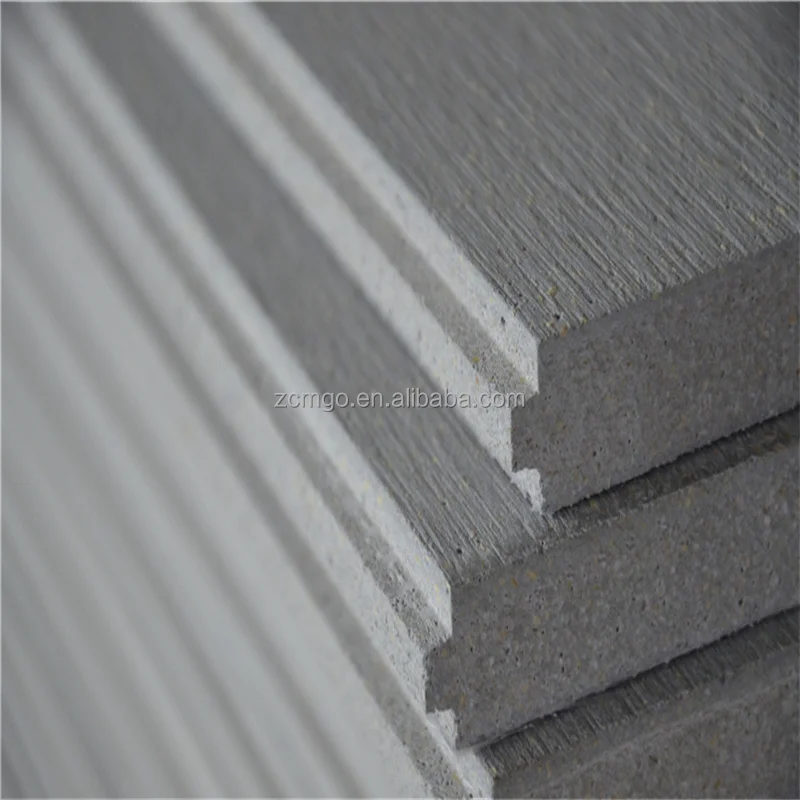

Floor Board Edge type
1.)Shiplap(L type) edge;
2.)90 degrees T & G;
3.)Tapered T & Groove.
For the tapered T & G, we developed in 2018, now USA customers and Australian customers very like this Tapered T & G. they only need this kind of edge. Compared with the 90 degrees T & G, The tapered T & G advantage is that since the shape is a trapezoid, one side is small, the outside is bigger, so the bending strength is better and the tongue is not easy to break.
2.)90 degrees T & G;
3.)Tapered T & Groove.
For the tapered T & G, we developed in 2018, now USA customers and Australian customers very like this Tapered T & G. they only need this kind of edge. Compared with the 90 degrees T & G, The tapered T & G advantage is that since the shape is a trapezoid, one side is small, the outside is bigger, so the bending strength is better and the tongue is not easy to break.

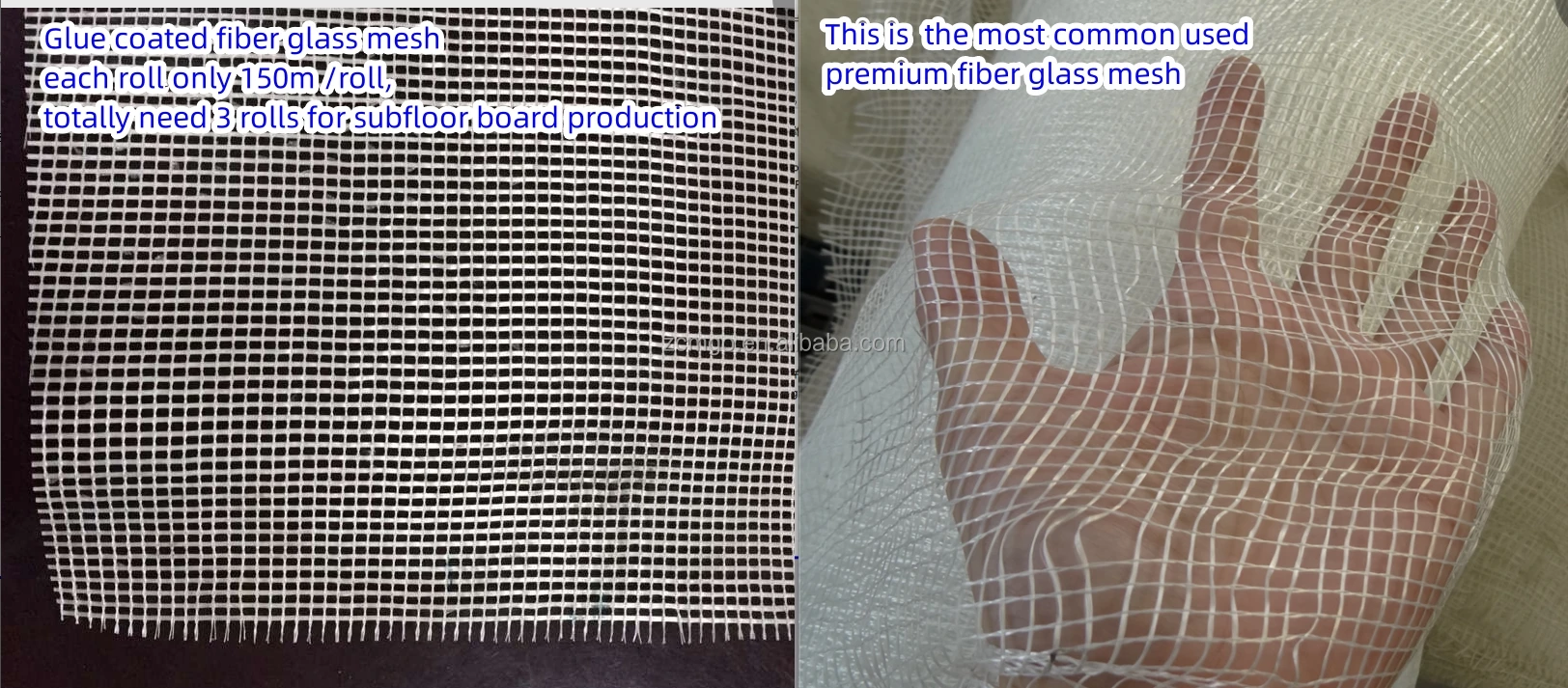

Use Glue Coating Fiber glass mesh
With Glue coating fiber glass mesh , the biggest advantage of Glue coated fiber glass mesh is that it's ageing resistant and very high strength, the quality will be same during 10 years.
1) Stronger – 16 mm MgO floorboards outperform typical 19 mm FC Floorboards and 19 mm MgO floorboards outperform typical 22 mm FC floorboards. Typical 19 mm FC floorboards have an average wet MOR (modulus of rupture) of ＞7 MPa. 16 mm MgO floorboards have a wet MOR ＞16 MPa. As a result, MgO floorboards can substitute thicker FC boards while still achieving a stronger floor solution.
2) Lighter – MgO floorboards are up to 7Kg lighter than equivalent, thicker FC floorboards. This results in easier handling and faster installation.
3) Cost Effective – By substituting thicker FC floorboards with thinner MgO floorboards, the builder can benefit from significant cost savings. Easier handling and faster installation will also reduce labor costs.
4) More Versatile – 16 mm and 19 mm MgO floorboards can be used internally, externally, and in wet areas. They can also be used for residential and light commercial applications. One board – multiple applications
5) Greener Production Process – MgO floorboards have significantly less embodied energy than FC boards.
6) Less Hazardous – FC boards contain high levels (up to 60%) of crystalline silica (CS). When inhaled as dust particles, CS is classified as a hazardous chemical. It can lead to silicosis and/or contribute to lung cancer. MgO boards contain only trace elements of CS which do not pose a health risk.
2) Lighter – MgO floorboards are up to 7Kg lighter than equivalent, thicker FC floorboards. This results in easier handling and faster installation.
3) Cost Effective – By substituting thicker FC floorboards with thinner MgO floorboards, the builder can benefit from significant cost savings. Easier handling and faster installation will also reduce labor costs.
4) More Versatile – 16 mm and 19 mm MgO floorboards can be used internally, externally, and in wet areas. They can also be used for residential and light commercial applications. One board – multiple applications
5) Greener Production Process – MgO floorboards have significantly less embodied energy than FC boards.
6) Less Hazardous – FC boards contain high levels (up to 60%) of crystalline silica (CS). When inhaled as dust particles, CS is classified as a hazardous chemical. It can lead to silicosis and/or contribute to lung cancer. MgO boards contain only trace elements of CS which do not pose a health risk.
Certifications
Different Type Mgo floor board

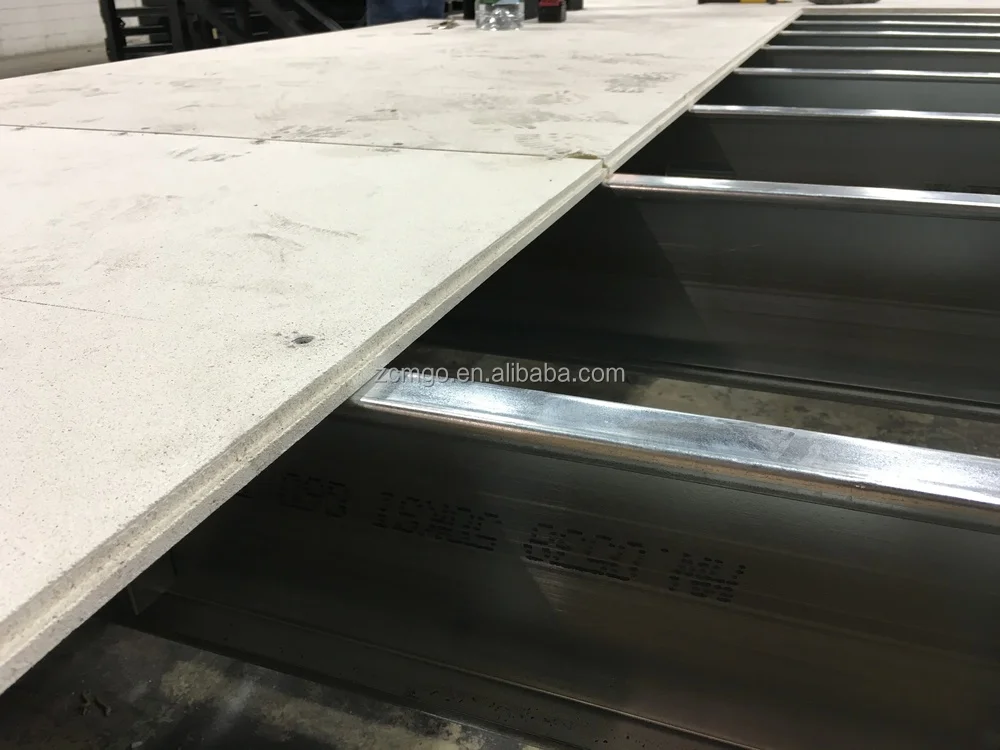

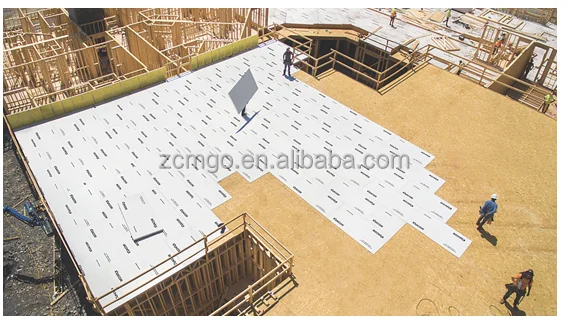

Subfloor Board
For floor board There are 2 types applicatio with different formula.
First type Subfloor is the upper part of the frame that carries the load, so there are requirements for strength.
Feature of this type board is High bending strength
For floor board, we mainly do 18mm and 19mm mgo floor board. The characteristic for 19mm mgo board= james hardie 25mm boards）
Underlayment -Sanding Type &Standard Type
Second type Underlayment is not always available, but is mainly used for isolation and leveling, and does not require too much strength.
The feature of this type board is no high requirement on bending strength ,some time it only as Fireproof insulation layer
For this function , we could provide 2 type with different cost
Why Choose Us
Strict Quality Control System
1. Before each batch of raw materials into the factory, laboratory test firstly, and make the quality report, If it is qualified
after the factory to use.

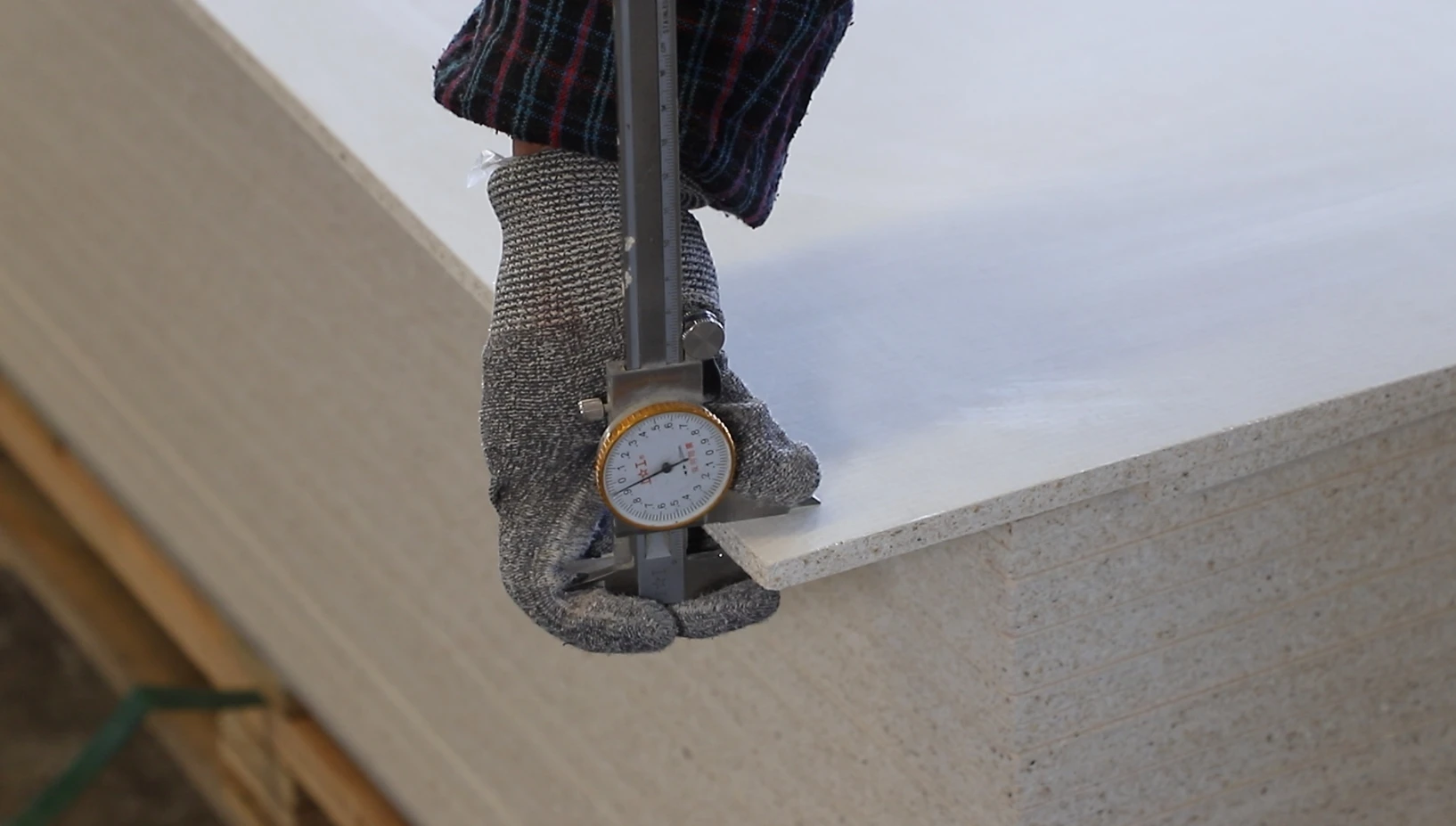

2. After the production, we will conduct sampling tests on boards, and carry out strict testing on the boards from various aspects
such as density, strength, hardness etc.to ensure that the pass rate of each batch of boards reaches 99.8 %.
after the factory to use.
2. After the production, we will conduct sampling tests on boards, and carry out strict testing on the boards from various aspects
such as density, strength, hardness etc.to ensure that the pass rate of each batch of boards reaches 99.8 %.
Experienced in customization Mgo Board
We could customize different specification MGO Board according to your using applications!
For example:
Our engineers will add some special additives into MGO board to increase the fireproof time of our board for Vietnam customer to
make the Fireproof Door Product!
For example:
Our engineers will add some special additives into MGO board to increase the fireproof time of our board for Vietnam customer to
make the Fireproof Door Product!

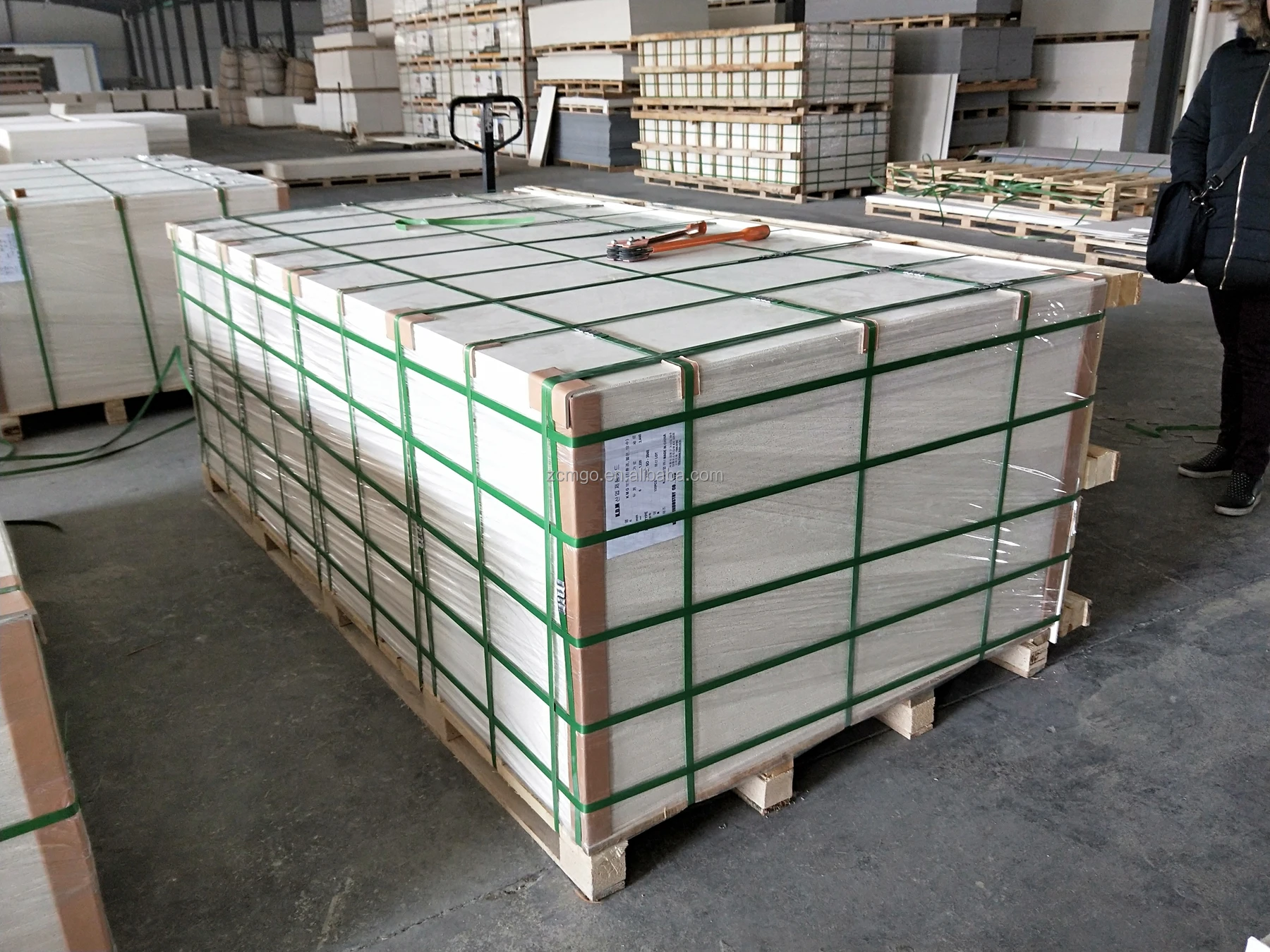

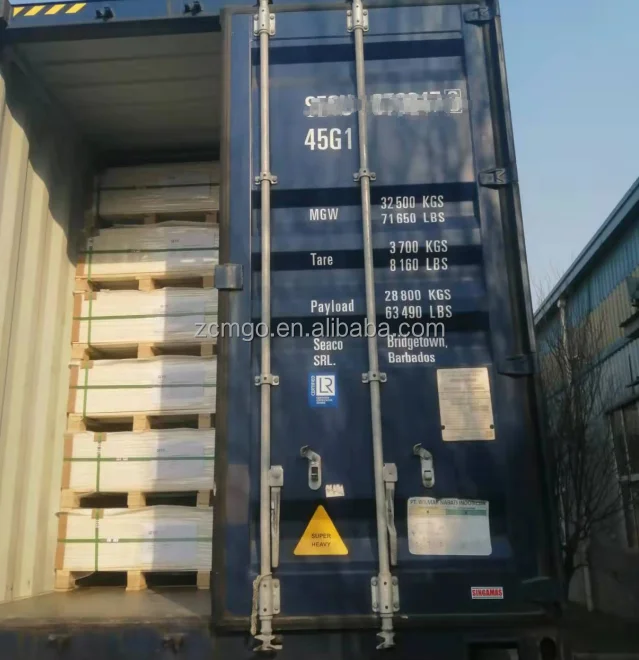

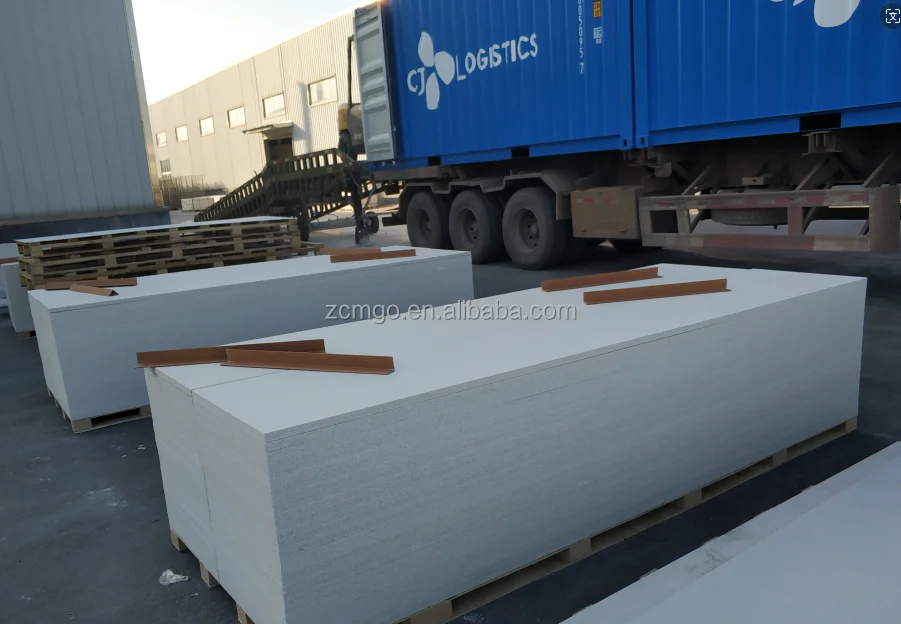

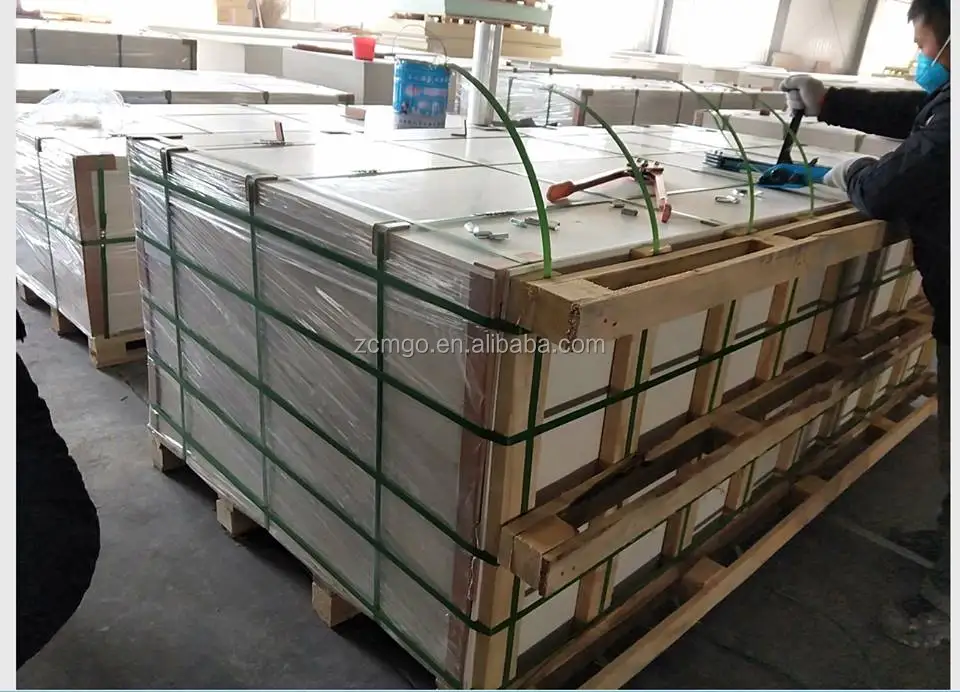

Packaging&Shipping
Before package, the board will be tested and inspected again by our lab and worker. Each of the board will be cleaned to make sure the board are clean and pick out any defect board.
We will use film to cover the pallets to avoid any mosiure during the transportation.
Use green PET package strapping - Bundle the boards and reinforce the pallets.
Quality Control System
Work with third party on factory Audit
Work together with any third party inspection and factory audit. Whole system in factory from raw materials to finished product,
to make sure the product are inspected and qualified.
to make sure the product are inspected and qualified.
Raw material Quality Control
after the factory to use.
Production Process quality control
We pay attention to each details of the production process , which are affecting the quality of the mgo board very much.

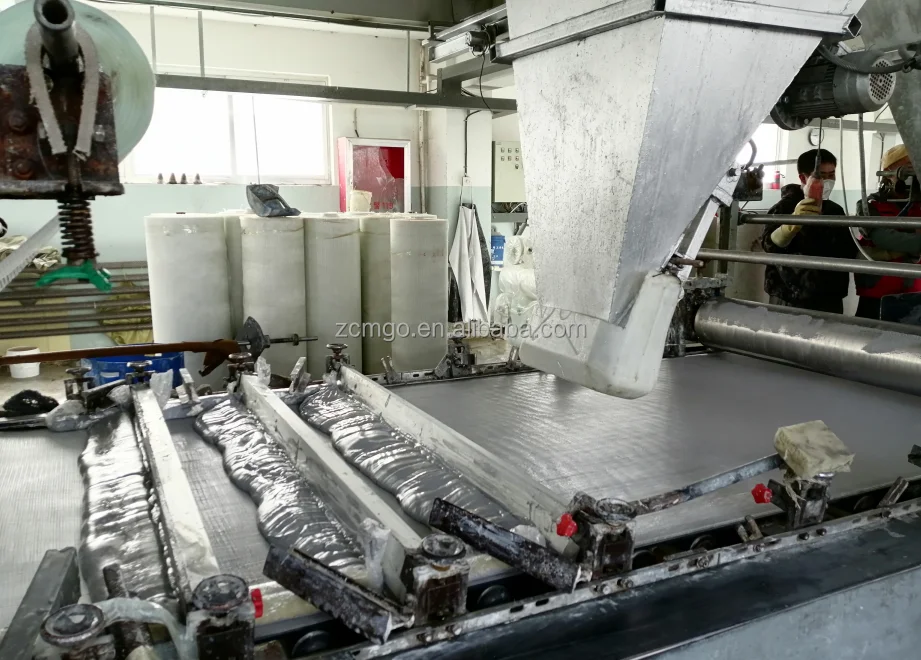

The production process could separate into 5 main sections. Raw materials metering and mixing, molding/forming process, curing/solidify process, cutting and sanding process, and the cleaning package process.
The production process could separate into 5 main sections. Raw materials metering and mixing, molding/forming process, curing/solidify process, cutting and sanding process, and the cleaning package process.

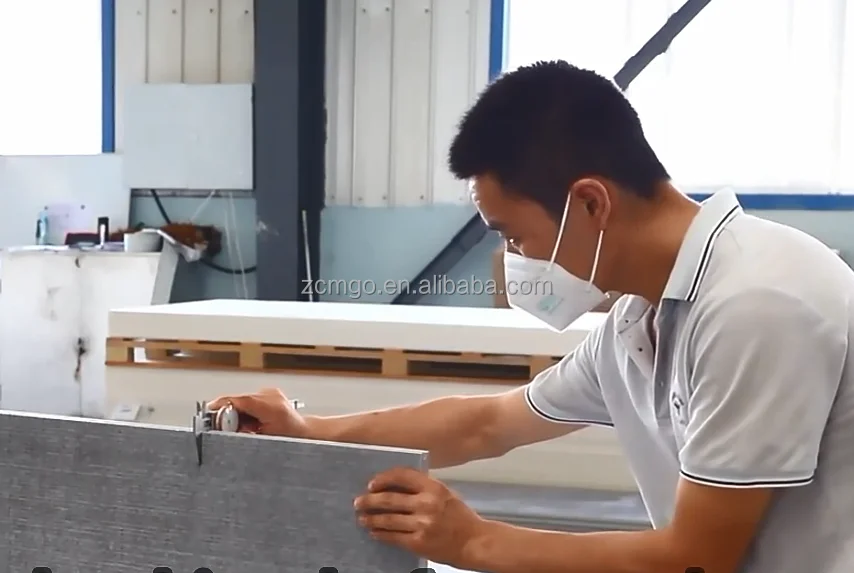

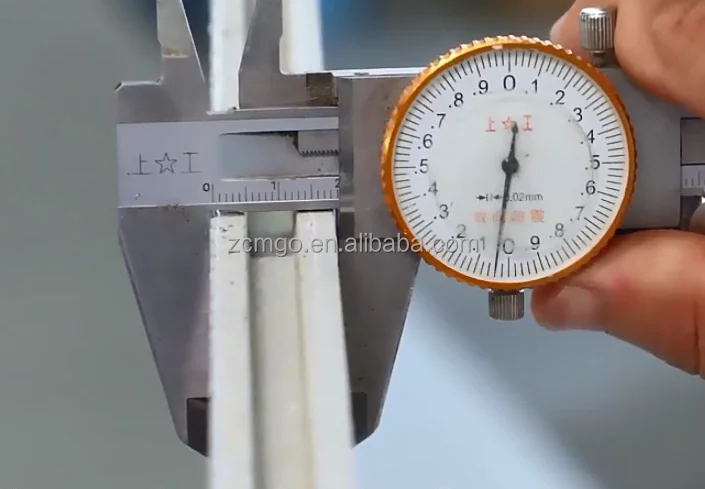

Finished Product Quality Checking
After the production of each batch of boards is completed, we will conduct sampling tests on this batch of boards, and carry out strict testing on the boards from various aspects such as density, strength, hardness etc.to ensure that the pass rate of each batch of boards reaches 99.8 %.

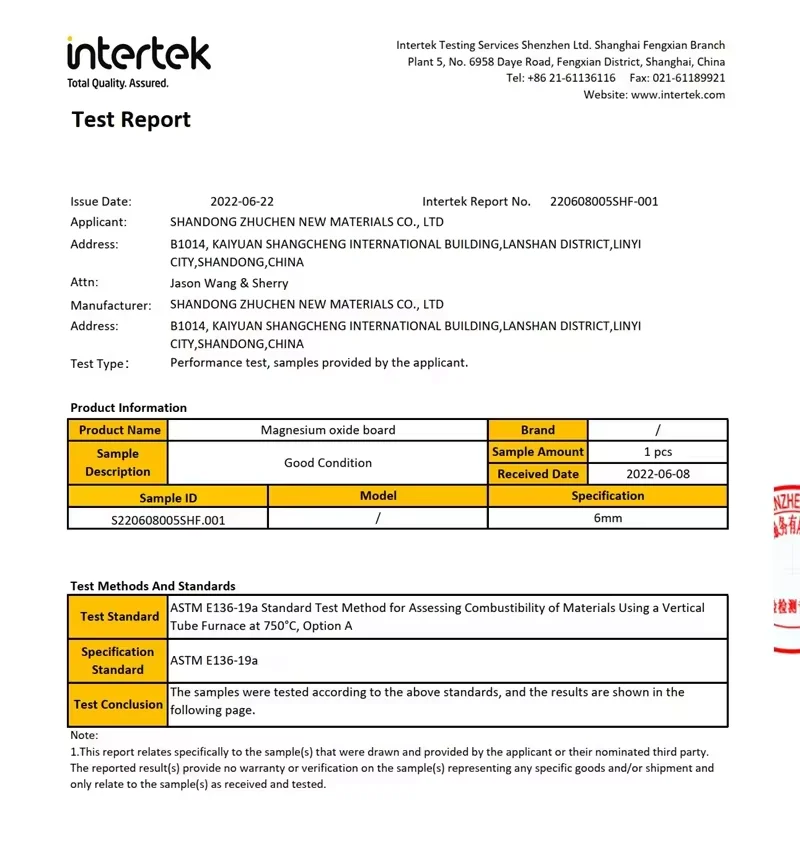

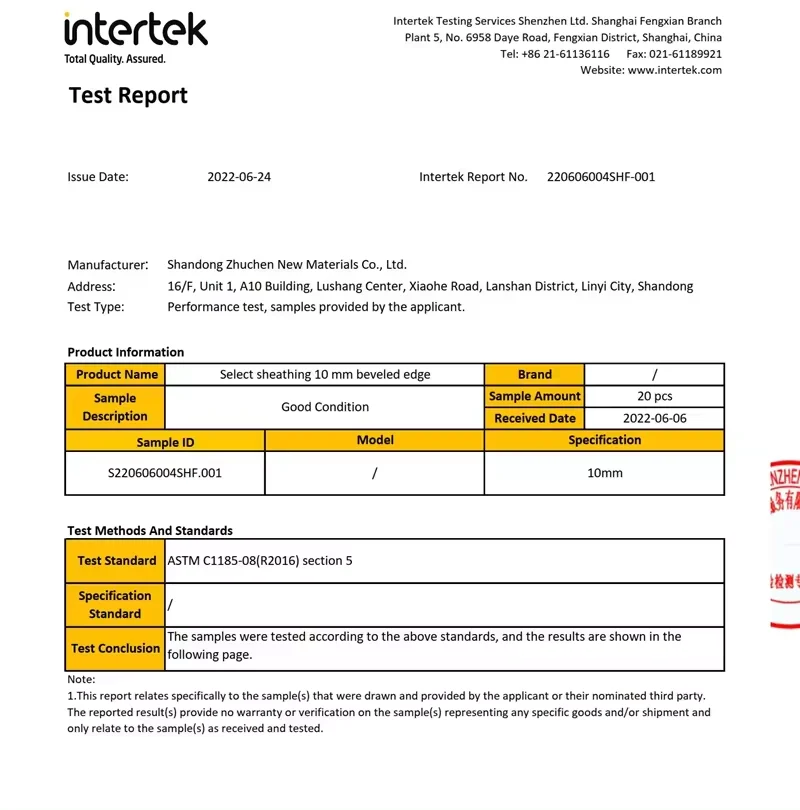

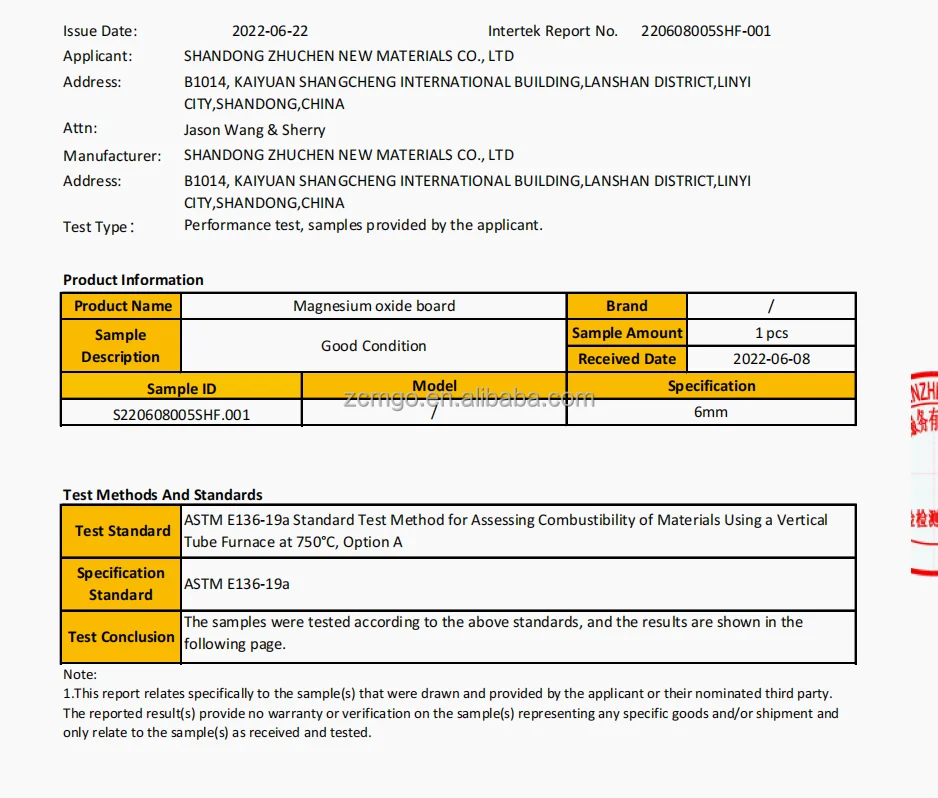

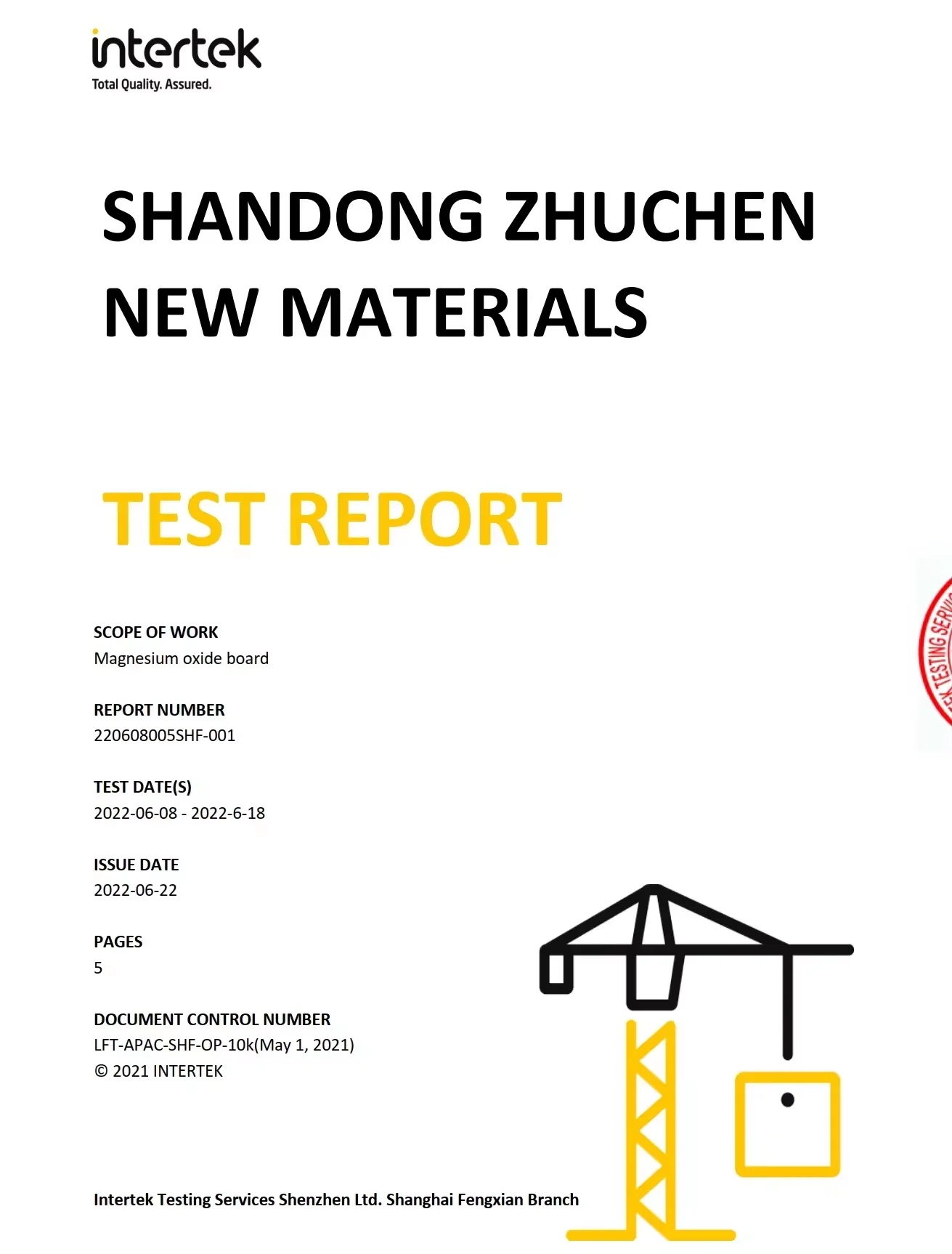

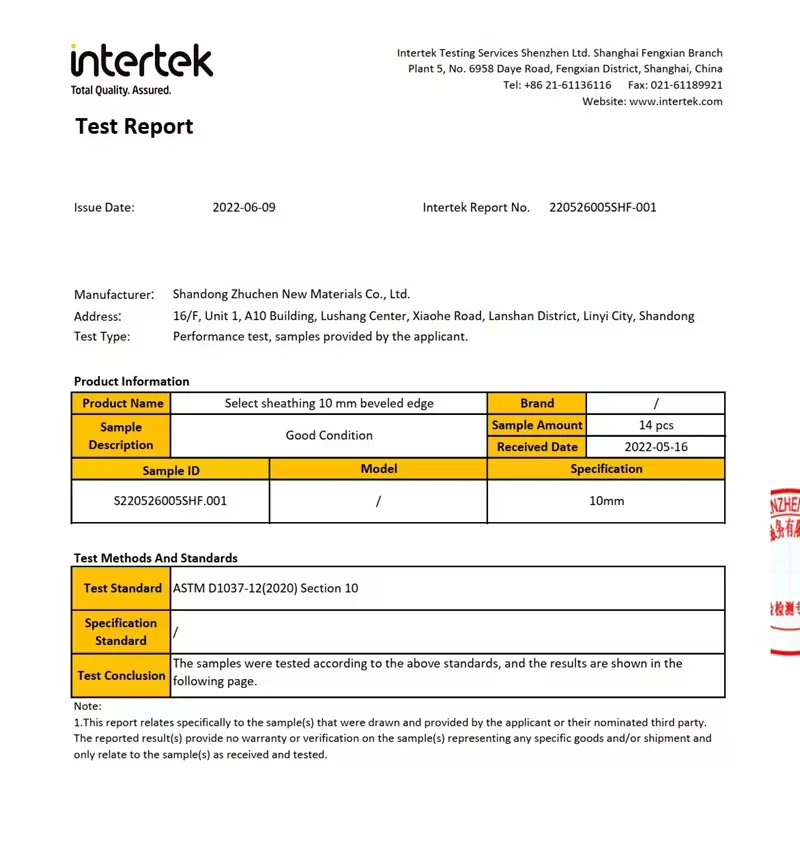

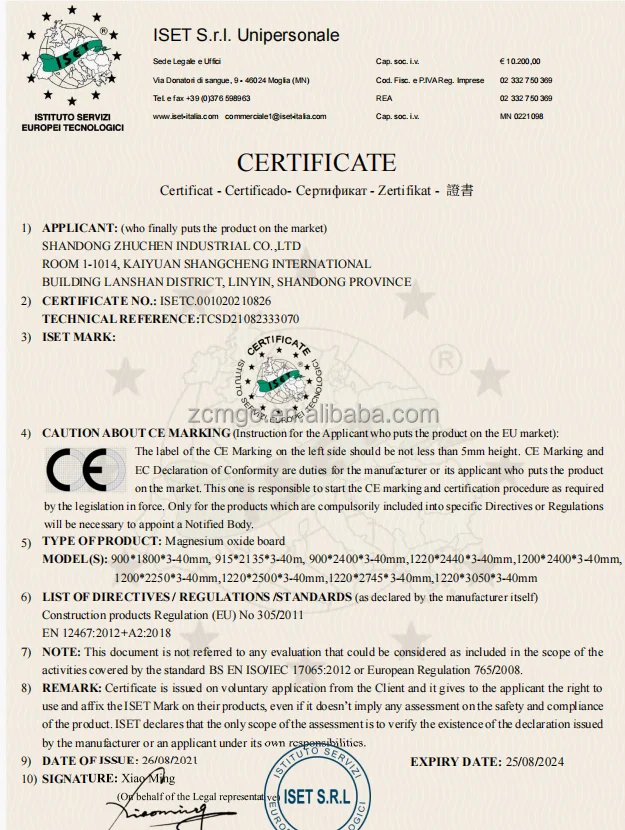

Certifications
For the certificate, we have Assist customers fo following certificate
European customer done the CE certificate,
USA customer UL certificate;
Canada customer Intertek and
Australia customer Code Mark certificate.
USA customer UL certificate;
Canada customer Intertek and
Australia customer Code Mark certificate.

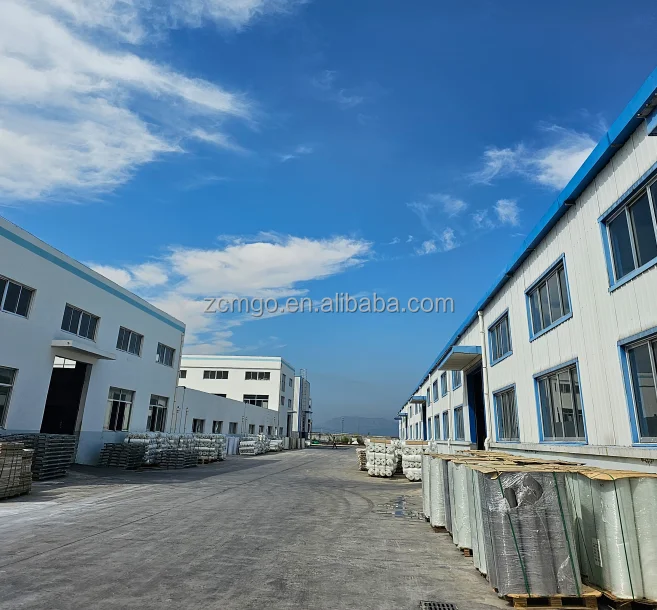

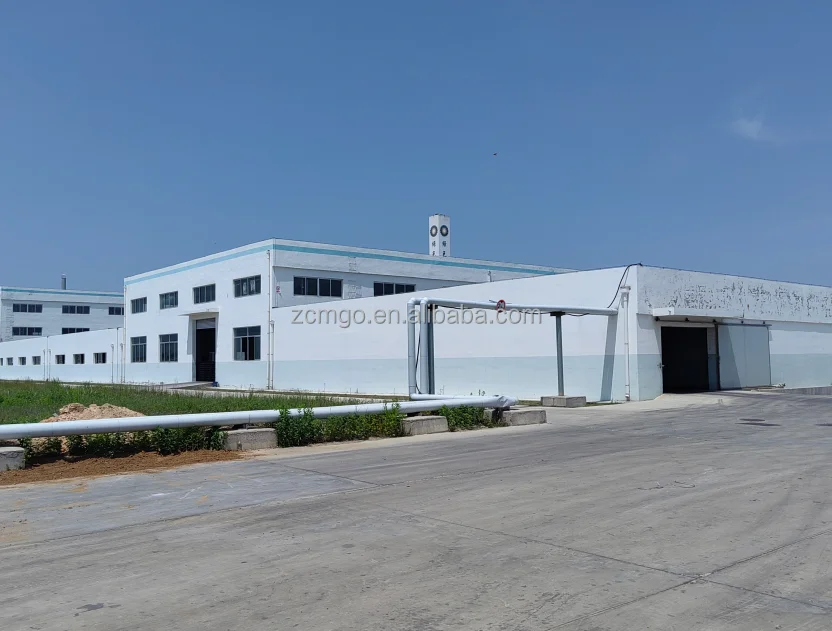

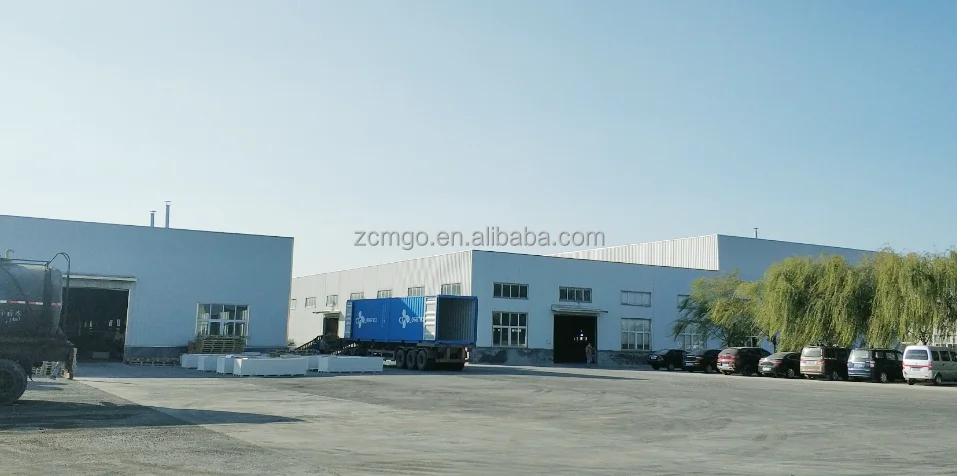

Our Factory
SHANDONG ZHUCHEN NEW MATERIALS is a manufacturer of Pure Sulfate Magnesium Oxide board/MgO Board, DON'T uses any magnesium chloride and totally chlorine free.
Our factory is equipped with the high automatic machine and mature new technology to make the pure sulfate Magnesium Oxide Board. From the raw materials to the test of the final products, we take care of every single detail.
1-First factory to produce mgo board in China,already 29 year experiences in producing MgO Board,
2-We are 1st manufacturer of pure sulfate MgO board
2-We are 1st manufacturer of pure sulfate MgO board
3-We are 1st manufacturer of Sanding MgO board
4-We are 1st manufacturer of Floor MgO board
5-Over 50 countries keep supplying and exporting to with reliable quality.
5-Over 50 countries keep supplying and exporting to with reliable quality.
FAQ
Q1: Are you a trading company or manufacturer?
Q3. How do you pack your boards?
Q4: Do you provide samples? is it free or extra? Can you produce according to the samples?
Q5. What are your terms of payment?
Q6. What are your terms of delivery?
Q7. How about your delivery time?
A: We are a factory in Shandong, that has three production lines and more than 28years of production experience
Q2: What makes a ZhuChen MGO board different from a traditional MGO board？
A: The traditional MGO board is magnesium chloride board, which is a “crying” board, corrodes your metal fittings, and brings
safety risks。ZhuChen MGO boards are Pure sulfate magnesium boards. Chloride Content≤ 0.01%, ensuring no "crying boards."
safety risks。ZhuChen MGO boards are Pure sulfate magnesium boards. Chloride Content≤ 0.01%, ensuring no "crying boards."
Q3. How do you pack your boards?

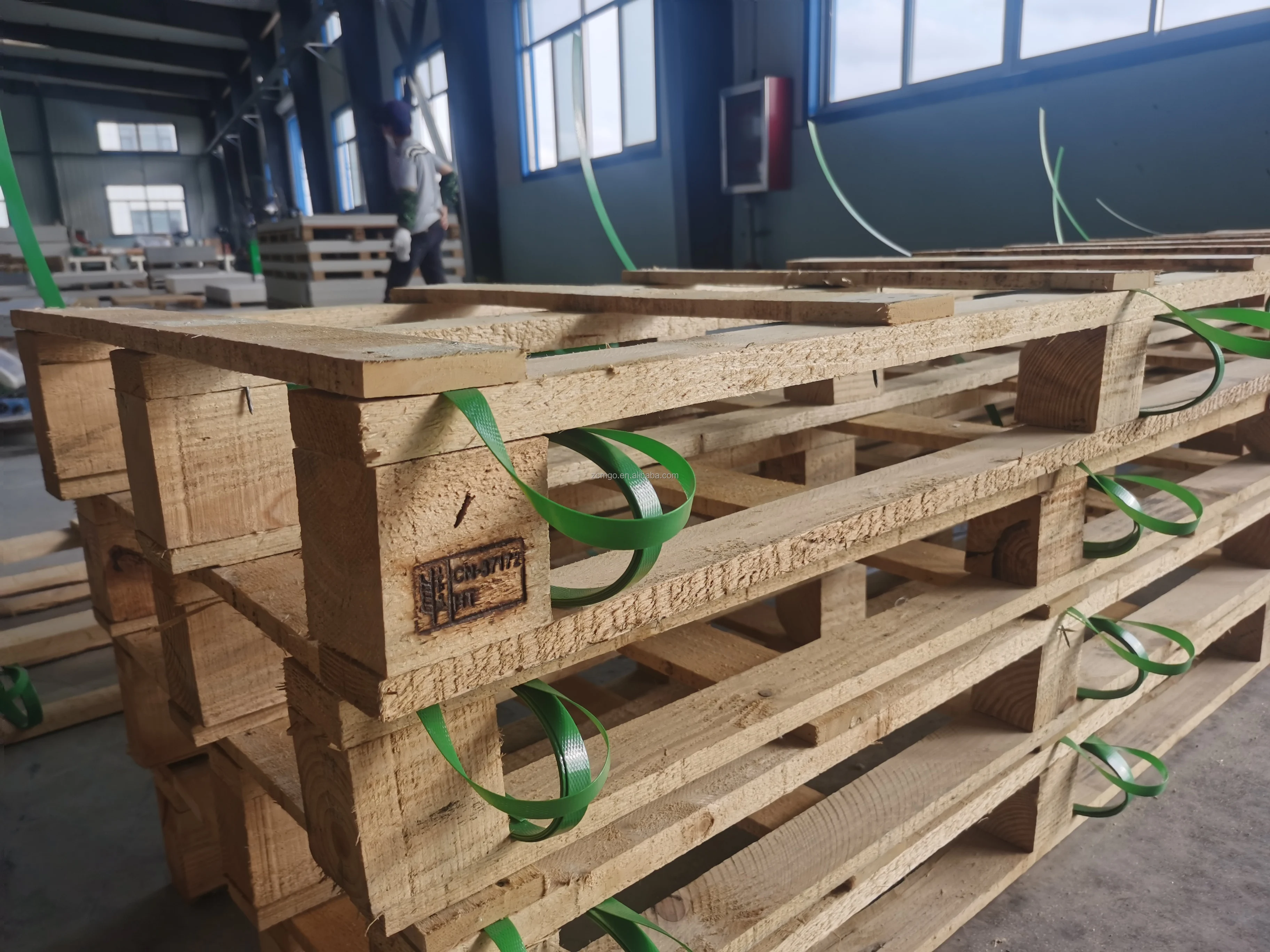

A: we pack our goods in strong wood pallets •Screw the Green color PE strip in the pallet.
•Dunnage bag full fill container •Corner Protection & film
•Dunnage bag full fill container •Corner Protection & film
Q4: Do you provide samples? is it free or extra? Can you produce according to the samples?
A: We offer free samples, but the customer pays for the postage. If you have special requirements for the products, We'll produce them for you.
Q5. What are your terms of payment?
A: T/T 30% as deposit, and 70% against the BL copy.
Q6. What are your terms of delivery?
A: FOB, CFR, CIF, DDP, EXW
Q7. How about your delivery time?
A: Generally, it will take 15 days after receiving your advance payment. The specific delivery
time depends on the items and the quantity of your order.
time depends on the items and the quantity of your order.
