Электическая Бетономешалка
US $109.12
Портативный дизельный бетоносмеситель объемом 1000
- Категории: >>>
- Поставщик: Henan,Yuandong,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description

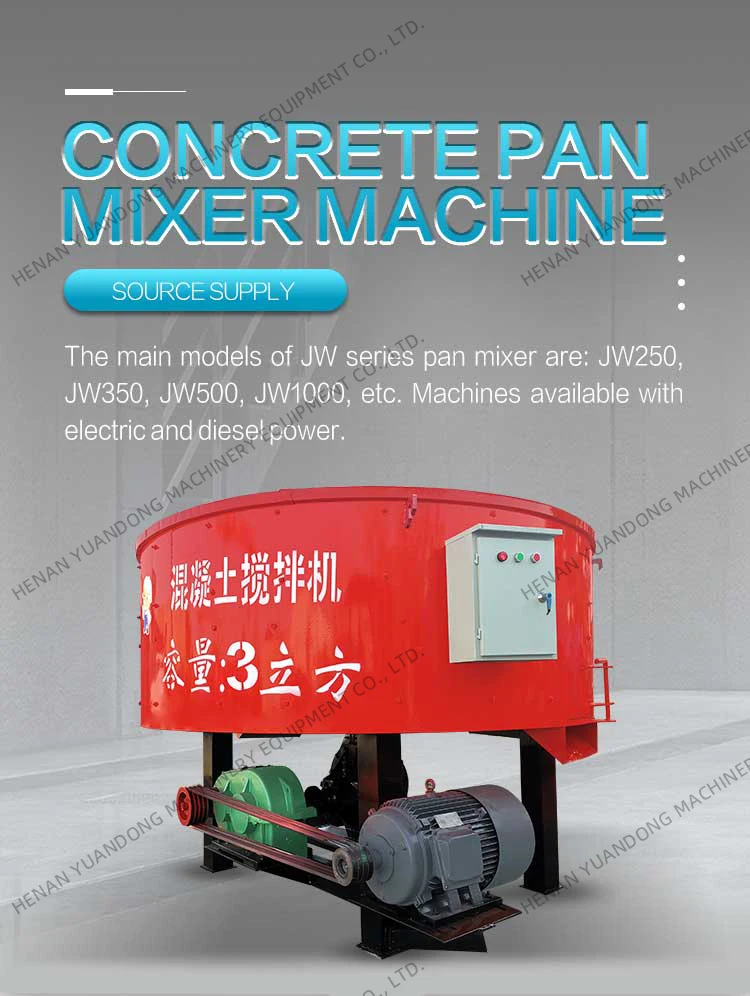

Concrete mixer
Concrete mixer is one of advanced machine at present in our country, do well in mixing concrete, production is efficient, shorter time for mixing, low energy, noise is low. It can mix all kinds of concrete, meeting many requirement.Alternative parts has long life, easily to repair and operate and so on, feeding height can be designed according to customer's needed. It can be applied with concrete mixer transport machine and dumping car, working with concrete dosing machine. It is a very good option for all kinds concrete mixing projects.
Our Advantages
1.With reasonable structure, novelty layout and easy operation and maintenance, we can make design according to special requirements for meeting the demand of customers.
2. With the features like advanced design,reasonable structure,reliable performance,high quality,short time,lower energy
consumption,this machine adopts high hardness and tenacity wear-resistant alloy cast iron for the scale board and mixing blade, and so the whole machine has a long useful life.
2. With the features like advanced design,reasonable structure,reliable performance,high quality,short time,lower energy
consumption,this machine adopts high hardness and tenacity wear-resistant alloy cast iron for the scale board and mixing blade, and so the whole machine has a long useful life.
Specification
Model | JW300 | JW400 | JW500 | JW1000 | |||
Volume | 260L | 380L | 530L | 1000L | |||
Feeding Volume | 240L | 350L | 460L | 900L | |||
Discharging Volume(L) | 230L | 340L | 440L | 890L | |||
Maximum Aggregate Diameter(mm) | 40 | 40 | 40 | 50 | |||
Discharging Method | Automatic | ||||||
Dynamic Source | Electrical /Diesel | ||||||
Main Shaft Revolution (rpm) | 21/35 | 21/35 | 35/45 | 35/45 | |||
Matched Power (KW) | 4KW/5.5HP | 5.5KW/7HP | 7.5KW/11HP | 15KW/22HP | |||
Stirring Drum (M) (Diameter*H) | Φ0.9*0.4 | Φ1.1*0.4 | Φ1.3*0.4 | Φ1.8*0.4 | |||
Assembly Weight (kg) | 250 | 350 | 450 | 650 | |||
Wall thickness | 4/6/8mm | 4/6/8mm | 4/6/8mm | 6/8mm | |||
Bottom thickness | 6/8mm | 6/8mm | 8/10mm | 10/12mm | |||
Productivity | 6-8m³/h | 10/14m³/h | 18/25m³/h | 38/45m³/h | |||

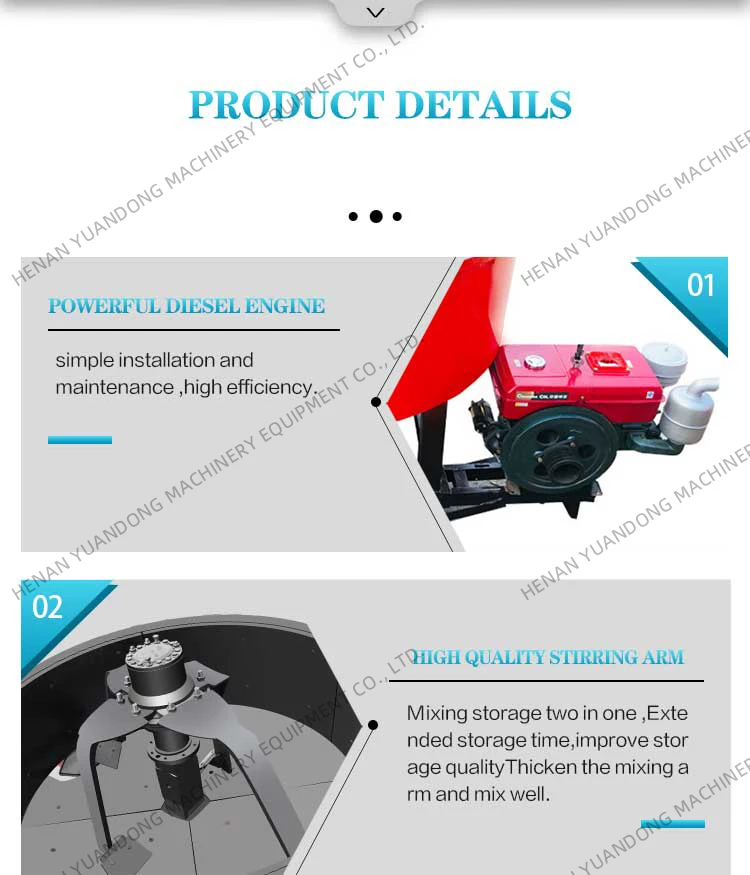

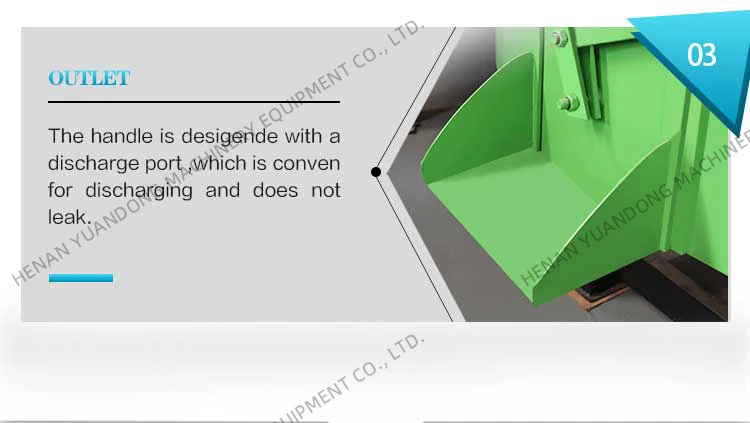

Structure

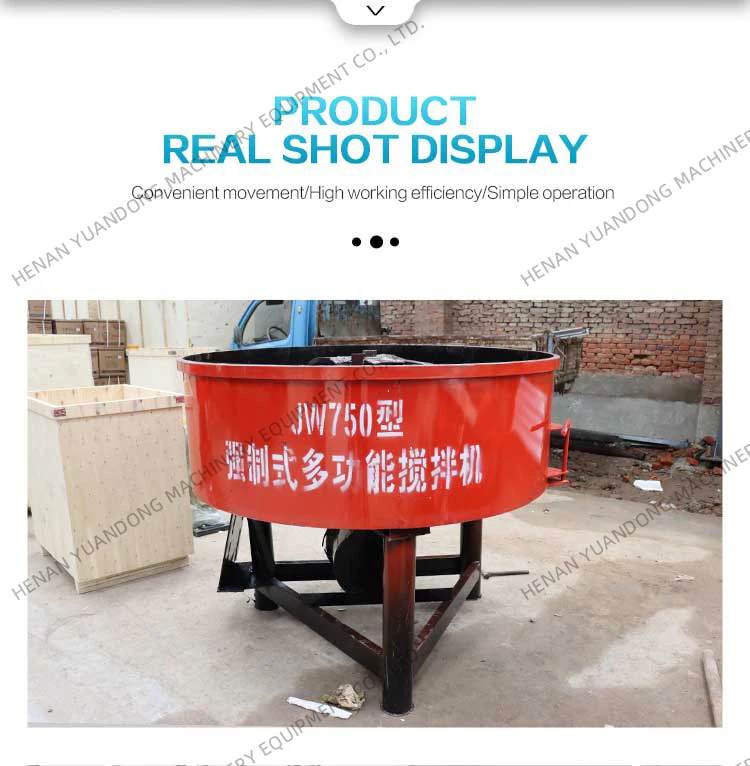

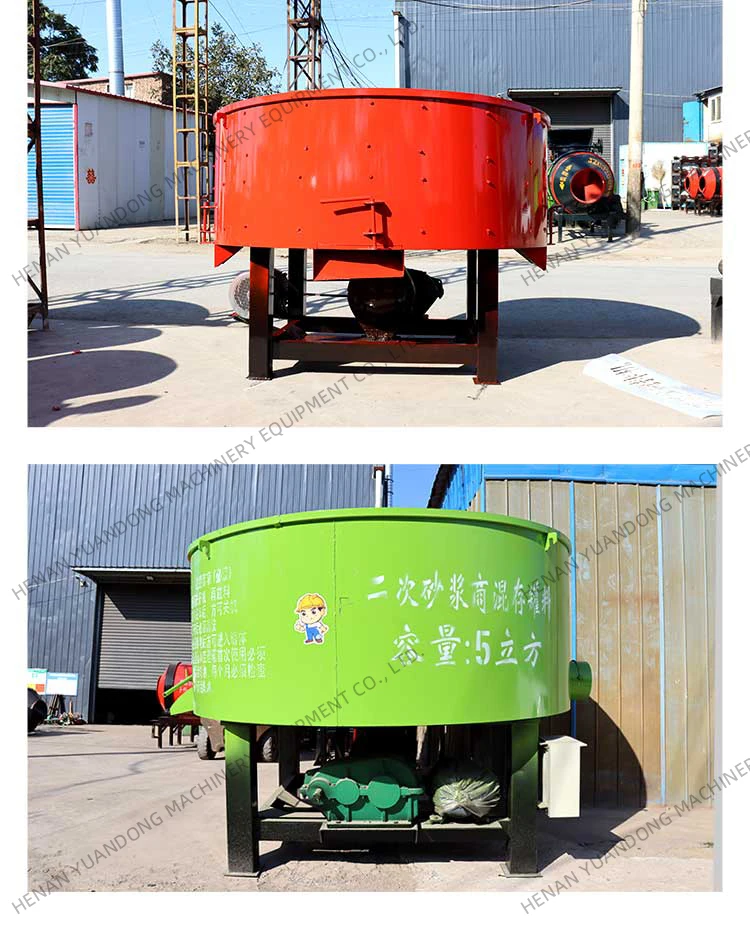

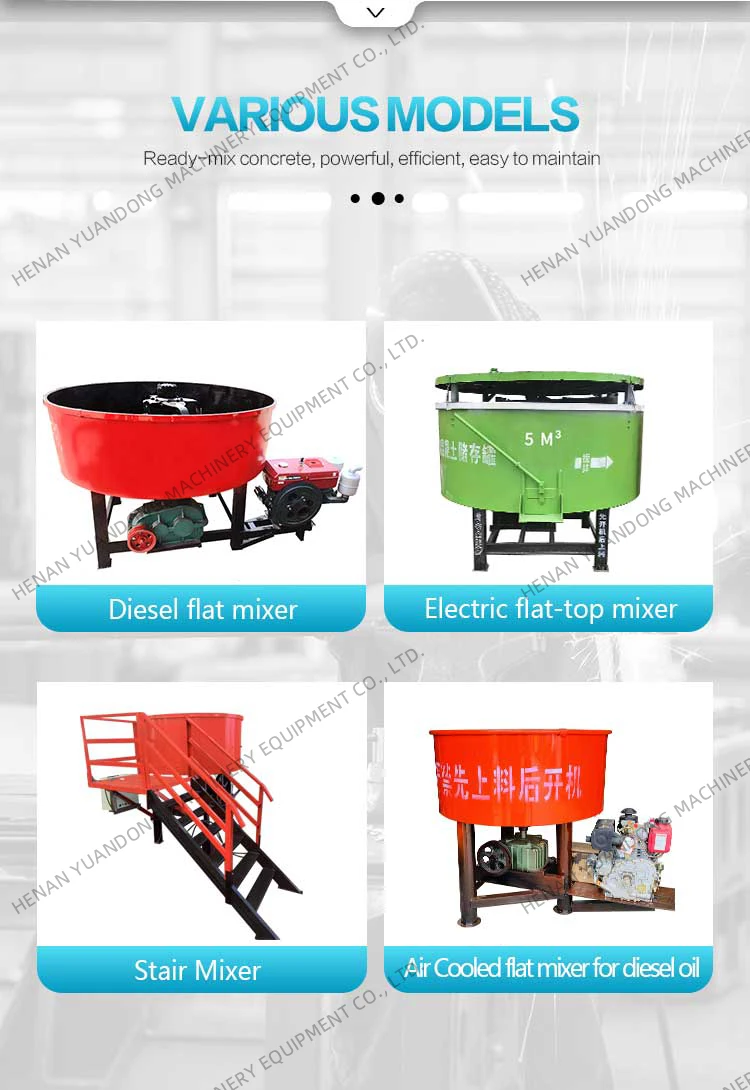

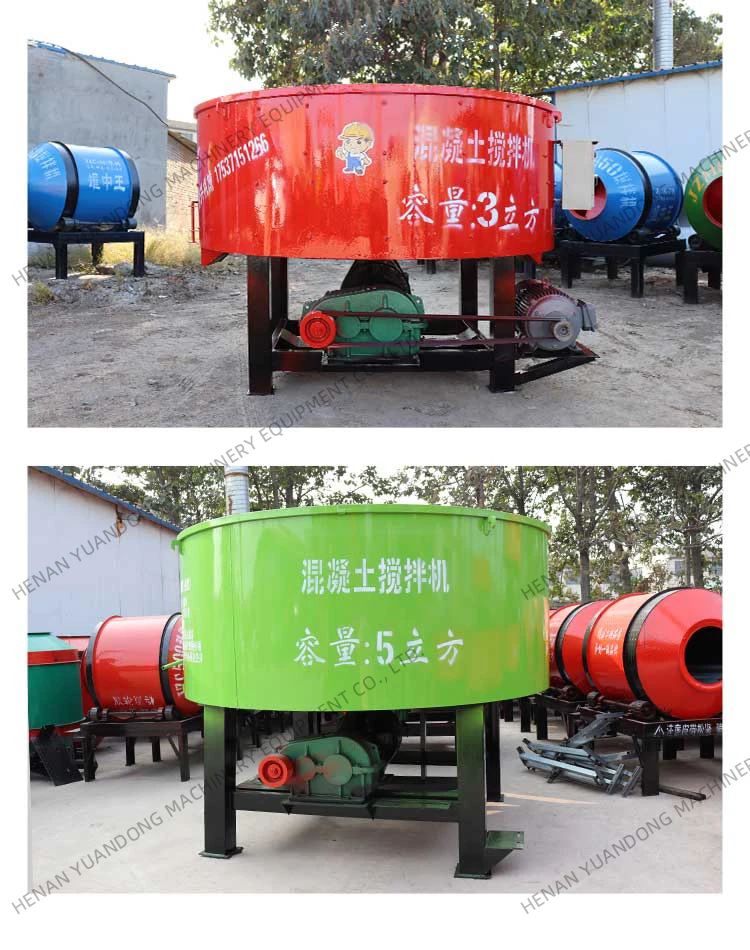

Product Display
Applications
