Product Description

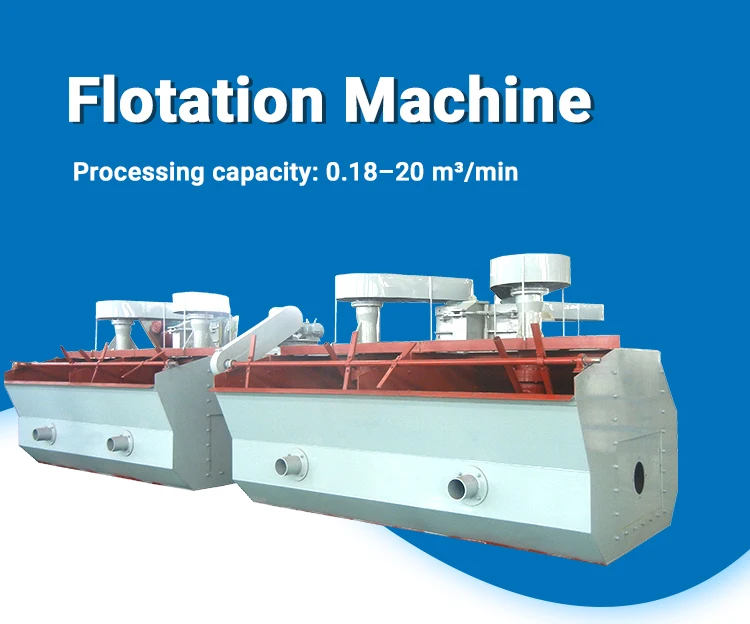

Flotation machine is a device that completes the flotation process and is mainly used in mineral processing. There are various structures of flotation machines, and the most commonly used ones are mechanical agitation flotation machines. ‌


Applicable materials


Flotation Machine can be used to separate non-ferrous metal, ferrous metal.It can be used in noble metal,non-metallic mine, chemical material for roughing, scavenging, selection or reverse flotation. Flotation machine is mainly used for separating gold, silver, copper, iron, lead, zinc,molybdenum,nickel, aluminum and other metal minerals.

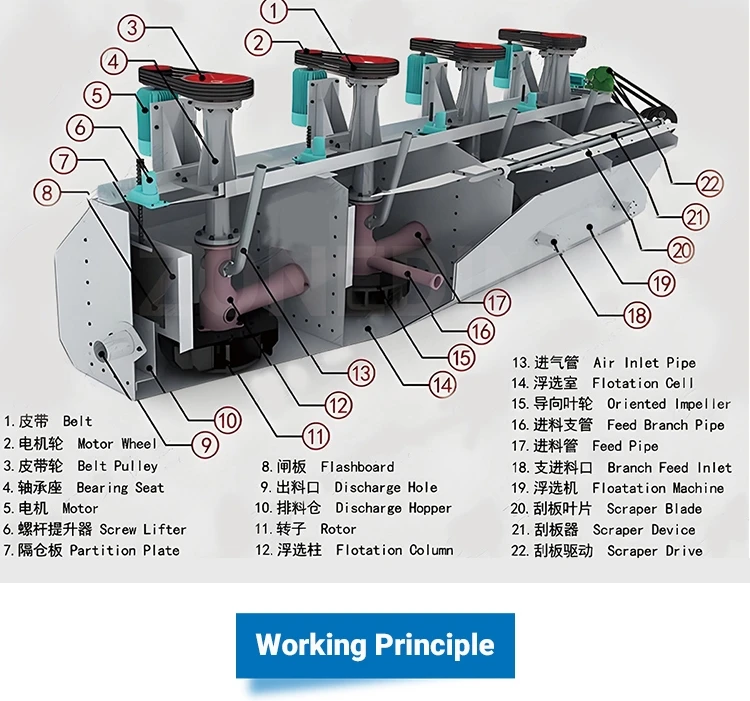

Flotation machine is mainly composed of impeller, cover plate, vertical shaft, inlet pipe, bearings, belts and other accessories, the wear parts of the equipment are selected from international new wear-resistant and pressure-resistant raw materials, which reduces the wear and tear and prolongs the service life of the equipment.




The impeller is rotated by V-belt of motor and produces negative pressure by centrifugal function. Enough air is sucked to mix slurry, and slurry mixes drug at the same time. Mineral sticks on bubble completely and floats on the surface of slurry to form mineralized bubble. Useful bubble is scraped out by adjusting flashboard height and controlling liquid surface.




Category
Specification
Model
Effective
cubage
(m)
Processing
capacity
(m/min)
Main shaft loam board
Power (kw)
Rotate Speed (r/min)
Rotate Speed(r/min)
Power
 (kw)
XJK type
flotation
machine
XJK-0.35
0.35
0.18-0.4
1.5
483
25
1.1
XJK-0.62
0.62
0.3-0.9
3.0
400
25
1.1
XJK-1.1
1.1
0.6-1.6
5.5
330
25
1.1
XJK-2.8
2.8
1.5-3.5
11
280
25
1.1
XJK-5.8
5.8
5-7
22
240
25
1.5
SF type
flotation
machine
SF-0.37
0.37
0.2-0.4
1.5
386
25
1.1
SF-0.7
0.7
0.3-0.9
3
400
25
1.1
SF-1.2
1.2
0.6-1.6
5.5
330
25
1.1
SF-2.8
2.8
1.5-3.5
11
268
25
1.1
SF-4
4
2-4
15
220
25
1.5
SF-8
8
4-8
30
191
25
1.5
SF-10
10
5-10
30
191
25
1.5
SF-20
20
5-20
30×2
191
25
1.5
JJF type
flotation
machine
JJF-2
2
1-3
7.5
443
25
1.5
JJF-4
4
2-4
11
305
25
1.5
JJF-8
8
4-8
22
233
25
1.5
JJF-10
10
5-10
22
233
25
1.5
JJF-16
16
5-16
30
180
25
1.5
JJF-20
20
5-20
37
180
25
1.5

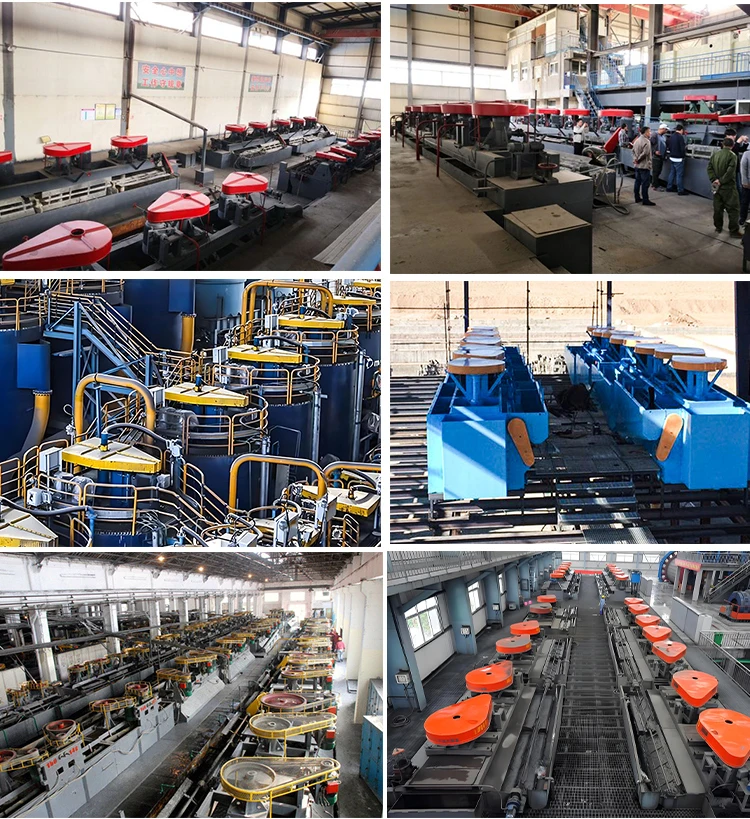

Cunstomer Site

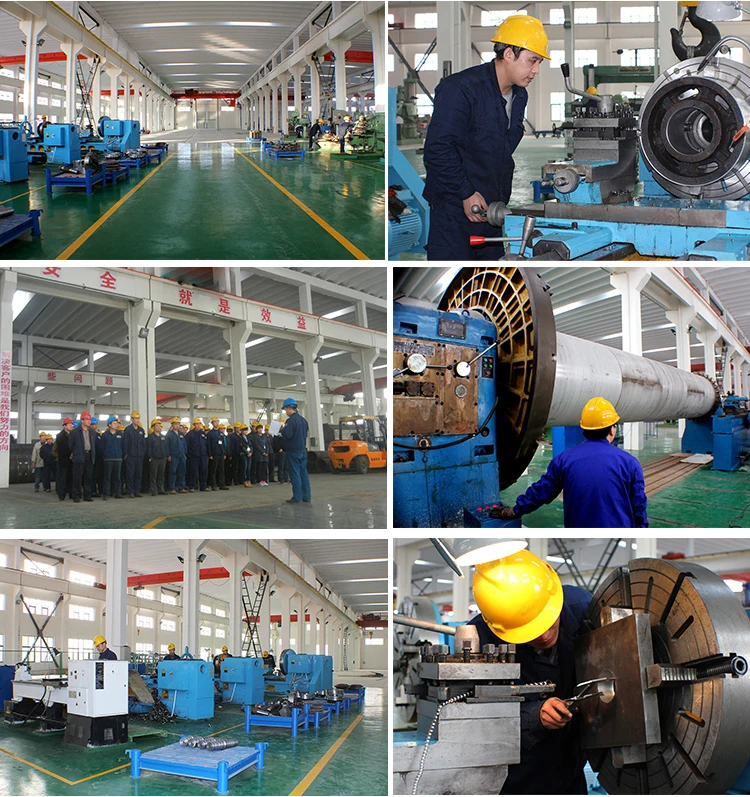

Company Profile


Zhengzhou Zhongding Heavy Machinery Manufacturing Co., Ltd. is a professional solution provider of mineral processing, crushing, screening and drying equipment, and has long been committed to providing crushing equipment, vibrating screening equipment, washing equipment, and belt conveyor equipment and other engineered rugged equipment and production line processes for the milling and beneficiation and sand and aggregate industries.








Packing & Delivery




FAQ


1.Are you a manufacturing or trading company?
We are manufacturer. Our factory established in 2004.

2.What is the after-service of your company?
We can provide the foundation drawing, installation service, training, spare parts and other service according to the customer's requirements.

3. Which mineral processing method should I choose?
According to the properties of minerals, we will choose the treatment method that most suitable for you.

4. What machines are usually required for the whole production line?
Usually there are feeder, primary and secondary crushers, vibrating screen, ball mill, classifier, spiral chute, magnetic or flotation machine, dryer, etc. Equipment can be adjusted.

5. What is the final mineral concentration?
It depends on the ore grade. The final concentration of gold ore can reach 80-90%.
