Прецизионные фрезерные Токарные стальные конические реечные
- Категории: >>>
- Поставщик: JOLIN(XIAMEN)IMPORT,&,EXPORT,TRADING,CO.,LTD
Поделиться:
Описание и отзывы
Характеристики

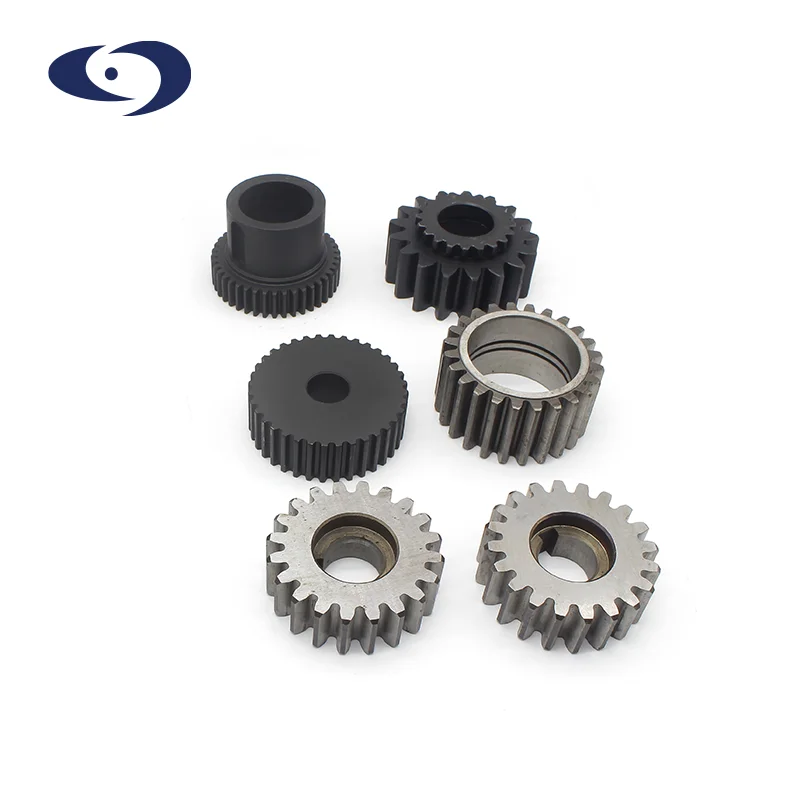

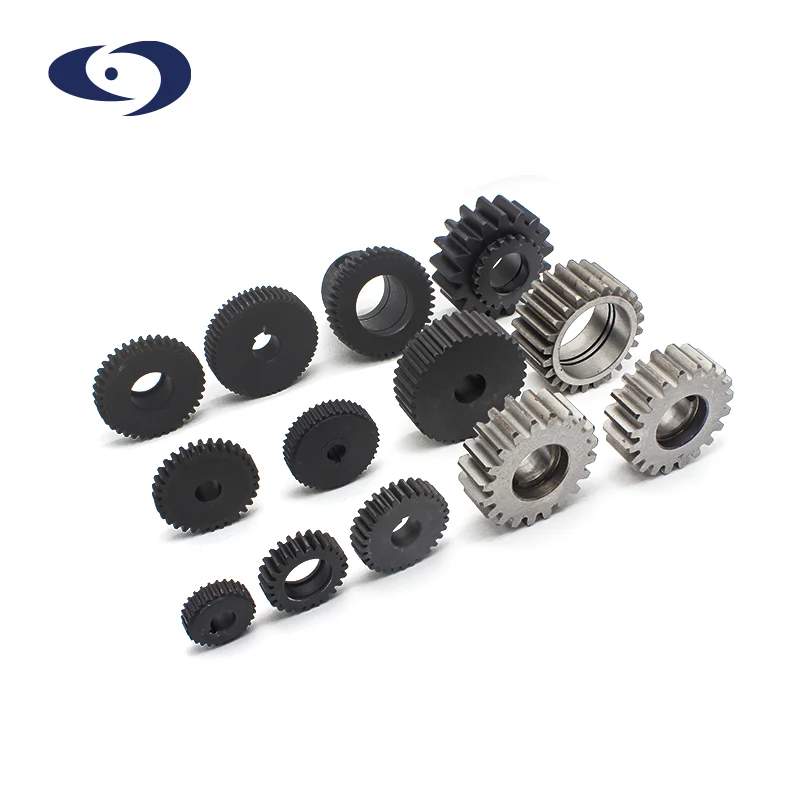

Precision Cnc Milling Turning Service Steel Bevel Helic Rack Gears Pinion Custom Gears Spur Plastic Gears Sets

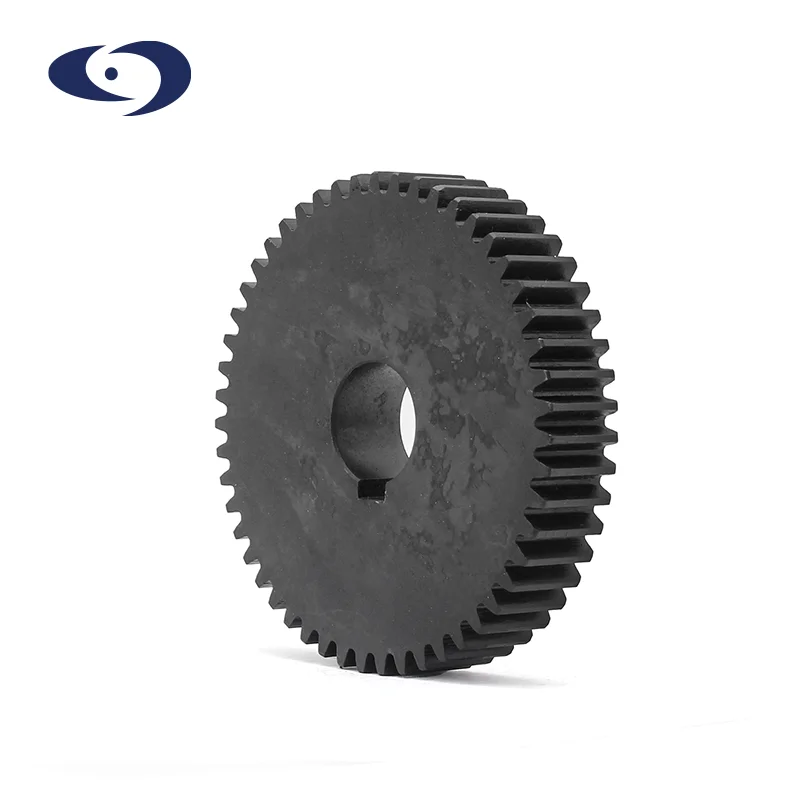

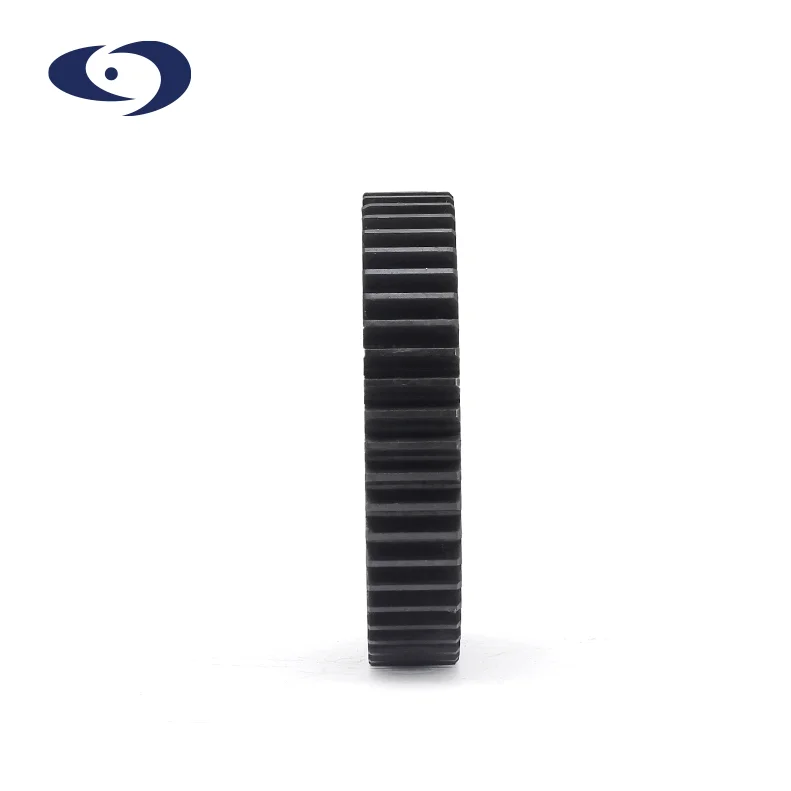

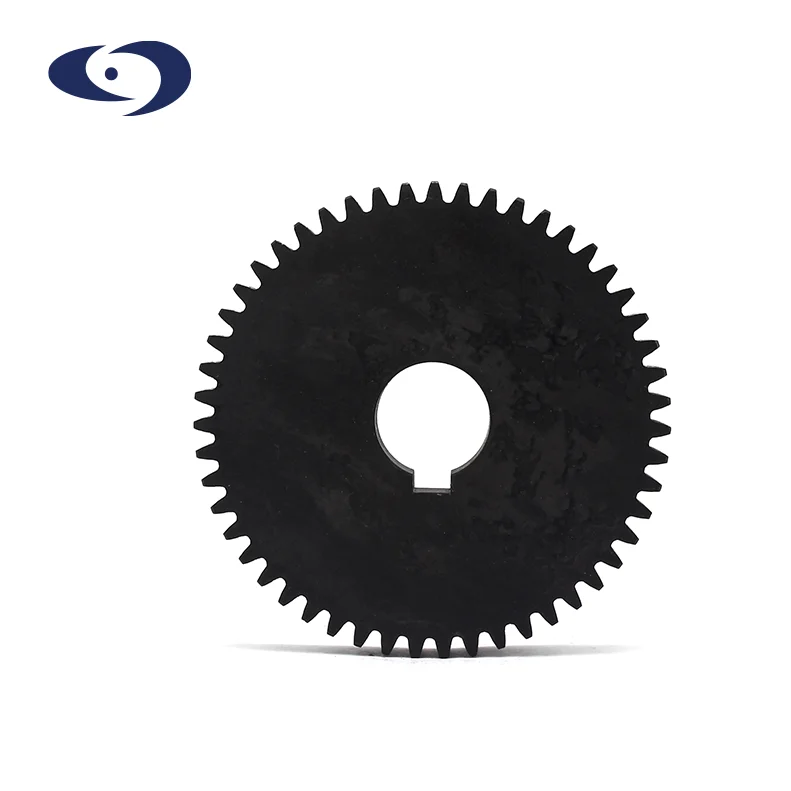

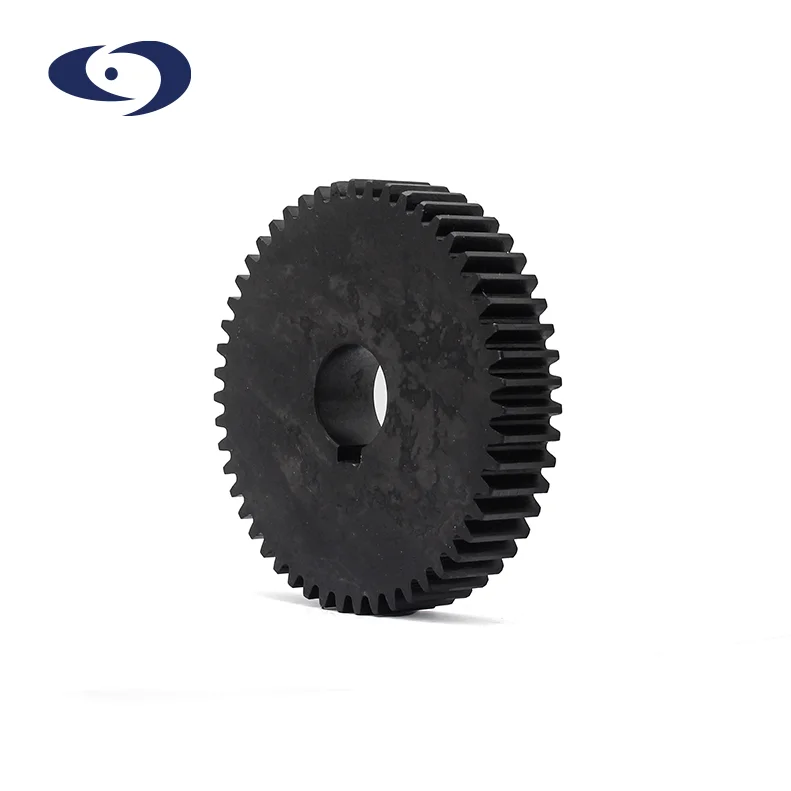

Spur Gear
| Products | Gear |
| Module | M0.3-M10 |
| Precision grade | DIN6, DIN7, DIN8, DIN10 |
| Pressure angle | 14.5 degree, 15 degree, 20 degree |
| Material | C45 steel,20CrMo,40Cr, brass, nylon, POM, 20CrMnTi,and so on |
| Heat treatment | Hardening and Tempering; High Frequency Quenching; Carburization etc. |
| Surface treatment | Blacking, Polishing, Anodization, Chrome Plating, Zinc Plating, Nickel Plating |
| Application | Precision cutting machines.Lathes machine; Milling machines; Grinders machine; Automated mechanical systems; Automated warehousing systems. |
| Machining process | CNC engine latheCNC milling machine; CNC drilling machine; CNC grinding machine; CNC cutting machines; Machining center. |

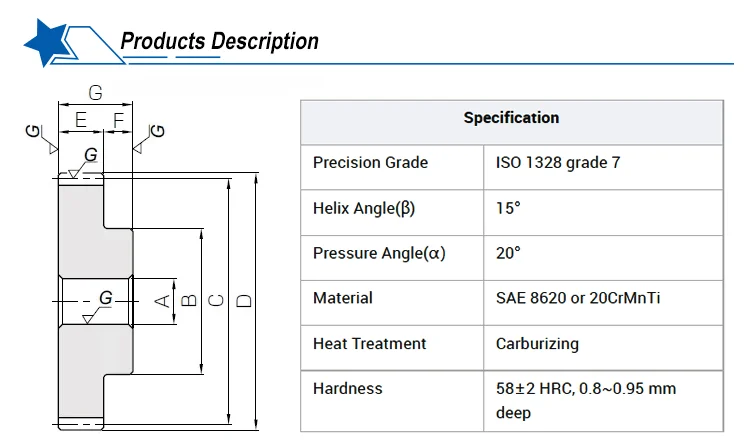

| Module | No. of teeth | Bore (Ah7) | Hub dia.(B) | Pitch dia.(C) | Outside dia.(D) | Face width(E) | Hub width(F) | Total Length(G) |
1 | 18 | 8 | 15 | 18 | 20 | 10 | 5 | 15 |
| 1 | 55 | 15 | 40 | 55 | 57 | 10 | 10 | 20 |
| 1.5 | 40 | 16 | 35 | 60 | 63 | 15 | 10 | 25 |
| 2 | 50 | 22 | 50 | 100 | 104 | 20 | 10 | 30 |
| 2.5 | 60 | 30 | 70 | 150 | 155 | 25 | 12 | 37 |
| 3 | 60 | 45 | 80 | 180 | 186 | 30 | 15 | 45 |
| 4 | 50 | 50 | 85 | 200 | 208 | 40 | 20 | 60 |
OEM/ODM
1. Partners provide drawings with 2D/3D files.
2. Partners provide samples, then our engineer will design the drawings.
SAMPLES/MASS PRODUCTION
1. Partners should pay sample fee for custom parts, aslo we return all sample fee when it reachesthe specified quantity.
2. Normally we make samples first to partners to check its quality, when they pass test then wefollow samples to mass production.
3. Usually there is 3-7days for samples production, and 15-25days for mass production.
SHIPPING
1. For sample and small quantity order: Via DHL/UPS/TNT/FedEx/etc
2. For mass quantity(morn than 300kgs): By sea, by air or specialline. (We have advantages to shipto Russia, South America, other remote countries and areas)
Q: What is your terms of payment?
A: Payment<=1000USD, 100% T/T in advance.
Payment>=1000USD, 30% T/T in advance, balance before shippment.
If you have any other question, please feel free to contact us.
