Gold Alluvial Washing Gravity Separator Machine Neffco Knelson Centrifugal Concentrator Bowl
Hengchang machinery gold centrifugal concentrator can be used for many minerals separating, such as rock gold, alluvial gold, copper, tungsten, tin, tantalum, coltan, chrome, zinc ore and some other minerals. When you find us, you find one good mining machinery manufacturer.
Products Description
Blue bowl gold concentrator is a new type of gravity concentration equipment for concentrating gold and other high density minerals. It is an efficient equipment for recovering free gold in all particle size ranges, specially for recovery of fine gold which is lost during the operation of the gravitational concentrators(sluice boxes and jigs). It can be used not only for placer gold mining, but also for hard rock mining to recover the natural gold, replacing amalgamation, and recover gold from the old tailing. Application shows that the recovery can be as high as 99%, and the concentrating ratio is up to 1,000 times. In recovering the natural gold in lode ore with size -0.074 mm, the gold is up to 98%, for 0.004 mm in particle size, the gold recovery is 97%.

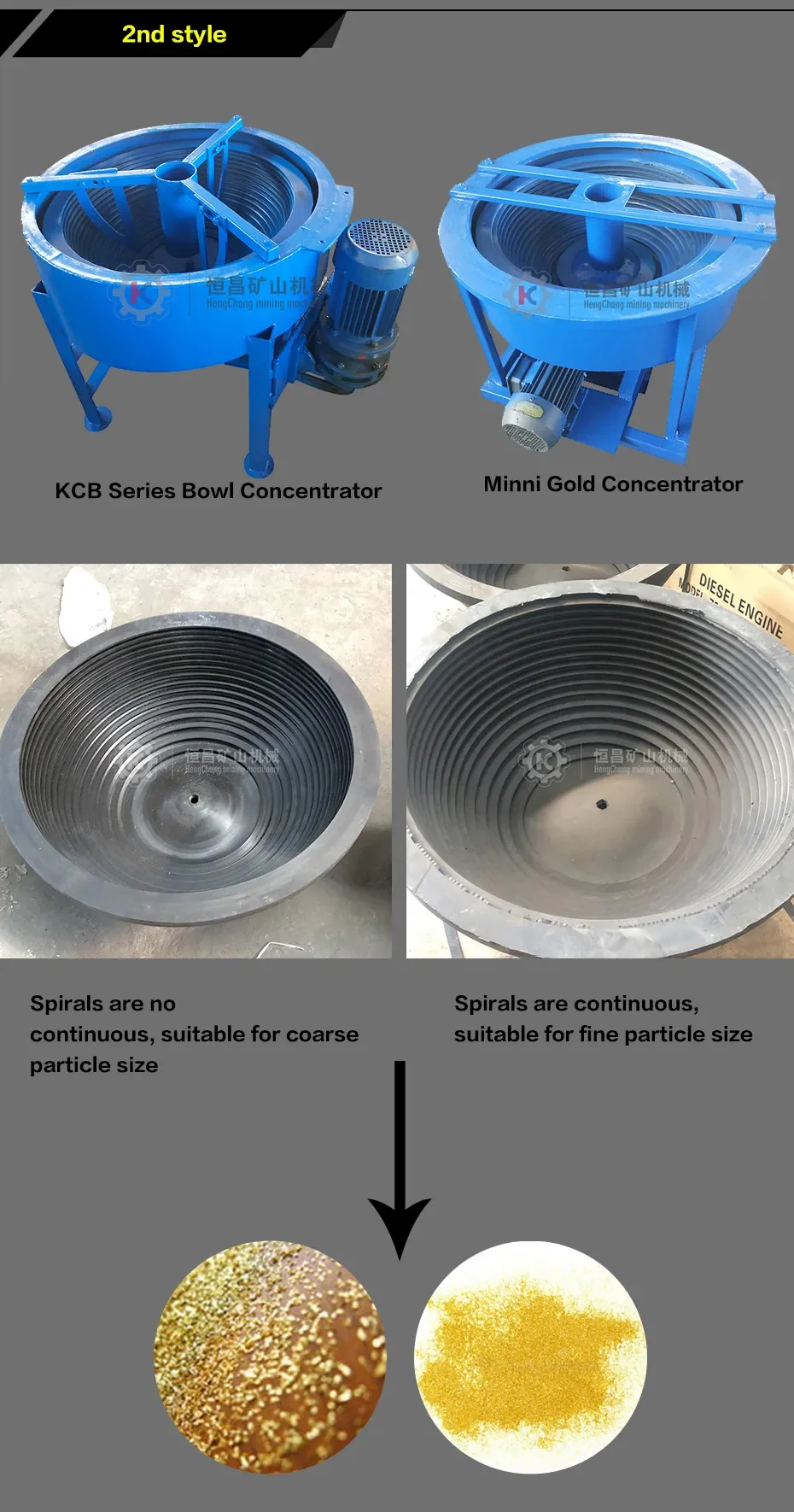

KCB-80 Knudsen Gold Concentrator
800 Gold Kacha Concentrator

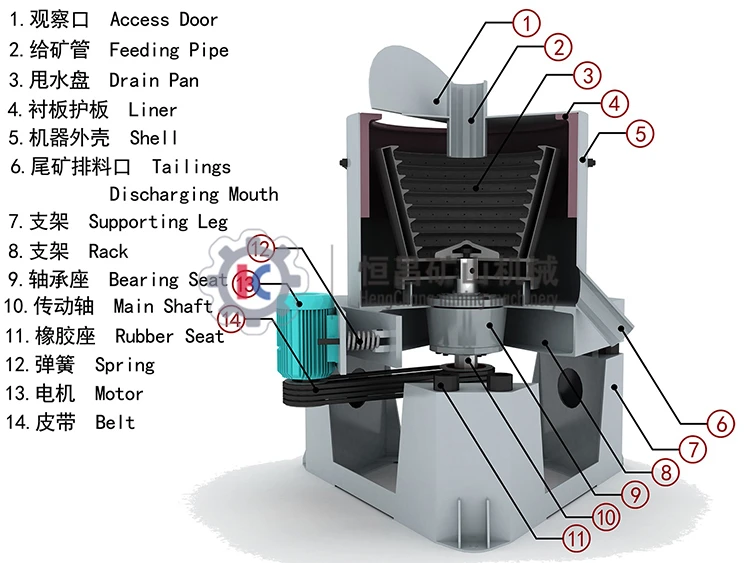

Product Working Principle
Motor drive inner rubber bowl rolling at high speed by belt and axis. Separation work will be strengthened in the rubber bowl by centrifugal force. Light material will be discharged with the water, and final refined gold ore will come out from the outlet after stopping work.
Product Features
1. Batch operation with simple cleaning to remove concentrate
2. Relatively low rotational speed to minimize maintenance requirements
3. No added water for bed dilation
4. Simple construction
5. Low capital cost
6. Compact and lightweight
7. Bowl geometry designed for maximum gold retention
2. Relatively low rotational speed to minimize maintenance requirements
3. No added water for bed dilation
4. Simple construction
5. Low capital cost
6. Compact and lightweight
7. Bowl geometry designed for maximum gold retention
Product Paramenters
Model | Specification | Feeding Size | Feed Density | Capacity | Power | Weight |
CB-80 | 960*850*750 mm | 0-3 mm | 0--30% | 1-3 t/h | 1.1 kw | 150 kg |
KCB-80 | 1050*800*920 mm | 0-3 mm | 0-30% | 1-3 t/h | 1.1 kw | 160kg |
Company Profile
FAQ
Q1: Are you manufacturer or trade company?
A1: We are manufacturer with CE certificate. Our factory has more than 25 years history.
Q2: Where your products have been exported before?
A2: Our products have been sold to Southeast Asia, Africa, North America, Oceania, South America, Middle East and so on.
Q3: How will you help the customer to install the equipment?
#1 Our senior engineer will supply installation and training service on-line or on-site.
#2 We have engineer in Southeast Asia and Africa, we can supply 7*24 service.
Q4: How about the wear parts supply?
A4: We will supply the wear parts with factory price. You can buy them from our factory in China.
Q5: What about after-sale service?
A5:12 months warranty for all kinds of products.
Q6: How to get the free solution and quotation?
A6: Please send inquiry to us ,leave your whatsapp and email address, our sales manager will contact you within 1 hours.
A1: We are manufacturer with CE certificate. Our factory has more than 25 years history.
Q2: Where your products have been exported before?
A2: Our products have been sold to Southeast Asia, Africa, North America, Oceania, South America, Middle East and so on.
Q3: How will you help the customer to install the equipment?
#1 Our senior engineer will supply installation and training service on-line or on-site.
#2 We have engineer in Southeast Asia and Africa, we can supply 7*24 service.
Q4: How about the wear parts supply?
A4: We will supply the wear parts with factory price. You can buy them from our factory in China.
Q5: What about after-sale service?
A5:12 months warranty for all kinds of products.
Q6: How to get the free solution and quotation?
A6: Please send inquiry to us ,leave your whatsapp and email address, our sales manager will contact you within 1 hours.
