Цена:1 734 634,16-1 781 201,52 ₽*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики





Product Overview

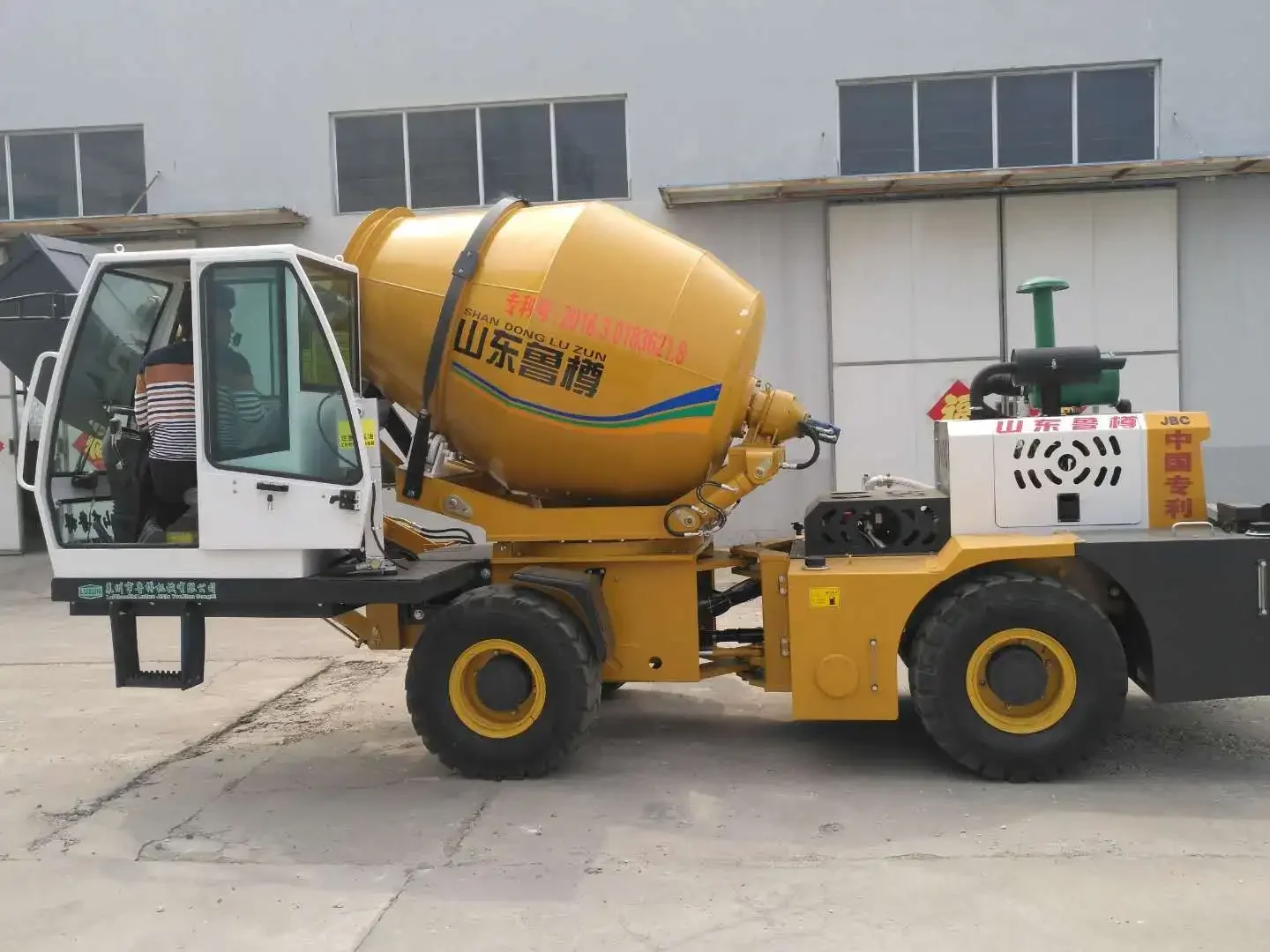

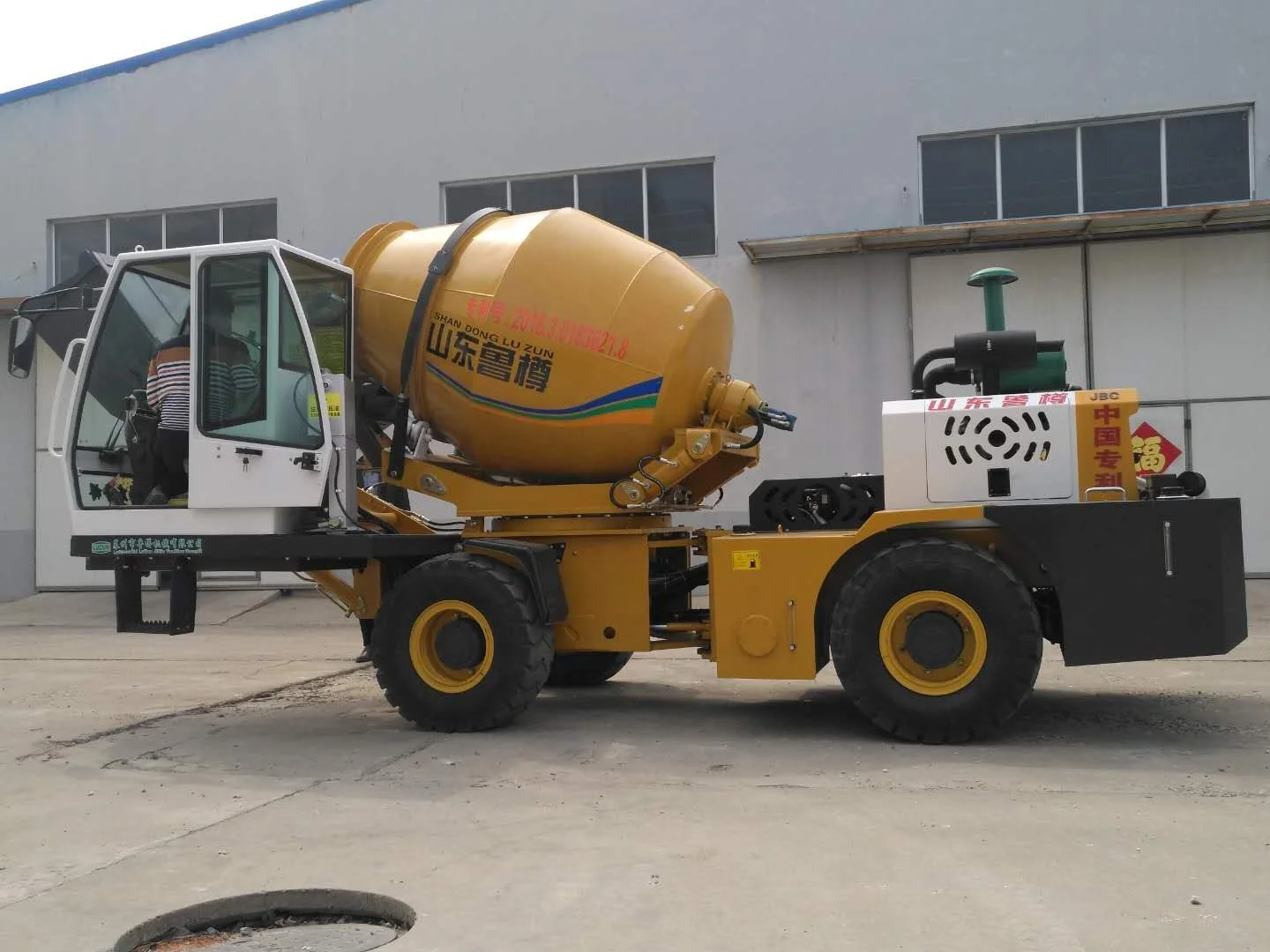

1.2m³ small portable self loading concrete mixer
Luzun self loading concrete mixer truck is used to solve the problem that the prior mixer truck has a single function and can only carry out the concrete conveying task. The self loading mixer truck comprises a mixing body, and the body is equipped with a mixing drum. The drum is driven to rotate by the hydraulic mechanism. The drum is inclined, with an opening at the highest end. At the opening there is a feeding port fixed to the mixer truck. The drum is equipped with stirring screws. The two sides of the mixing drum are symmetrically provided with a boom. One end of the boom is hinged on the mixing body, and the body is further provided with a lifting cylinder to lift and lower the booms. A hopper is fixed between the two booms, and is provided with a door at the end near the feeding port. A discharging cylinder for controlling opening and closing of the door is provided on the hopper. The fully automatic loading mixer has a simple structure and is easy to use. It can realize the loading, mixing and unloading of concrete without excessive staff operation, which is economical and practical.




PRODUCT SPECIFICATIONS


Engine
Yunnei/Yuchai/Cummins
Rated Power
55KW(75HP)
Type
4-cylinders
Max Torque
330nm/2400rpm
Chassis
articulated chassis
Driving Type
4*4
Type
12-16.5-12PR
Hopper volume
700L
Generator
28V-500Wa(18A)
Geometrical volume
2.6 cbm
Concrete Output
1.2 cbm/batch,4.8-5 cbm/hour
Drum Rotating Speed
15rpm
Water Tank
0/180/270
Water Pump
2*260L
Hydraulic Gear Pump
24V self priming pump
Gradient
30% full loaded
Max speed
25km/h
Size
4880*2800*3150mm
Weight
4800kg
Max.total weight
7680kg
Cab
closed,with warm/cool air conditioner
Fuel tank
100L
Total Hydraulic Capacity
100L
Engine oil
16L


Details Images

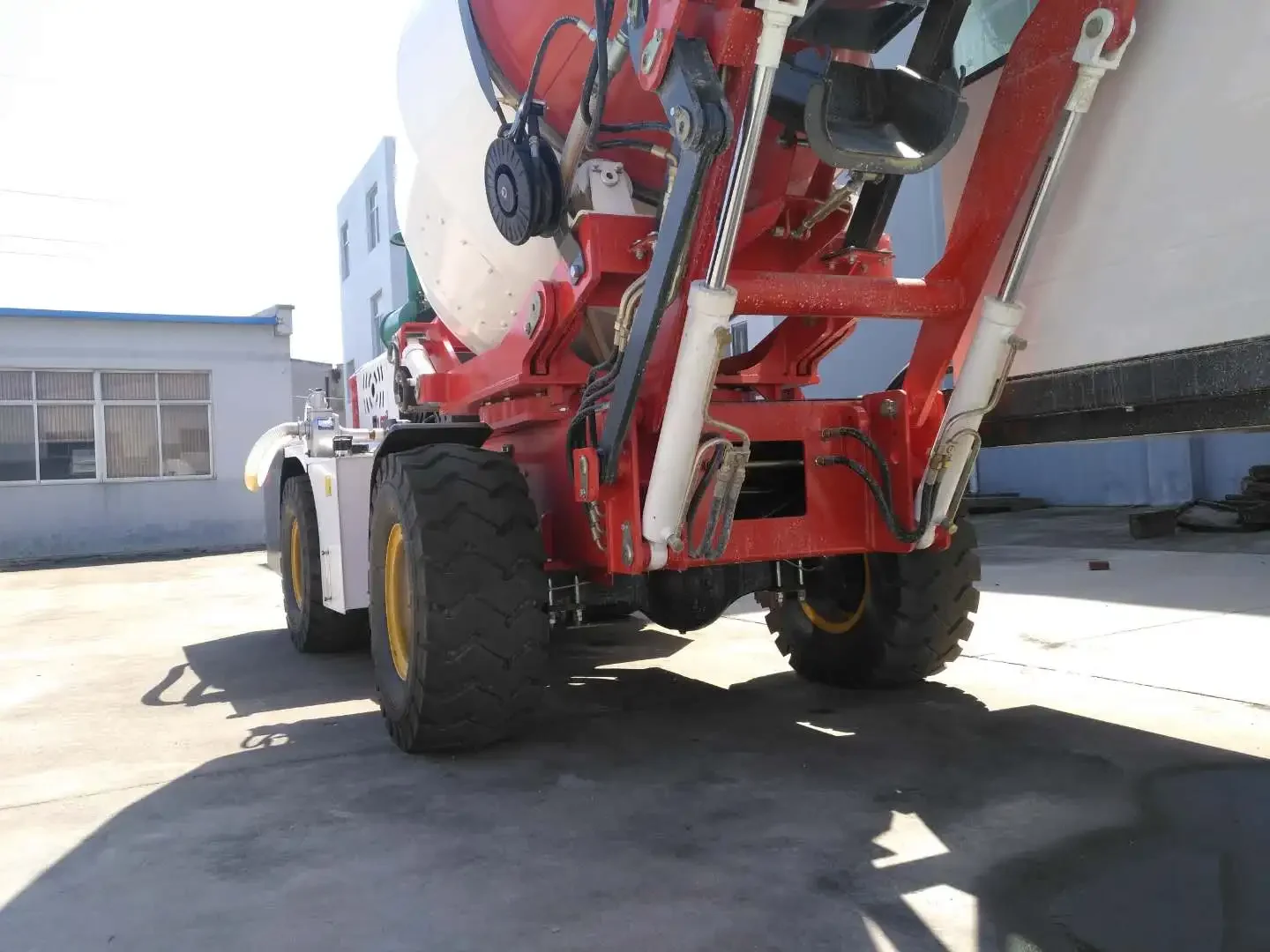

Articulated chassis and steering, transmission by hydraulic

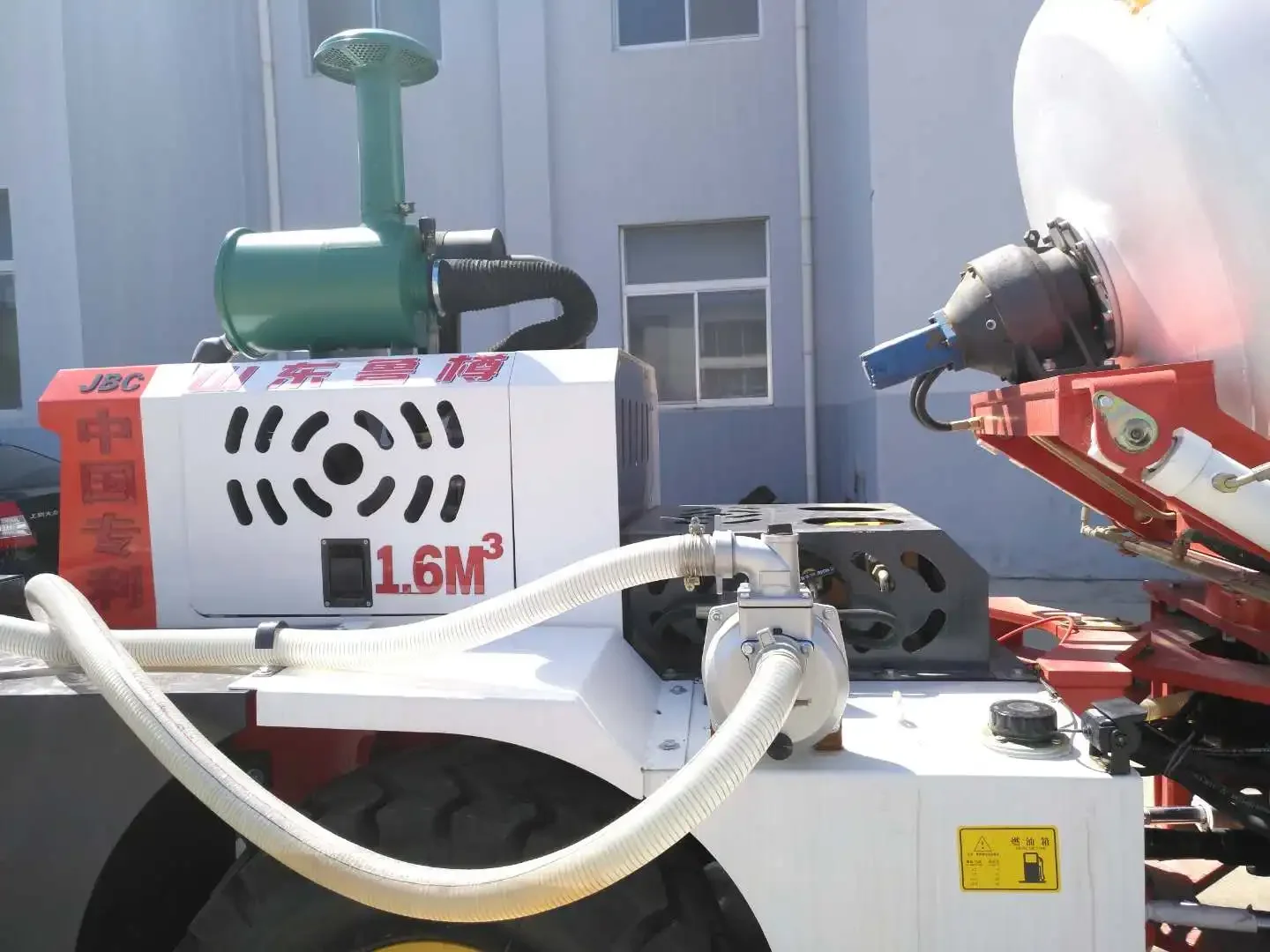

External water pump with big suction for filling water into the water tank

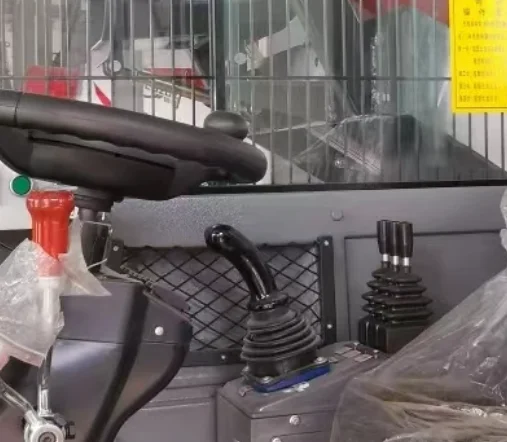

Comfortable and closed cabin


high pressure washer to clean the machine

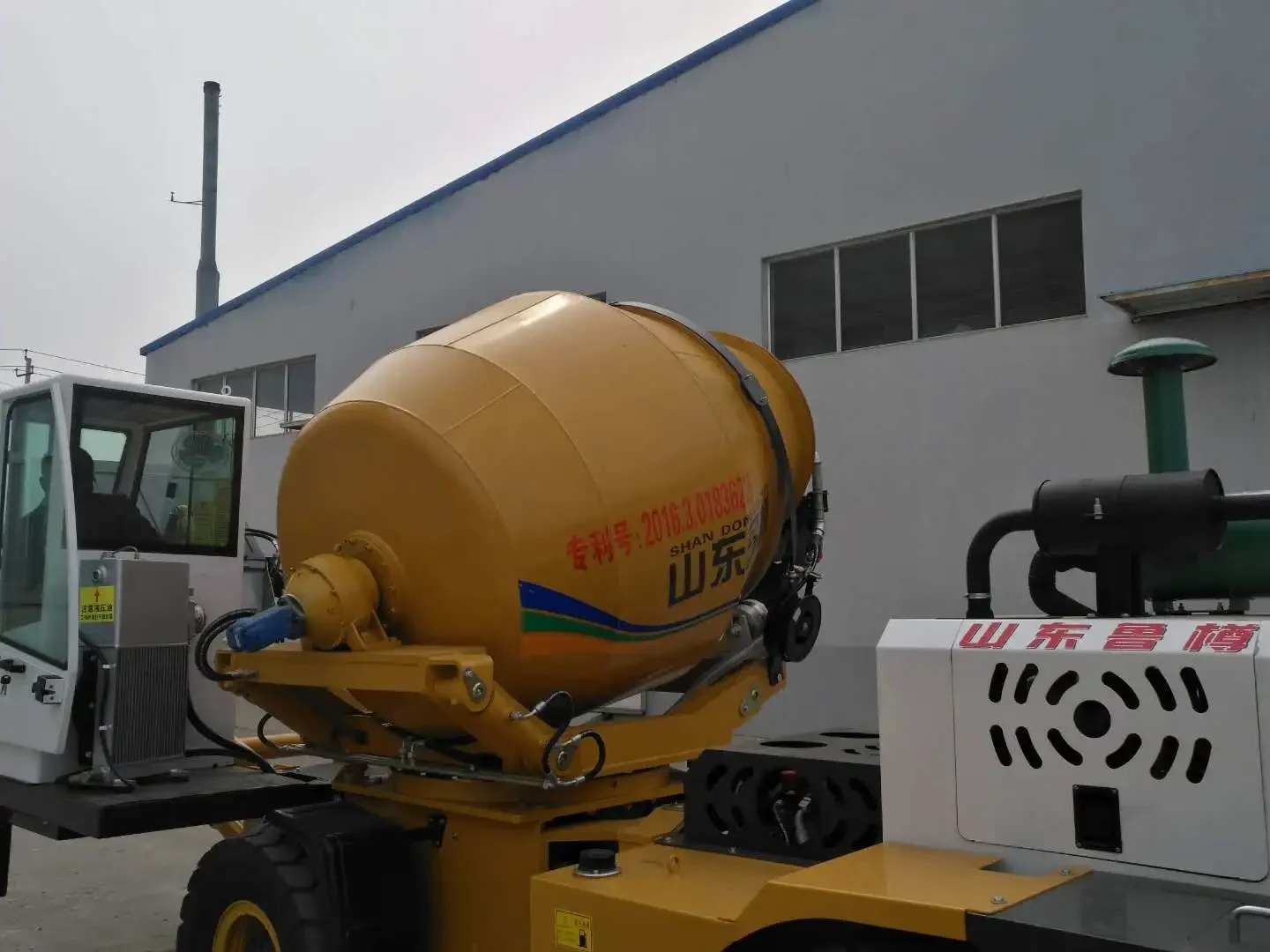

Cycloid motor for mixing drum


The drum can rotate 270 degree to discharge




Shipping&package
one 40HQ container can be put 2 sets




Customers & Expos




LUZUN self-loading concrete mixer has been continuously exported to dozens of countries like Hungary, Saudi Arabia, Algeria, Panama, Venezuela, Russia, Uzbekistan, Kazakhstan, India, Malaysia, the Philippines, Vietnam, Cambodia, Kenya, Somalia, etc. and has become the most popular mixer trucks in local markets.

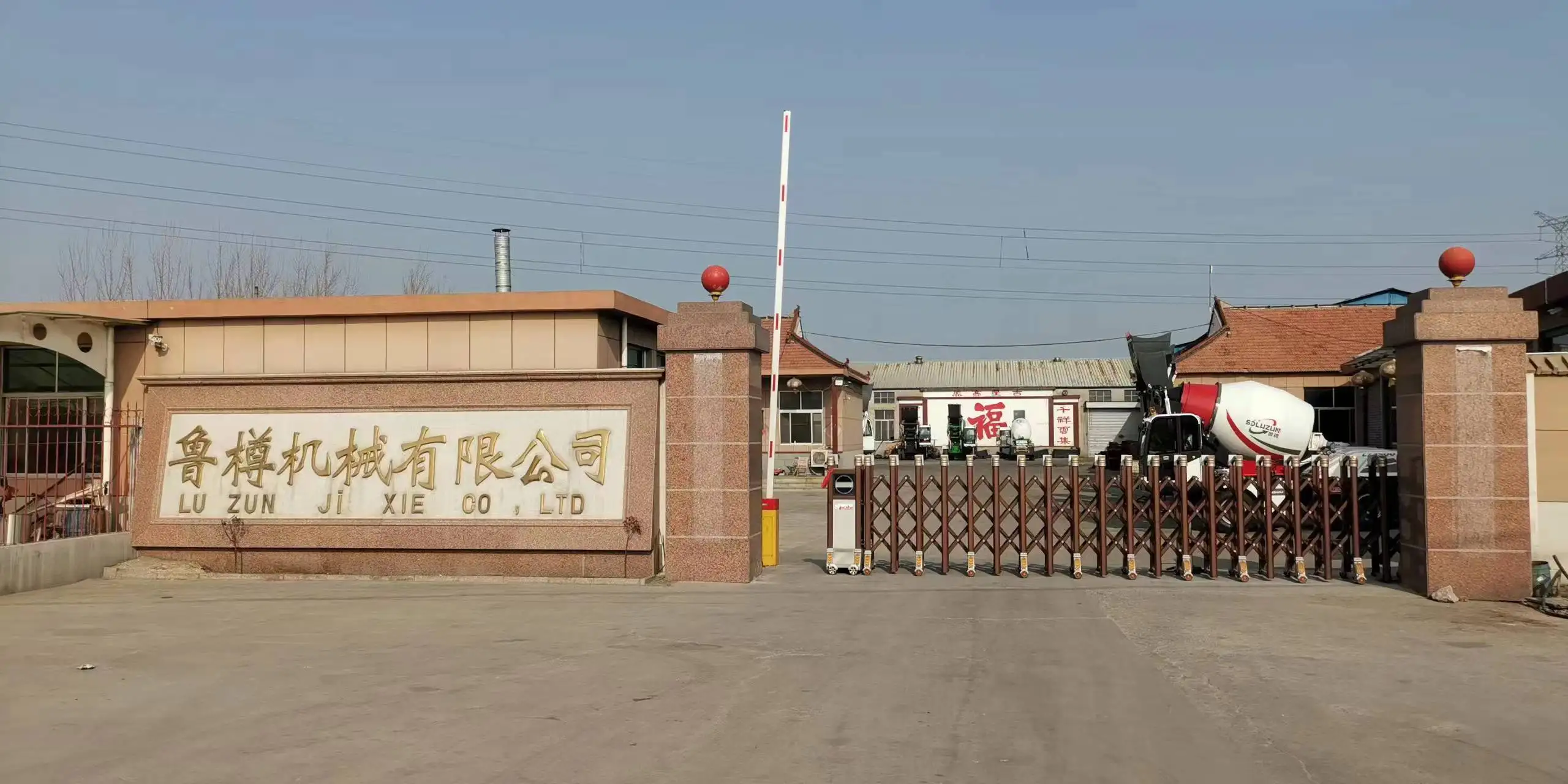

Company Profile












Certifications


As of June 2018, Luzun has experienced 17 innovations. In addition to paying attention to the performance of the equipment produced, the safety, stability and appearance of the concrete mixer truck have been further improved. As a leading enterprise in the China machinery industry, LUZUN pays more attention to the needs of customers, listens to customers' opinions and enhances product quality as the primary task. To this end, it is committed to creating technological and practical, time and effort saving, labor costs economizing, efficiency improving, reliable and stable construction machinery.





Successful Project




FAQ


Q: What is your payment term?
A: Our payment term is T/T- 30% deposit, balance paid before delivery. Or 100% irrevocable L/C at sight.

Q: How soon can you deliver the mixer after I place the order?
A: We keep fresh inventory. Most orders are delivered in less than 7 days.
If it is OEM, the order will be delivered in 15-20 days.

Q: Is your quality good?
A: We use advanced Italian technology and make improvement based on customer feedback. Till now our professional R&D team has launched 13th generation mixers and registered 24 national patents.
Besides, we successfully passed the quality certification of CCC and CE.

Q: Do you have warranty?
A: Yes, we offer one year warranty based on the confidence on our quality.

Q: Can I be your agent?
A: Sure. You are welcome to be our agent. We will provide necessary support to you.

Q: Can I get a discount?
A: We sell directly from factory. The price is better than trading companies.
But still discount is available based on the order quantity.
