Products Description

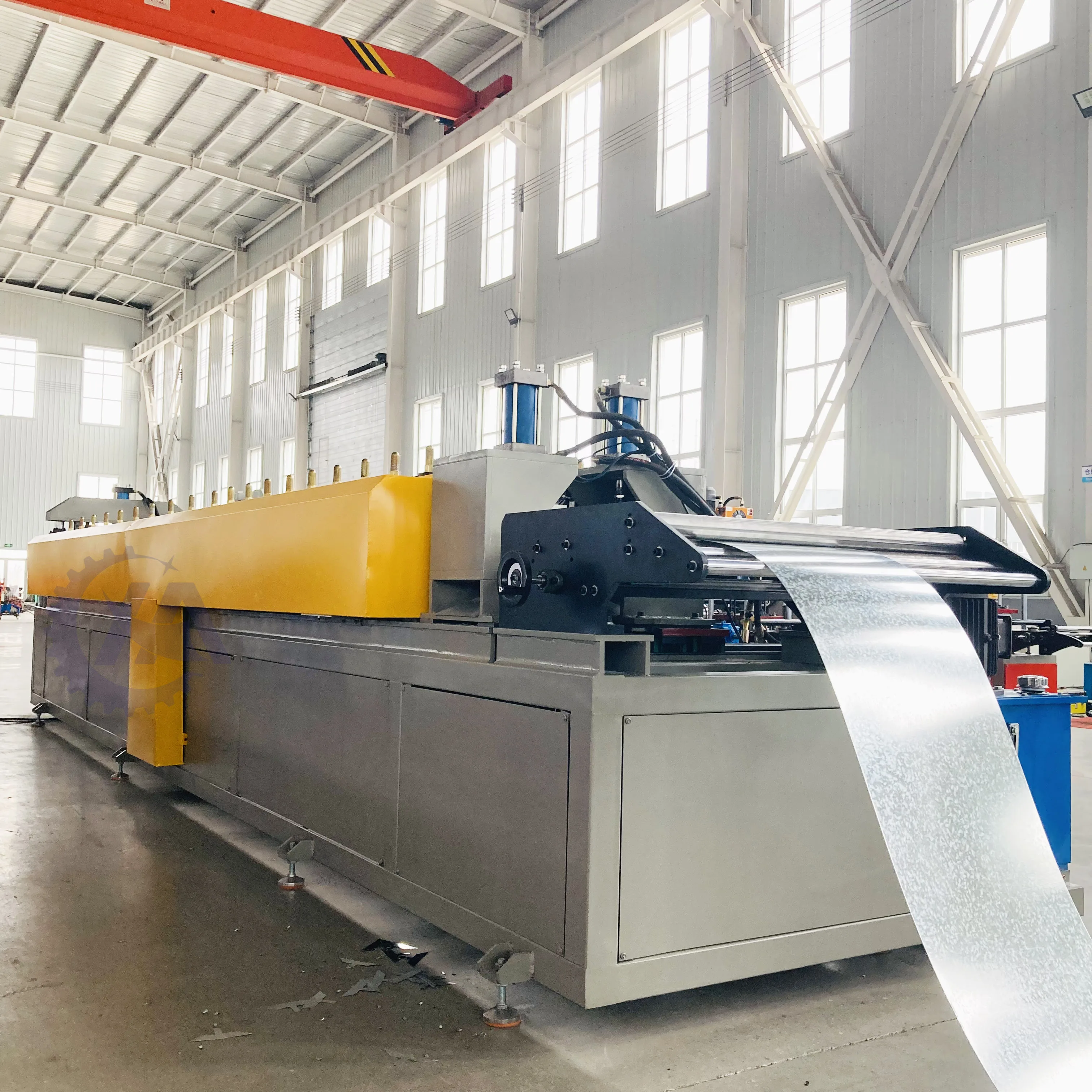

The storage pallet rack shelf roll forming machine rack decking making machine is used to produce shelf components for warehousing series, and the finished product is “shelf panel”. It is mostly used for light shelf components such as goods display, placement, and merchandise display in warehouses, supermarkets, and small and large shopping centers.
Product Paramenters
Thickness | 0.6mm (as customer's request) |
Roller station | 16-18 rows(As your requirement) |
Diameter of shaft | 70mm solid shaft |
Material of rollers | 45# steel, hard chrome plated on the surface |
Machine body frame | Metal steel welded |
Cutter | Gr12mov material, no scratches, no deformation |
Motor Power | 5.5kw |
Hydraulic system power | 5.5kw |
Voltage | 380V 50Hz 3Phase(As your requirement) |
Control system | PLC |
Forming Speed | 8-20m/min(customized) |
Process flow

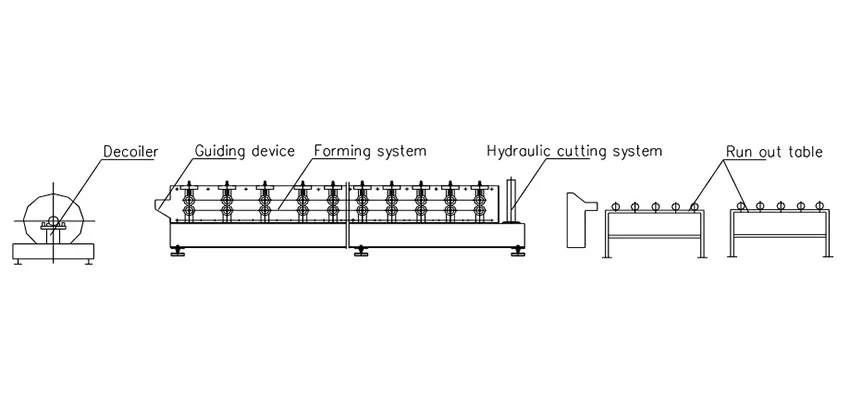

Decoiler——Guiding&Feeding——Roll Forming Machine——Hydraulic cutter——Control System——Receiving table
It is input into the machine through the feed port of the pallet rack roll forming machine, and is continuously pressed and formed by multiple rows of rollers, and finally the finished product is output. Use scissors to cut and discharge the workbench.

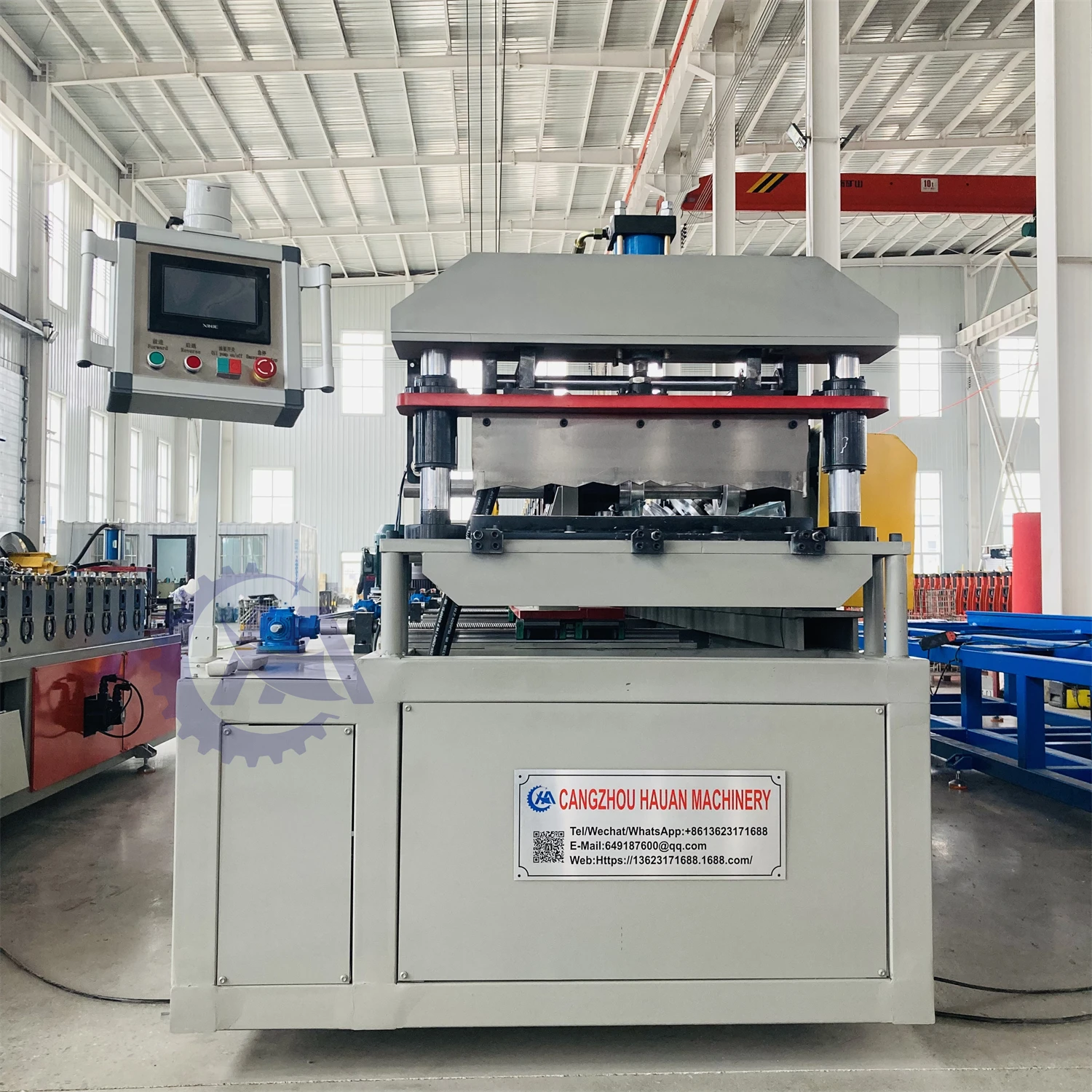

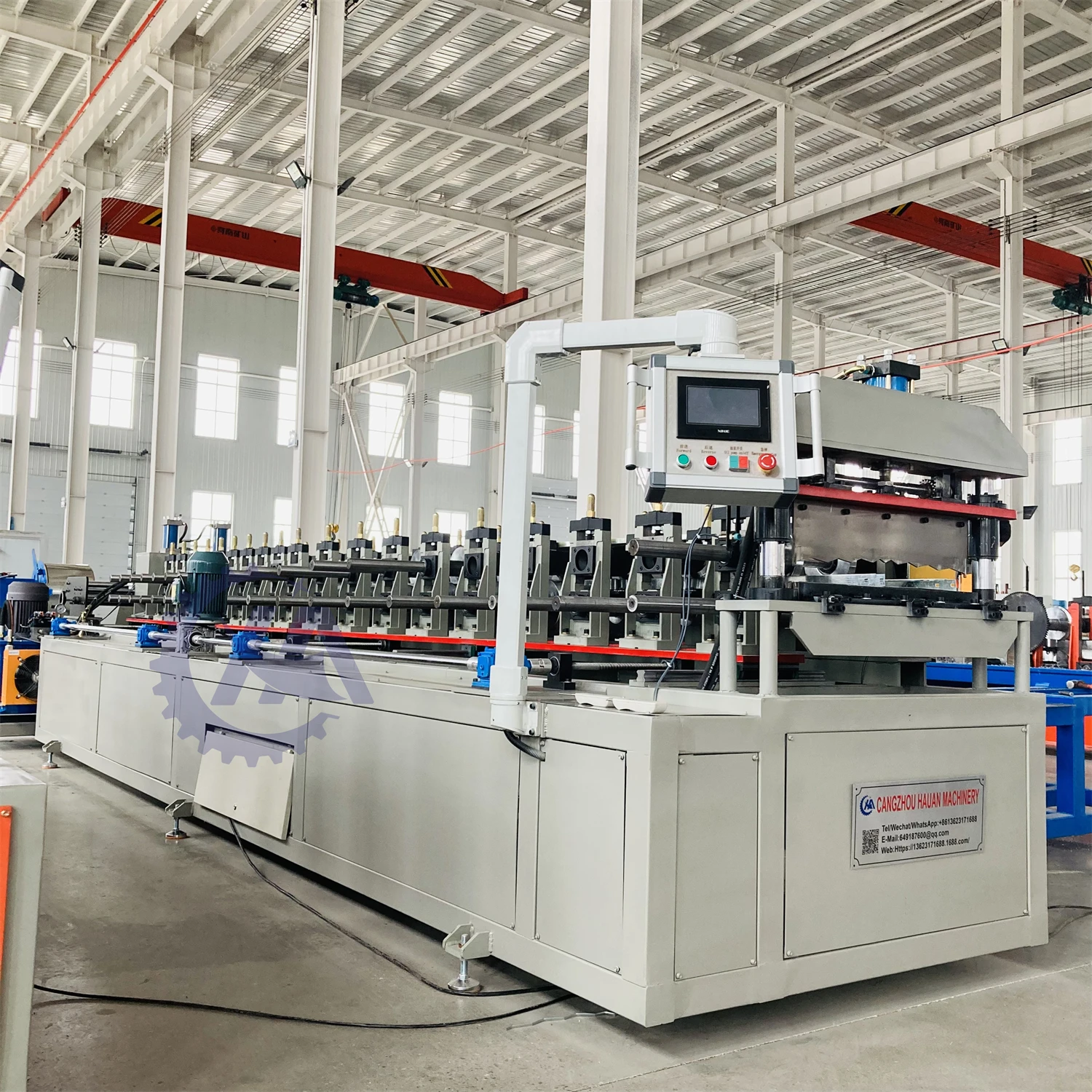

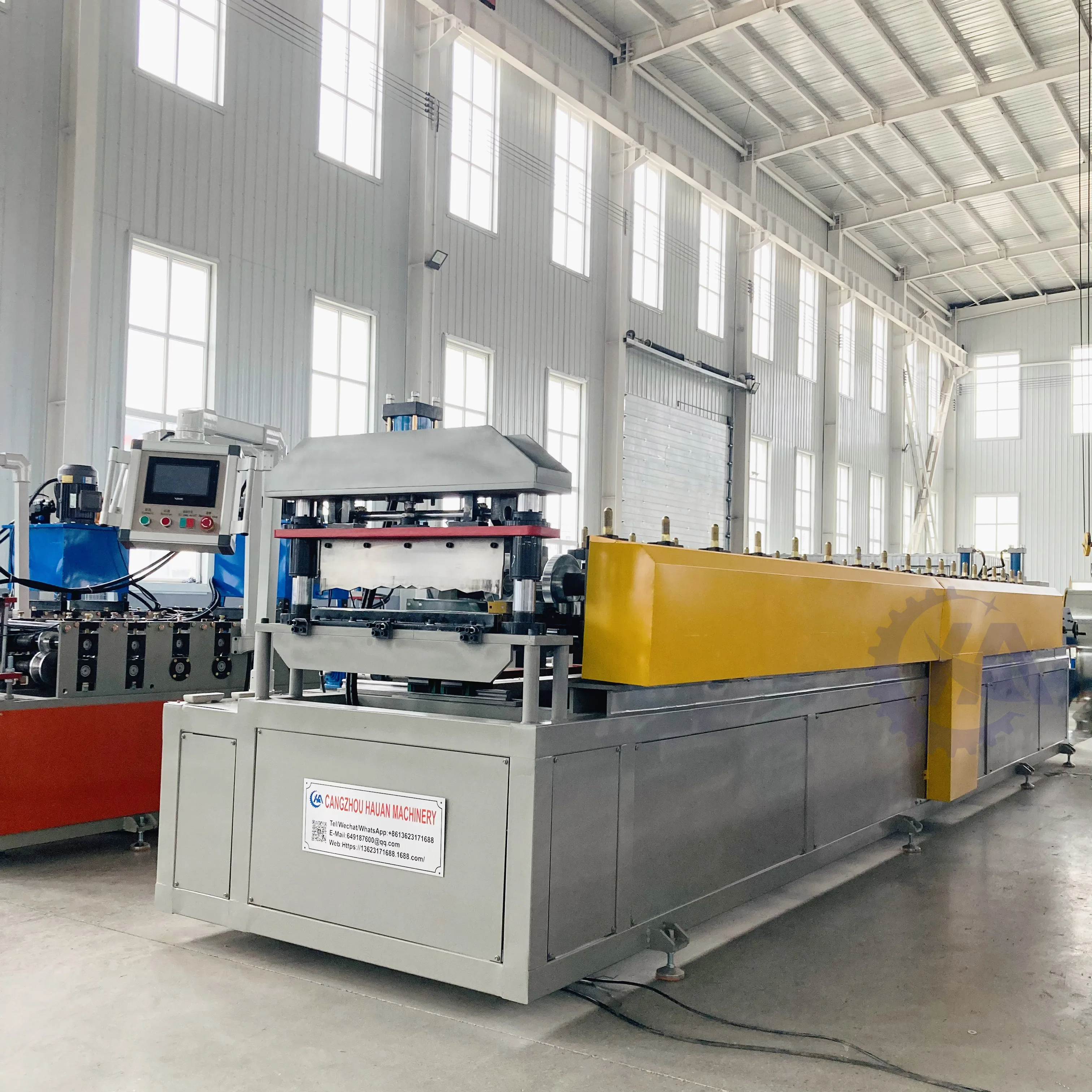

Product details
PLC control system
Hydraulic station
Cutting system
Roll former
Contact us to get discount!!!
Application

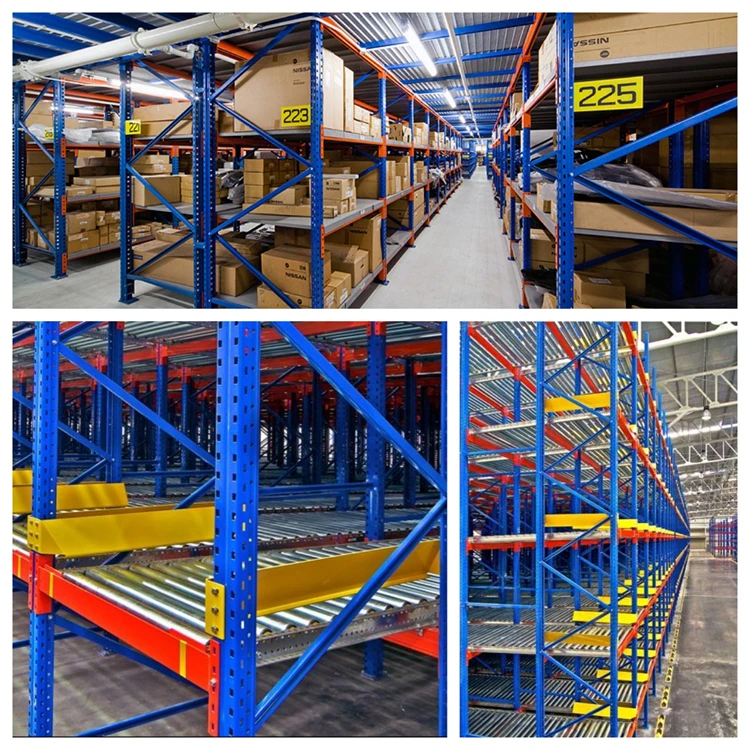

Application scenarios for the storage pallet rack shelf roll forming machine rack decking making machine

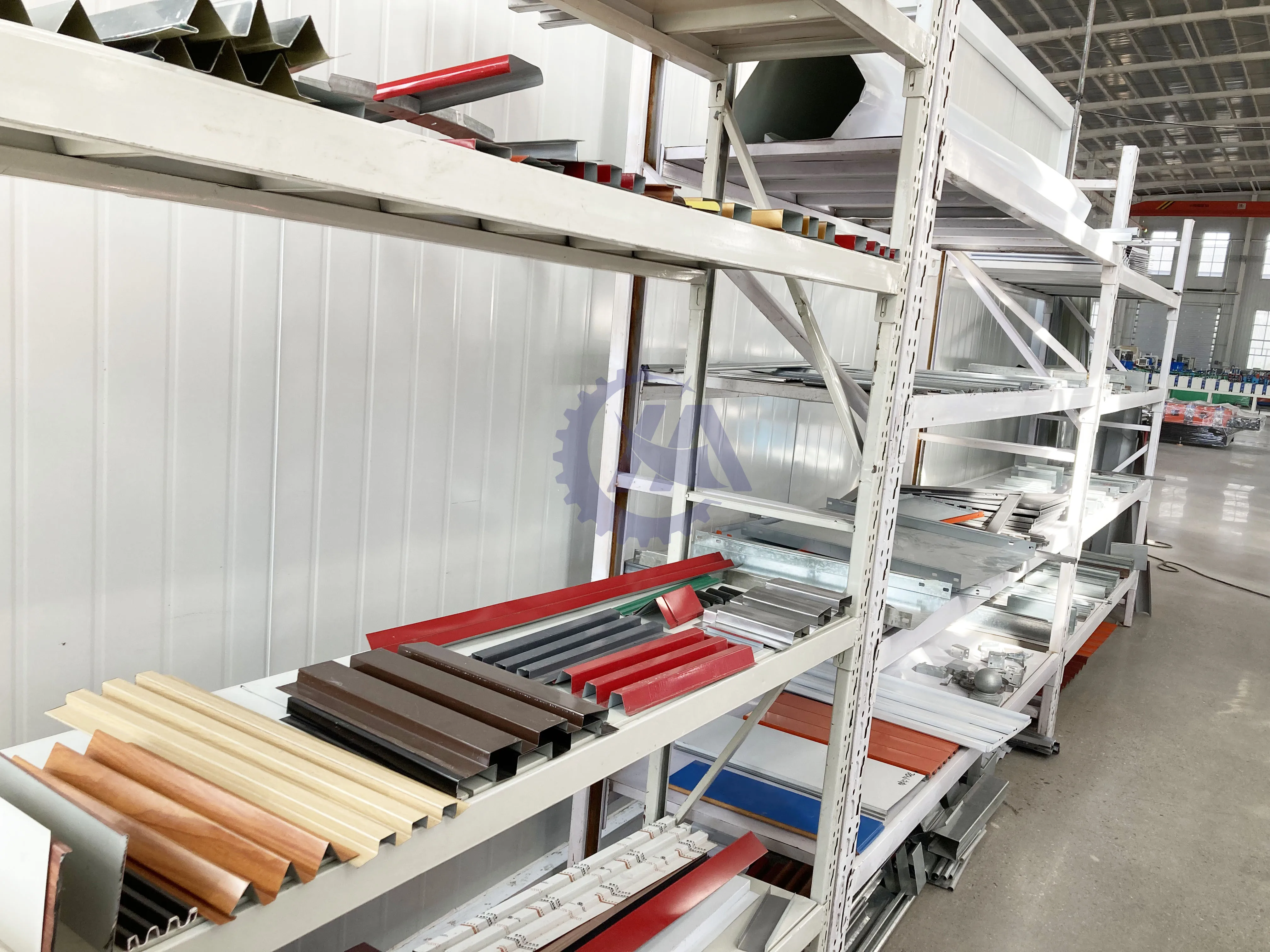

Exhibition
We have exported our machines abroad. Our oversea market include the USA, UAE, the Southeast Asia, Middle East, South America, Africa, Russia and European countries.We always provide customers with comprehensive production planning solutions, as well as comprehensive pre-sales technical guidance and after-sales free technical support services; providing customers with high-quality products, reasonable prices, fast delivery and enthusiastic services to win the market.
Company Profile
Cangzhou Hauan Roll Forming Machinery Co., Ltd.
Cangzhou Hauan Roll Forming Machinery Co., Ltd. focuses on one-stop service solutions for metal processing machinery. The factory covers an area of 6,600 square meters and currently has 50 employees, including 9 senior engineers and 6 technicians. The company has two large-scale metal processing machinery workshops. The main products are: Roof Roll Forming Machine, Decoration Forming Machine, Light Gauge Villa Roll Forming Machine, Fully Auto changeable CZ Roll Forming Machine and other related various cold bending forming machines including shearing machines and bending machines, etc.
Our machinery has the characteristics of fast processing efficiency and high precision. It has passed ISO9001 and international CE certification. We have exported our machines abroad. Our oversea market include the USA, UAE, the Southeast Asia, Middle East, South America, Africa, Russia and European countries.
Hauan Concept
Hauan company has its own professional R&D center and design team, which is responsible for equipment drawings and continuous innovation, breaking through technical difficulties, and developing new equipment; the independent finishing department and mechanical department are responsible for equipment aluminum steel structure hardware processing and ultrasonic electronic device development and power distribution; Assembly department assembly line assembly equipment. Hauan Machinery always adheres to technological innovation as its leading force, and the R&D team continues to break through technical bottlenecks. The technical content of some of its main equipment is far ahead in the industry.
We solemnly promise: All machines and equipment have a one-year warranty and lifetime maintenance. Provide free technical consultation and other related maintenance services. The company can arrange professional engineers and technicians to go to the user's site to guide installation and debugging.For more details, please feel free to contact the following salesperson at any times+8613623171688.
FAQ
Q1.You are a trade company or factory?
Cangzhou Hauan Roll Forming Machinery Co., Ltd. is a Manufacturer.
Q2:Where is your factory located?
Our factory is located in Cangzhou City, Hebei Province, China. You are warmly welcome to visit us!
Q3.Do you provide customized?Can you make the machine according to my design or prototype?
Q3.Do you provide customized?Can you make the machine according to my design or prototype?
Sure,We have an professional designer for working out the most suitable design and productionplan for the machine that you are going to book with us.We are a professional roll forming machine designer and manufacturer.
Q4.What can you do if the machine is broken?
Q4.What can you do if the machine is broken?
All machines and equipment have a one-year warranty and lifetime maintenance. Provide free technical consultation and other related maintenance services.
Q5.Can you be responsible for transport?
Q5.Can you be responsible for transport?
Yes,please tell us the destination port or address.we have rich experience in transport.
Q6.What can you buy from us?
Q6.What can you buy from us?
The main products are: Roof Roll Forming Machine, Decoration Forming Machine, Light Gauge Villa Roll Forming Machine, Fully Auto changeable CZ Roll Forming Machine and other related various cold bending forming machines including shearing machines and bending machines, etc.
Q7.How is your after-sales support?
The company can arrange professional engineers and technicians to go to the user's site to guide installation and debugging.We always provide customers with comprehensive production planning solutions, as well as comprehensive pre-sales technical guidance and after-sales free technical support services; providing customers with high-quality products, reasonable prices, fast delivery and enthusiastic services to win the market.
Q7.How is your after-sales support?
The company can arrange professional engineers and technicians to go to the user's site to guide installation and debugging.We always provide customers with comprehensive production planning solutions, as well as comprehensive pre-sales technical guidance and after-sales free technical support services; providing customers with high-quality products, reasonable prices, fast delivery and enthusiastic services to win the market.
Contact us
If you want to get more details, please feel free to contact the following salesperson at any times +8613623171688.
