WS2811 COB RGBIC Светодиодная лента 360 576 720 светодиодов/м Адресуемая гибкая WS2812B RA90 DC12V
- Категории: >>>
- Поставщик: Shenzhen,IHY,Lighting,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Specification
Wholesales 3000K 4000K 6000K White Silicone Tube LED Strip Lights 12v 24v 528 480 320 leds/m Fexible COB led strip
Item | Customize Flexible COB LED Strip |
Power | 8-12W |
Voltage | 12V |
LED qty | 392LED/M |
Overall dimensions | 500mm |
Luminous surface size | 500mm |
color | R/G/B/W |
lifespan | 50000 hours |
warranty | 2 years |
Our Superiority
We are direct manufacturer with more than 10 years experience.
High quality, prompt delivery and competitive price.
Customers first!
We possess the profesional R&D department.
Your customized design is always available.
Product Description
Specification:
Input Voltage: DC12V, DC24V.
IC Type: FCOB RGB WS2811 IC.
Wattage:
720Leds/m -----12V-12W/m, 24V-20W/m.
576Leds/m -----12V-10W/m, 24V-18W/m.
360Leds/m -----12V-9W/m
FPCB Width: 720-10/12mm, 576-10mm, 360-10mm.
LED Quantity: 720LEDs/M, 576LEDs/M, 360LEDs/M.

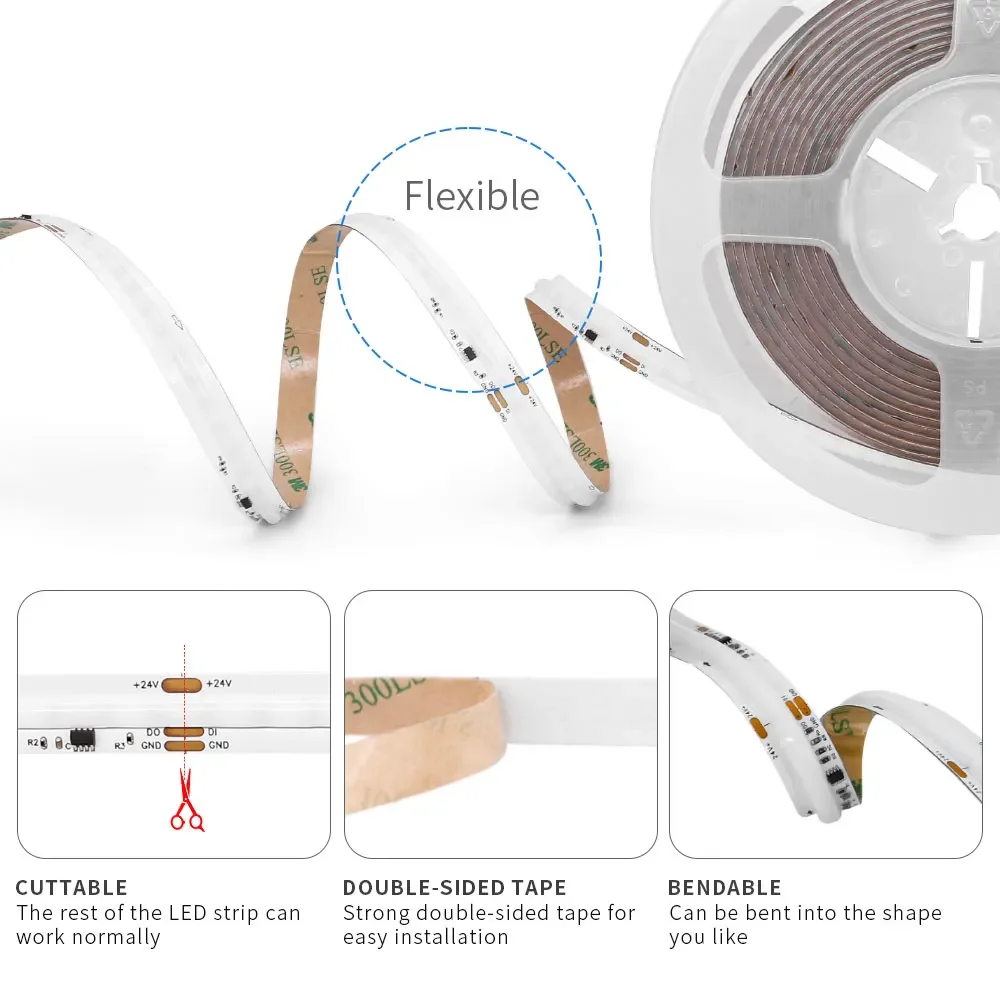

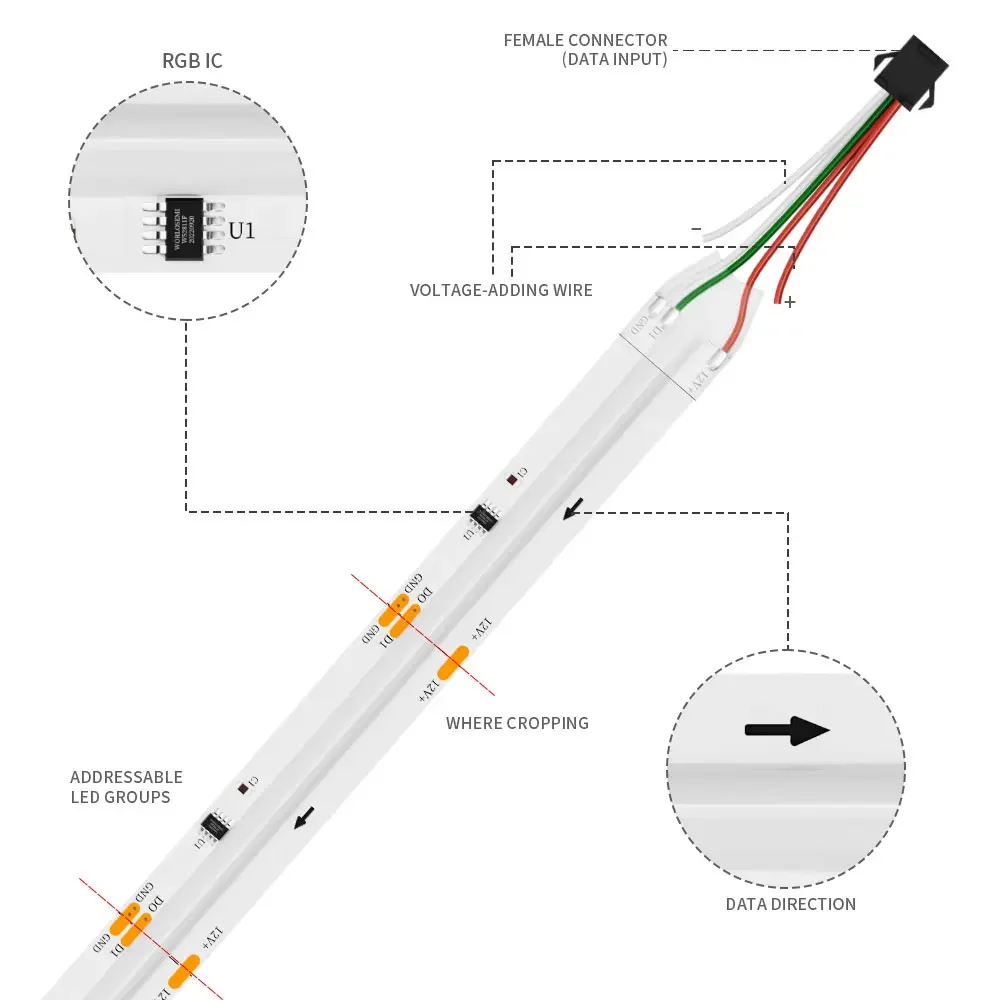

Cutting Length: 720-every 50mm, 576-every 62.5mm, 360-every 100mm.
Individually Addressable: every (720-50mm) or (576-62.5mm) can be unique controlled.
Color Rendering Index: Ra＞90.
Operation Temperature: -20℃-+45℃.
Storage Temperature: -20℃-+60℃.
View Angle: 180°.
Input Voltage: DC12V, DC24V.
IC Type: FCOB RGB WS2811 IC.
Wattage:
720Leds/m -----12V-12W/m, 24V-20W/m.
576Leds/m -----12V-10W/m, 24V-18W/m.
360Leds/m -----12V-9W/m
FPCB Width: 720-10/12mm, 576-10mm, 360-10mm.
LED Quantity: 720LEDs/M, 576LEDs/M, 360LEDs/M.
Cutting Length: 720-every 50mm, 576-every 62.5mm, 360-every 100mm.
Individually Addressable: every (720-50mm) or (576-62.5mm) can be unique controlled.
Color Rendering Index: Ra＞90.
Operation Temperature: -20℃-+45℃.
Storage Temperature: -20℃-+60℃.
View Angle: 180°.
Advantages:
1. Chips are arranged in a linear way, integrated package, with uniform light color and no light spot;
2. High thermal conductivity flexible circuit board design, can be bent at will, convenient for installation;
3. The LED chip is directly mounted on the FPC, and the luminous angle can reach 180 degrees;

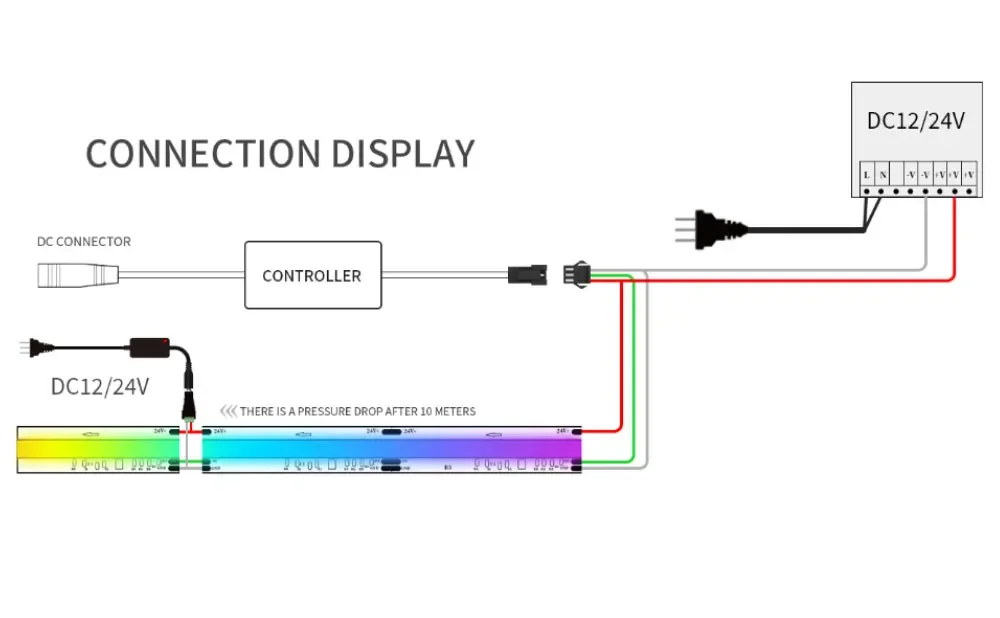

4. DC12V 24V constant voltage design, safe low voltage, low voltage drop, standard cascade 5m;
5. The back is pasted with high viscosity heat conduction double-sided adhesive tape, which is convenient for installation and
firm and durable for pasting;
6. LED light source, energy-saving and environmental protection, in line with national environmental standards.
1. Chips are arranged in a linear way, integrated package, with uniform light color and no light spot;
2. High thermal conductivity flexible circuit board design, can be bent at will, convenient for installation;
3. The LED chip is directly mounted on the FPC, and the luminous angle can reach 180 degrees;
4. DC12V 24V constant voltage design, safe low voltage, low voltage drop, standard cascade 5m;
5. The back is pasted with high viscosity heat conduction double-sided adhesive tape, which is convenient for installation and
firm and durable for pasting;
6. LED light source, energy-saving and environmental protection, in line with national environmental standards.

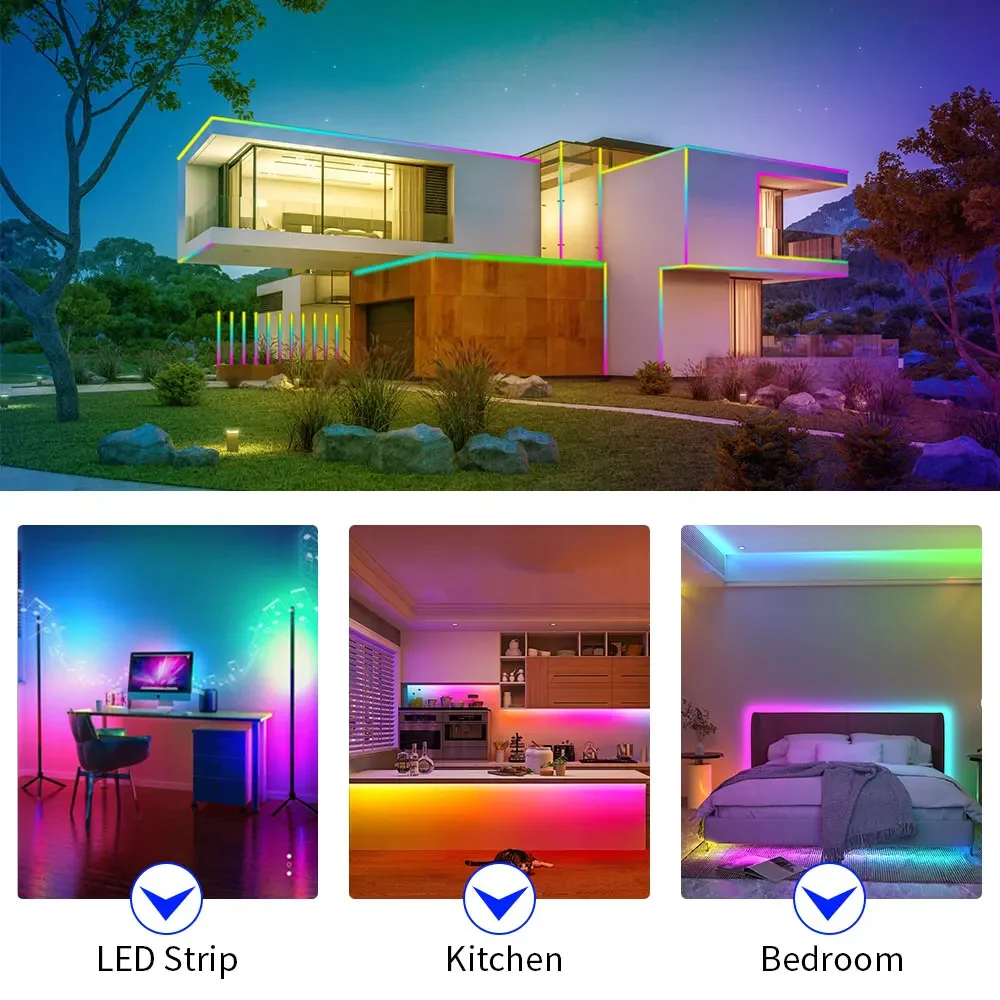

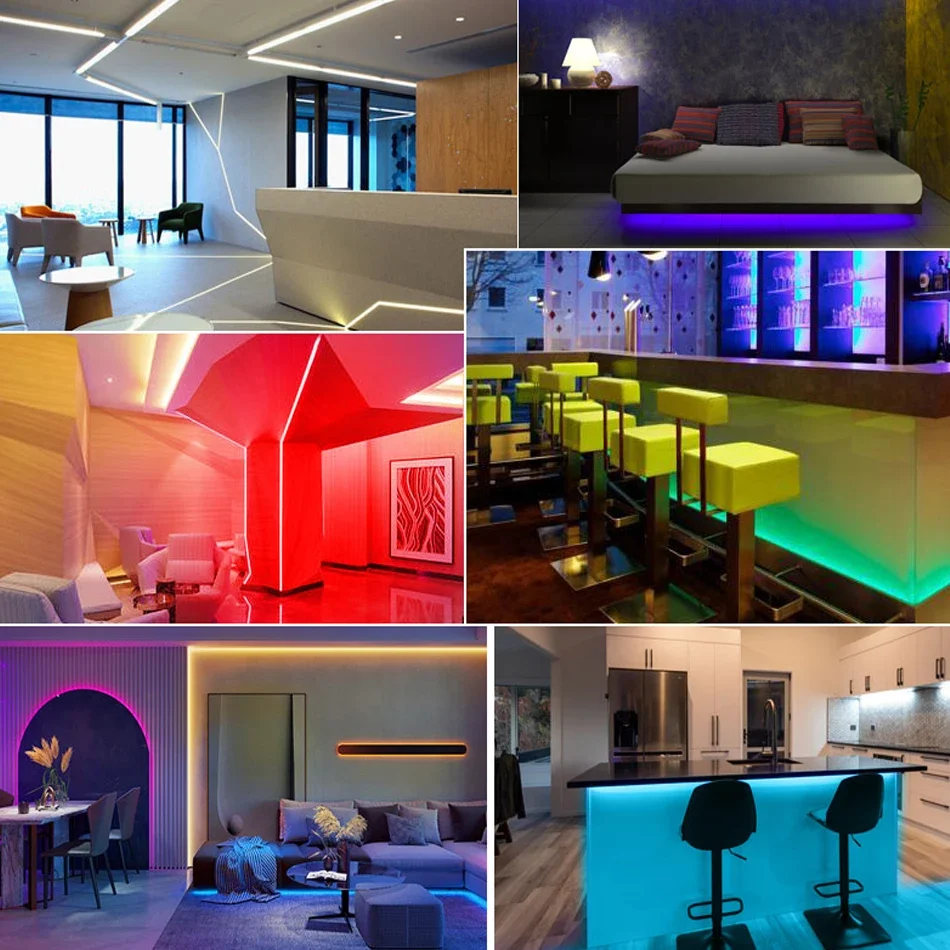

Applications
Quality control
Company Information
FAQ
Q1. Can I have a sample order for flexible cob led strip ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for flexible cob led strip order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for flexible cob led strip?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on flexible cob led strip?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the flexible cob led strip?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
If you need further information about our products, please do not hesitate to contact with us!
