Оптовая продажа 4 2 кВт 24 В 6 48 220 встроенное зарядное устройство 120 А MPPT контроллер заряда чистый синусоидальный Гибридный солнечный
- Категории: >>>
- Поставщик: Shenzhen,Jieyin,New,Energy,Technology,Industry,Co.,Ltd.Shenzhen,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
High Frequency 6.2KW 48V 220V Inverter Charger Built-in 120A MPPT Charge Controller Pure Sine Wave 6200W Hybrid Solar Inverter
Inverter Main Spec:
PF=1.0, 6.2KW Rated Power, Dual AC Output
6500W PV Array Power
220/230VAC Output, 50/60Hz Auto
48VDC Battery System, ONLY Support PACE BMS Communication
Built in 120A MPPT, MPPT Voc 500Vdc
Warranty 1 Year
6500W PV Array Power
220/230VAC Output, 50/60Hz Auto
48VDC Battery System, ONLY Support PACE BMS Communication
Built in 120A MPPT, MPPT Voc 500Vdc
Warranty 1 Year
This is a multi-function inverter/charger, combining functions of inverter, solar charger, and battery charger to offer uninterruptible power support with portable size.
Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
The solar charging module applies the latest optimized MPPT technology to quickly track the maximum power point of the PV array in any environment and obtain the maximum energy of the solar panel in real time and output pure sine wave to convert DC into AC.

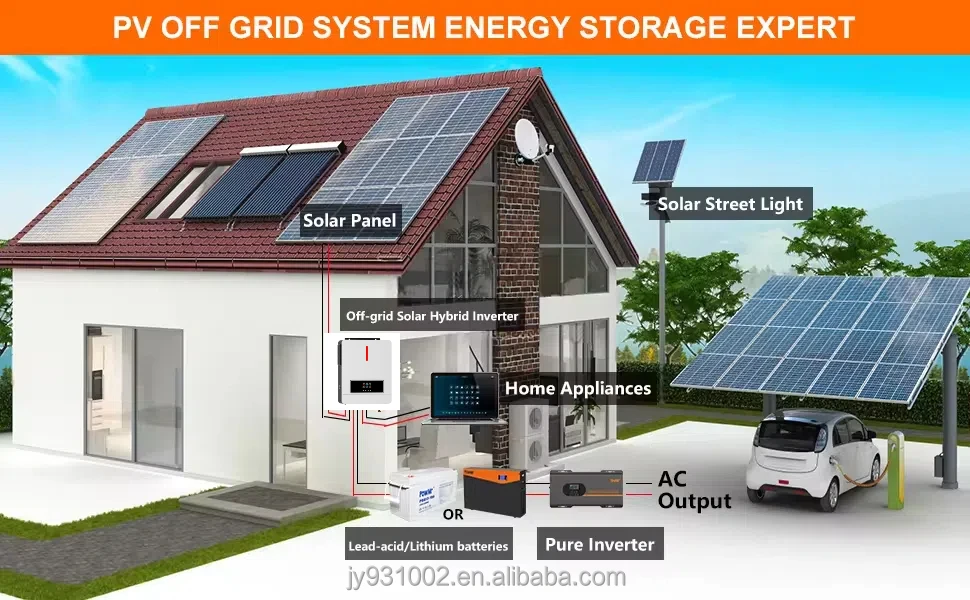

It can be widely used in DC to AC areas, such as solar AC power system, vehicle system, RV power supply, security monitoring system, emergency lighting system, field power system, household power system, etc.
Features
•Pure sine wave inverter
•Configurable input voltage range for home appliances and personal computers via LCD setting
•Configurable battery charging current based on applications via LCD setting
•Configurable AC/Solar Charger priority vía LCD setting
•Compatible to mains voltage or generator power
•Auto restart while AC is recovering
• Overload/ Over temperature/ short circuit protection
•Smart battery charger design for optimized battery performance
•Cold start function
•Configurable input voltage range for home appliances and personal computers via LCD setting
•Configurable battery charging current based on applications via LCD setting
•Configurable AC/Solar Charger priority vía LCD setting
•Compatible to mains voltage or generator power
•Auto restart while AC is recovering
• Overload/ Over temperature/ short circuit protection
•Smart battery charger design for optimized battery performance
•Cold start function
Specification
Model Name | MPS-VIII ECO 4.2KW | MPS-VIII ECO 6.2KW | ||
Inverter Output | ||||
Rated Output Power | 4200W | 6200W | ||
Max Peak Power | 8400VA | 10,000VA | ||
Rated Output Voltage | Single Phase 230Vac | |||
Rated AC Frequency | 50/60Hz | |||
Waveform | Pure Sine Wave | |||
Switch Time | 10ms(for personal computer), 20ms(for home appliances) | |||
Battery | ||||
Battery Type | Li-ion/Lead-Acid / User Defined | |||
Rated Battery Voltage | 24Vdc | 48Vdc | ||
Floating Charge Voltage | 27Vdc | 54Vdc | ||
Over Charge Protection | 31Vdc | 61Vdc | ||
Max MPPT Charging Current | 100A | 100A | ||
Max Mains/Generator Charging Current | 40A | 50A | ||
Max Hybrid Charging Current | 120A | |||
PV INPUT | ||||
Nr. of MPPT Trackers | 1 | |||
Max PV Array Power | 6200W | 6500W | ||
Open Circuit Voltage | 500Vdc | |||
MPPT Voltage Range | 90-450Vdc | |||
MAINS/GENERATOR INPUT | ||||
Input Voltage Range | 90~280Vac or 170~280Vac | |||
Frequency Range | 50/60Hz | |||
EFFICIENCY | ||||
Max Inverter Efficiency | 98% | |||
GENERAL | ||||
Dimension | 405X286X98mm | 423X290X100mm | ||
Net Weight | 10.5KG | 11KG | ||
Protection Degree | IP20, Indoor Use Only | |||
Operating Temperature Range | -10-55℃ | |||
Noise | ≤60dB | |||
Cooling Method | Fan Cooling | |||
Warranty | 12 Months | |||
COMMUNICATION | ||||
Embedded Interface | RS485/RS232 | |||
External Module(Optional) | Wifi | |||
CERTIFICATION | ||||
Safety | IEC62109-1, IEC62109-2 | |||
EMC | EN61000 | |||
Company Profile
Certifications
Q: Do you have your own factory? 2022 Factory direct sale 300W Multifunctional Power Bank Portable Power Station
A: Yes, we are anintegrated R & D and production company.we have been in this industry since from 2014.
Q: Can we make our own brand logo?
A: Yes, we can do OEM customization, such as print your logo,change the packing box,change the user manual and provide you withthe design of the outer packaging.
.
Q:Do you have any certifications?
A: Iso9001/ts16949 quality management system, ISO14001 environmental management system certification, CE, UL, RoHS and othercertifications.
Q: How about your quality?
A: With 15 years of R & D and production capacity,we have passed the iso9001/ts16949 quality management system certification, andthe quality is fully guaranteed.
Q: Can you give the goods to my agent or freight forwarder in China?
A: Yes, we can.
Q:Can you recommend some popular products in China?
A: Yes, you can always contact us for the latest information 2022
Q:How to guarantee after sale?
A:We will inspect all products before delivery and provide a 12-month product warranty. If the item was found with defectiveduring warranty, you can contact us immediately, we would like to help you solve the problem in the first place.
Q: Can we make our own brand logo?
A: Yes, we can do OEM customization, such as print your logo,change the packing box,change the user manual and provide you withthe design of the outer packaging.
.
Q:Do you have any certifications?
A: Iso9001/ts16949 quality management system, ISO14001 environmental management system certification, CE, UL, RoHS and othercertifications.
Q: How about your quality?
A: With 15 years of R & D and production capacity,we have passed the iso9001/ts16949 quality management system certification, andthe quality is fully guaranteed.
Q: Can you give the goods to my agent or freight forwarder in China?
A: Yes, we can.
Q:Can you recommend some popular products in China?
A: Yes, you can always contact us for the latest information 2022
Q:How to guarantee after sale?
A:We will inspect all products before delivery and provide a 12-month product warranty. If the item was found with defectiveduring warranty, you can contact us immediately, we would like to help you solve the problem in the first place.
