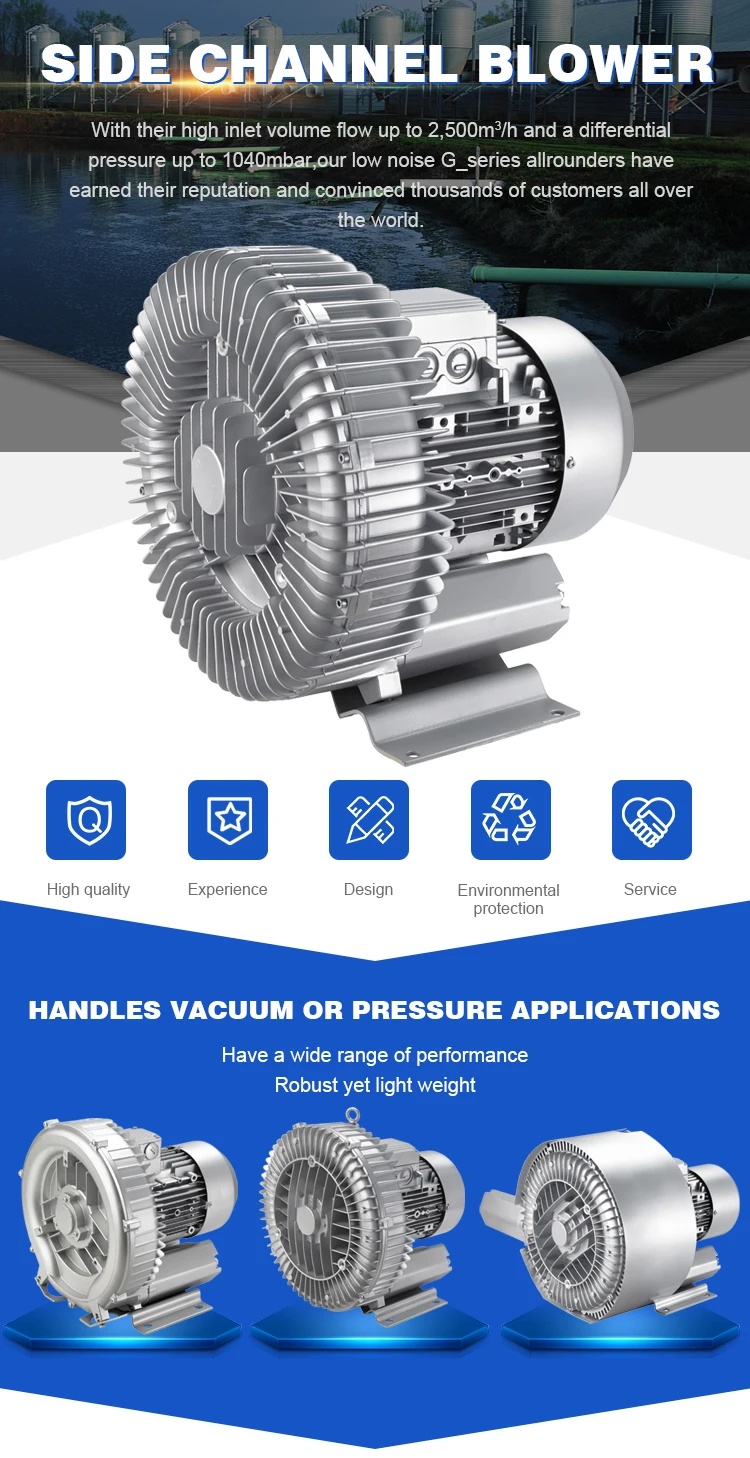

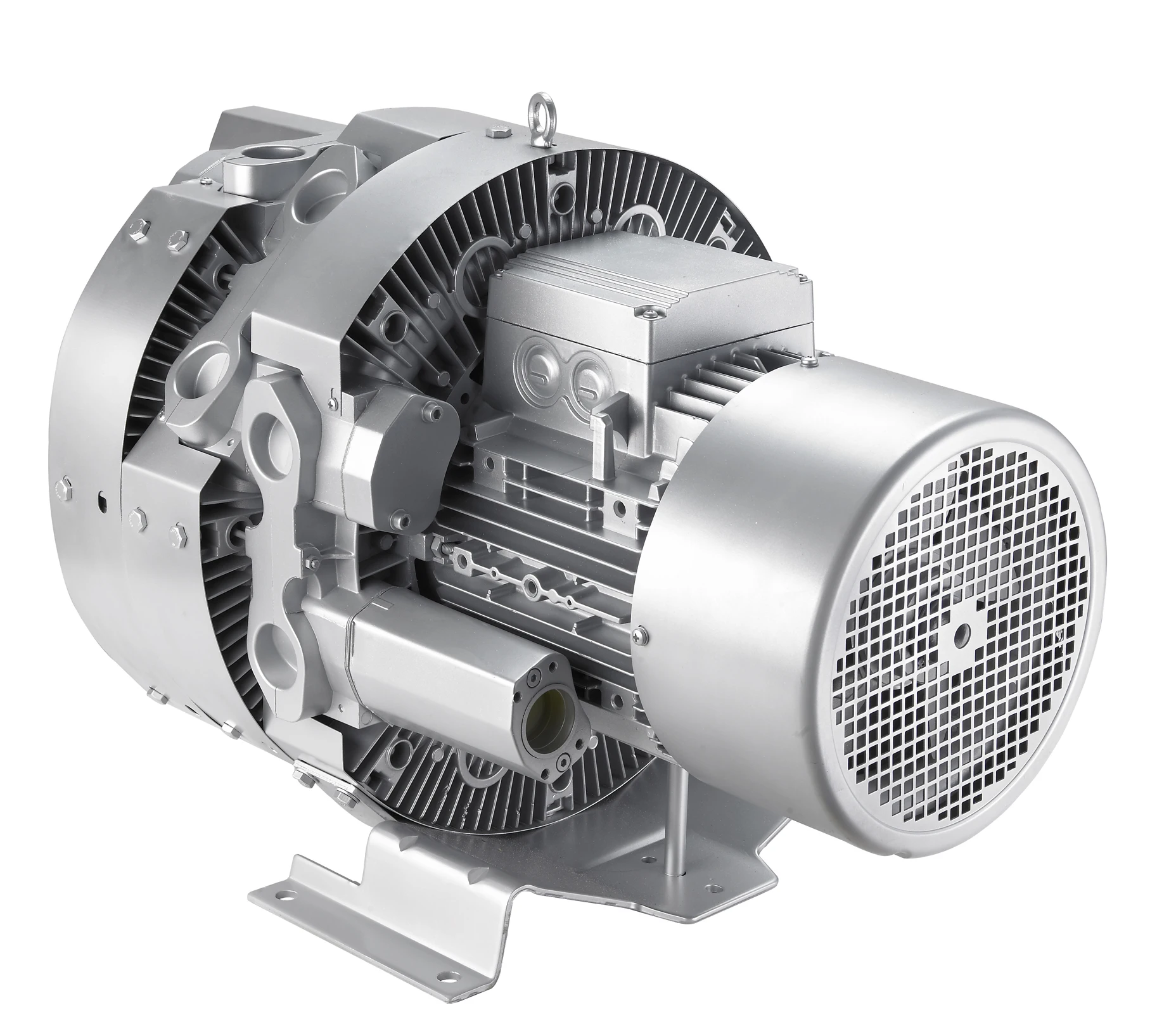

Электрический воздушный насос высокого давления 2RB кольцевой промышленный вентилятор с боковым
- Категории: >>>
- Поставщик: Shanghai,Zhangoco,Electric,Appliances,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
01
Not Cover
Uniform color and not easy to remove paint.
02

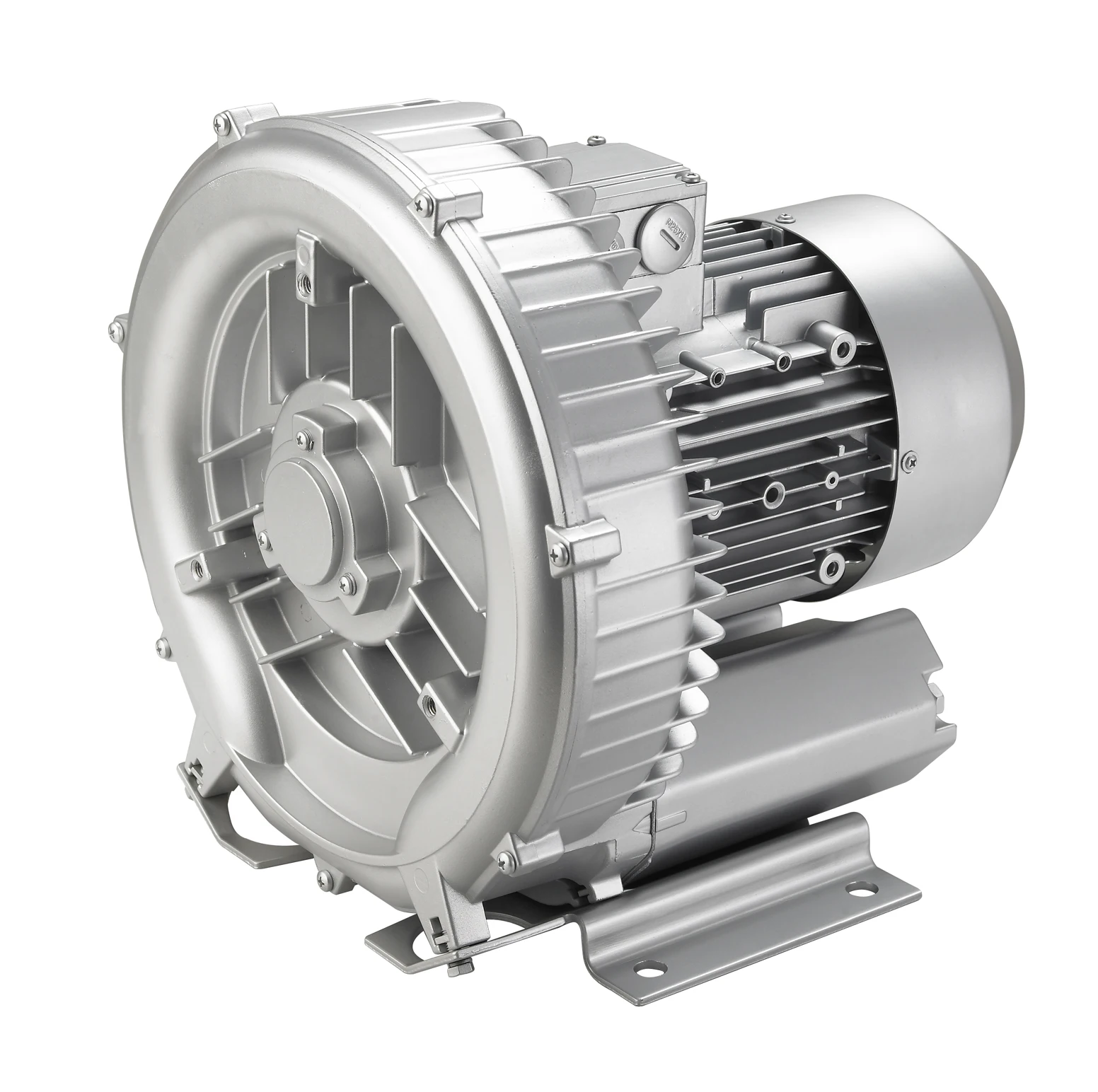

Aluminum Shell
The shell is made of aluminum and professional turner.
Precise and firm,not fragile, and resistant to bumping.
Fire resistant and resistant to decay.
03
Junction Box
Tight connection, compact appear-
ance and high quality.
High quality and long service life.
04
Inlet And Outlet
The inlet and outlet are equipped with filter screen for effective
filtration.
Blocking impurities, keep the fan interior clean.
Model | Frequency | Output | Voltage | current | Max airflow | Max vacuum | Max pressure | |
Hz | Kw | V | A | m3/h | mbar | mbar | ||
2RB 910 H07 | Single | 50 | 8.5 | 345-415Δ 600-720Y | 18.2Δ/10.5Y | 1050 | -210 | 210 |
60 | 9.8 | 380-480Δ 660-720Y | 18.2Δ/10.5Y | 1250 | -170 | 170 | ||
2RB 910 H17 | Single | 50 | 12.5 | 345-415Δ 600-720Y | 28.0Δ/16.2Y | 1050 | -280 | 270 |
60 | 14.5 | 380-480Δ 660-720Y | 29.0Δ/16.7Y | 1250 | -270 | 260 | ||
2RB 910 H37 | Single | 50 | 18.5 | 345-415Δ 600-720Y | 37.0Δ/21.0Y | 1050 | -340 | 460 |
60 | 21.3 | 380-480Δ 660-720Y | 39.0Δ/22.5Y | 1250 | -380 | 420 | ||
2RB 930 H07 | Single | 50 | 8.5 | 345-415Δ 600-720Y | 18.2Δ/10.5Y | 1370 | -120 | 110 |
60 | 9.8 | 380-480Δ 660-720Y | 18.2Δ/10.5Y | 1650 | -80 | 70 | ||
2RB 930 H17 | Single | 50 | 12.5 | 345-415Δ 600-720Y | 28.0Δ/16.2Y | 1370 | -210 | 190 |
60 | 14.5 | 380-480Δ 660-720Y | 29.0Δ/16.7Y | 1650 | -170 | 160 | ||
2RB 930 H37 | Single | 50 | 18.5 | 345-415Δ 600-720Y | 37.0Δ/21.0Y | 1370 | -310 | 320 |
60 | 21.3 | 380-480Δ 660-720Y | 39.0Δ/22.5Y | 1650 | -300 | 280 | ||
2RB 920 H17 | Double | 50 | 12.5 | 345-415Δ 600-720Y | 28.0Δ/16.2Y | 1110 | -300 | 370 |
60 | 14.5 | 380-480Δ 660-720Y | 29.0Δ/16.7Y | 1310 | -220 | 200 | ||
2RB 920 H27 | Double | 50 | 16.5 | 345-415Δ 600-720Y | 35.0Δ/20.0Y | 1110 | -420 | 370 |
60 | 19 | 380-480Δ 660-720Y | 36.5Δ/21.0Y | 1310 | -340 | 300 | ||
2RB 920 H37 | Double | 50 | 20 | 345-415Δ 600-720Y | 40.0Δ/23.0Y | 1110 | -440 | 500 |
60 | 23 | 380-480Δ 660-720Y | 42.0Δ/24.2Y | 1310 | -400 | 430 | ||
2RB 920 H47 | Double | 50 | 25 | 345-415Δ 600-720Y | 52.0Δ/30.0Y | 1110 | -450 | 590 |
60 | 29 | 380-480Δ 660-720Y | 52.0Δ/30.0Y | 1310 | -450 | 540 | ||
2RB 940 H27 | Double | 50 | 15 | 345-415Δ 600-720Y | 35.0Δ/20.0Y | 1940 | -130 | 110 |
60 | 17.5 | 380-480Δ 660-720Y | 36.5Δ/21.0Y | 2310 | -60 | 40 |
Founded in 2004, Shanghai Zhangoco Electric Appliances Co.,Ltd is a company specializing in making air fluid equipment(compression and vacuum pumps).After 20 years development, we have become a professional manufacturer who is mainly committed to producing side channel blowers plus other kinds of air fluid equipments (vacuum pumps and compressors), forming the complete structure merging with R&D, production, sales and services. We have become the No.1 manufacturer in China and the leading manufacturer in the world in the industry of side channel blowers.
1.Shanghai Zhangoco Electric Appliance Co., ltd with three factories andoccupying more than 108,000 square meters, has powerful research anddevelopment techniques and advanced machining equipments. |
2.More than 300 production equipments, including 10 more die casting machines,80 more advanced CNC machines which were directly importedfrom German and Japan, many kinds of high precision measurement instruments and devices,more than 70 testing equipments. |

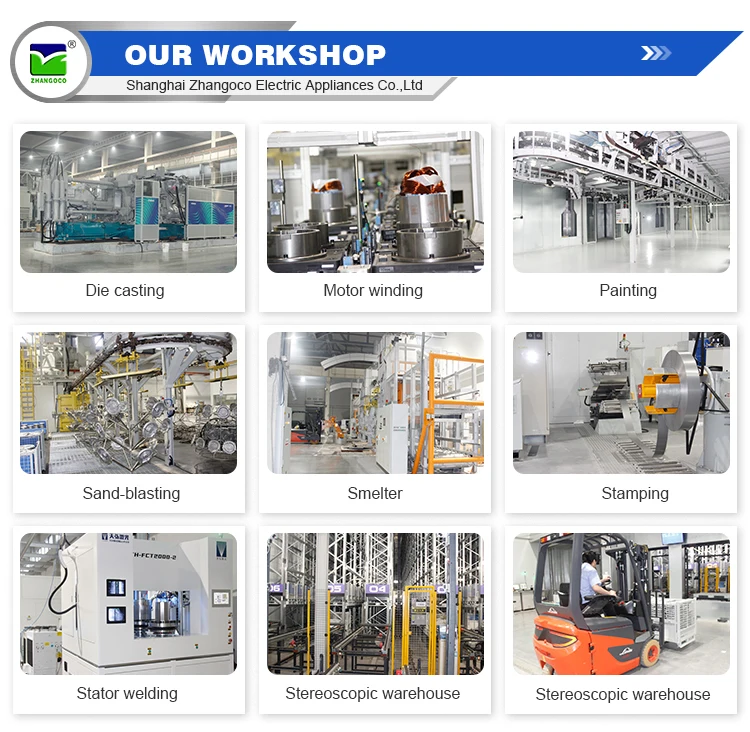

3.We always upholds the philosophy that it should have the integratedproduction and management, containing the whole process of design anddevelopment, tooling making, die casting, stamping, high precision machining, assembling and automatic spraying. |
4.Company newly builds a modernized automatic-spraying and electro-coating production line for spare parts. By using this production line,every part should be electro-coated and thus the quality of our products areable to be controlled very well and improved increasingly. |
Q1: How to select a correct model of ring blower?
A1: Please check and advise the max airflow and max pressure of ring blower you need.
Q2: What is the material of your machine , is oil free?
A2: Our blower is aluminum alloy, motor is 100% copper coil . Yes,we are oil free.
Q3: How to operate your machine?
A3: Connect with wire, and turn on the power, so you can use it directly, about the wiring method, we will tell you how to do according to your voltage, so at first , you need to tell us your voltage and phase,its important.
Q4: You are trading company or manufacture?
A4: We have our own factory and international department. We produce and sell all by ourselves.
Q5: How to guarantee the quality and after sales service of your goods?
A5: 1).Strict detection during production.
2).Strict inspection on each product before shipment and intact product packaging are insured.
3).Follow up and adopt customers feedbacks in a timely manner after sales.
Q6: Is it OK to print my logo on pumps product?
A6:Yes. Please inform us formally before our production and confirm the design
firstly based on our sample.
firstly based on our sample.
